BFM400 Emergency Microphones

Fully-monitored emergency fire microphones providing a wide range of features

BFM400 is a range of fully monitored Emergency Fire Microphones for the VIGIL voice alarm system.

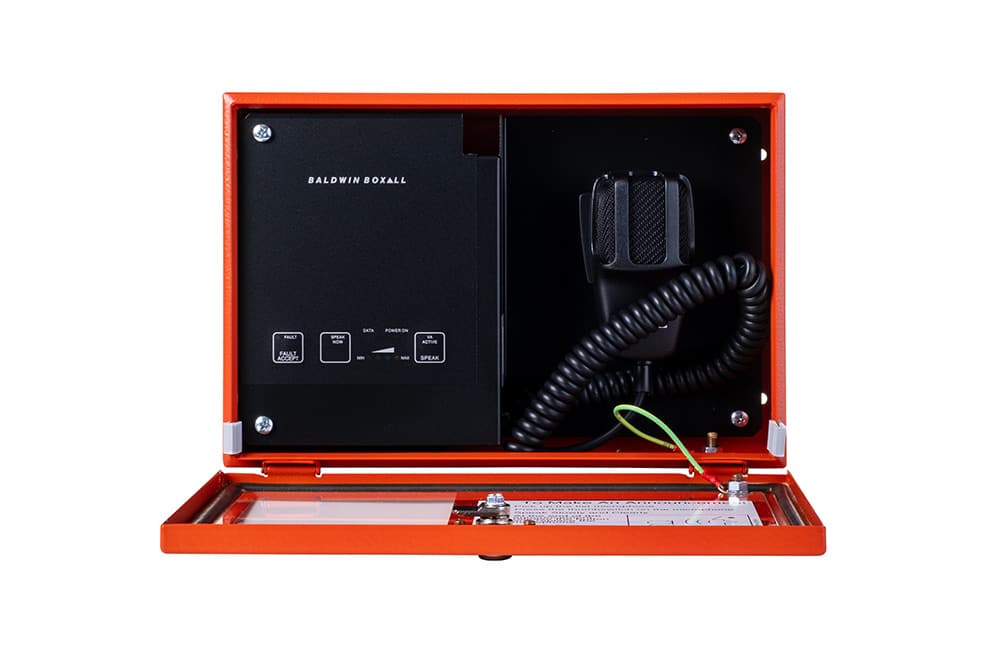

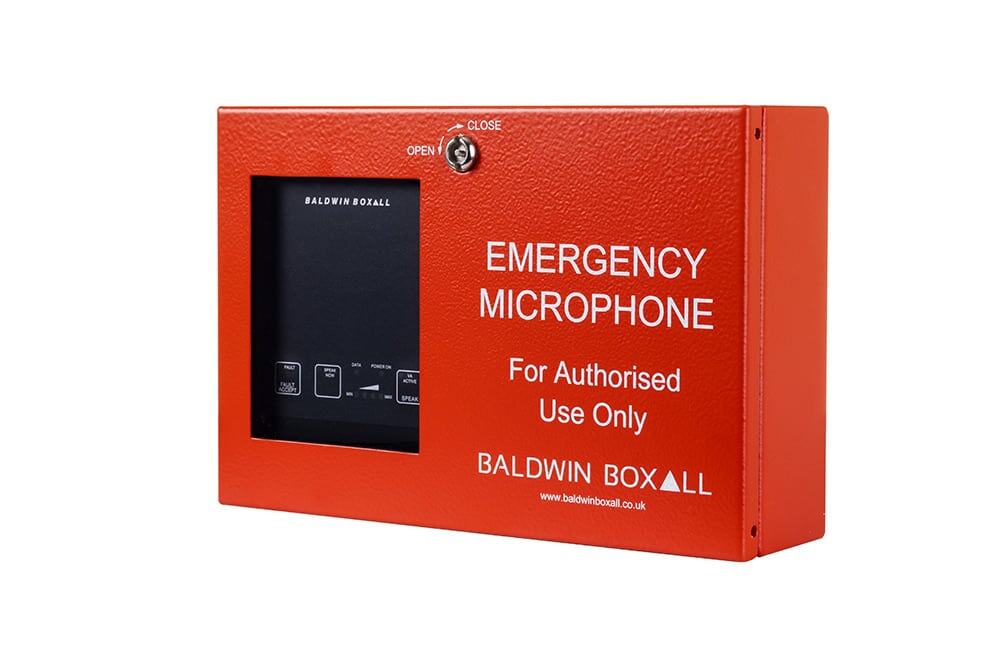

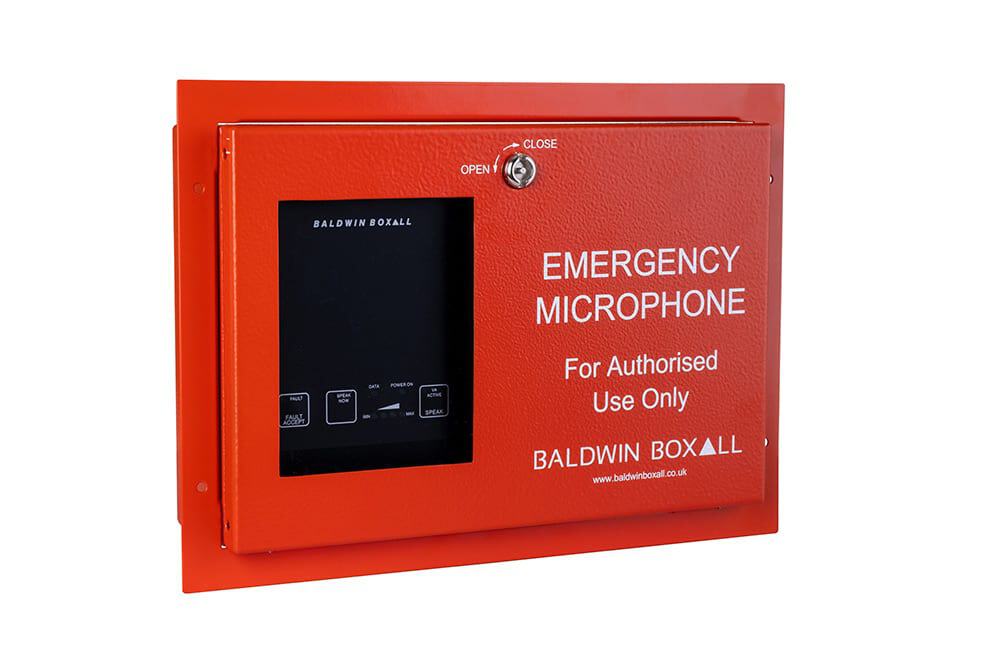

Baldwin Boxall Emergency Fire Microphones are housed in a robust, lockable steel enclosure and include a rugged, fist-held microphone console.

The main panel buttons and indicators are protected by an overlay which allows for zone labels to be inserted for easy and quick button identification.

With a ‘speak now’ indicator and a simple bar graph display which indicates the current speaking volume, users can ensure a clear announcement is made.

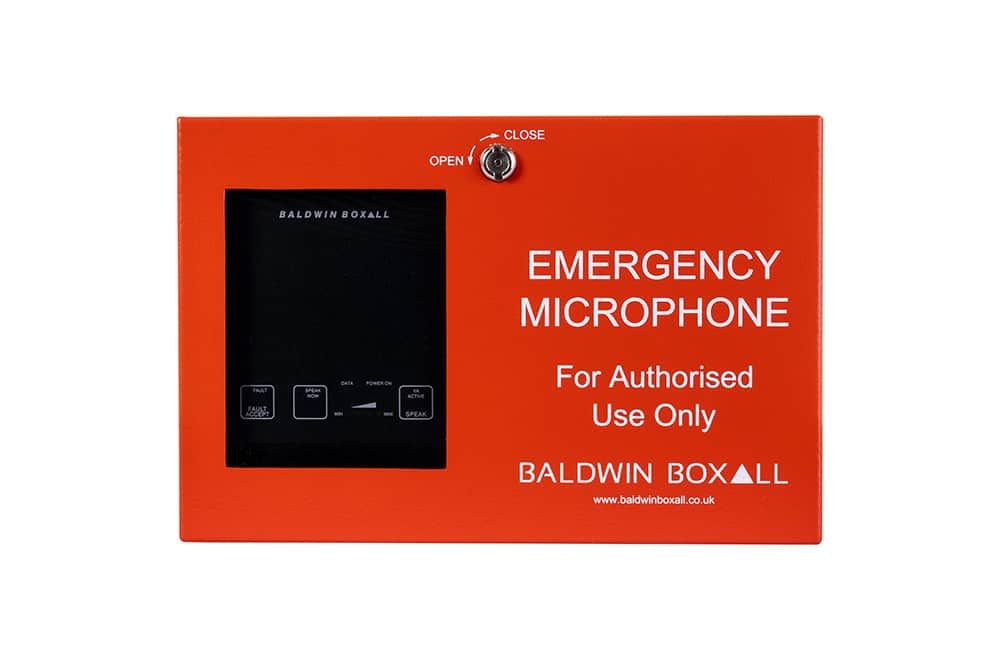

  • Single zone BFM401 can be set to connect via RS485 or a parallel hard-wired connection

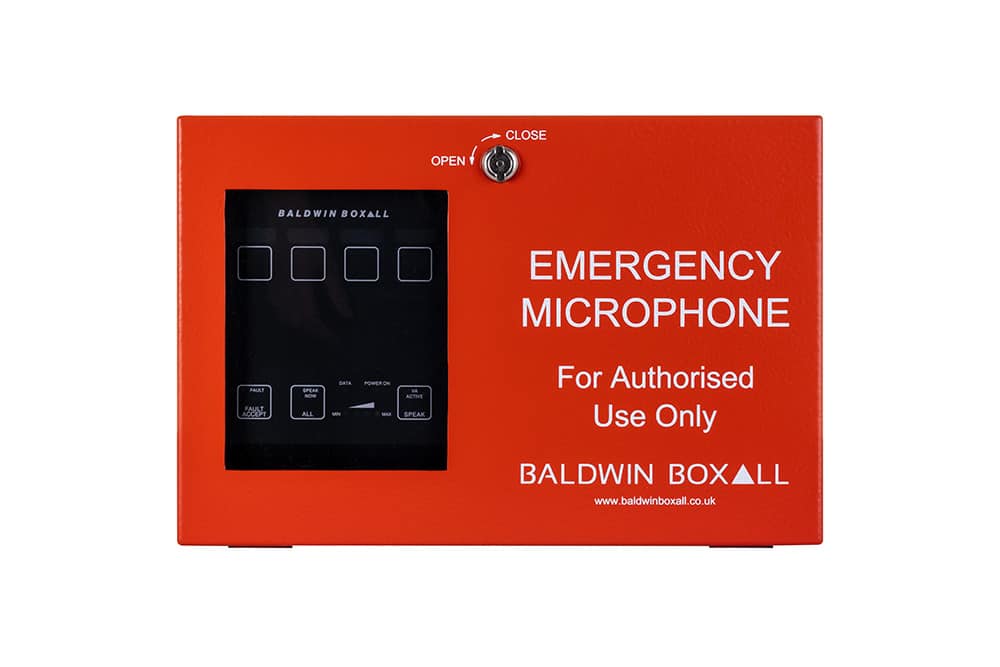

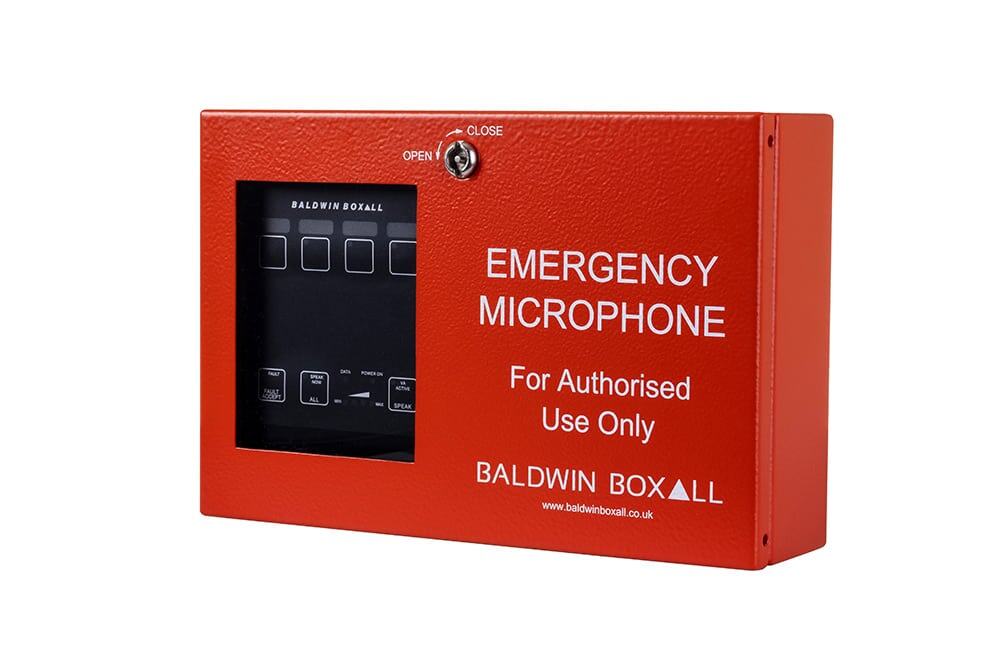

  • BFM404 and BFM408 multi-zone microphones communicate with the main control system via an RS485 communications link
  • ‘Zone select’ buttons and ‘all call’ button
  • Fist microphone capsule can be set for either monitored or unmonitored use during configuration
  • Option to fit a ‘processor bypass’ hard-wired press-to-talk switch
  • Option to fit flip-top switches to enable DVA (digital voice announcement) messages to be broadcast

BFM401 / BFM404 / BFM408
Single zone / 4- zone / 8-zone
200mm x 82mm x 300m
3.44 kg / 3.58 kg / 5 kg

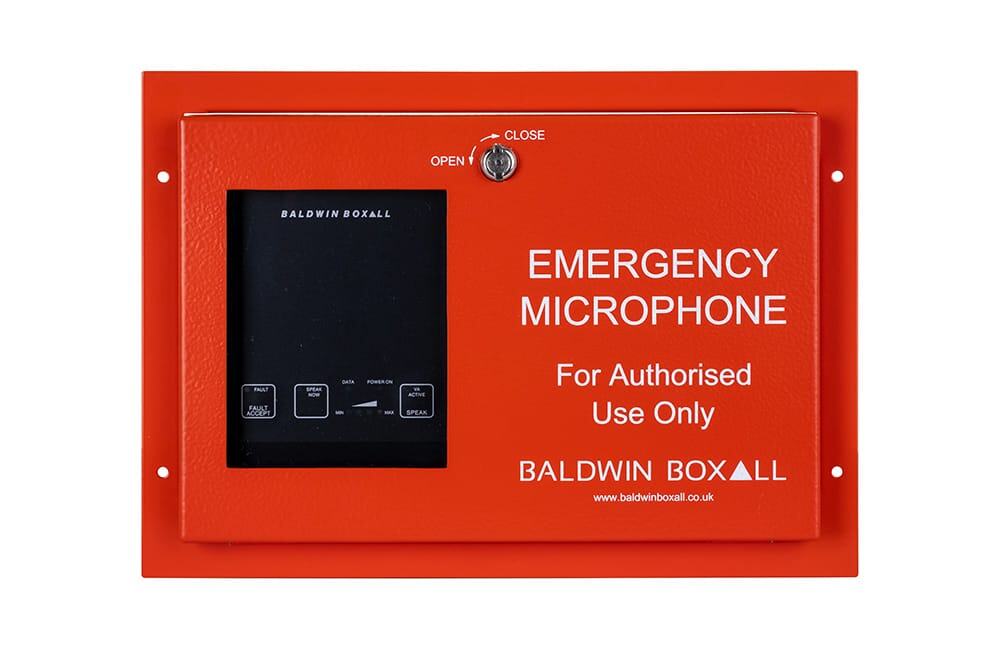

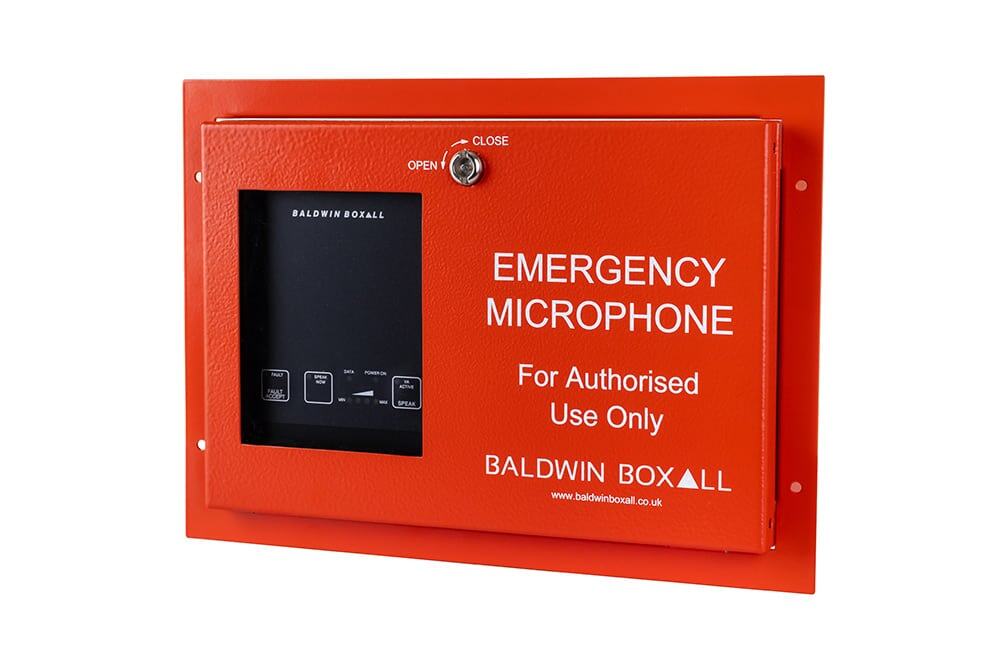

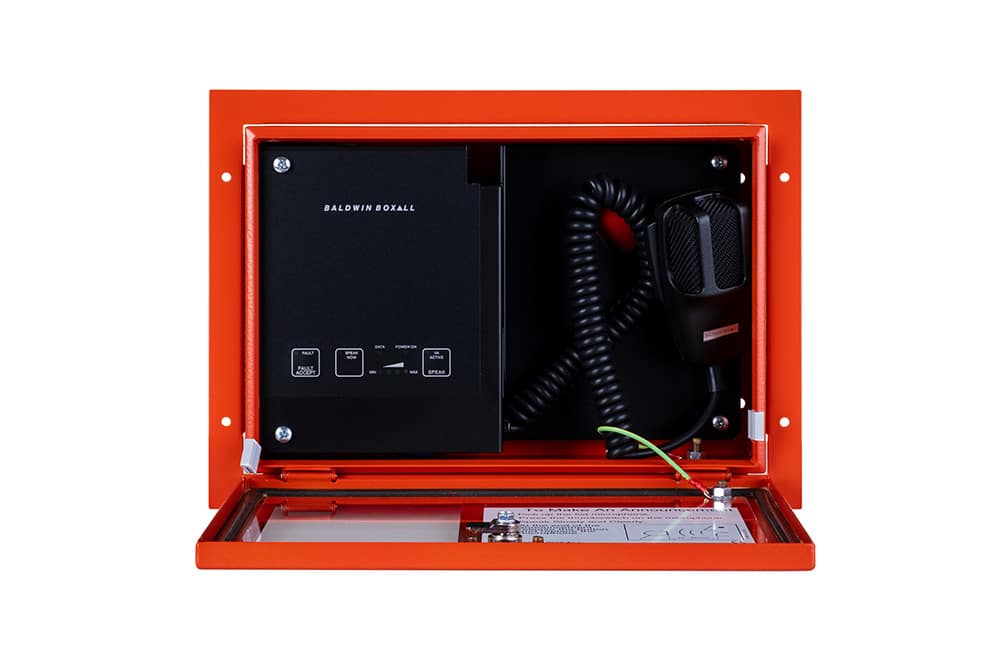

Bezel for flush mounting BFM40#
340mm x 240mm (c/o 306W x 206H)

Key Benefits

Safe & Compliant

EN54 Certified

BS EN 54: Fire Detection & Fire Alarm Systems, is a mandatory standard that specifies requirements and laboratory testing for every component of fire detection and fire alarm system.

UKCA UK Conformity Assessed

UKCA (UK Conformity Assessed) marking on products replaces CE marking in the UK and requires that certification of construction products, such as VACIE / Voice Alarm Control & Indicating Equipment is performed by a UK-based approved body.

British Standards BS5839-8 Code of Practice
BS 5839-8 is a BSI Standards Publication code of practice providing recommendations for the design, installation, commissioning, and maintenance of voice alarm systems that automatically broadcast speech or warning tones, in response to signals from their associated fire detection and fire alarm systems.
