Loudspeakers for PAVA Systems
Powerful, high clarity and audio quality loudspeakers for voice alarm systems that meet all aspects of en54-24
Baldwin Boxall has a range of Loudspeakers for PAVA (Public Address & Voice Alarm) systems which have been fully tested and meet ALL aspects of EN54-24.
Our high-quality, EN54-24 certified loudspeakers provide you with powerful and completely reliable solutions for both commercial or industrial use for both indoor and outdoor installations. In addition to absolute reliability, these loudspeakers have been designed for ease of installation – saving valuable time on site.
Options include units with a fitted capacitor making them ready for DC Line monitoring so that there is no messing around prior to installation. All of the Loudspeakers in the range are suitable for end-of-line monitoring.Â
Clarity is critical for any broadcast from your voice alarm system. The addition of our loudspeakers ensures you get the best from your installed VIGIL voice alarm system. Our loudspeakers provide crystal clear sound, are high quality, powerful and completely reliable.Â
Our loudspeakers are of very high quality, powerful and completely reliable. We have options available for a wide range of industrial and commercial applications. With the addition of these loudspeakers to our range of products, we are able to provide you with a complete solution for your voice alarm system or project.
Important
It is paramount that your system is installed using the correct cabling, following the correct methods, and is commissioned and maintained according to BS5839-8. We really care about our product and cannot stress strongly enough that suitably qualified installers and also engineers should be employed to carry out this work.
Please see below for downloadable information sheets on our EN54-24 voice alarm loudspeakers. If you are unable to find what you are looking for then do ring our Sales Team on +44 (0)1892 664422 who will be happy to help.

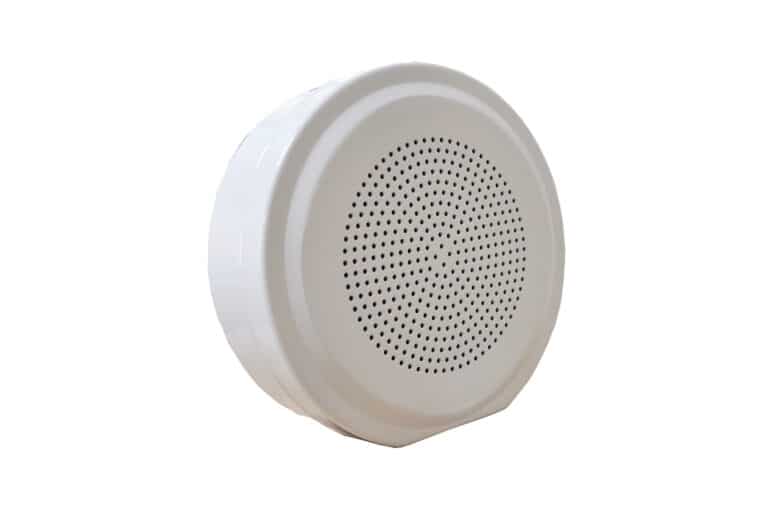

CABINET
SPRSAFE561-54T / SPRSAFE561T
Capacitor fitted / not fitted
6 Watts
77dB
100Hz-13kHz

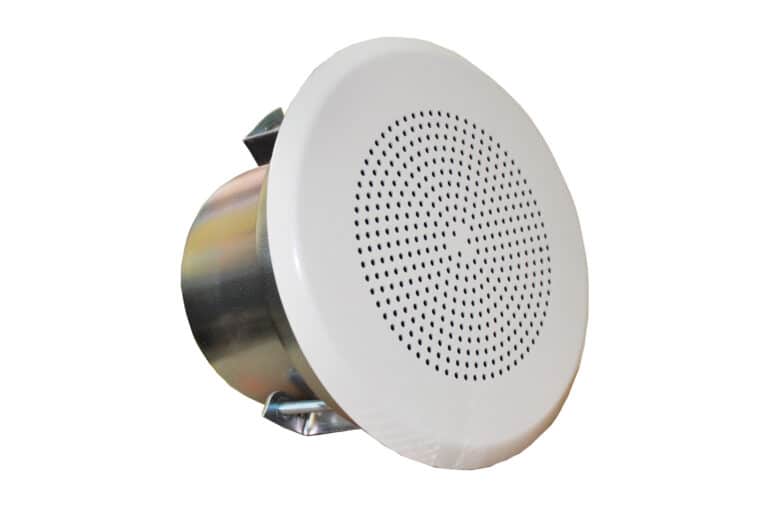

CEILING
SPRVES561-54T / SPRVES561T
Capacitor fitted / not fitted
6 Watts
77dB
100Hz-13kHz

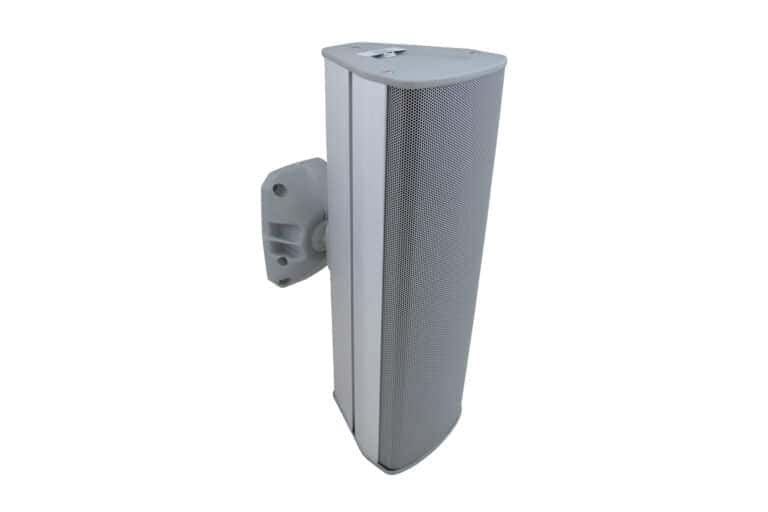

COLUMN
SPRCAS15-54T
15 Watts
75dB
100Hz-20kHz

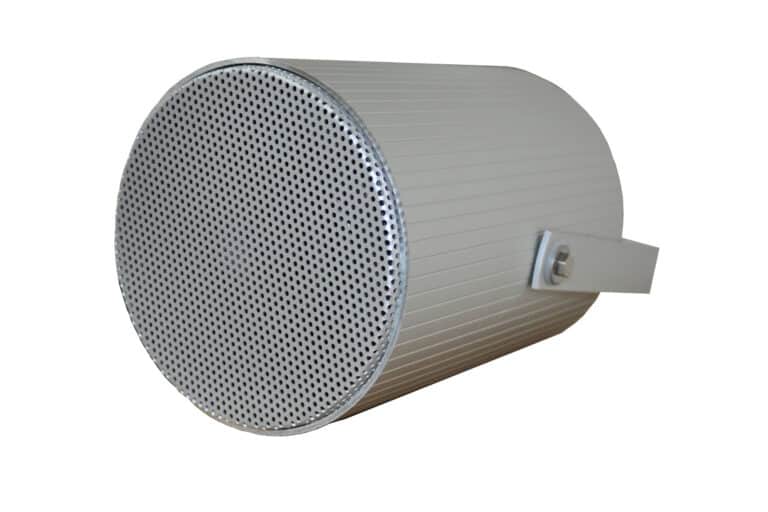

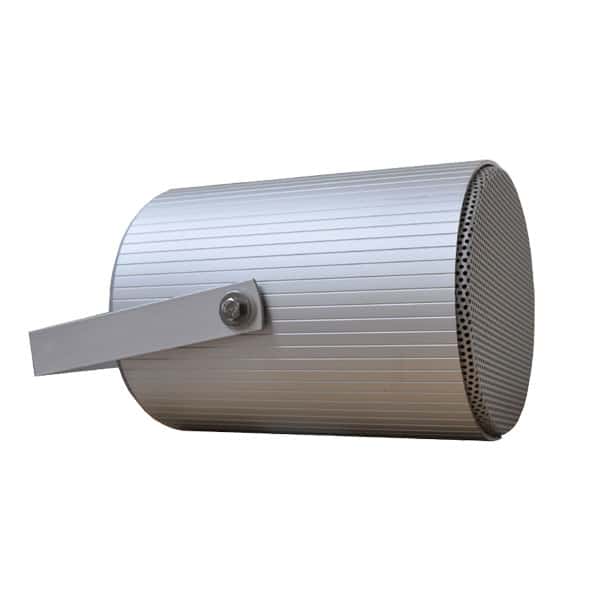

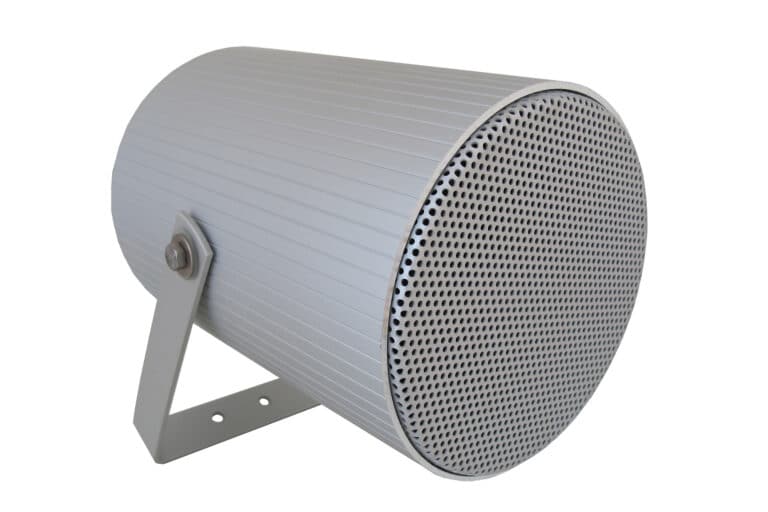

PROJECTOR
SPRCAP15-54T
15 Watts
77dB
100Hz-10kHz
HORN
SPRDSP-15-54T
15 Watts
88dB
100Hz-11kHz
Key Benefits
- BS EN54-24 Tested & Certified
- Indoor & Outdoor installations
- Integrated Capacitor for DC Line monitoring
- Designed for easy installation
- Suitable for numerous applications
- Powerful & Reliable
- Fully meet ALL aspects of EN54-24
- Suitable for End-of-Line monitoring
Safe & Compliant
BS EN 54: Fire Detection & Fire Alarm Systems, is a mandatory standard that specifies requirements and laboratory testing for every component of fire detection and fire alarm system.
UKCA (UK Conformity Assessed) marking on products replaces CE marking in the UK and requires that certification of construction products, such as VACIE / Voice Alarm Control & Indicating Equipment is performed by a UK-based approved body.
Loudspeakers
Cabinet
Product Code: | SPRSAFE561-54T |
Max. Tapping: | 6 Watts |
Sensitivity: | 77dB |
Frequency: | 100 Hz-13 kHz |
SPL 6W/4m: | 84 dB |
Ceiling
Product Code: | SPRCAS15-54T |
Max. Tapping: | 15 Watts |
Sensitivity: | 75dB |
Frequency: | 100 Hz-20 kHz |
SPL 15W/4m: | 76 dB |
Column
Product Code: | SPRCAS15-54T |
Max. Tapping: | 15 Watts |
Sensitivity: | 75dB |
Frequency: | 100 Hz-20 kHz |
SPL 15W/4m: | 76 dB |
Projector
Product Code: | SPRCAP15-54T |
Max. Tapping: | 15 Watts |
Sensitivity: | 77dB |
Frequency: | 100 Hz-10 kHz |
SPL 15W/4m: | 88 dB |
Horn
Product Code: | SPRDSP-15-54T |
Max. Tapping: | 15 Watts |
Sensitivity: | 88dB |
Frequency: | 100 Hz-11 kHz |
SPL 15W/4m: | 97 dB |
Documentation & Downloads
Downloads | Link |
---|
Downloads | Link |
---|
Downloads | Link |
---|
Downloads | Link |
---|
Downloads | Link |
---|
