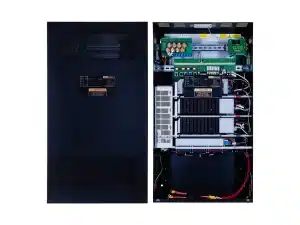

VIGIL Eclipse4 Standalone PAVA System
Stand-alone Voice Alarm/Public Address System
The Eclipse4 is a wall-mounting voice alarm system which employs VIGIL3 amplifiers, VIGIL3 battery charger with VIGIL2 EVAS routeing technology.
Eclipse4 has now been superseded by VIGIL Eclipse5 PAVA System.
- Wall-mounting, all-in-one, VA/PA system with a slim profile.
- Output to up to four zones, depending upon amplifier selection.
- Separate battery box is required for some systems.

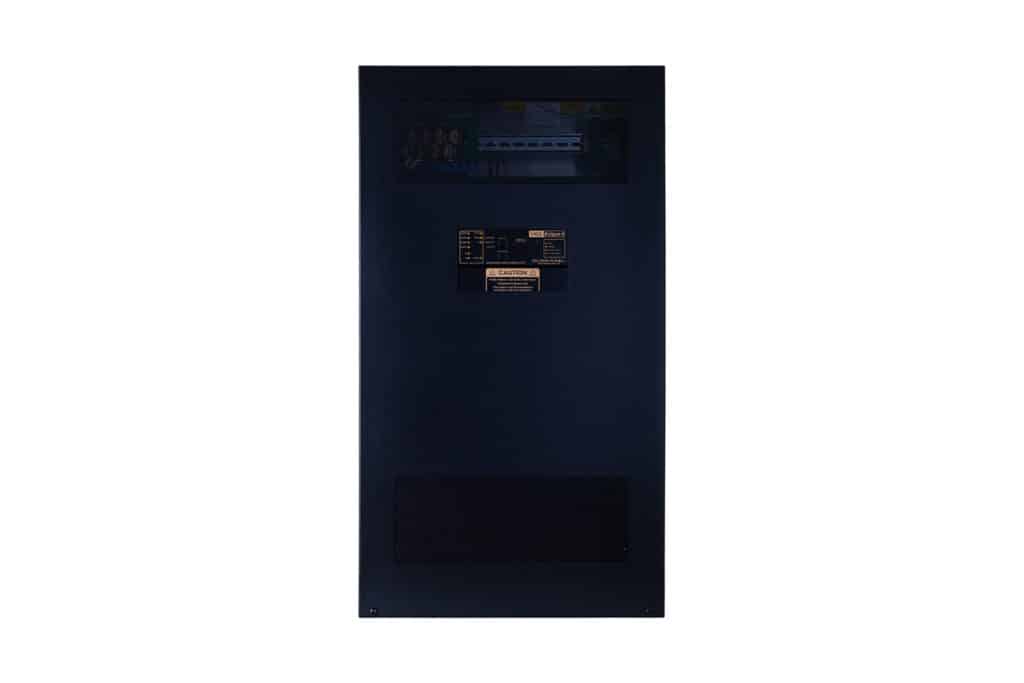

BVECASE4
Eclipse4 case complete with
BVRD2M4, BVMBC & wiring loom
500mm x 900mm x 200mm
BVECASE4BATT
Battery enclosure
500mm x 720mm x 200mm
Safe & Compliant
BS EN 54: Fire Detection & Fire Alarm Systems, is a mandatory standard that specifies requirements and laboratory testing for every component of fire detection and fire alarm system.
UKCA (UK Conformity Assessed) marking on products replaces CE marking in the UK and requires that certification of construction products, such as VACIE / Voice Alarm Control & Indicating Equipment is performed by a UK-based approved body.
Key Benefits
- Fully BS EN54 Tested & Certified
- Wall Mountable
- Compact, Modular Design
- Fully Networkable up to 126 units
VIGIL Eclipse4 Standalone PAVA System
Documentation & Downloads
| Downloads | Link |
|---|---|
| BV075D Dual 75W Amplifier – Datasheet | |
| BV075Q Quad 75W Amplifier – Datasheet | |
| BV150D Dual 150W Amplifier – Datasheet | |
| BV150Q Quad 150W Amplifier – Datasheet | |
| BV300 Dual 300W Amplifier – Datasheet | |
| BVMBC Battery Charger Module – Datasheet | |
| Eclipse4 VIGIL2 Stand Alone PAVA System – Datasheet | |
| VIGIL3 Voice Alarm Amplifier Options – Datasheet |
| Downloads | Link |
|---|
| Downloads | Link |
|---|---|
| BVMBC Battery Charger Module – Manual | |
| Eclipse4 Stand Alone PAVA System – Manual | |
| VIGIL3 Voice Alarm Amplifiers – Manual |
| Downloads | Link |
|---|
