Description

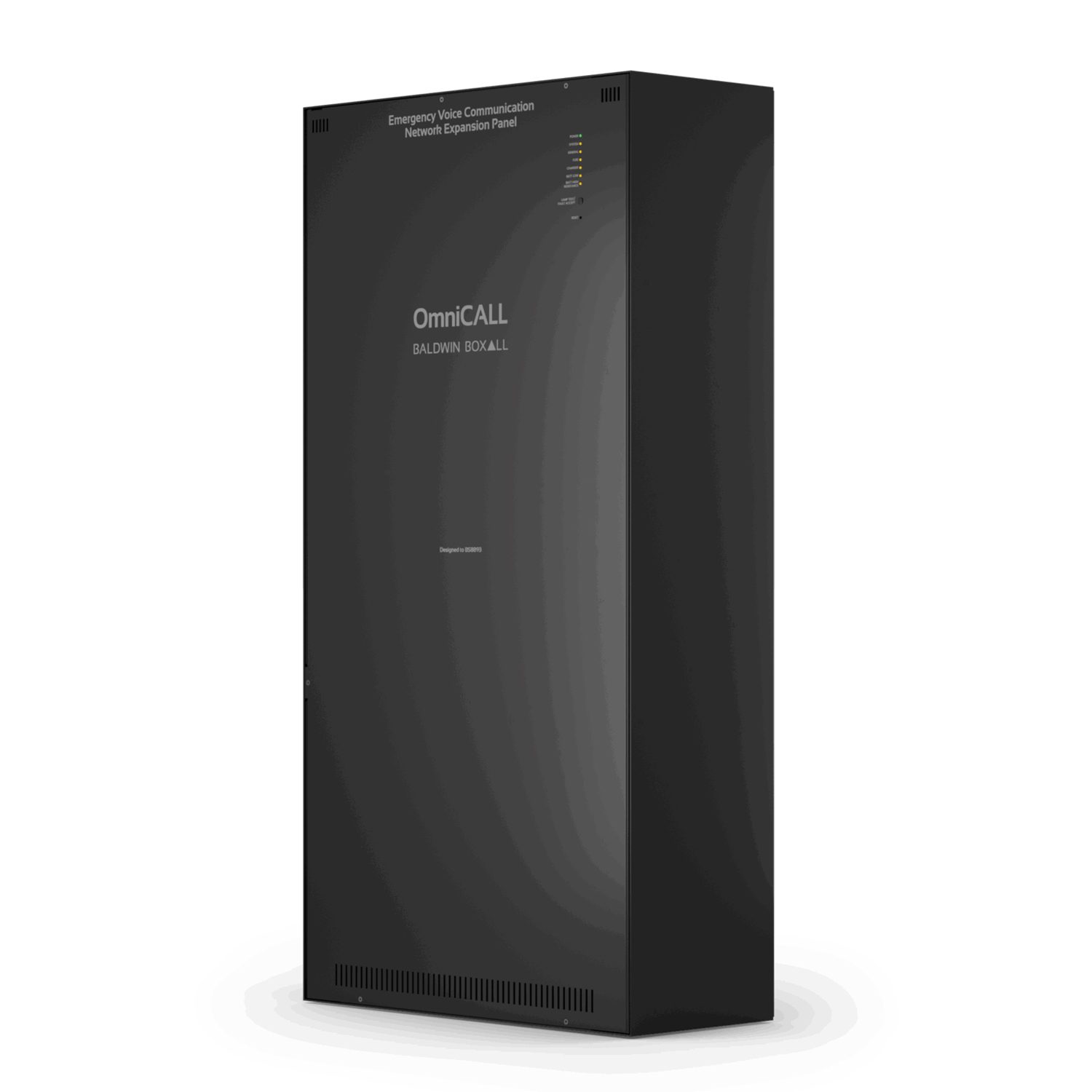

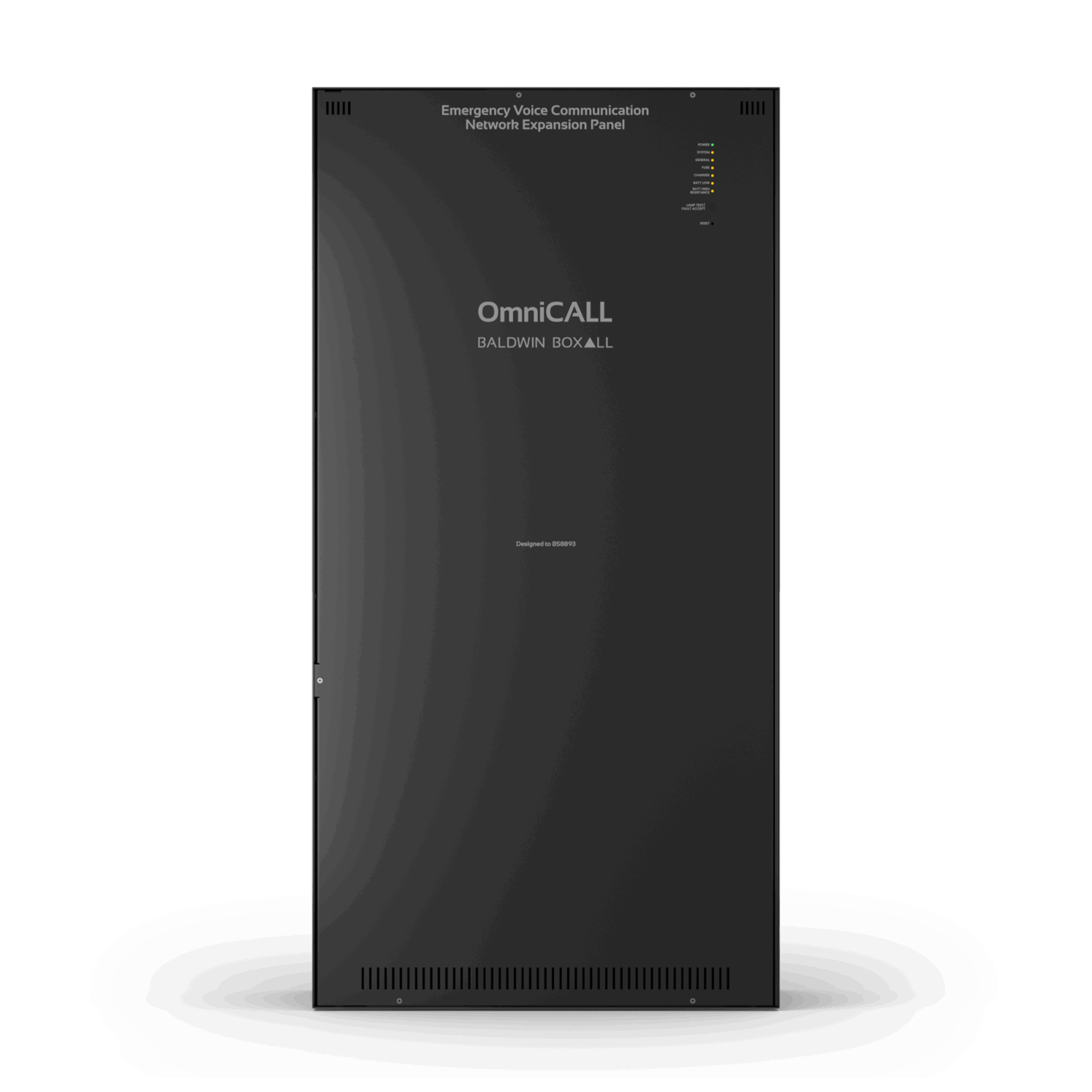

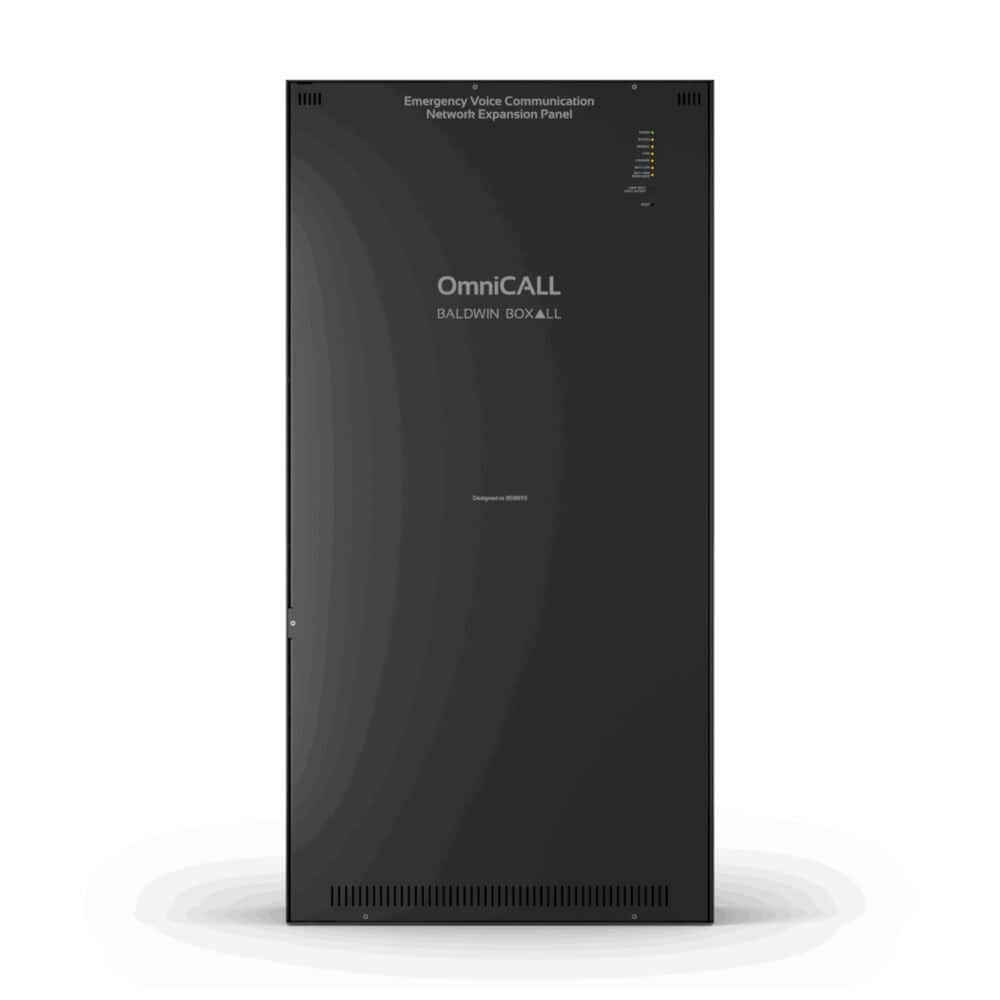

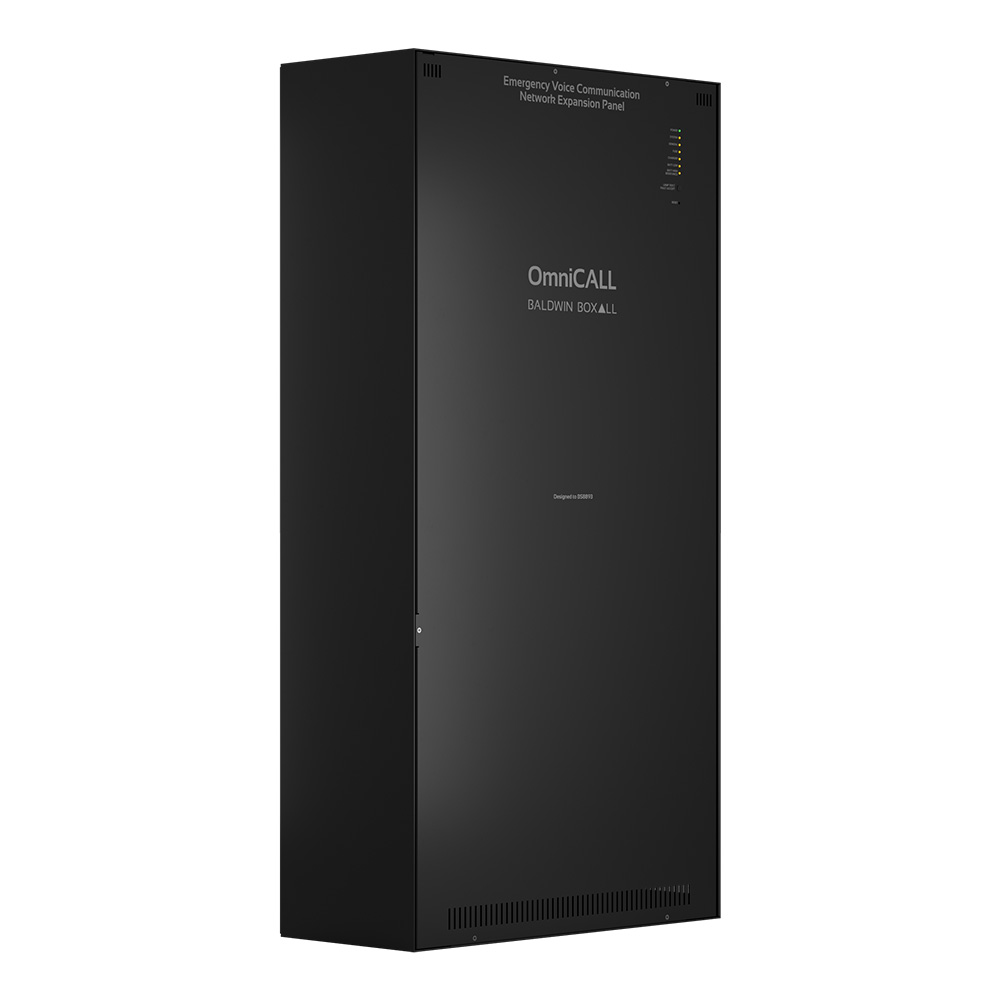

OCEPL 128 Way Network Expansion Panel
The OmniCALL OCEPL is designed for larger installations where significant system growth, building separation or campus wide networking is required.
It extends OmniCALL control panels across multiple locations while maintaining full system monitoring and fault reporting. It operates without a user interface or handset, acting purely as a networked expansion panel within the system architecture.
High Capacity Configuration
• Supports up to 128 outstations and 128 assistance alarms when fully populated
• One line card fitted as standard
• Capacity for up to three additional line cards
• Each line card configurable as:
• One loop supporting up to 32 outstations
• Four radial circuits with one outstation per radial
• With four cards installed:
• Up to four loops of 32 outstations
• Up to 16 radial circuits
• Or a mix of loop and radial circuits in any configuration
Networked for Complex Sites
• Up to 100 OmniCALL panels in one network
• Typical total capacity of 512 outstations and 512 assistance alarms
• Larger capacities available on request
• Built in copper networking using 4 core FP200 cabling up to 200 metres per span
• Optional fibre interface modules:
• Single mode up to 4km
• Multi mode up to 2km
Designed for Reliability
• Internal batteries sized to system requirements
• Fully monitored system operation
• Two core non polarity dependent wiring
OCEPL provides high capacity expansion while maintaining clarity, compliance and dependable system performance.”
