VIGIL3 Audio Input

Flexible, straight-forward solution for adding audio inputs to a VIGIL3 voice Alarm system

VIGIL3 is our latest generation of Voice Alarm system. Fully modular and expandable is the perfect Voice Alarm system for very small buildings, to much larger venues where at very large scale systems are required.

The Audio Input modules add to the flexible nature of a VIGIL3 system.

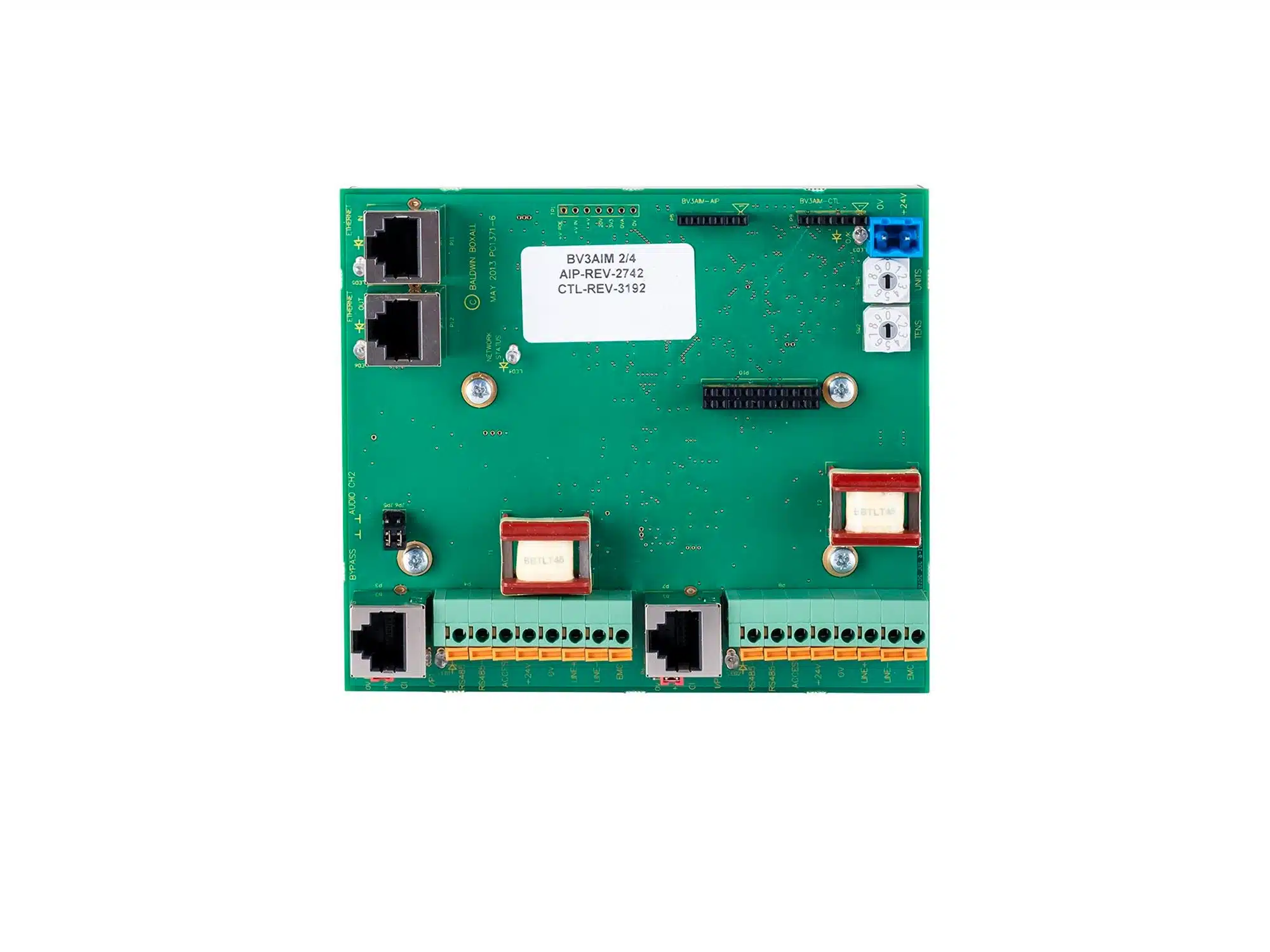

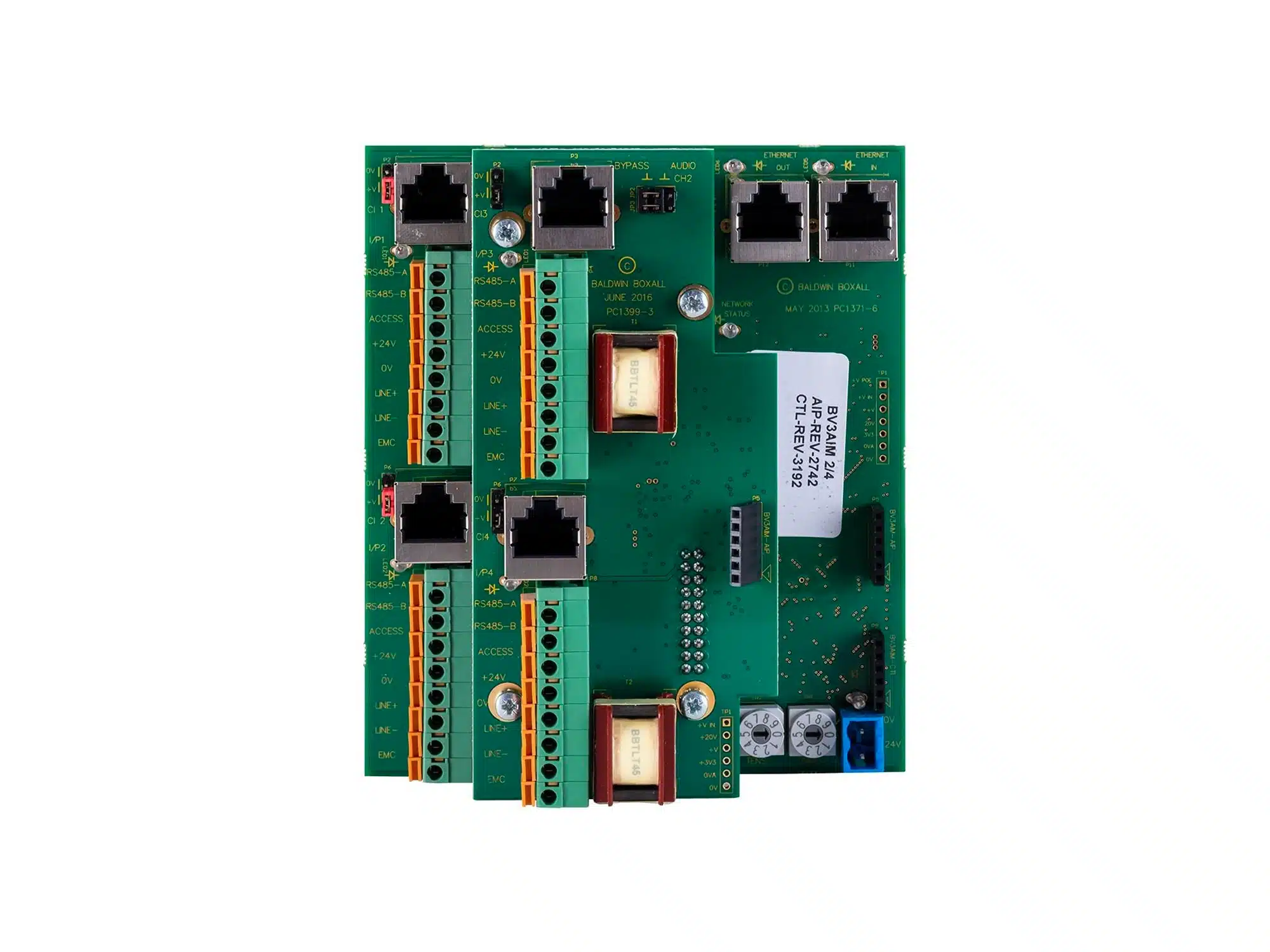

The BV3AIM2 (2 input) and the BV3AIM4 (4 input) modules are fitted to the back of a system rack enclosure and are added in multiples according to the user’s needs.

The inputs enable connection of multiple VIGIL inputs, in any combination, including our large format GUI, the touchscreen microphone, fire microphone and paging microphone to a VIGIL3 voice alarm system.

Each input has adjustable six band parametric equalisation and programmable prioritisation. Due to the engineer-friendly (and user-friendly) design of the VIGIL3 system, it is possible to configure all the audio inputs from a single location, anywhere on the network.

The modular design of the VIGIL3 means that an installed system can be altered and/or added to should a user’s requirements change. This includes the ability to increase the number of input modules and, thereby, microphones or any of our other VIGIL3 input options – providing true flexibility.


  • Available in either two or four input variations
  • DIN rail mounted within the rack
  • Each input has six-band parametric EQ
  • All inputs have programmable prioritisation
  • All inputs consist of a transformer-isolated audio input and have a RS485 connection for control data
  • Each unit is connected to the Ethernet network ring
  • It is possible to configure each audio input from any location on the network
  • Each module incorporates a VOX to allow for automatic audio broadcast when present

Audio input module
2 inputs / 4 inputs
DIN rail mounted
111mm x 129mm x 55mm / 111mm x 129mm x 75mm
0.36 kg / 4 kg

Safe & Compliant

EN54 Certified

BS EN 54: Fire Detection & Fire Alarm Systems, is a mandatory standard that specifies requirements and laboratory testing for every component of fire detection and fire alarm system.

UKCA UK Conformity Assessed

UKCA (UK Conformity Assessed) marking on products replaces CE marking in the UK and requires that certification of construction products, such as VACIE / Voice Alarm Control & Indicating Equipment is performed by a UK-based approved body.

British Standards BS5839-8 Code of Practice
BS 5839-8 is a BSI Standards Publication code of practice providing recommendations for the design, installation, commissioning, and maintenance of voice alarm systems that automatically broadcast speech or warning tones, in response to signals from their associated fire detection and fire alarm systems.
