Local Audio Control Room Panels
Room panels for local control of audio facilities adding further flexibility to our Voice alarm & public address systems
Room Panels enable local control of audio facilities, such as volume adjustment, music source selection and microphone input. This is particularly useful for hotels, conference rooms and many other similar environments.
VIGIL Room Panels are compatible with the VIGIL2 and VIGIL3 voice alarm systems, Eclipse4 and Eclipse5 wall-mounted PA/VA systems and also the Eclipse5-PA public address system.
Supplied as standard in a brushed stainless steel finish, there are two room panels in the range. The units are flush mounting and can be enclosed within a robust cover with a hinged lid which is available separately.
- RPVS – volume control and channel source selector panel
- RPAIV – audio input panel with volume control
- Brushed stainless steel finish
- Connection to the control rack is via CAT5
- Optional robust cover available
- Provides control of local audio settings such as volume, music source, etc
- Emergency broadcasts from the voice alarm system will override the room panel settings
- Suitable for numerous applications

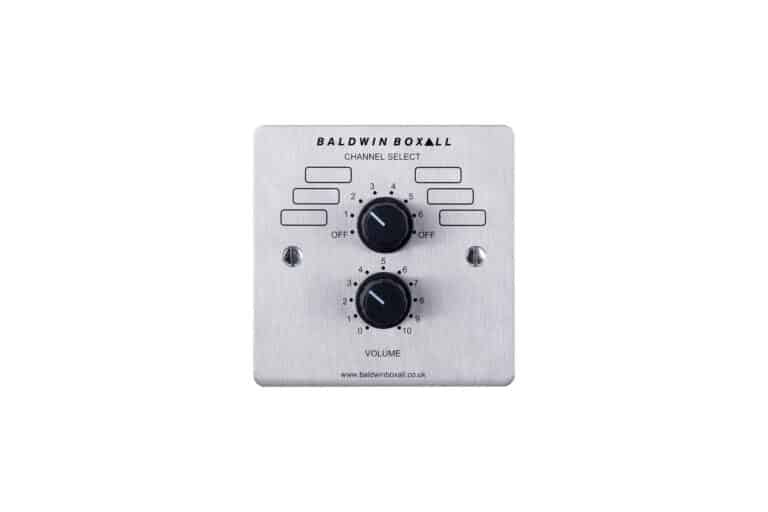

RPVS
Volume control & channel source
Requires single gang backbox
Local zone volume control
6 position channel source select

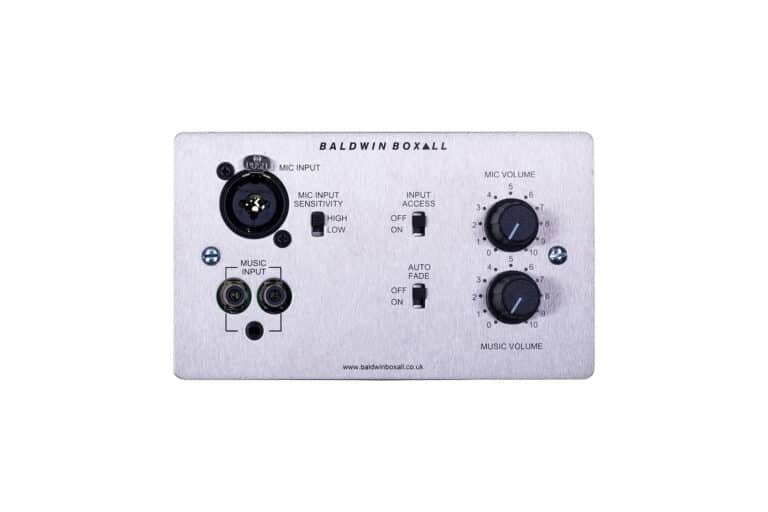

RPAIV
Audio input & volume control
Requires double gang backbox
Local zone volume control
Music source input
Microphone input

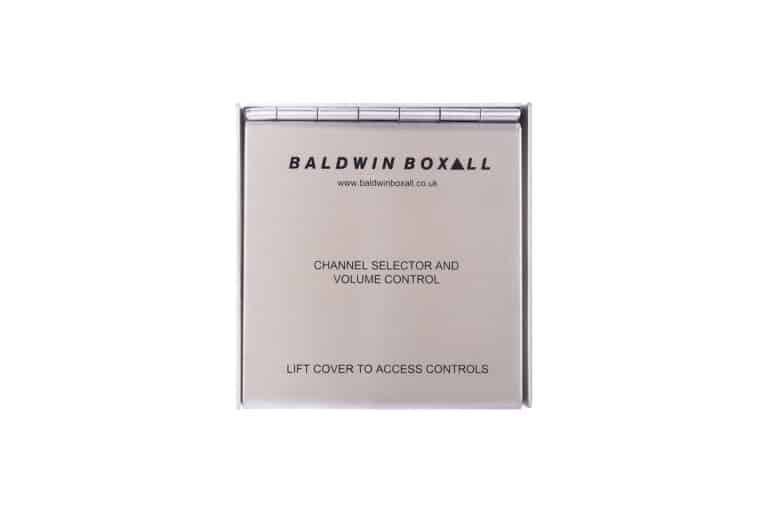

RPP1
Optional cover for RPVS
91mm x 94mm x 25mm

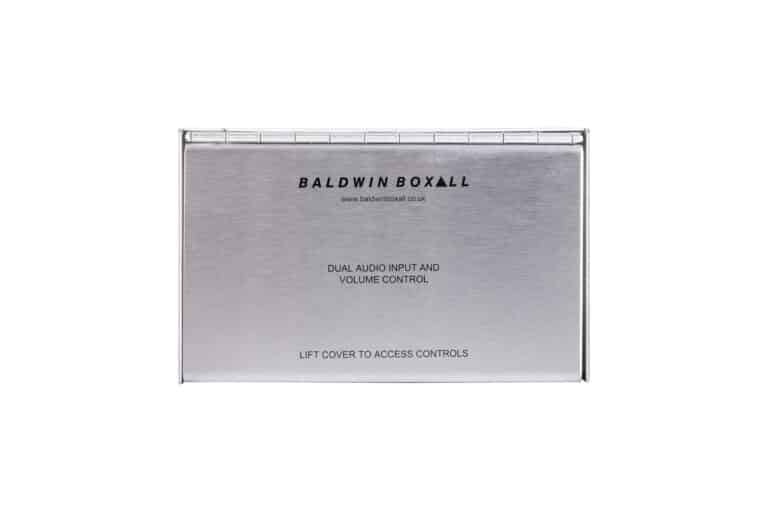

RPP2
Optional cover for RPP2
151mm x 94mm x 25mm
Key Benefits
- Control local audio settings including volume & music source
- Optional robust cover available
- Emergency Voice Alarm system broadcasts override Room Panel settings
- Suitable for numerous applications
Documentation & Downloads
| Downloads | Link |
|---|
| Downloads | Link |
|---|
| Downloads | Link |
|---|
| Downloads | Link |
|---|
| Downloads | Link |
|---|
Looking for something in particular?
Search our full database of downloads and documentation
VIGIL3 Product Range
VIGIL3 Amplifiers
Transformerless amplifiers, modular, energy-efficient and powerful. Range includes dual & quad amplifier options.
VIGIL3 Battery Charger
Compact module continually monitors system backup batteries & charges them whenever necessary.
VIGIL3 Audio Output Module
With VIGIL3 there is no need for the conventional ‘router-style’ control. Supports up to 8 audio outputs – network up to 100 units.
Powerful stand-alone, wall-mounted PAVA system. Ideal for fitting into building risers or places where space is limited.
VIGIL3 Audio Input Module
6-band parametric EQ and programmable priority for each input. Configure every input from a single point on the VIGIL3 network.
VIGIL3 Line Monitoring
All critical signal paths of a voice alarm system must be fully monitored & faults automatically indicated on key parts of the system.
Loudspeakers
Powerful high-clarity loudspeakers for public address and voice alarm systems for both indoor and outdoor installations.
You may also be interested in

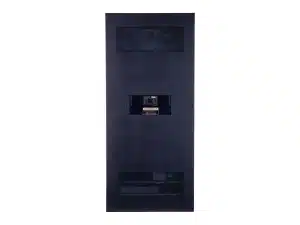

Modular and fully networkable, Eclipse5-PA is a powerful stand-alone system that provides the perfect Public Address solution.
Control Panels enable local control of audio facilities such as volume adjustment, music source selection and microphone input.

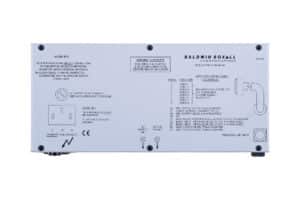

Telephone Paging interfaces enable Public Address systems to be integrated with standard telephone systems.
