CARE2 Fire Telephones
Type A Fire Telephones for the CARE2 EVC system are robust, easy-to-use and dependable
Fire Telephone Type A Outstations for CARE2 EVC systems are available as surface mounted or flush (with a separate bezel) with red or stainless steel finishes.
CARE2 Fire Telephone Outstations have a high volume ringer, hearing aid compatible earpiece (T-coil) and LED status. These units provide a complimentary device to go with our Type B Outstations for Disabled Refuge Areas in buildings.
Fire Telephones enable two-way communication between fire officers or those responsible for the evacuation of a building during an emergency. They provide speech communication between the Fire Telephone(s) and the operator at the Control Panel. Typically a fire officer will use the telephone outstation to confirm that an area/floor level is clear of people.
CARE2 EVC system is an alternative to our popular (loop-wired) OmniCare EVC system.
Additional Features:
- Red or stainless steel finish

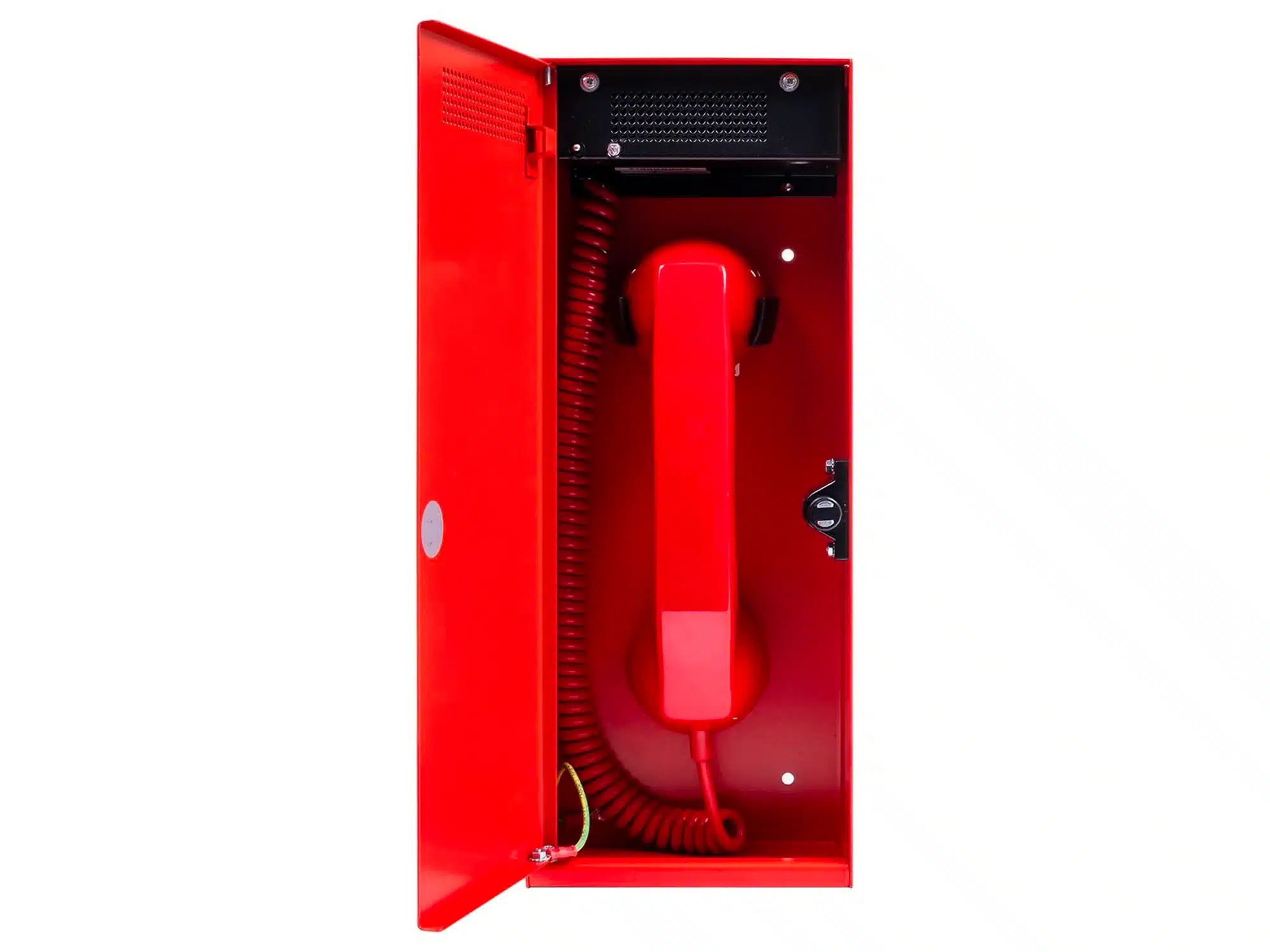

- Robust handset in heavy duty enclosure
- Handset has a hearing aid compatible earpiece (T-coil)
- Full duplex speech
- Push or slot lock door versions available (door latch initiates call)
- Conference facility – including roaming telephone handsets
- Surface mountable (optional flush mount bezel available)
- Can be included with any CARE2 outstation on the same panel
Other outstations available include Disabled Refuge Outstations, Steward Telephones and Emergency Assistance/Toilet Alarms.

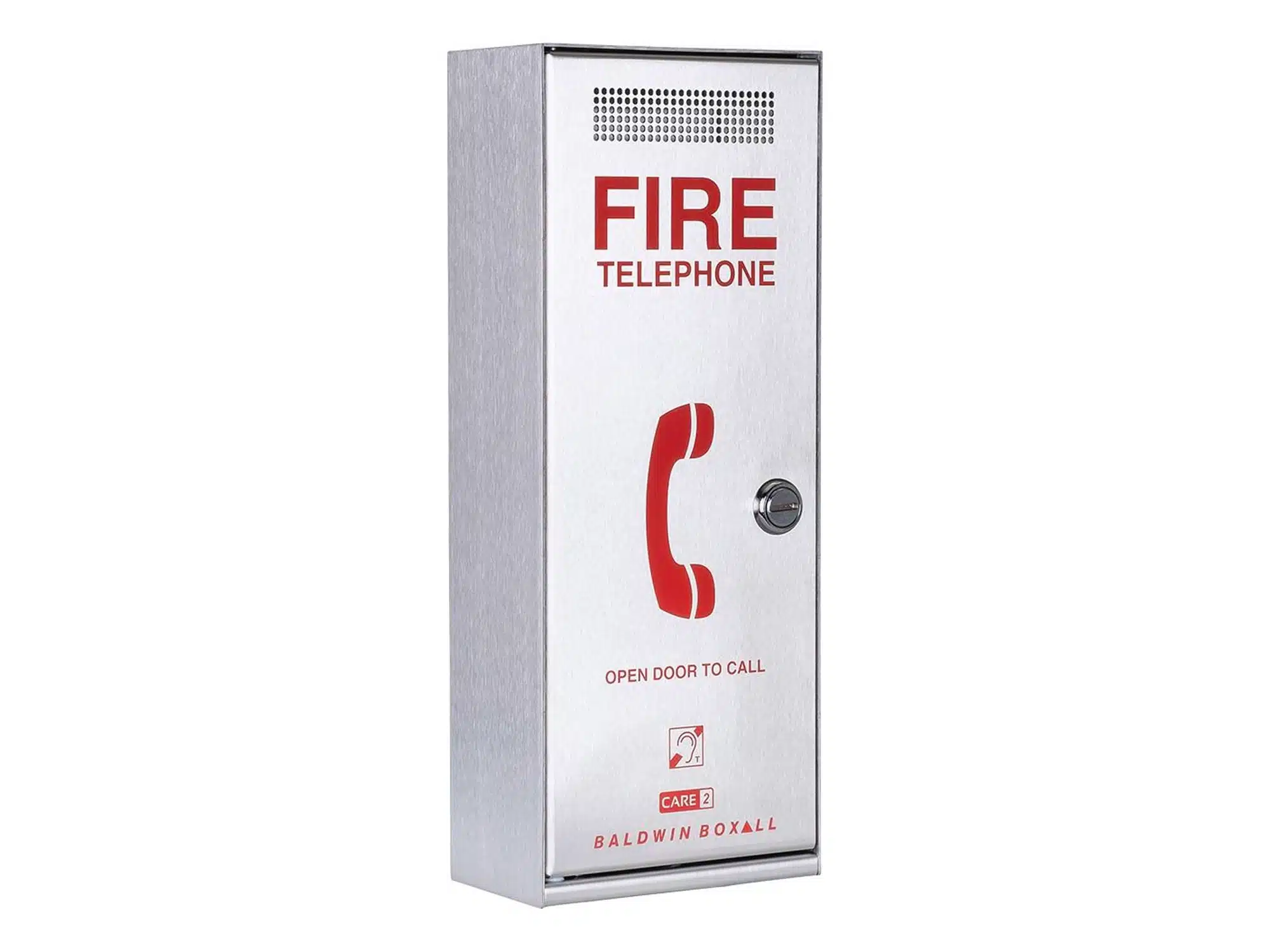

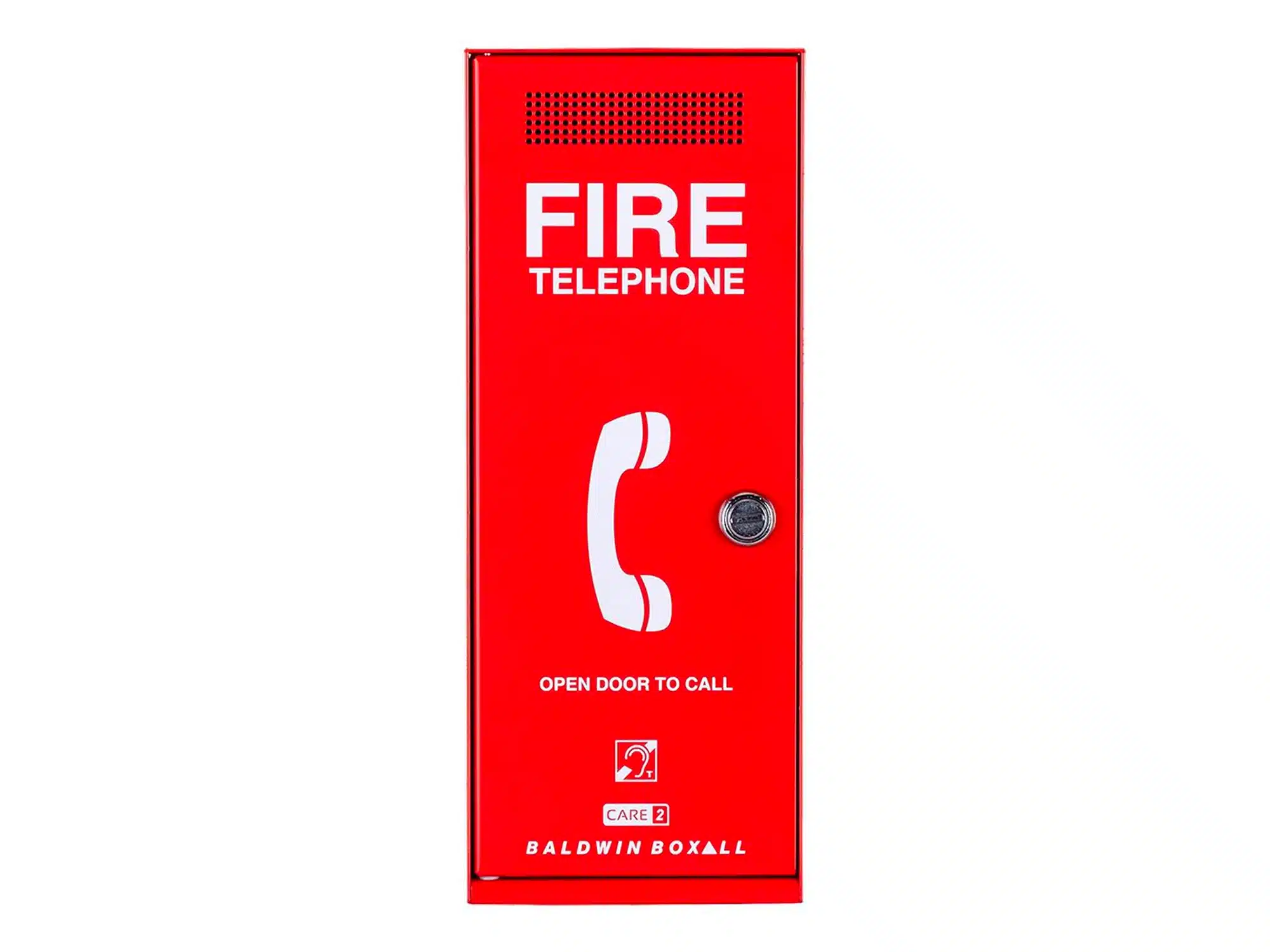

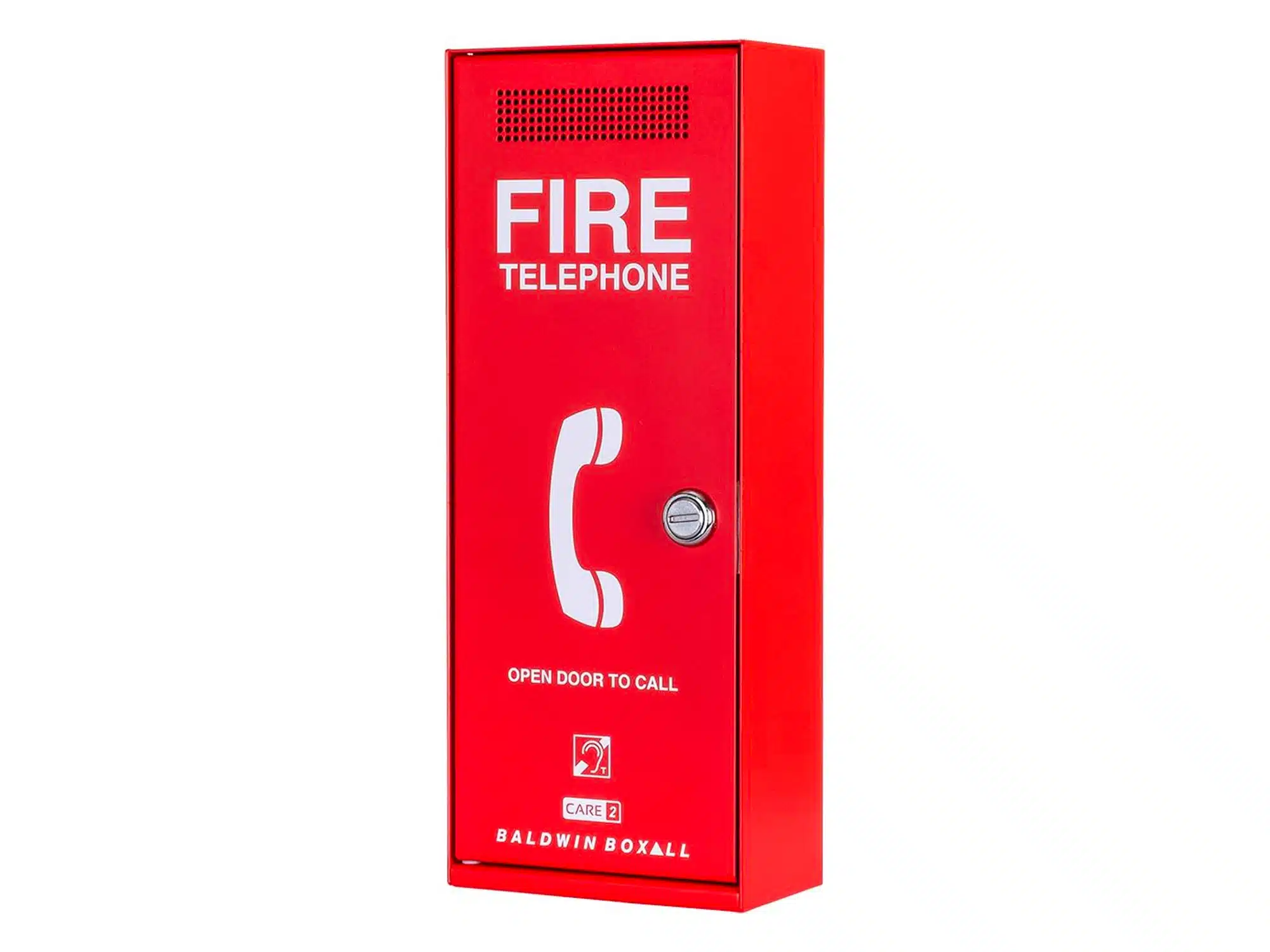

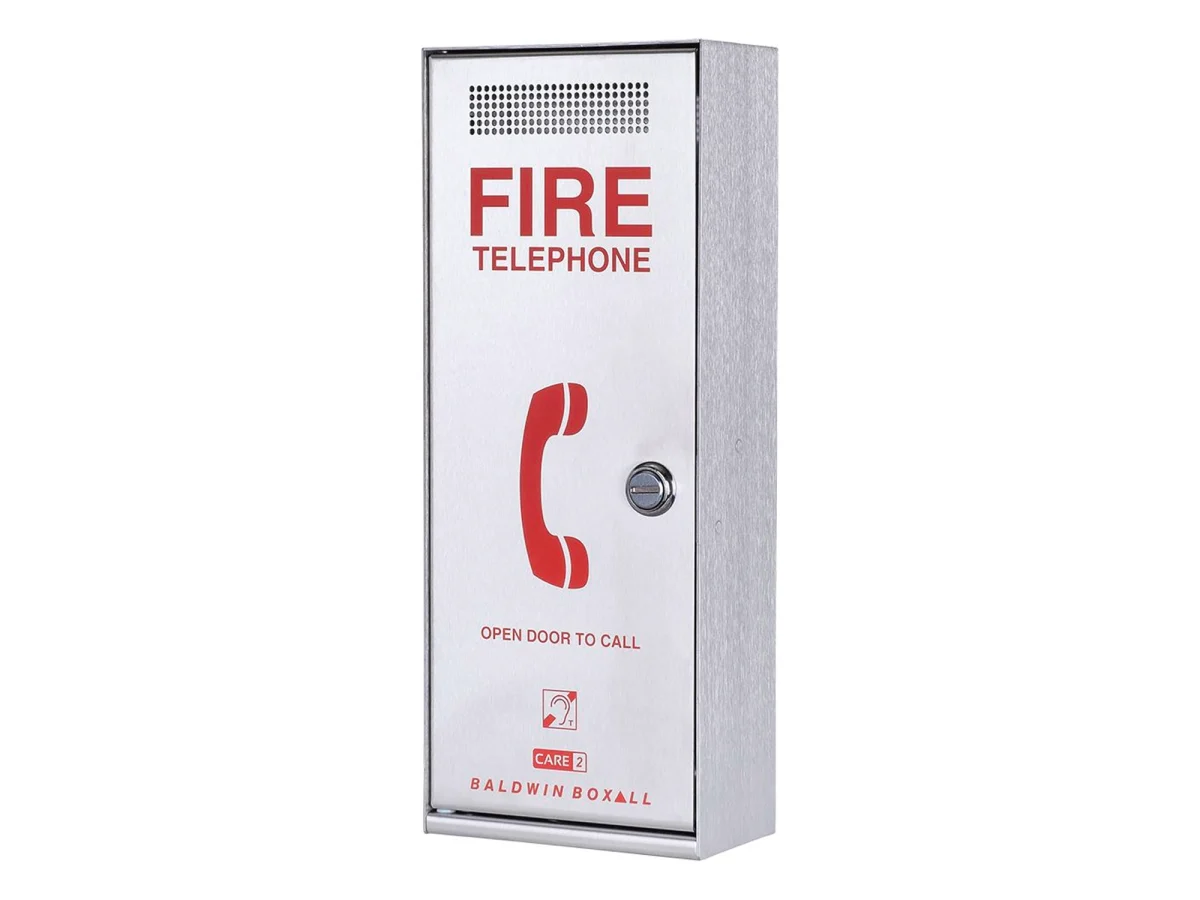

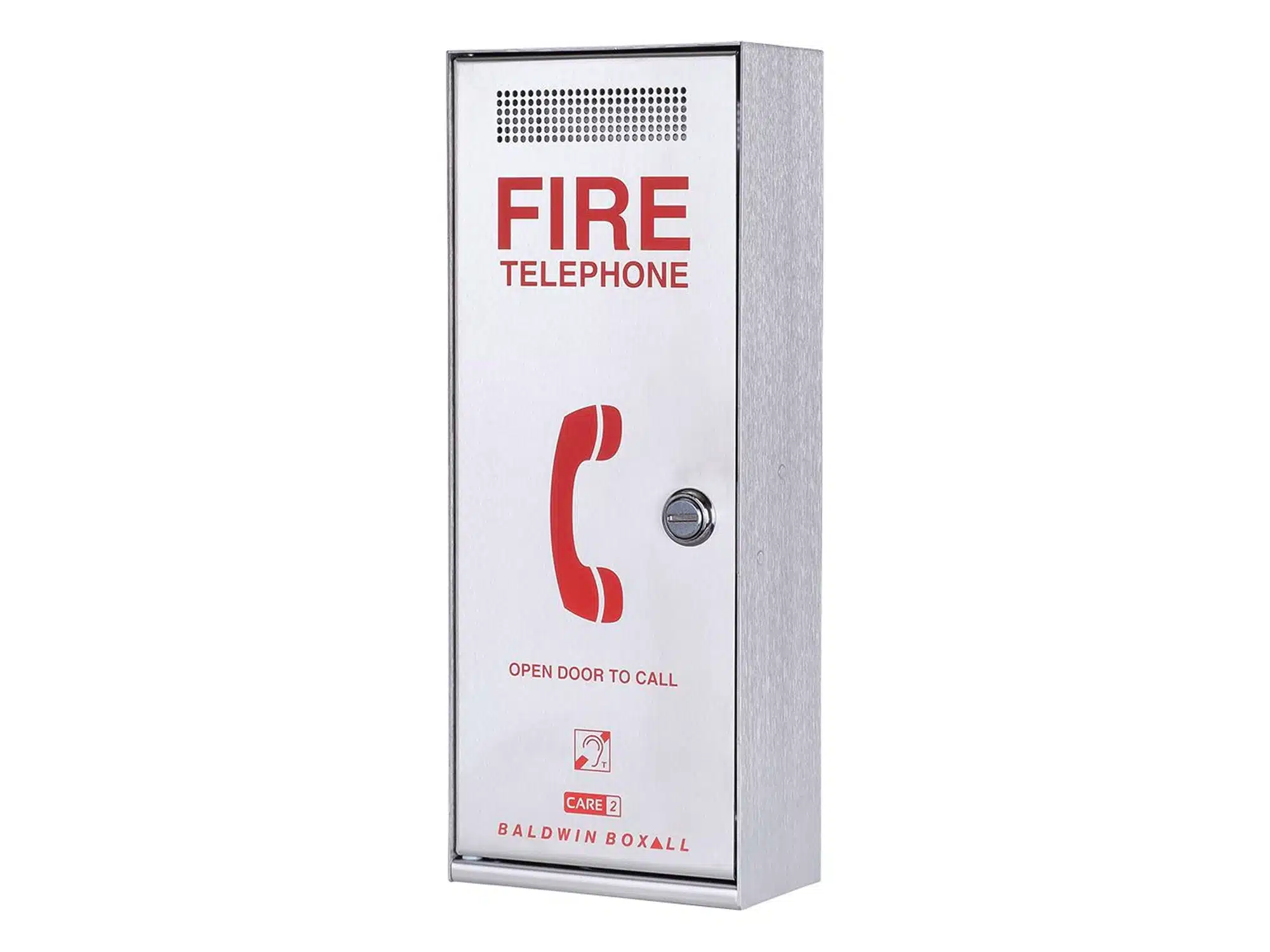

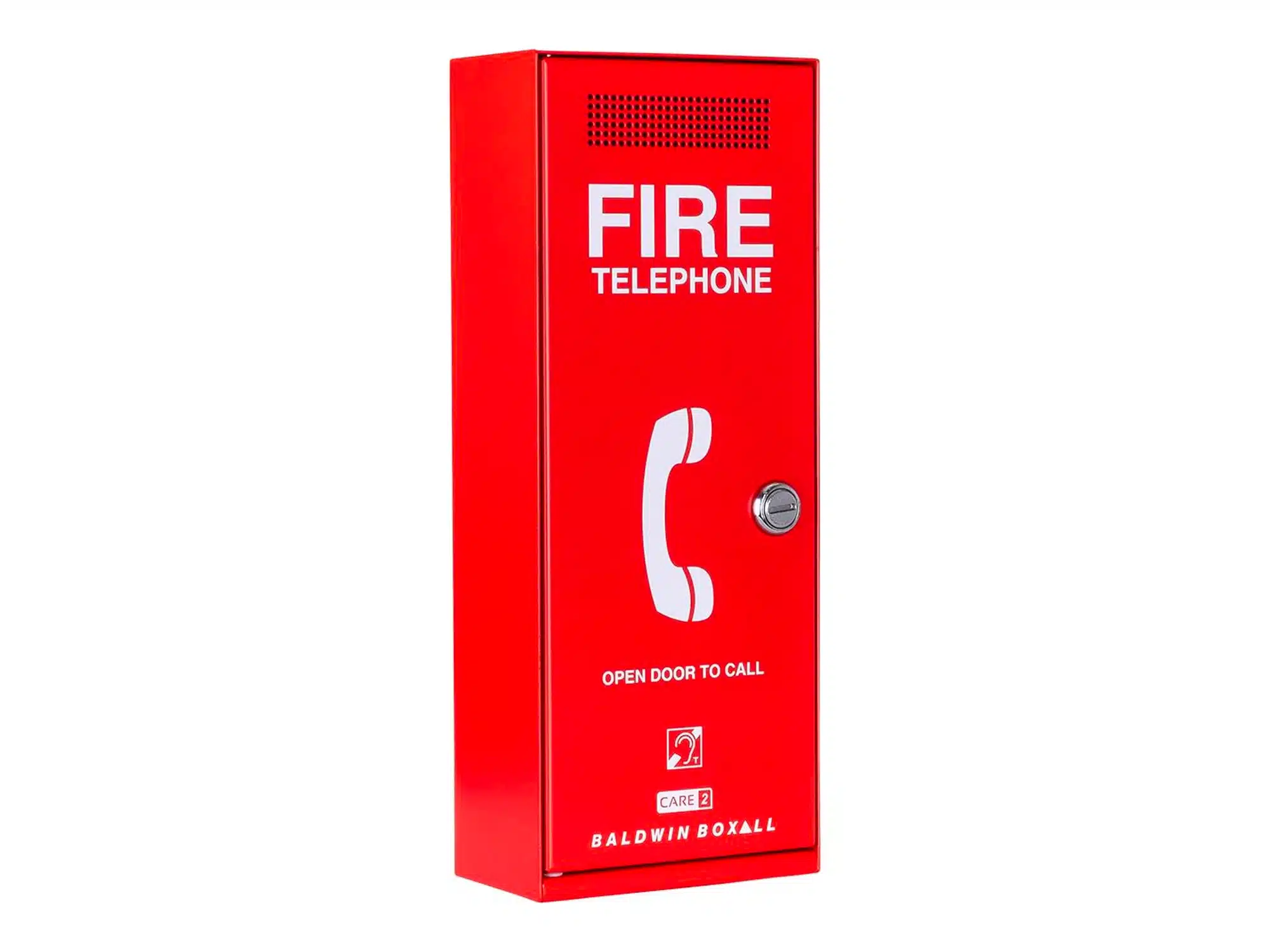

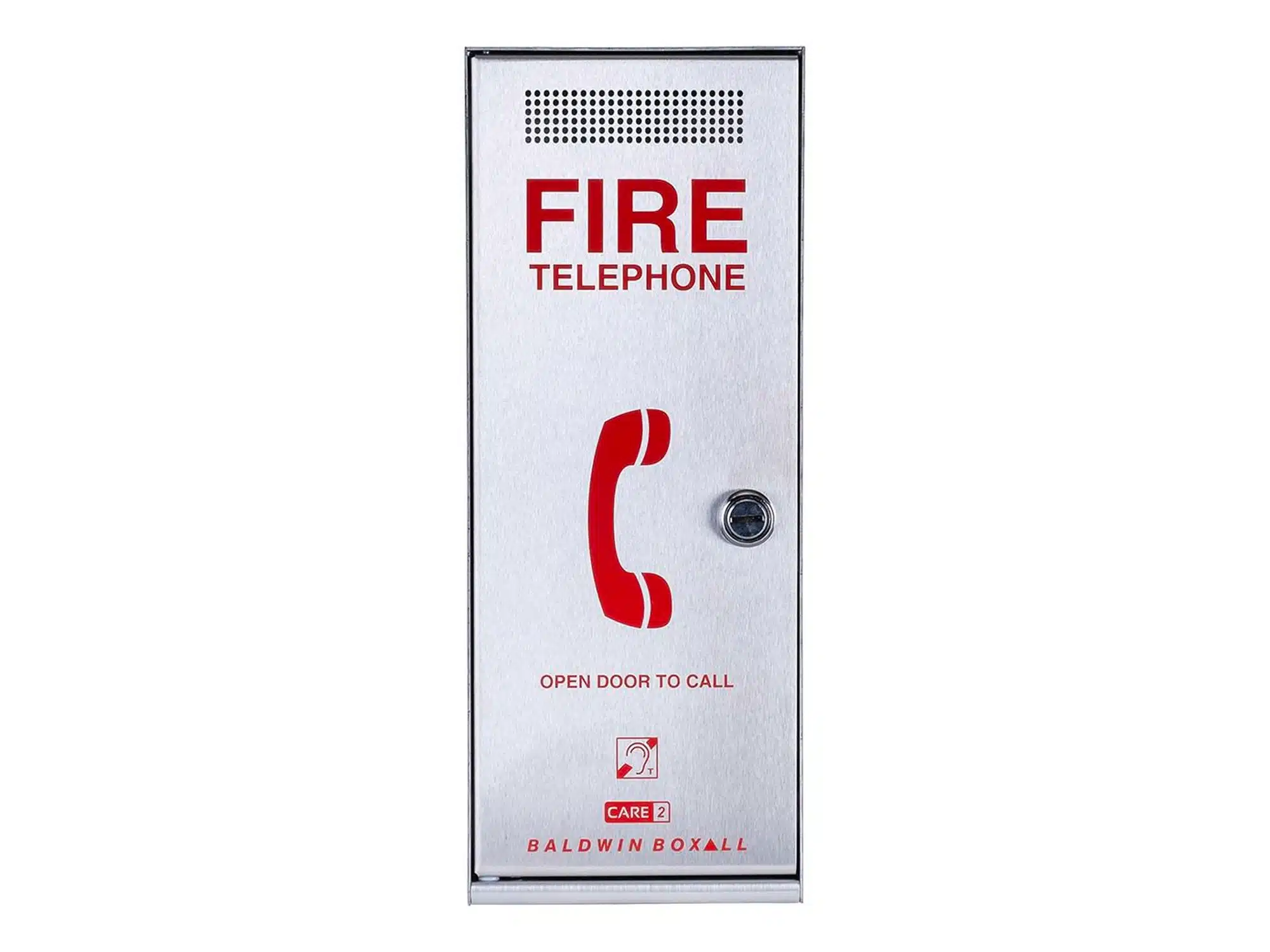

C2FTRL / C2FTSL
Fire Telephone
Lock door
Red / stainless steel
130mm x 330mm x 75mm
2.5 kg

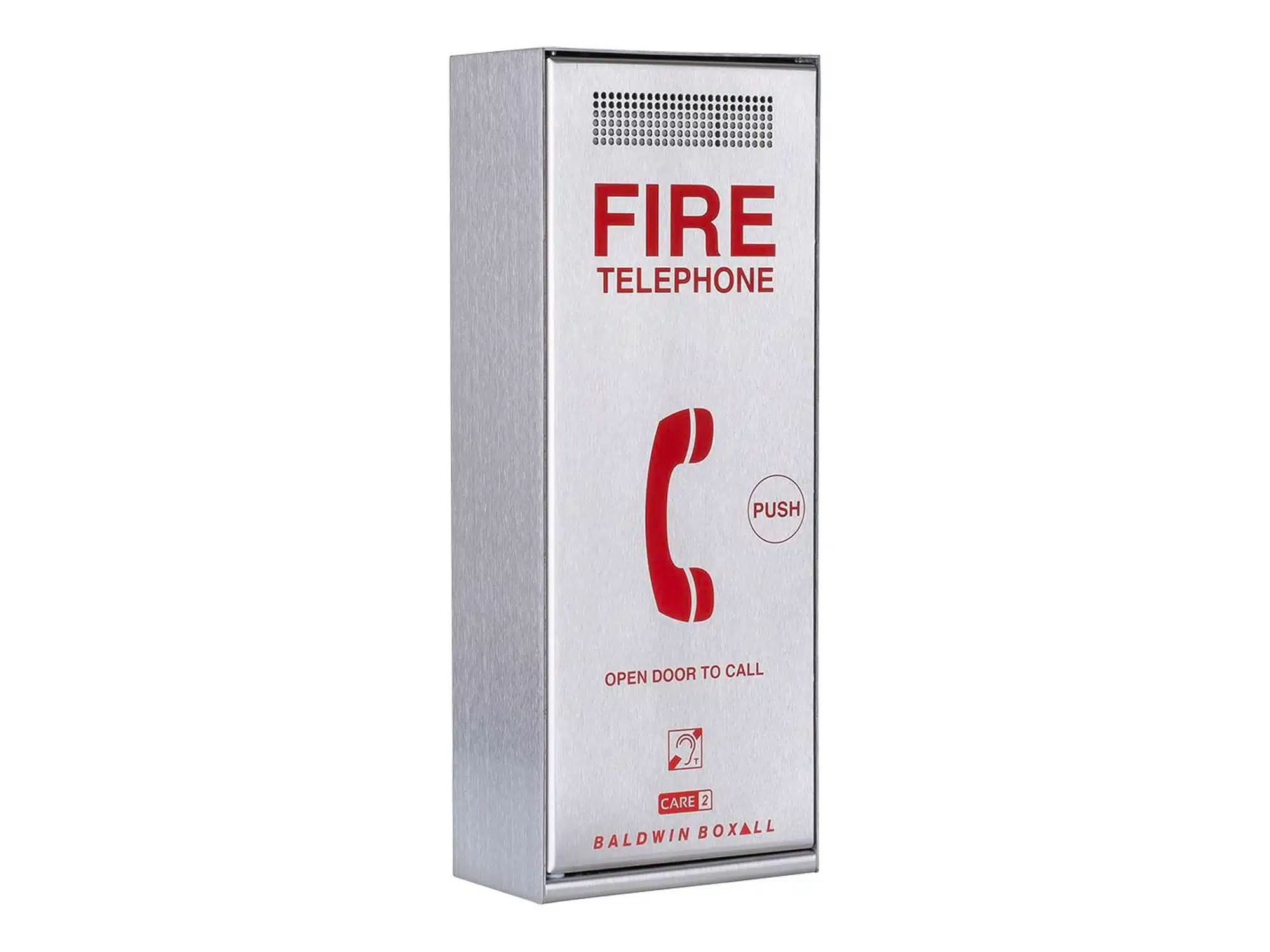

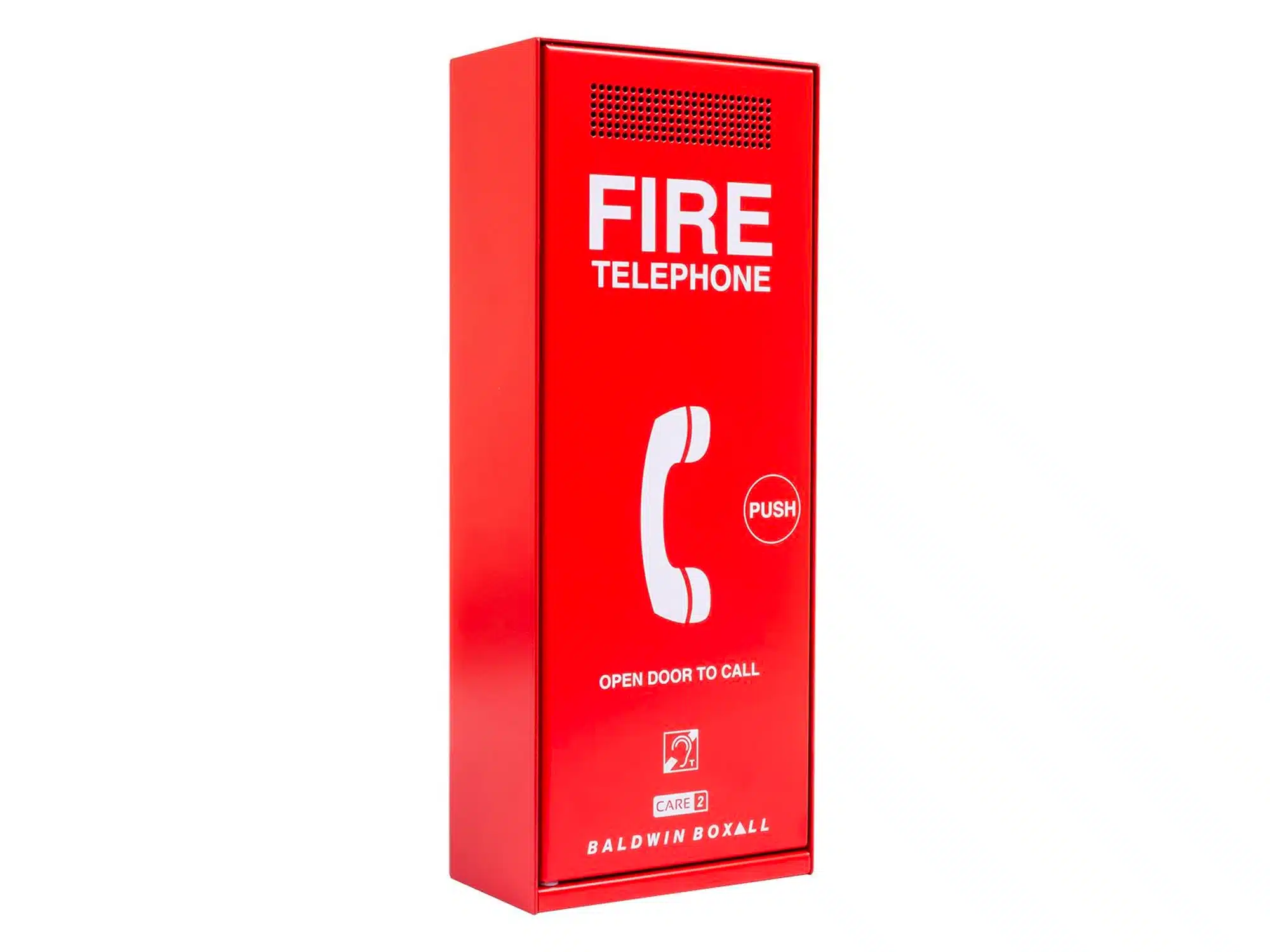

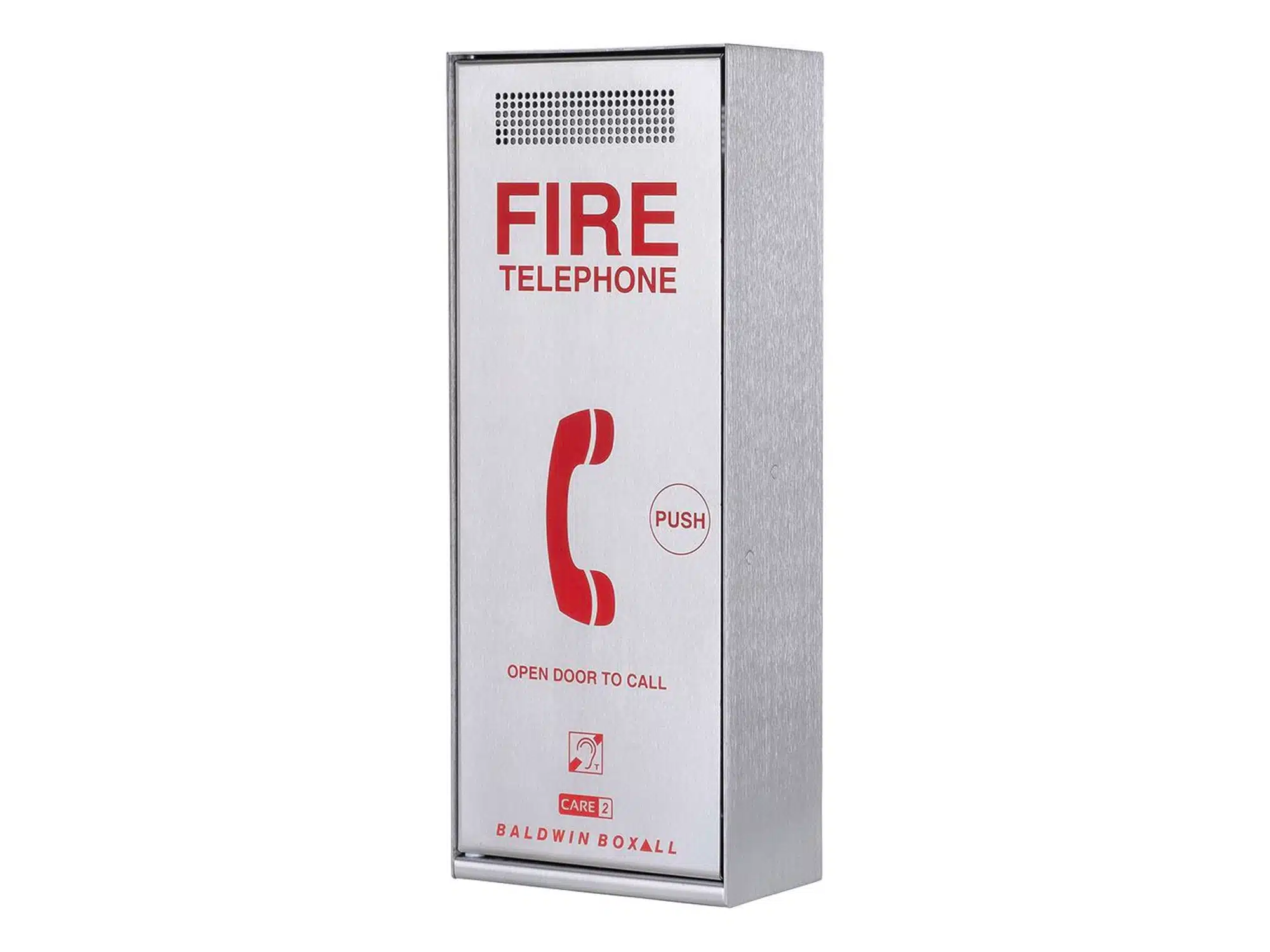

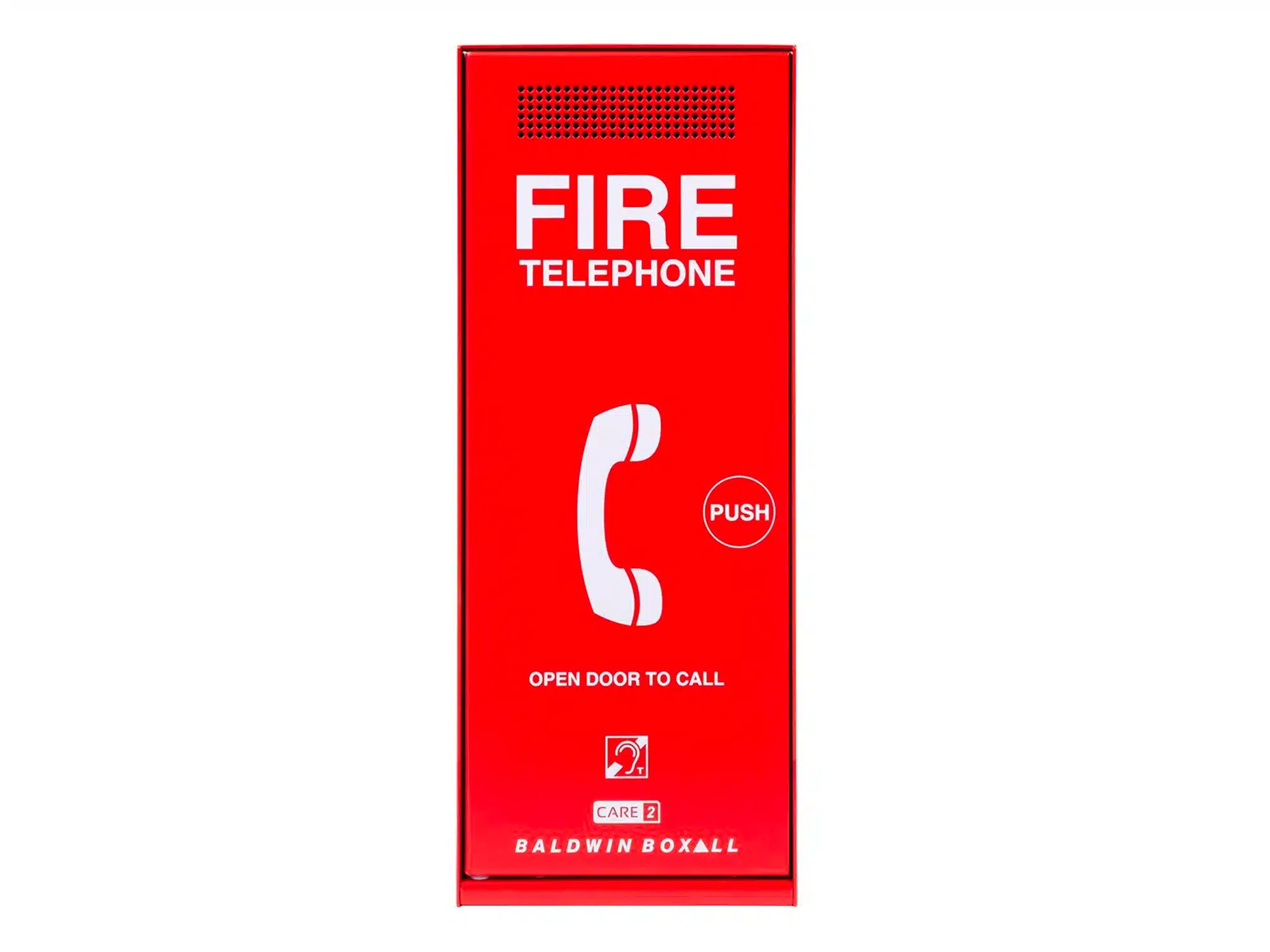

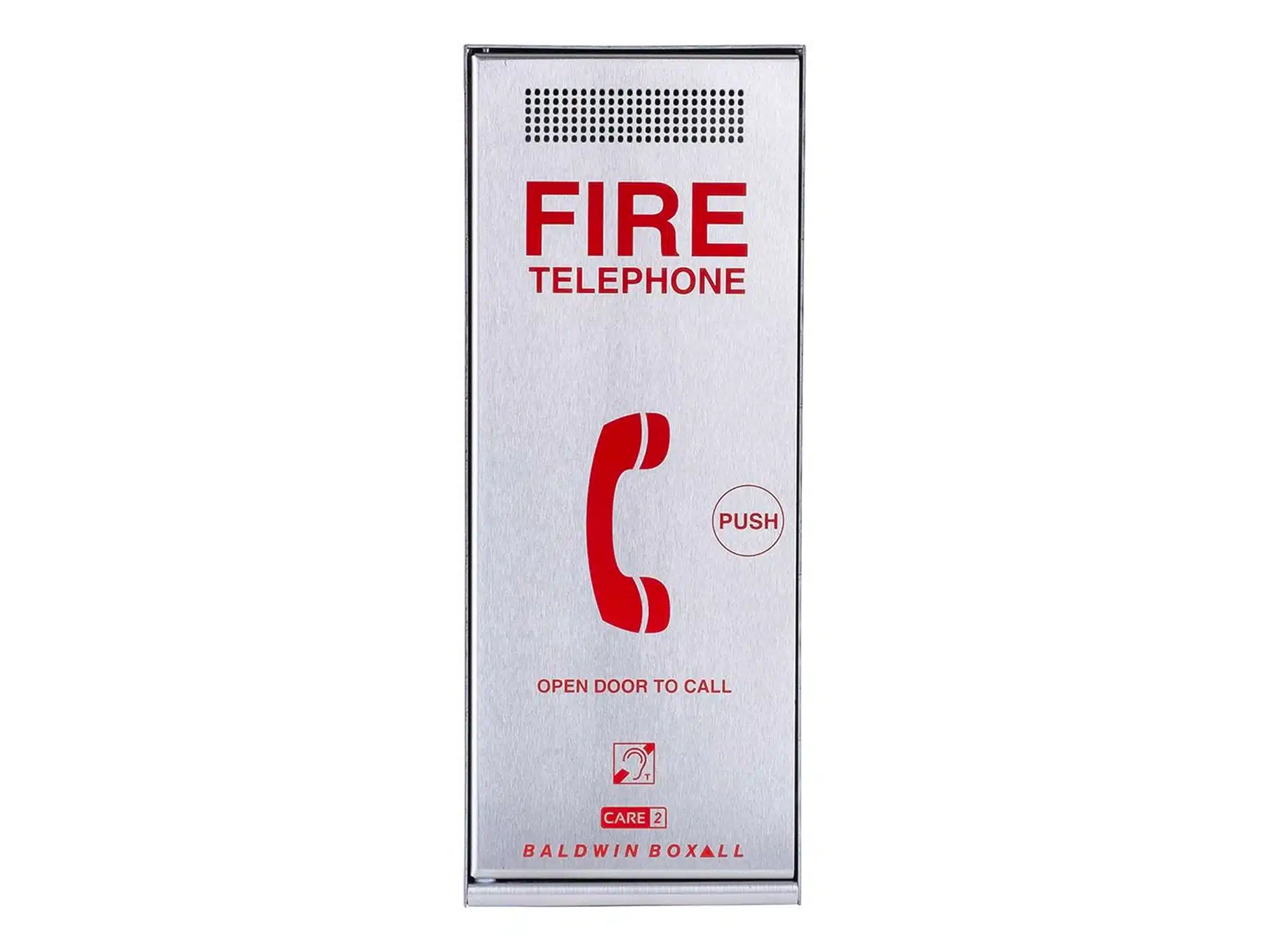

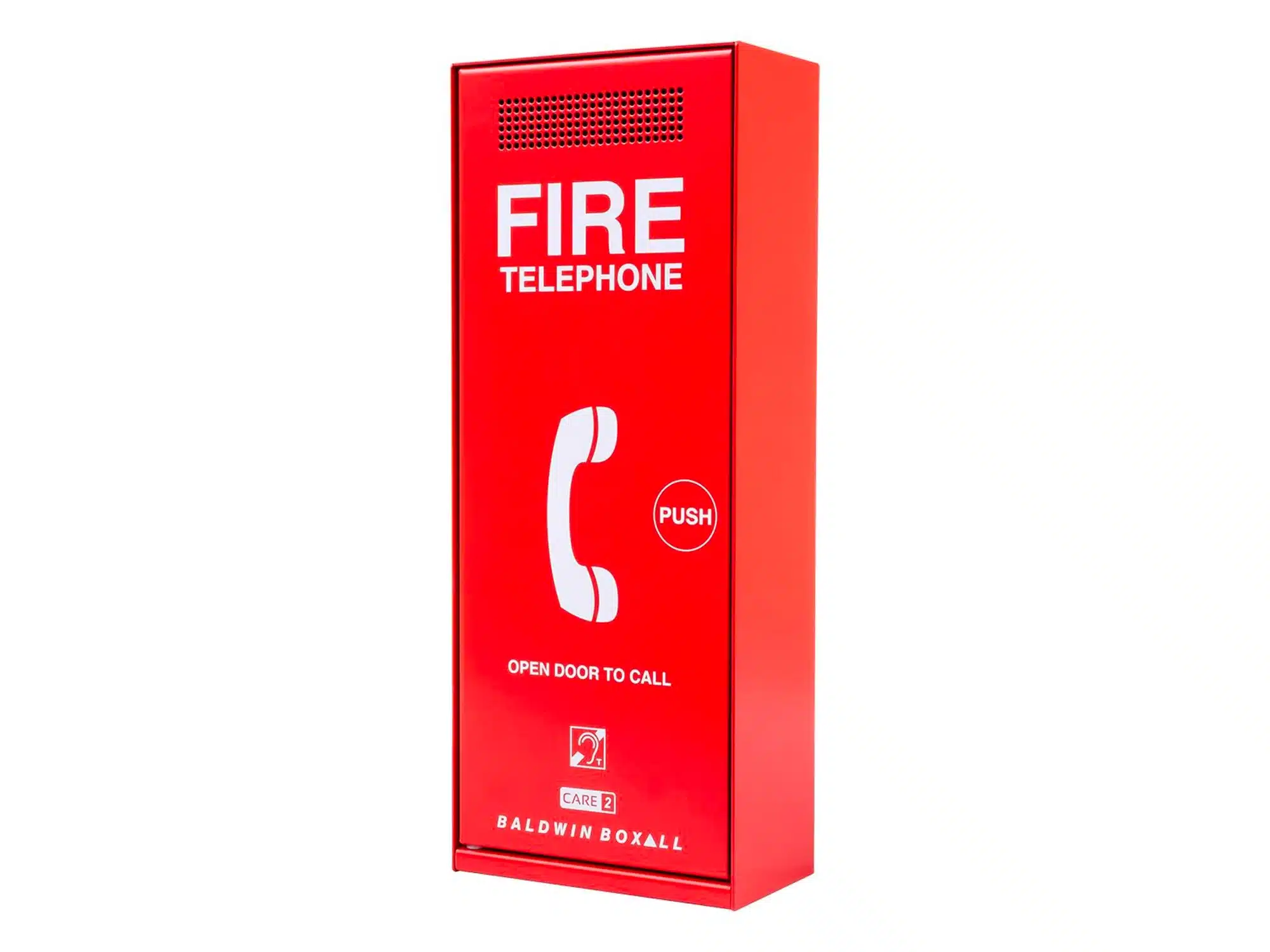

C2FTRP / C2FTSP
Fire Telephone
Push door
Red / stainless steel
130mm x 330mm x 75mm
2.5 kg
C2FTRZ / C2FTSZ
Bezel for flush mounting C2FT## / C2FT##
Red /stainless steel
170mm x 370mm (c/o 136W x 336H)
Key Benefits
- Fully compliant to BS5839-9:2021
- Full duplex two-way communication
- Self-powered from the line
- Battery backup powered by Control Panel
- Robust handset with ‘T-Coil’ Hearing Aid-compatible earpiece
- High volume ringer
- Surface Mountable or Flush Mountable (bezel required)
- LED status light
- Conference facility via the Control Panel
- Call initiated when door opened
- Red or Stainless Steel finish
- Slot Lock or Push Door options
- Any CARE2 Outstation on the same Panel
Safe & Compliant
BS5839-9 is a code of practice for those who install, maintain and commission EVC systems, giving guidance on how to install an effective system as part of a fire detection and alarm system covering all components including wireless.
BS9999 is a BSI Standards Publication providing guidance for fire safety in the design, management and use of buildings. It includes the provision of evacuation methods and placement of EVC systems.
