Steward Telephones

Type A Steward Telephones for the CARE2 EVC system provide two-way, full duplex, voice communication

Steward Telephones form part of an Emergency Voice Communication (EVC) system designed for venues such as Sporting Stadiums and Stadia where public safety is paramount.

The CARE2 Steward Telephone is one type of outstation available in the range, providing two-way, full-duplex voice communication. A full-duplex system enables both parties to communicate with each other simultaneously.

CARE2 is an Emergency Voice Communication (EVC) system allowing Disabled Refuge, Fire Telephones, Steward Telephones and Disabled Toilet Alarms all to be connected to one master control panel.

CARE2 has been designed and built by Baldwin Boxall in the UK to meet BS5839-9:2021. It also meets BS8300:2009 for Disabled Toilet Alarm.



Additional Features:
  • Green finish
  • Robust handset in heavy duty enclosure
  • Handset has a hearing aid compatible earpiece (T-coil)
  • Full duplex speech
  • Push or slot lock door versions available (door latch initiates call)
  • Conference facility – including roaming telephone handsets
  • Surface mountable (optional flush mount bezel available)
  • Can be included with any CARE2 outstation on the same panel

Other outstations available include Fire Telephones, Disabled Refuge Outstations and Emergency Assistance/Toilet Alarms.

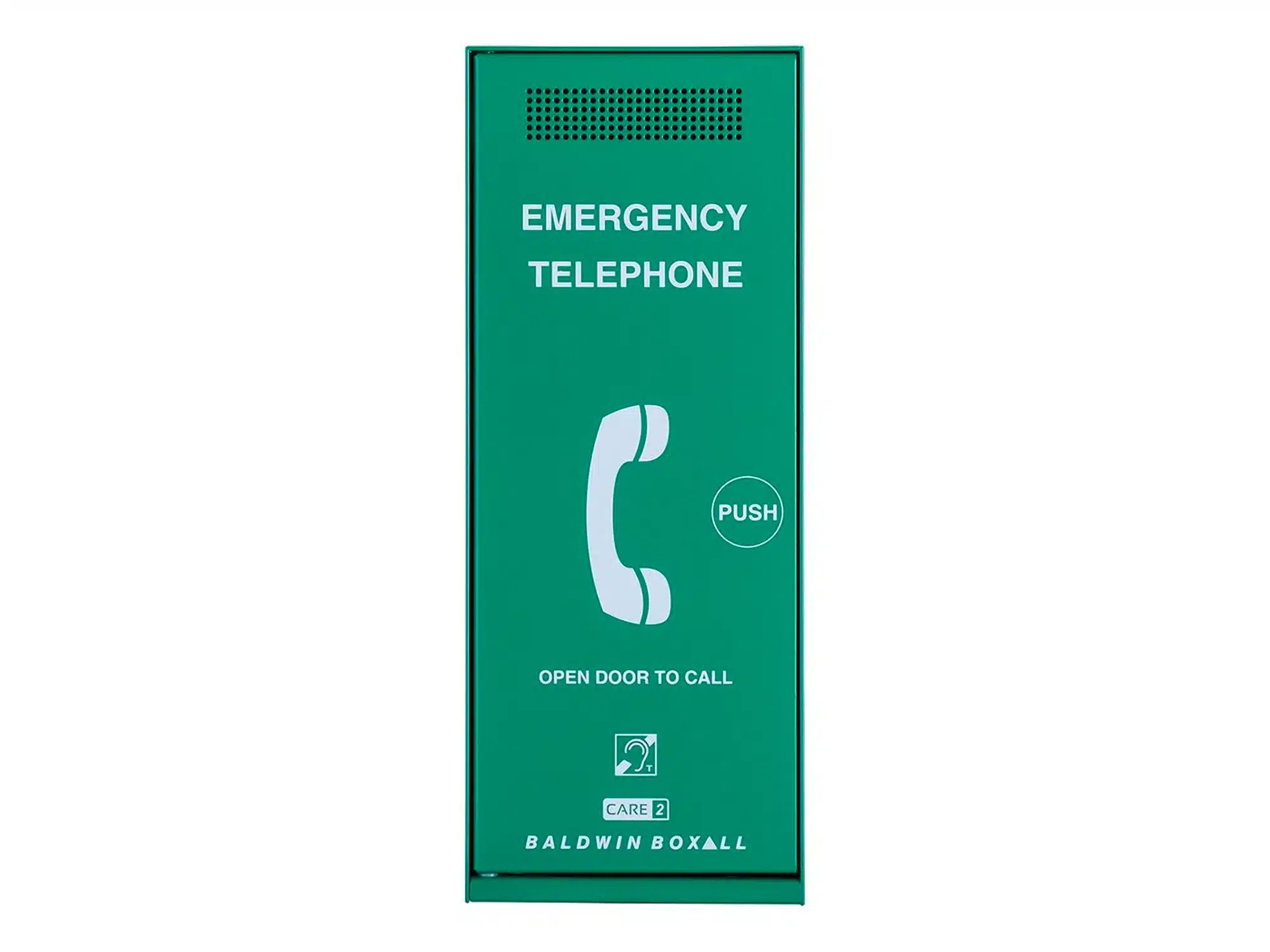

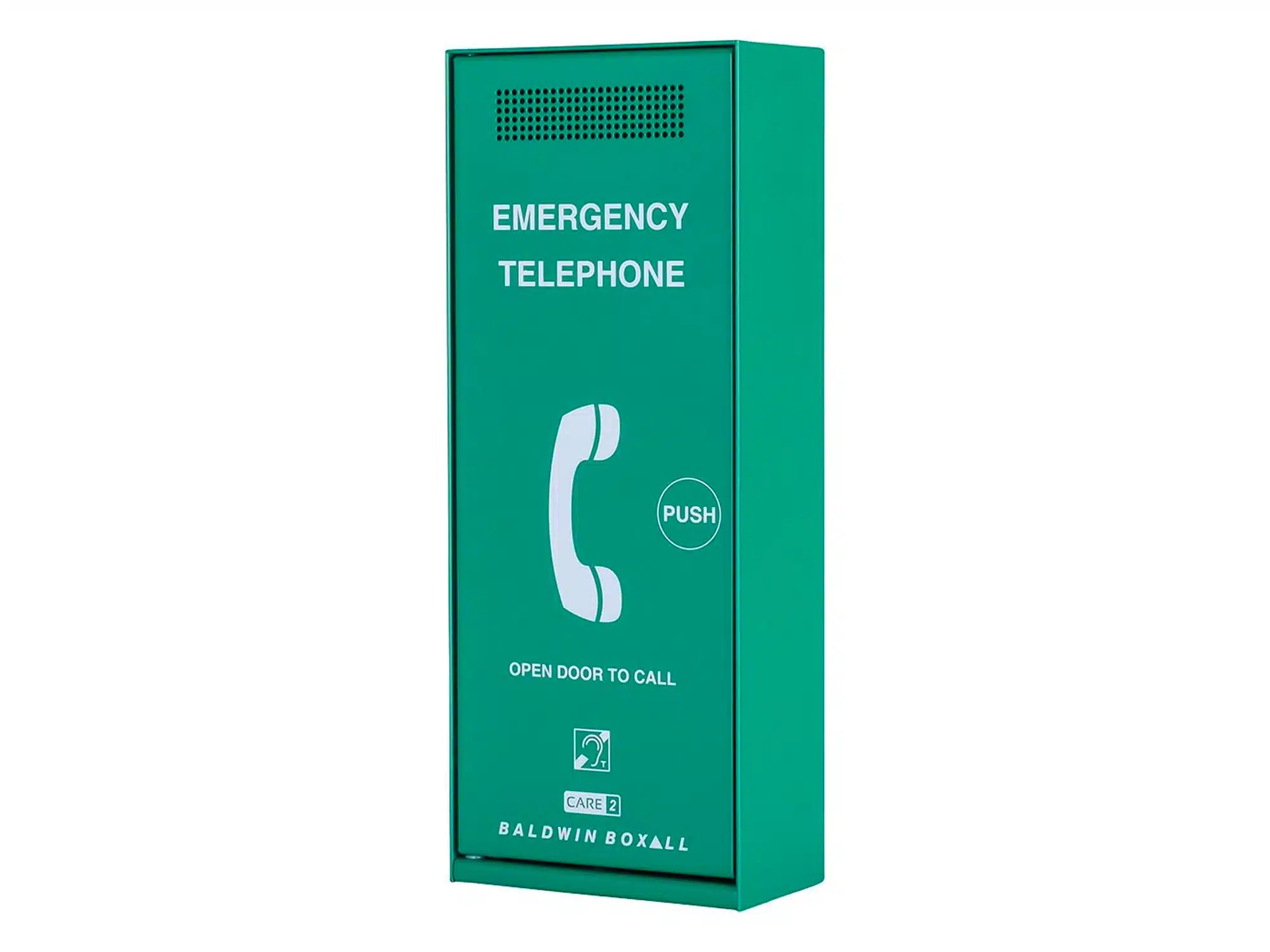

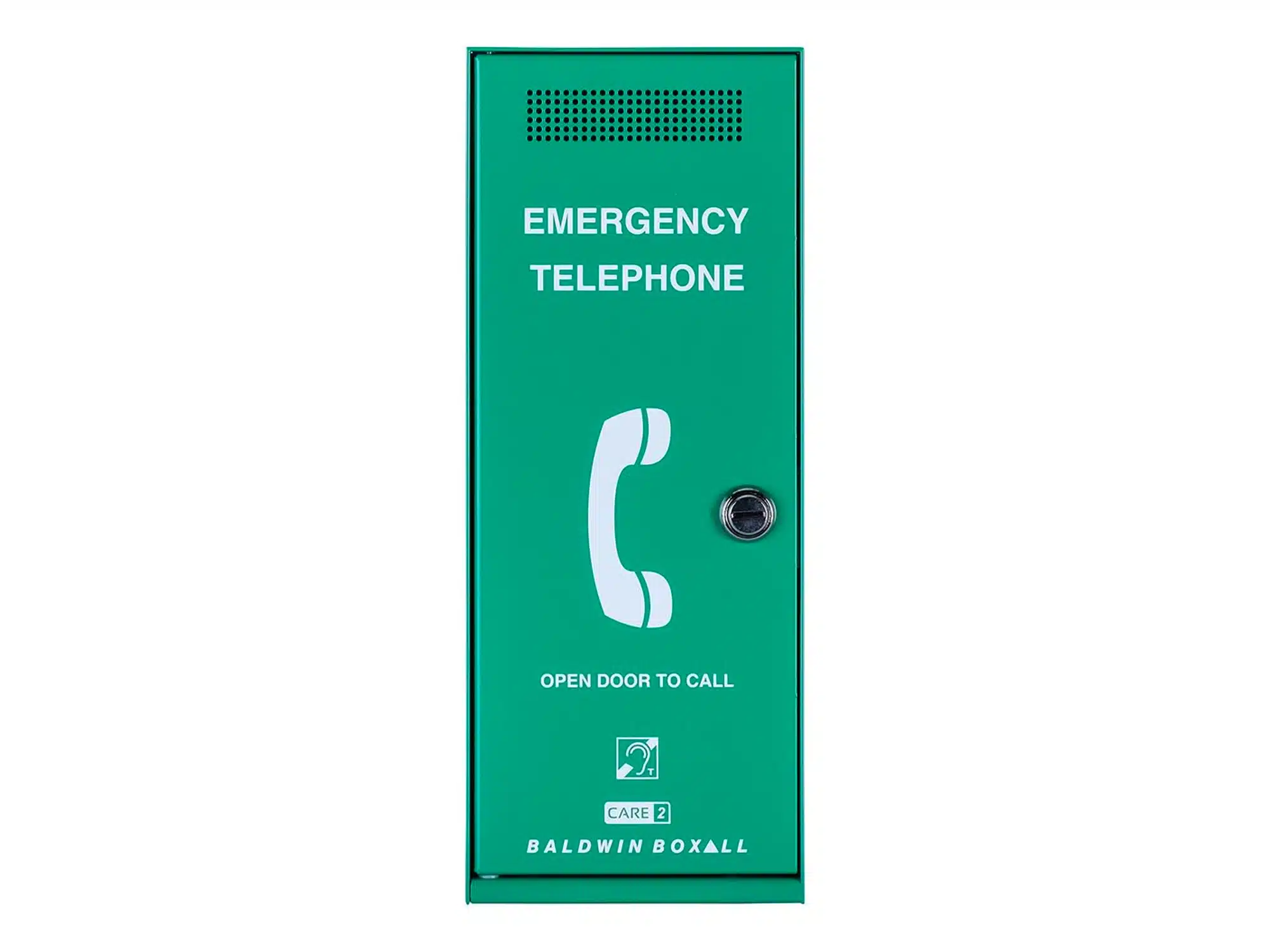

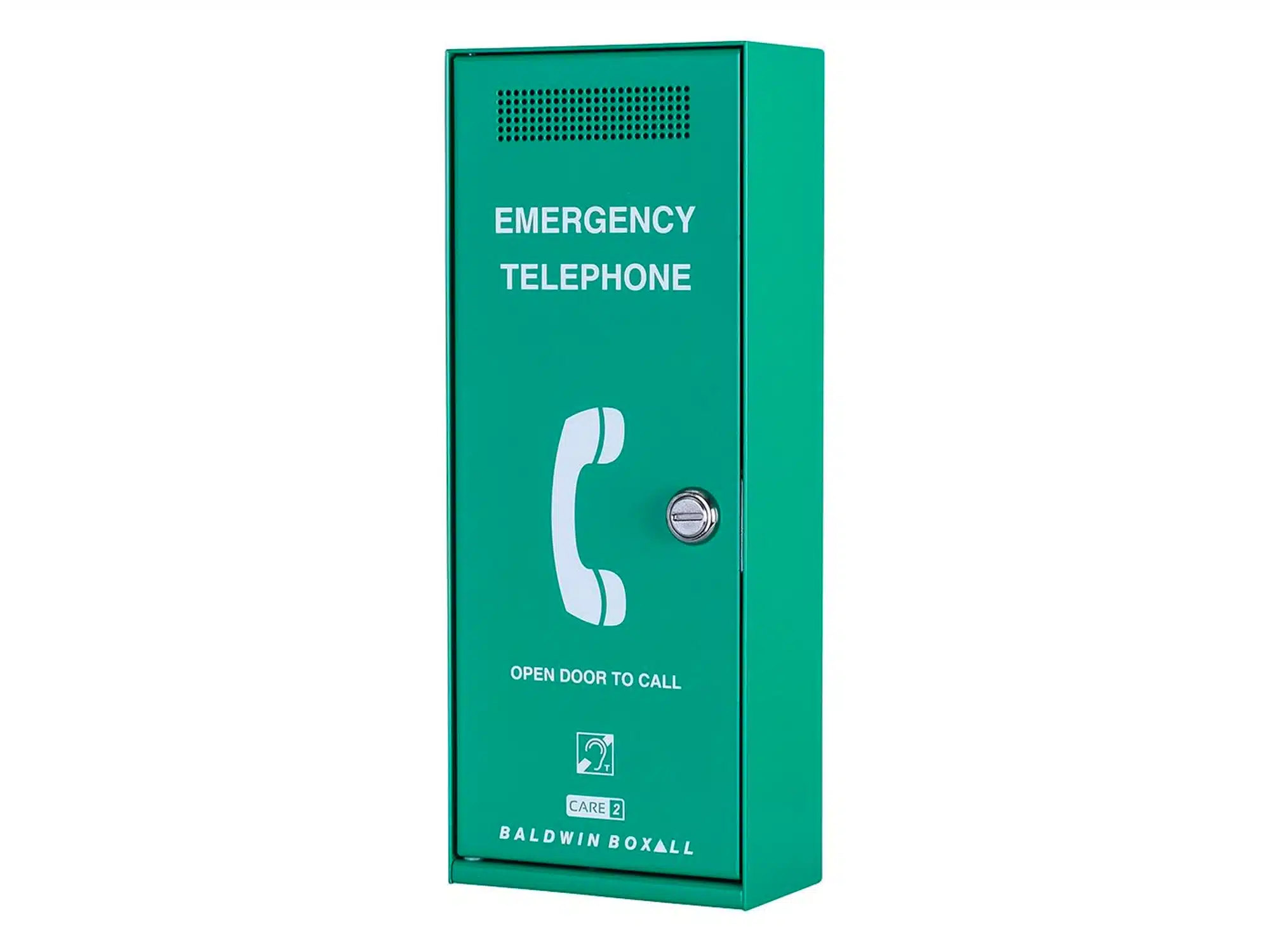

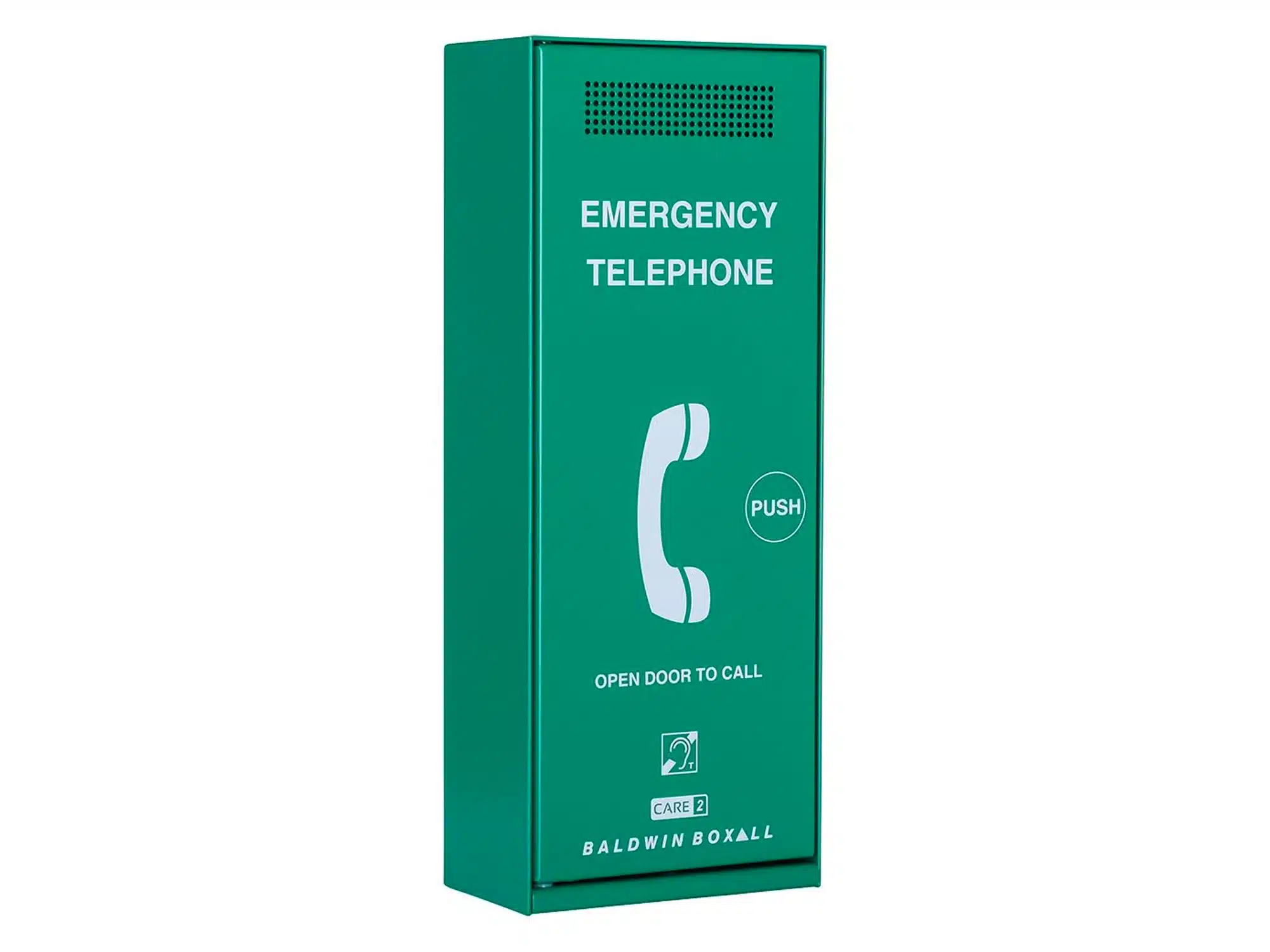

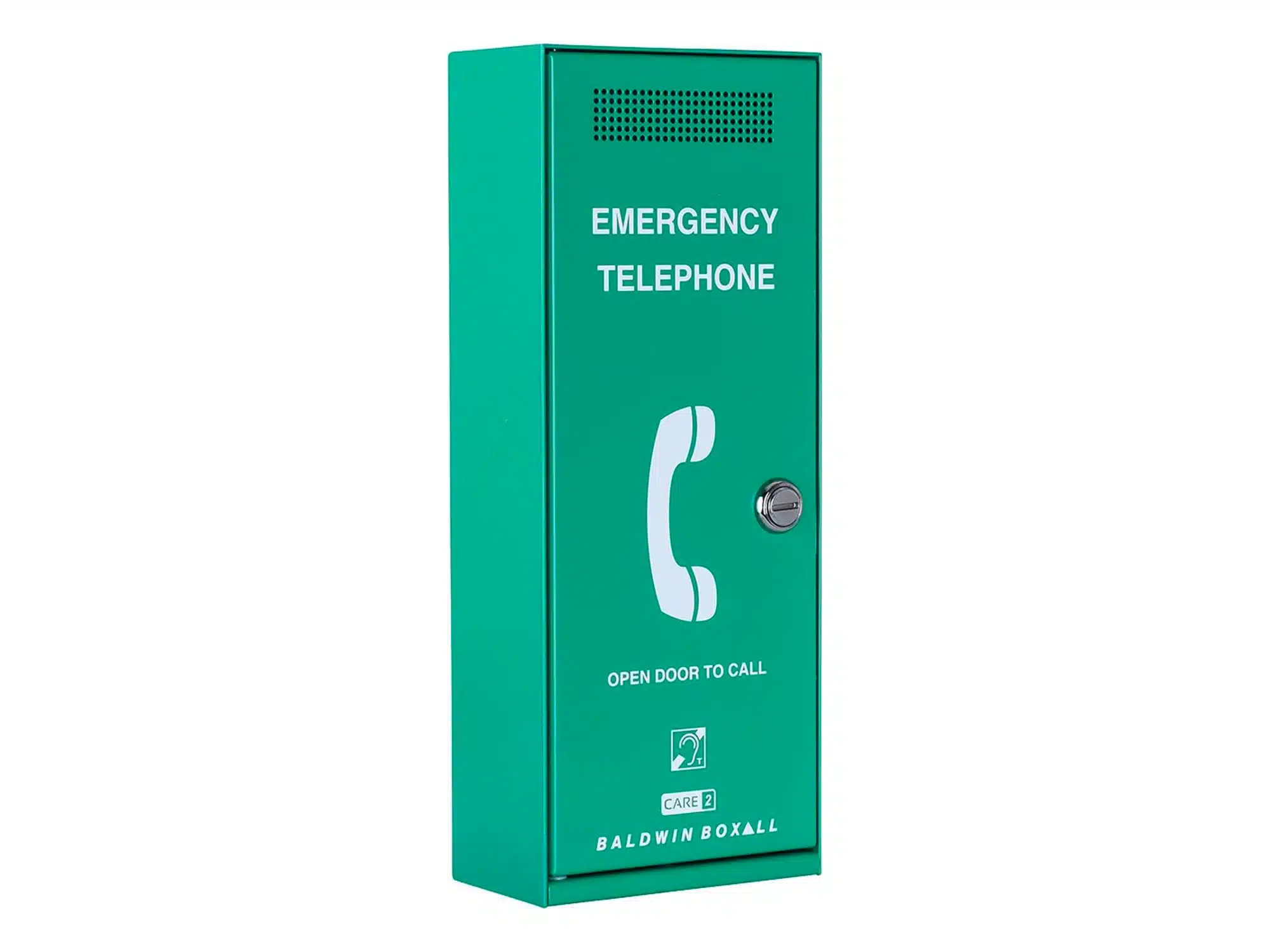

C2ETGL / C2ETGP
Emergency/Steward Telephone
Lock door / push door
Green
130mm x 330mm x 75mm
2.5 kg

C2ETGZ
Bezel for flush mounting C2ETG#
Green
170mm x 370mm (c/o 136W x 336H)

Key Benefits

Safe & Compliant

British Standards BS5839-9 Code of Practice

BS5839-9 is a code of practice for those who install, maintain and commission EVC systems, giving guidance on how to install an effective system as part of a fire detection and alarm system covering all components including wireless.

British Standards BS9999 Code of Practice

BS9999 is a BSI Standards Publication providing guidance for fire safety in the design, management and use of buildings. It includes the provision of evacuation methods and placement of EVC systems.

Documentation & Downloads

Looking for something in particular?

Search our full database of downloads and documentation

CARE2 Product Range

Radial Wired EVC

Expandable 4-way control console available in either black or stainless steel.

Radial Wired EVC

Add one or more of these expansion panels for larger networked systems.

Radial Wired EVC

Type B outstation. Two-way, hands-free voice communication unit for disabled refuge areas.

Radial Wired EVC

Type A outstation. Two-way voice communication Emergency Steward Telephone, typically used where crowd control is required, such as Stadia.

Radial Wired EVC

Type A outstation. Two-way emergency voice communication Fire Telephone, can be used by Fire Officers during the evacuation of a building.

Radial Wired EVC

Portable Roaming Telephone handset, jack sockets and monitored enclosure.

Radial Wired EVC

Emergency Assistance Alarm solution for toilets for the CARE2 system.

Radial Wired EVC

CARE2 EVC cabling and networking information.

EVC System Options

Loop Wired EVC

OmniCare EVC system is fully expandable and networkable, enabling up to 127 outstations. The first of its kind when introduced as a combined EVC system and now leads the way with installations throughout the world.

LOOP WIRED EVC

OmniCarePLUS makes it possible to install especially large Disabled Refuge/Fire Telephone Emergency Voice Communication (EVC) systems with up to 2,048 outstations on a single loop-wired system.

Radial wired evc

CARE2 is our radial-wired EVC system featuring monitored bidirectional communication outstations and has been developed to provide an alternative EVC option to our popular loop-wired OmniCare systems.
