CARE2 Control Panel

CARE2 Control Panel for two-way communication between Disabled Refuge, Fire, Steward & Roaming Telephones

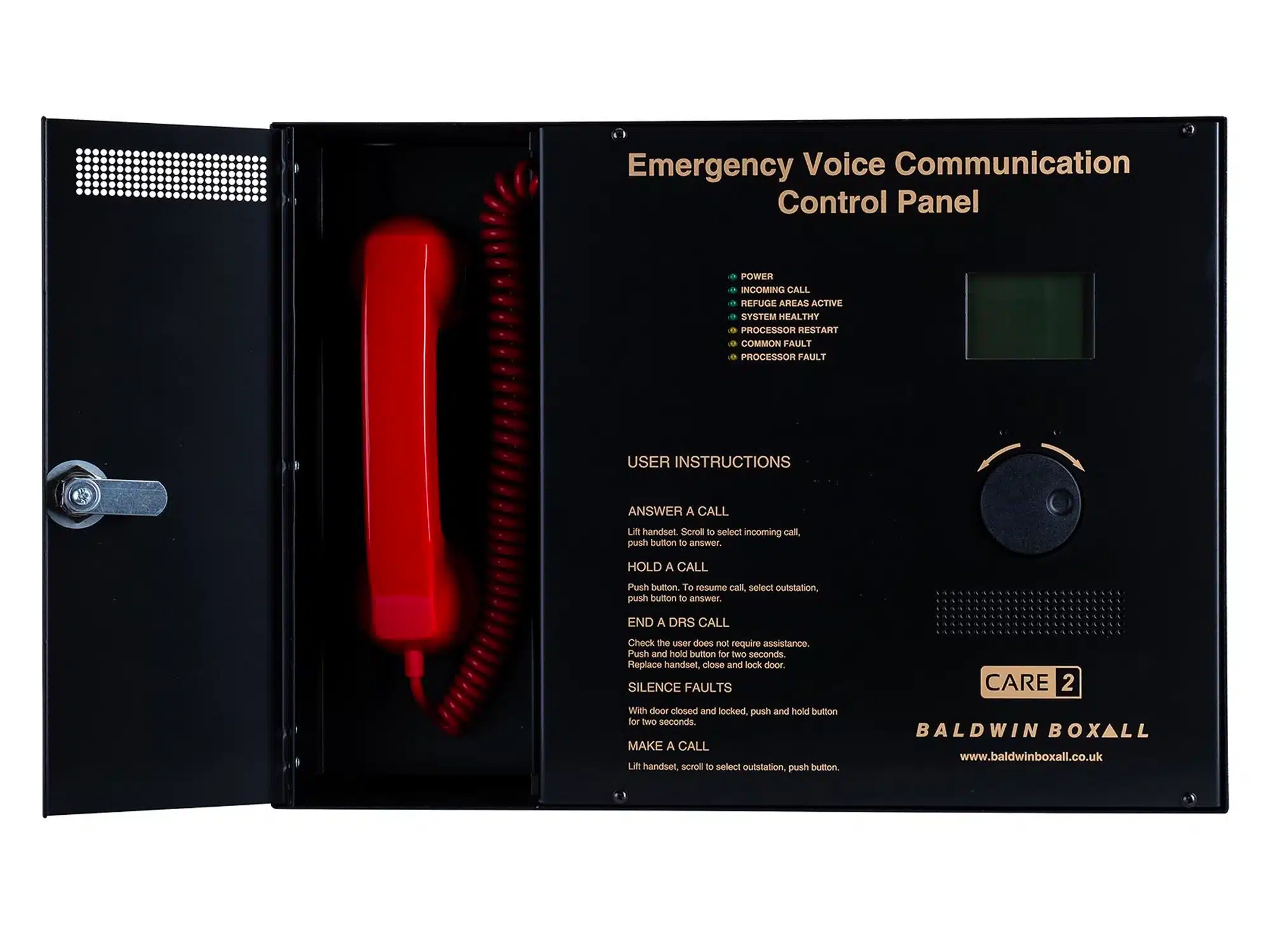

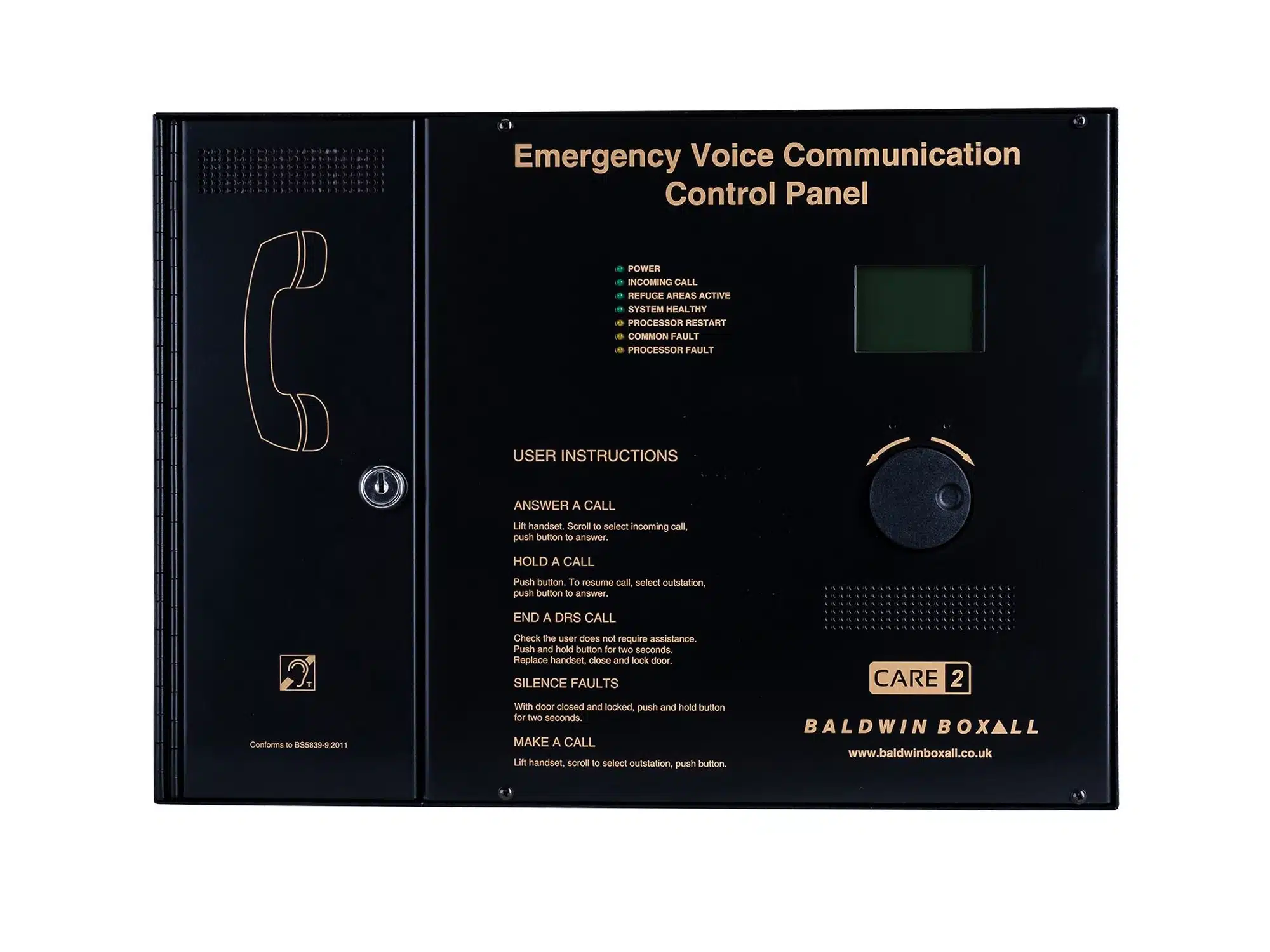

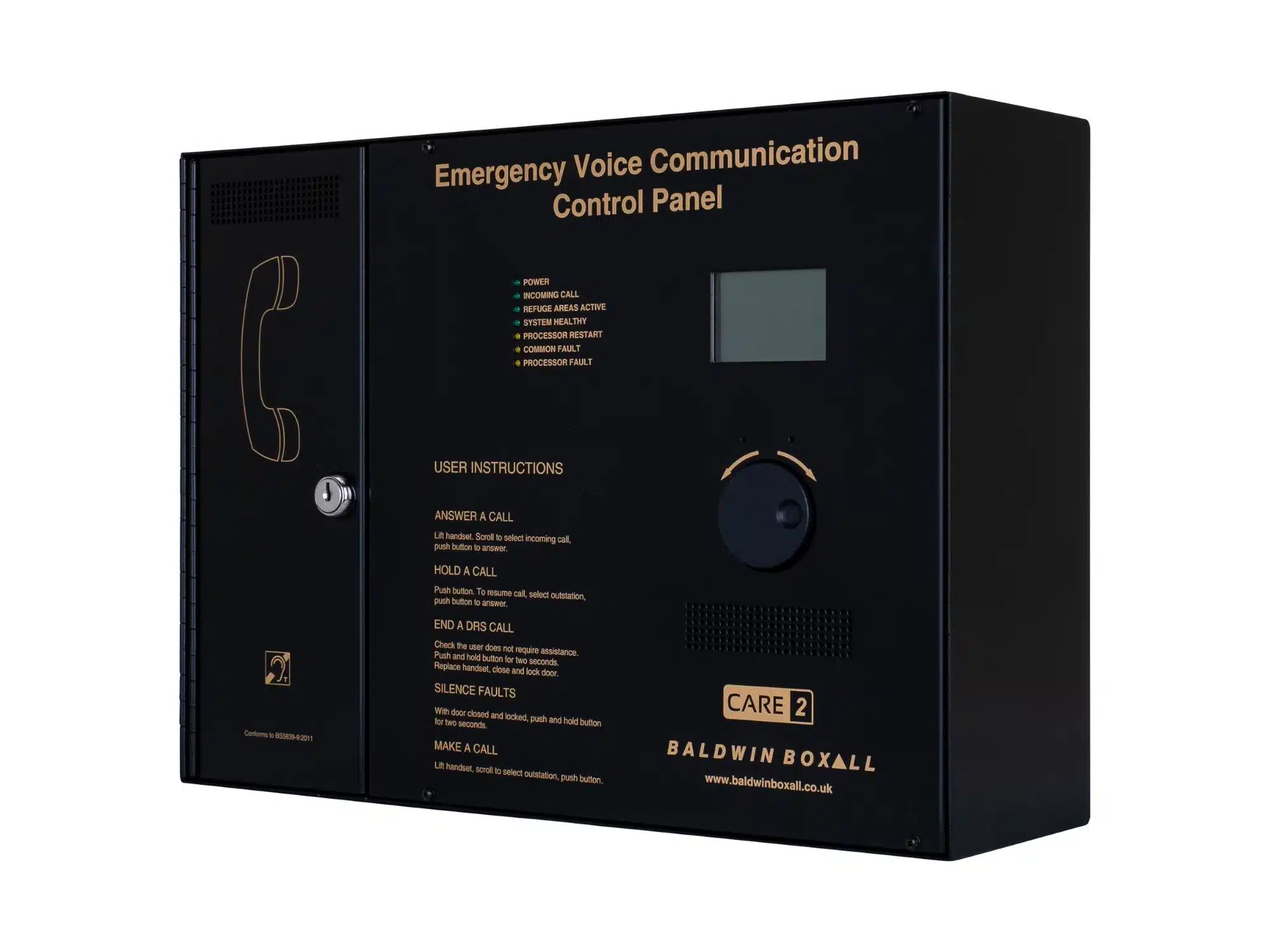

The Baldwin Boxall CARE2 Control Console features a clear LCD screen and is operated by a rotary encoder. Any combination of CARE2 Outstations can be connected to the panel.

The 4-way panel can be expanded to 8, 12 or 16-way by means of an optional expansion kit. Simply add another Control Panel or Network Expansion Panel to extend the size of the coverage for larger systems.

The CARE2 EVC system is despatched as a boxed product. Control Panels, line expansion kits, network cards and fire panel interface cards are packed as separate items, therefore, straightforward final assembly on-site is required if these items are requested.

CARE2 EVC system is an alternative to our popular loop-wired OmniCare EVC system.


  • Black or Stainless Steel finish
  • Unique design, easy to operate
  • Clear LCD screen with rotary encoder/control
  • Rugged red handset with hearing aid compatible earpiece
  • The handset is mounted in a lockable compartment
  • Optional link to fire detection system prevents hoax disabled refuge calls (C2CFPE required)
  • Can be networked with network expansion panels (C2CN card required in control console)
  • Surface mount or optional flush mount bezel available
  • Up to two Control Consoles (one will act as a slave unit) can be linked on a network (C2CN Network Card required for each panel)
  • Larger systems are easily catered for using the network expansion panel (NEP)

Important: When adding the control console to a network, a C2CN network card is required.

C2CB4 / C2CS4
4-way Control Panel
Black / stainless steel
Wall mount or flush mountable with bezel
430mm x 310mm x 130mm
9 kg / 8.6 kg

Bezel for flush mounting C2CB4 / C2CS4
Black / stainless steel
470mm x 350mm with 10mm radius (c/o 440W x 320H)
1 kg

4-way expansion kit

Fire Panel/Ethernet module

Network Card

Spare key for panel

Key Benefits

Safe & Compliant

British Standards BS5839-9 Code of Practice

BS5839-9 is a code of practice for those who install, maintain and commission EVC systems, giving guidance on how to install an effective system as part of a fire detection and alarm system covering all components including wireless.

British Standards BS9999 Code of Practice

BS9999 is a BSI Standards Publication providing guidance for fire safety in the design, management and use of buildings. It includes the provision of evacuation methods and placement of EVC systems.
