CARE2 Disabled Refuge

Type B Outstations for the CARE2 EVC system are robust, easy-to-use and dependable

Type B Outstations for CARE2 EVC systems are available as surface mounted or flush with a separate bezel, with green or stainless steel finishes. There are also options for mounting a refuge outstation in a plasterboard wall or fitting within a weatherproof enclosure.

Type B Outstations provide hands-free, two-way voice communication upon initiation of a call. These units can be included on the same system as our CARE2 Type A (Fire Telephone) Outstations for a complete EVC solution.

CARE2 EVC system is an alternative to our popular (loop-wired) OmniCare EVC system.



Additional Features:
  • Green or stainless steel finish
  • Induction loop output to feed an external amplifier
  • Surface mountable (optional flush mount bezel available)
  • Call is reset at the control console when the occupant of the refuge area has been safely evacuated
  • Hands-free, speech steered, operation
  • Can be included with any CARE2 outstation on the same panel

Other outstations available include Fire Telephones, Steward Telephones and Emergency Assistance/Toilet Alarms.

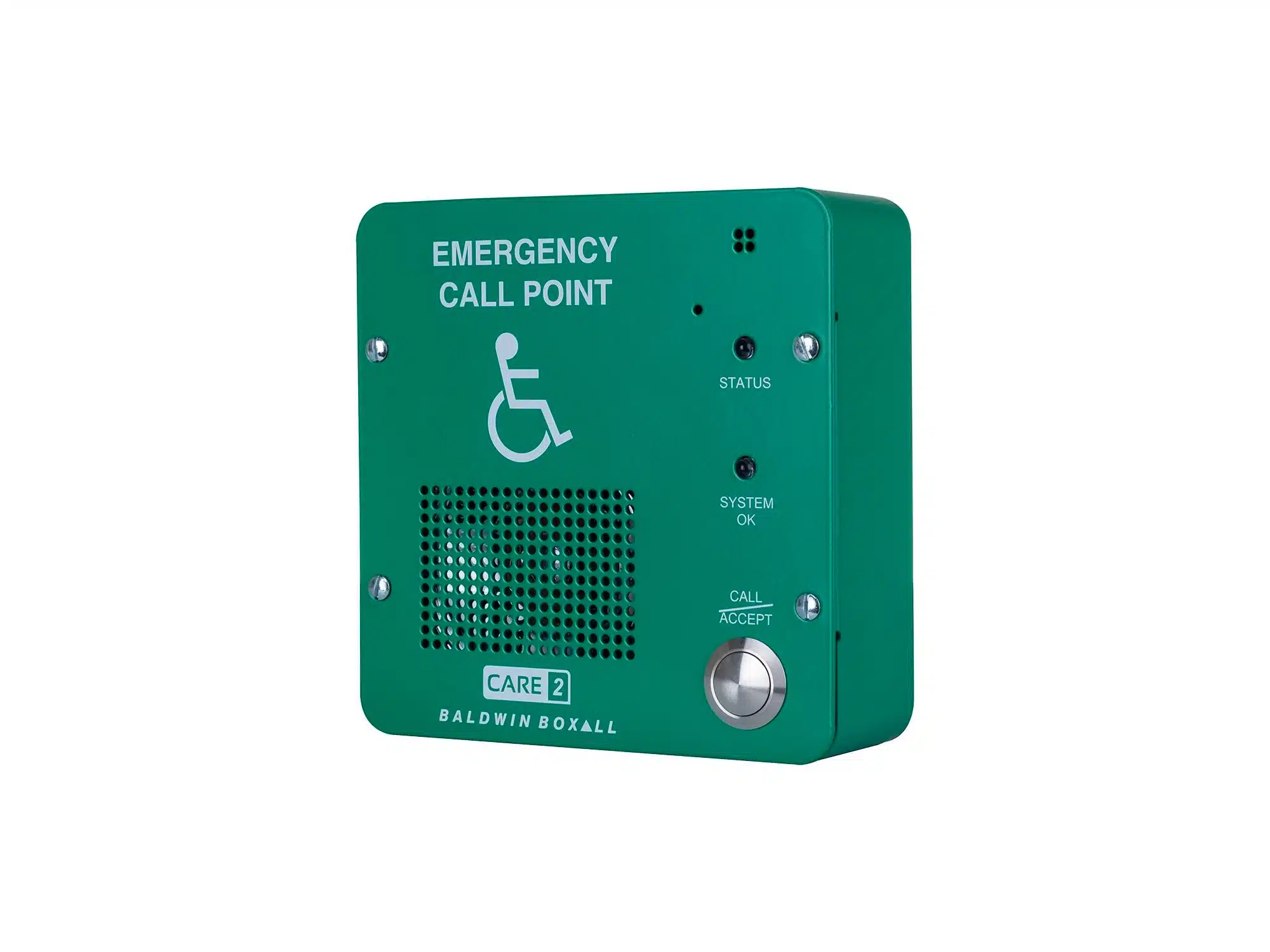

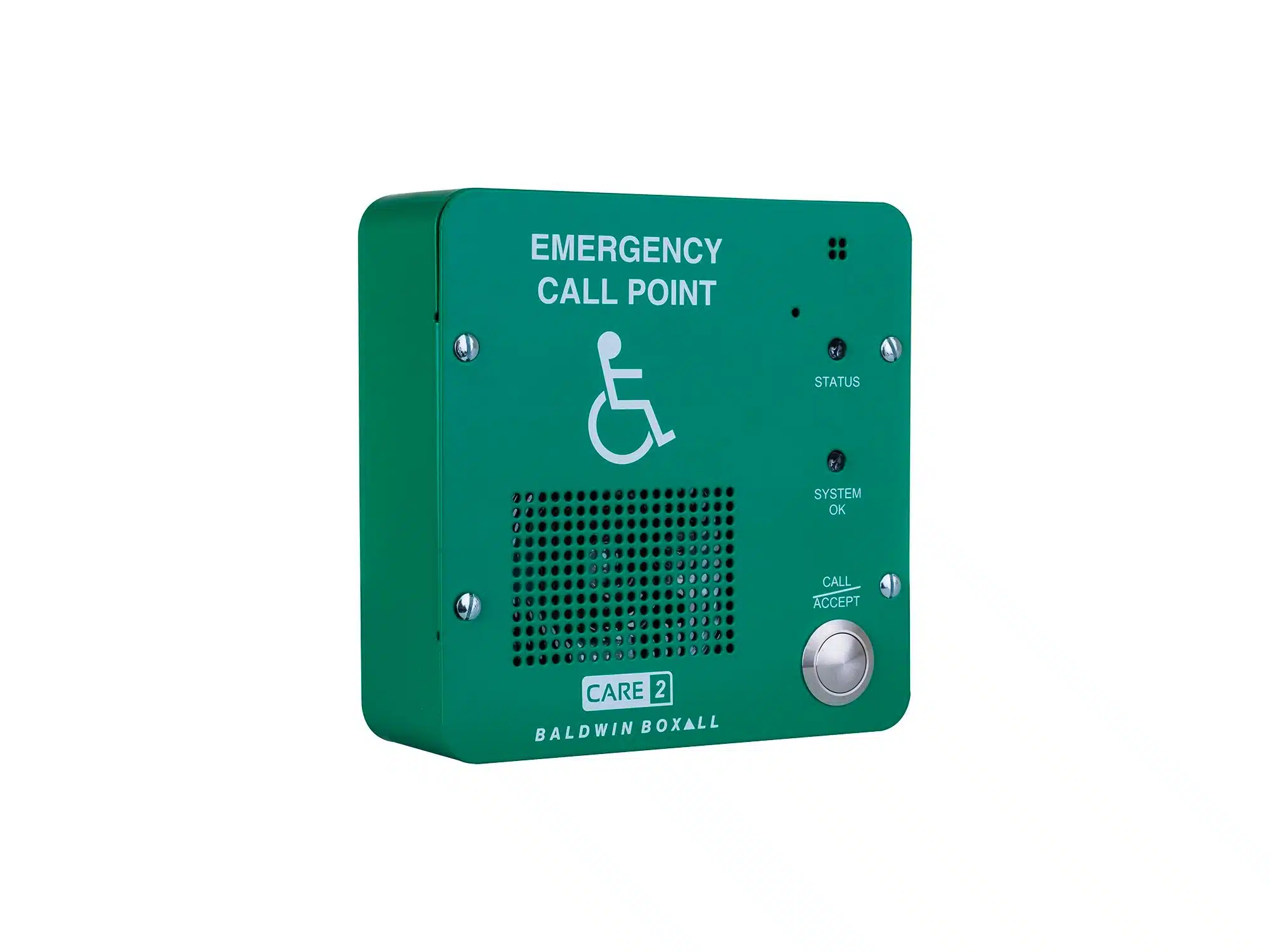

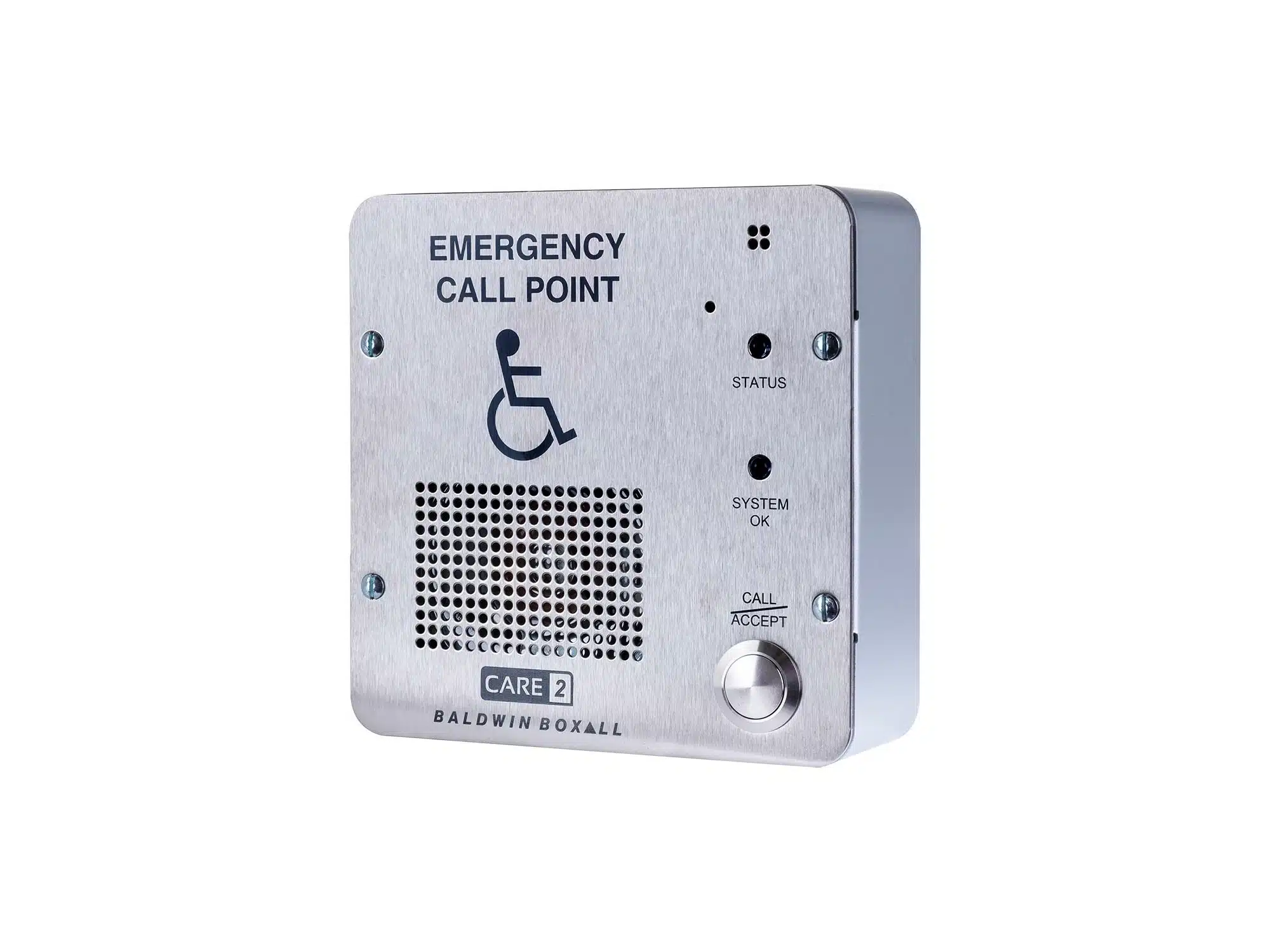

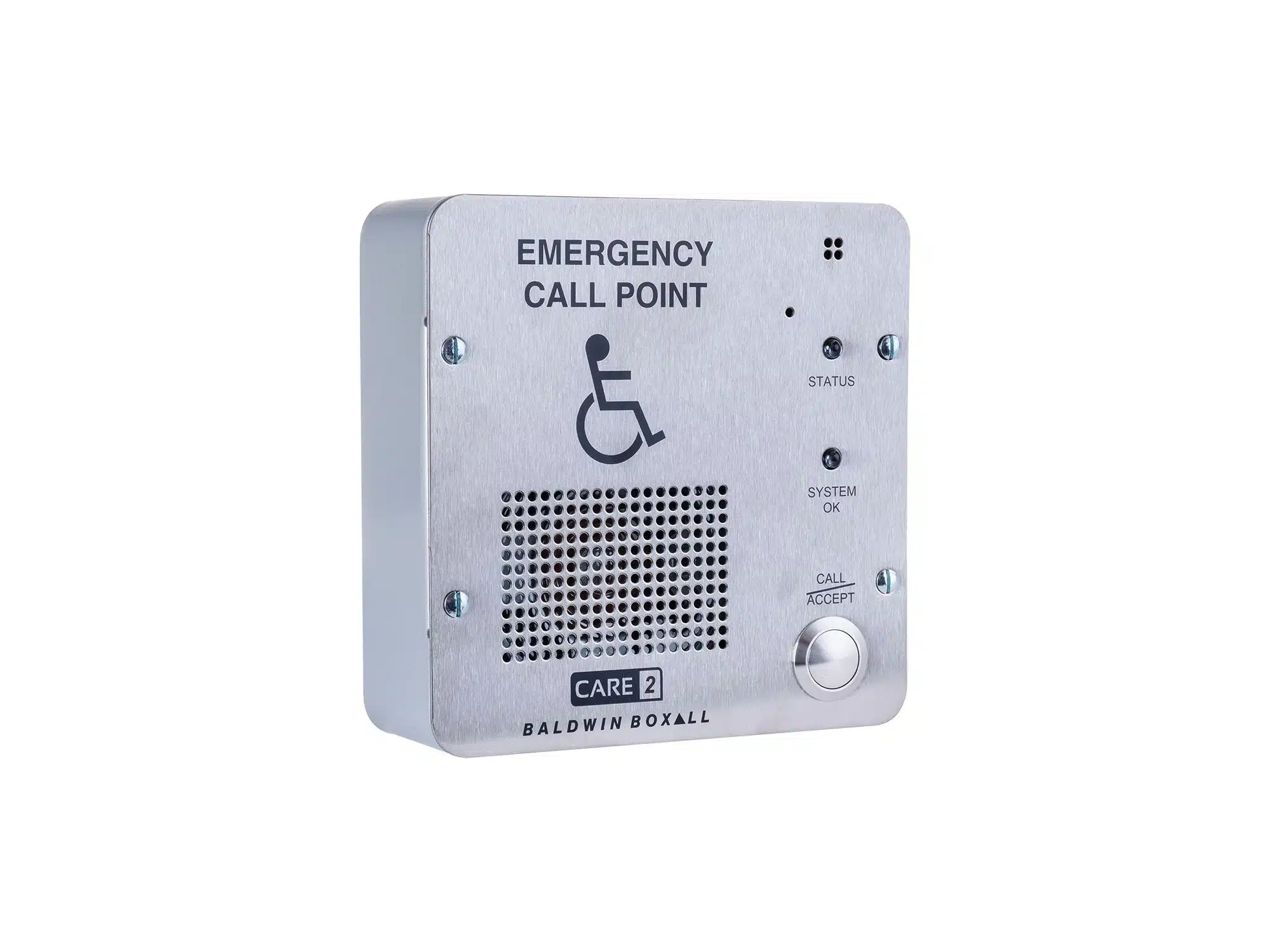

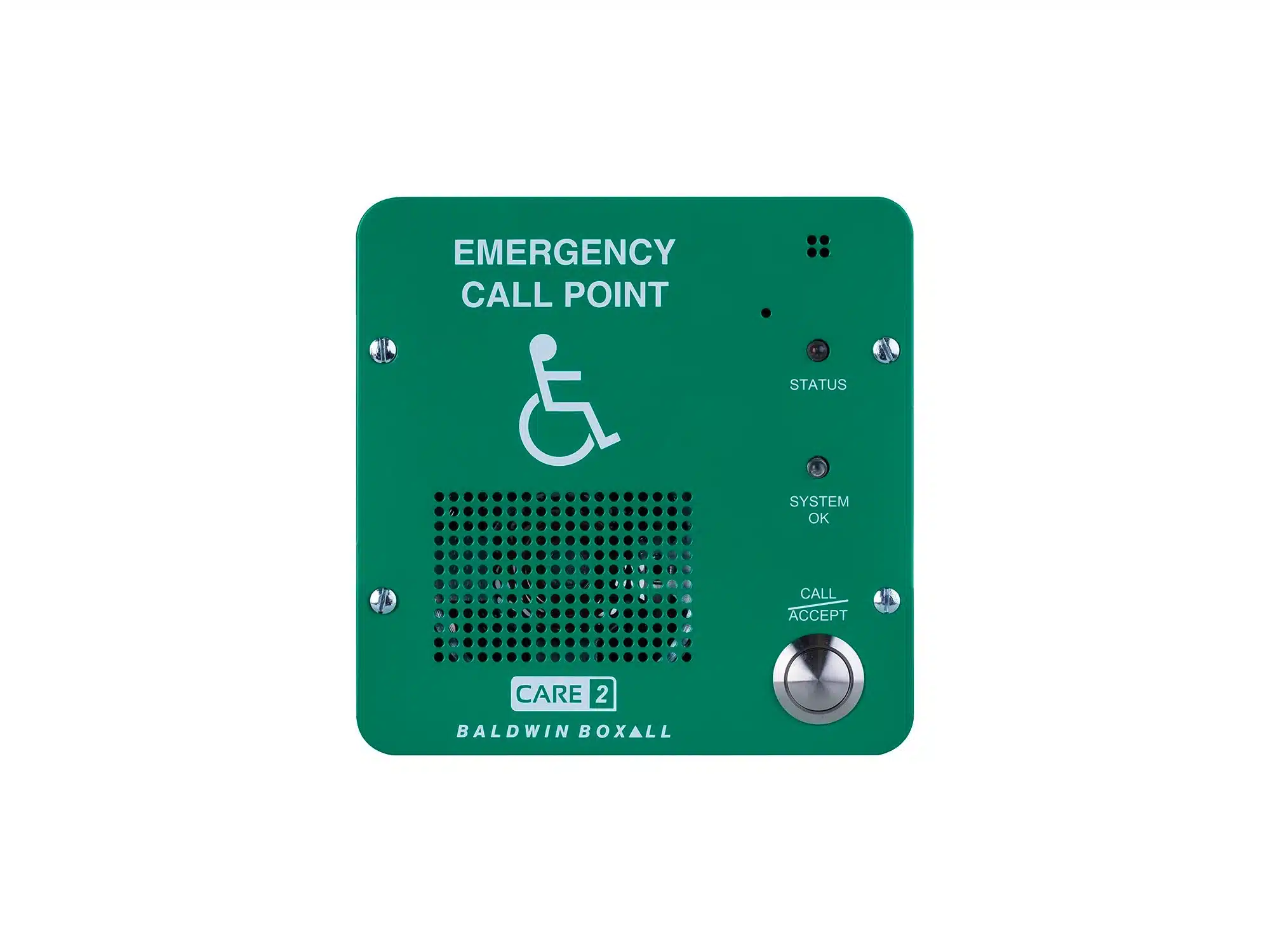

C2RRG / C2RRS
Disabled Refuge Outstation
Green / stainless steel
134mm x 134mm x 44mm
1 kg

BVCRMGRN / BVCRMSS
Bezel for flush mounting C2RRG / C2RRS
Green /stainless steel
154mm x 154mm (c/o 136W x 136H)

C2RRGPB / C2RRSPB
Plasterboard Backbox for C2RRG / C2RRS
Green /stainless steel
131mm x 142mm x 65mm (c/o 132W x 143H)

C2RRBIP
IP65 rated enclosure for C2RRG
Green
200mm x 200mm x 80mm

Key Benefits

Safe & Compliant

British Standards BS5839-9 Code of Practice

BS5839-9 is a code of practice for those who install, maintain and commission EVC systems, giving guidance on how to install an effective system as part of a fire detection and alarm system covering all components including wireless.

British Standards BS9999 Code of Practice

BS9999 is a BSI Standards Publication providing guidance for fire safety in the design, management and use of buildings. It includes the provision of evacuation methods and placement of EVC systems.

Documentation & Downloads

Looking for something in particular?

Search our full database of downloads and documentation

YEAR WARRANTY 7

Added peace of mind with our 7-Year Warranty*

When it comes to the systems you rely upon to keep lives safe, complete confidence is the very least you should expect. That's why all new manufactured Baldwin Boxall products come with a manufacturer 7-year warranty as standard.
Learn More
7 Year Warranty

CARE2 Product Range

Radial Wired EVC

Expandable 4-way control console available in either black or stainless steel.

Radial Wired EVC

Add one or more of these expansion panels for larger networked systems.

Radial Wired EVC

Type B outstation. Two-way, hands-free voice communication unit for disabled refuge areas.

Radial Wired EVC

Type A outstation. Two-way voice communication Emergency Steward Telephone, typically used where crowd control is required, such as Stadia.

Radial Wired EVC

Type A outstation. Two-way emergency voice communication Fire Telephone, can be used by Fire Officers during the evacuation of a building.

Radial Wired EVC

Portable Roaming Telephone handset, jack sockets and monitored enclosure.

Radial Wired EVC

Emergency Assistance Alarm solution for toilets for the CARE2 system.

Radial Wired EVC

CARE2 EVC cabling and networking information.

EVC System Options

Loop Wired EVC

OmniCare EVC system is fully expandable and networkable, enabling up to 127 outstations. The first of its kind when introduced as a combined EVC system and now leads the way with installations throughout the world.

LOOP WIRED EVC

OmniCarePLUS makes it possible to install especially large Disabled Refuge/Fire Telephone Emergency Voice Communication (EVC) systems with up to 2,048 outstations on a single loop-wired system.

Radial wired evc

CARE2 is our radial-wired EVC system featuring monitored bidirectional communication outstations and has been developed to provide an alternative EVC option to our popular loop-wired OmniCare systems.

2-core loop & radial system

OmniCALL EVC system features a revolutionising patent-pending 2-core loop and radial design for enhanced flexibility. It features intuitive touch-screen controls, clear audio quality, and easy installation
