Stand-Alone Emergency Assistance Alarm Kit
All-in-one Emergency Assistance Alarm Kit
The toilet alarm kit provides an all-in-one solution for a stand-alone Emergency Assistance Alarm Kit.

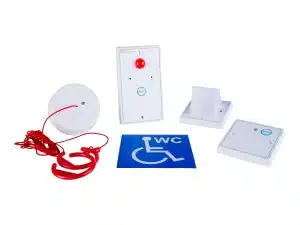

The ‘four-part’ kit comprises of a Controller, Pull Cord, Reset Point, and Overdoor Light/Sounder. In addition, the kit includes a blue vinyl self-adhesive WC sign and a Euan’s Guide card (for fitting to the cord to help prevent it from being tied up or generally made inaccessible).
Indication (visual & audible) of an incoming call for assistance is at the connected Control Panel. The Call is Accepted at the Panel and reassures the caller that helps is on the way (visually and audibly).
The BVOCDTA stand-alone Alarm Kit is fully compliant BS8300-2:2018.
Features:
- Independent, stand-alone kit
- White or stainless steel finish
- Call acknowledge feature (when enabled)
- Integral power supply – requires mains power
- Monitored battery backup
- ‘Supply’ & ‘battery healthy’ indicators
- An additional overdoor light can be added to a kit
- Up to two additional call points can be added to a kit
Controller
Combined power supply and controller with reset/call acknowledge button
Pull Switch
Ceiling mounted pull with two ‘G’ pulls
Reset Point
Reset button (and LED) to reset calls locally
Light/Sounder
Overdoor triangular lens with integral sounder to attract attention
WC Sign
Self-adhesive, vinyl, disabled toilet sign
Euan’s Guide
A card to be fixed to the red pull cord to advise on the importance of allowing the cord to hang freely
- The ‘four-part’ BVOCDTA Emergency Assistance Alarm Kit can be added to an OmniCare/OmniCarePLUS system via a repeater/interface unit (BVFREPEM). However, we recommend the DTAKIT & BVOCRIF for connection to the EVC system
- Multiple BVOCDTA Kits can be connected to a BVFREPEM (will show as one point on the control panel)
- As an alternative, one Kit and an additional ceiling pull can be fitted to one line
- It is possible to add other optional products to the Kit*
*Adding additional points to the standard BVOCDTA may result in non-compliance with BS8300. Dependent upon the system layout, some components may be unmonitored
BVOCDTA
Complete ‘4-part’ Kit
White
Includes: CTRL, BVOCCSS, BVOCODL, CRP, DTALAB & Euan’s Guide
0.62 kg
BVOCDTAS2
Complete ‘4-part’ Kit
Stainless steel
Includes: CTRLS, BVOCCSS2, BVOCODLS, CRPS, DTALAB & Euan’s Guide
Mix & Match Options
Purchase items individually to suit requirements
Each operational ‘kit’ requires:
- Controller
- Call point
- Reset point
- Overdoor light
CTRL / CTRLS
Power Supply/Controller
White / stainless steel
Requires 35mm deep double backbox
BVOCODL / BVOCODLS
Overdoor Light/Sounder
White / stainless steel
Requires single gang backbox
BVOCCSS / BVOCCSS2
Call Point – Ceiling Mounted Pull Cord
White / stainless steel
30mm x 80mm(diam.) / requires single gang backbox
BVOCCPS
Call Point – Button
Stainless steel
Requires single gang backbox
BVOCRCPS
Call Point & Reset Point – Buttons
Stainless steel
Requires double gang backbox
CRP / CRPS
Call Point – Button
White / stainless steel
Requires single gang backbox
DTALAB
WC Sign
Blue vinyl
110mm x 110mm
BVFREPEM
Repeater/Interface
Required for connection to OmniCare
Key Benefits
- Fully BS8300-2:2018 Compliant
- White & stainless steel
- Attention-grabbing over-door triangular lens with sounder
- Two 'G' pulls on Red Cords
- Supplied with WC Sign
- Monitored & Battery-Backed
Safe & Compliant
BS8300-2 is a BSI Standards Publication code of practice providing guidance on inclusive and accessible design of buildings and the spaces within them to ensure an accessible and inclusive environment.
Documentation & Downloads
Downloads | Link |
---|---|
BVFREPEM Repeater/Interface for OmniCare/BVOCDTA – Datasheet | |
BVOCDTA – 4-part Disabled Toilet Alarm Kit – Datasheet |
Downloads | Link |
---|
Downloads | Link |
---|
Downloads | Link |
---|---|
BVFREPEM Repeater/Interface for OmniCare/BVOCDTA – Manual | |
BVOCDTA Stand-Alone Toilet Alarm Kit – Manual |
Downloads | Link |
---|
Looking for something in particular?
Search our full database of downloads and documentation
You may also be interested in...
OmniCare Toilet Alarm Control
Emergency Assistance/Toilet Alarm Kit(s) connect to an OmniCare EVC system via an interface. Ability to include Disabled Refuge, Fire Telephone, Steward Telephone & Emergency Assistance/Toilet Alarm facilities on one panel.
CARE2 Toilet Alarm Control
Emergency Assistance/Toilet Alarm Kit(s) connect to a CARE2 EVC system panel. Ability to include Disabled Refuge, Fire Telephone, Roaming Telephone, Steward Telephone & Emergency Assistance/Toilet Alarm facilities on one panel.
Emergency Assistance Alarm Control Panel with the ability to connect to up to 4 of our emergency assistance toilet alarm kits. Robust, easy-to-install, easy-to-use, stand-alone, disabled toilet alarm solution.

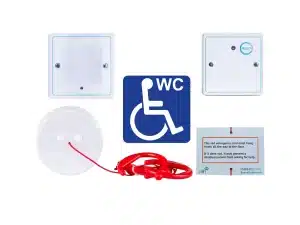

Emergency Assistance Alarm kit for our DTA4 control panel and OmniCare & CARE2 EVC systems. Available in white or brushed stainless steel finishes. 3-part kit with adhesive WC sign.
