VIGIL2 EVAS Routers

VIGIL2 EVAS Routers for VIGIL2

At the heart of a Baldwin Boxall VIGIL2 Voice Alarm system is the VIGIL EVAS Router.

VIGIL EVAS BVRD2M DSP-Controlled Router is well-established and has been installed in many prestigious sites throughout the world.

There are two routers in the EVAS range: BVRD2M and BVRD2M4, as well as slave router options.

Please be aware that the VIGIL2 voice alarm system and EVAS routeing has been superseded by VIGIL3 – our most flexible, scalable and powerful system to date. We recommend VIGIL3 for all new installations.



  • There are two routers in the EVAS range – the BVRD2M and the BVRD2M4 – as well as slave router options.
  • DSP controlled

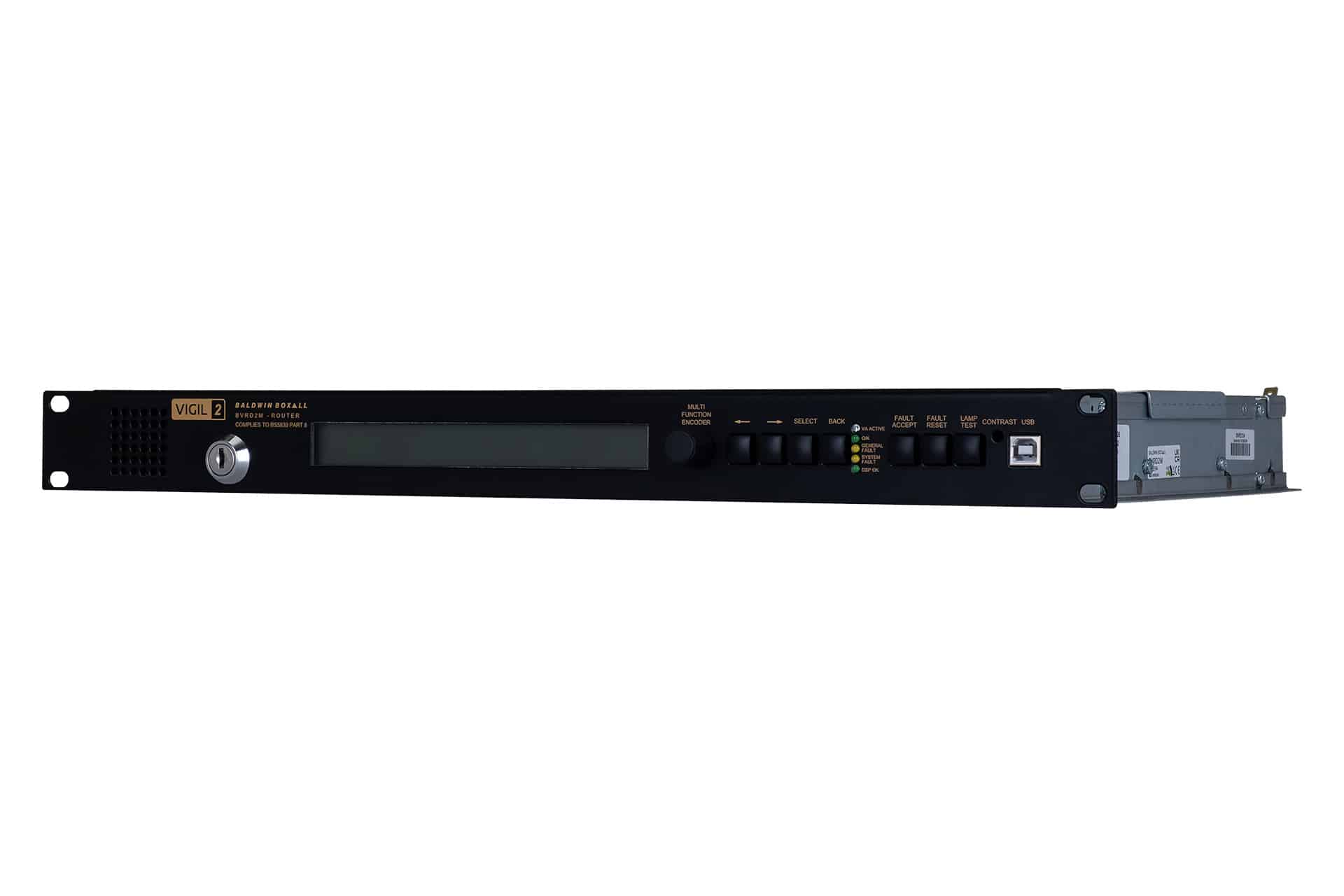

  • BVRD2M – capable of routeing 8 inputs and 7 outputs. Stores 6 messages.
  • BVRD2M4 – capable of routeing 4 inputs and 4 outputs. Stores 6 messages.

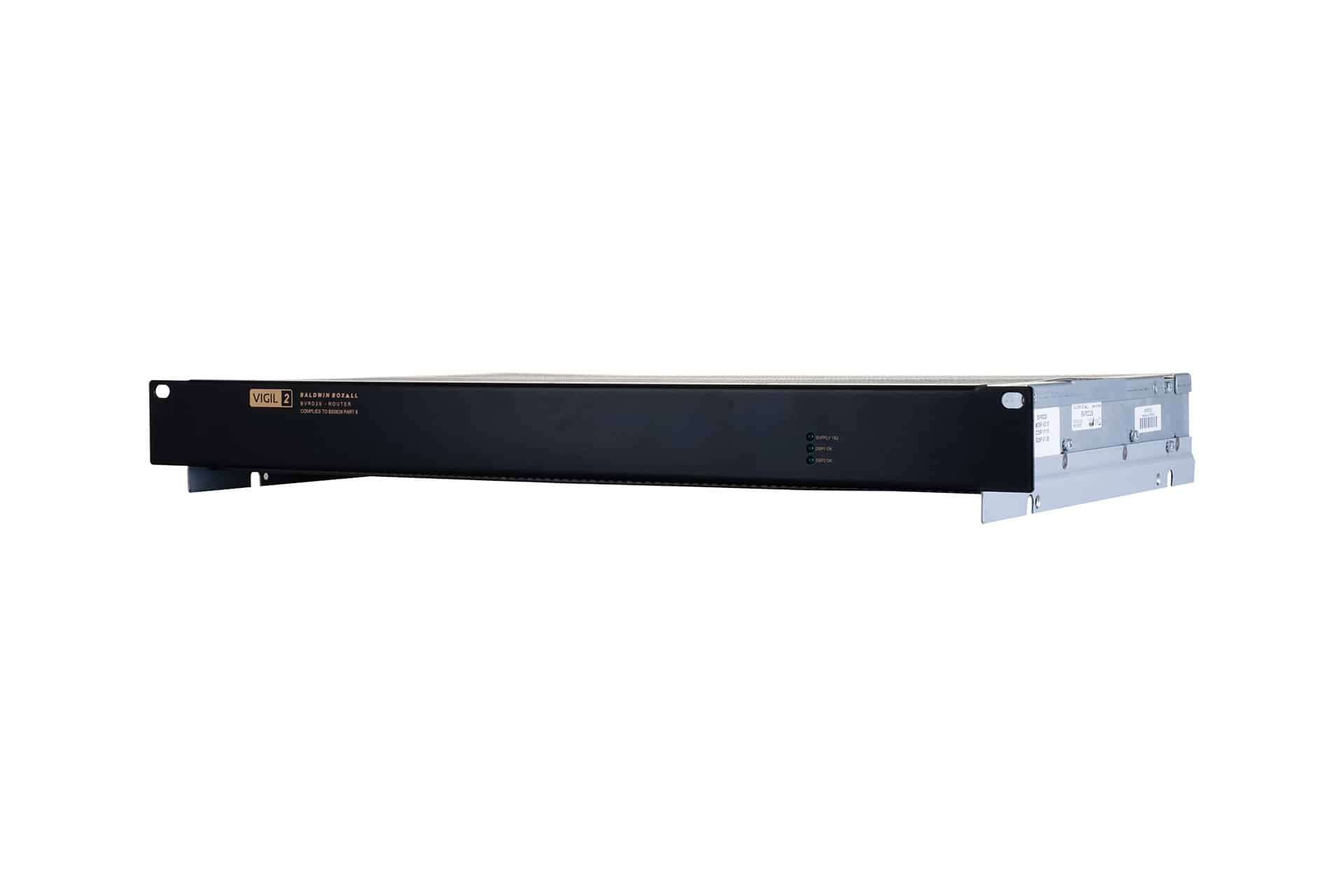

  • BVRD2S – slave router – adds 12 inputs and 16 outputs. Stores 12 messages.
  • BVRD2SLT – slave router – adds 6 inputs and 8 outputs. Stores 6 messages.
  • Add up to 5 slaves to a BVRD2M.
  • Electronically balanced inputs
  • Up to 15 priority levels
  • 3 band parametric plus bass and treble equalisation (inputs)
  • Electronically balanced audio outputs with 10 band parametric equalisation
  • Voltage sensing inputs for ambient noise sensors and remote volume control

BVRD2M / BVRD2S / BVRD2SLT
Router master / slave / slave light
Inputs 8 / 12 /6
Outputs 7 / 16 / 8
Message storage 6 / 12 / 6
480mm x 42.5mm x 280mm
3.42 kg / 3.32 kg / 3.26 kg

BVRD2M4
Router
Inputs 4
Outputs 4
Message storage 6
280mm x 75mm x 270mm

Safe & Compliant

EN54 Certified

BS EN 54: Fire Detection & Fire Alarm Systems, is a mandatory standard that specifies requirements and laboratory testing for every component of fire detection and fire alarm system.

UKCA UK Conformity Assessed

UKCA (UK Conformity Assessed) marking on products replaces CE marking in the UK and requires that certification of construction products, such as VACIE / Voice Alarm Control & Indicating Equipment is performed by a UK-based approved body.

British Standards BS5839-8 Code of Practice
BS 5839-8 is a BSI Standards Publication code of practice providing recommendations for the design, installation, commissioning, and maintenance of voice alarm systems that automatically broadcast speech or warning tones, in response to signals from their associated fire detection and fire alarm systems.
