BDM400 Intelligent Paging Microphone



Features

• Available in six versions from 1-zone up to 32-zone Communicate with the main control system via an RS485 link
• A standard RJ45 (CAT5 network) cable is used to carry both audio and serial data
• Microphones can be linked together via wall sockets (BMS8) and connected to a single input at the control rack
• The BDM401 can also be operated as a parallel microphone. This option is selected internally by jumpers (the default factory setting is for serial operation)
• Ergonomic design with all buttons and indicators mounted behind a stylish overlay that allows zone button labels to be inserted and protected
• The dynamic cardioid microphone capsule can be set for either monitored or unmonitored use during configuration
• ‘Zone Status’ indicators show if a zone is currently selected or in use
• ‘All Call’ paging (except BDM401)
• ‘Speak now’ indicator to show the user when a preannouncement chime has finished
• A simple bar graph display shows the user the current speech volume, ensuring a clear announcement is made
• ‘Data’ and ‘DC’ indicators to show the unit is functioning correctly
• Zonal fault indicators are included to show when a fault is evident on the system
• Fault Accept button
• Option to fit flip-top switches to enable Digital Voice Announcement (DVA) messages to be broadcast

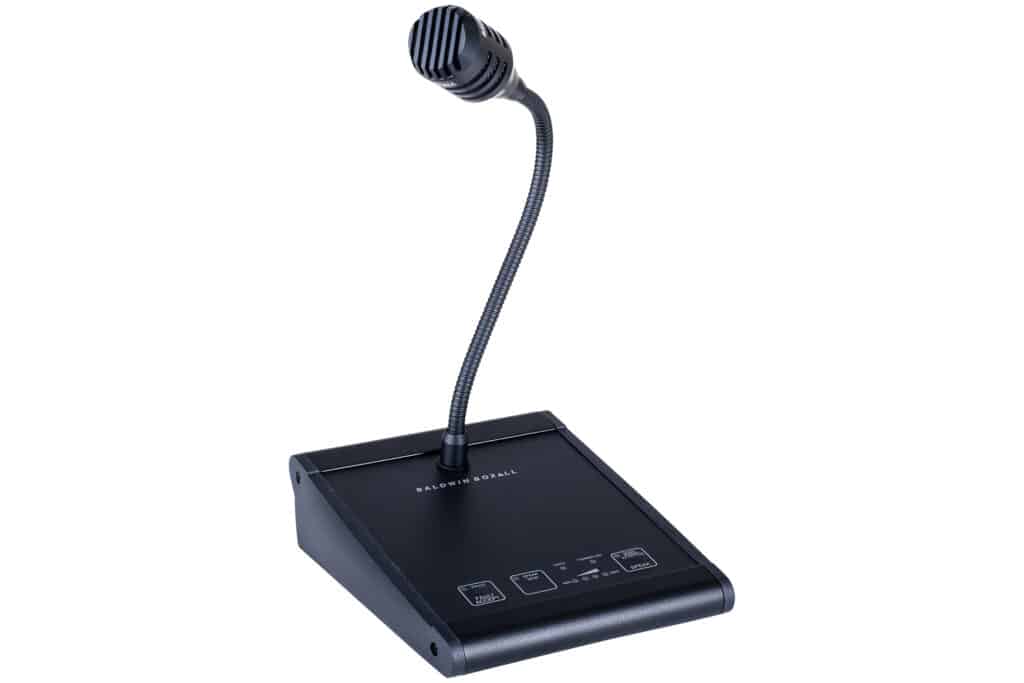

BDM401
1-Zone
48mm x 177mm x 148mm
1.02 kg

BDM404
4-Zone
48mm x 177mm x 148mm
1.02 kg

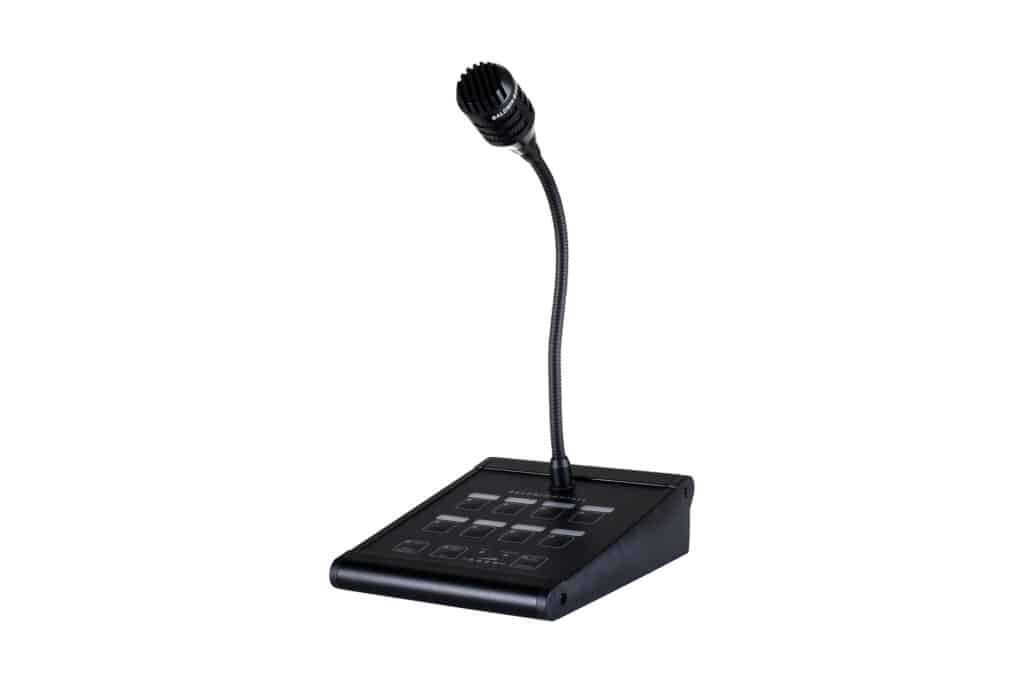

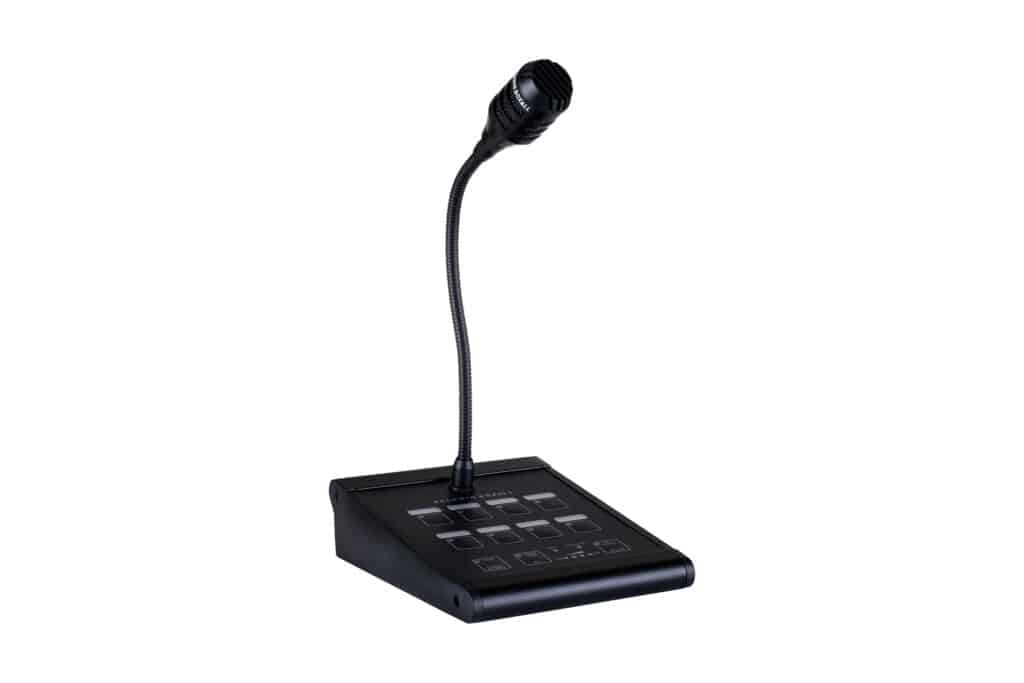

BDM408
8-Zone
48mm x 177mm x 148mm
1.04 kg

BDM416
16-Zone
48mm x 177mm x 275mm
1.48 kg

BDM424
24-Zone
48mm x 177mm x 398mm
2.0 kg

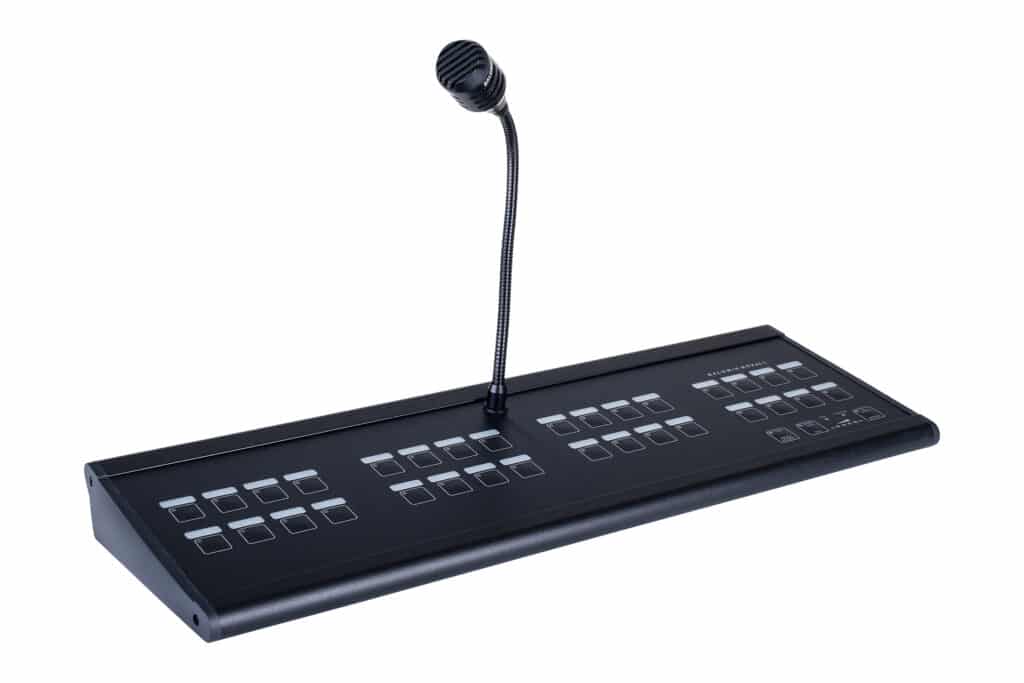

BDM432
32-Zone
48mm x 177mm x 523mm
2.0 kg

RAL 9005 Finish
