VIGIL2 DSP Networking

Digital Networking with single-mode or multi-mode Fibre, Copper, or Combination.

BVRDNET provides a digital networking solution for the VIGIL EVAS DSP-controlled Voice Alarm system routers.

Connected in a loop configuration, the network can employ either copper cable, fibre, single-mode or multi-mode, or any combination. No matter which cabling type is used, the network remains fully monitored and continues to function even in the event of cable damage at a single location.


  • Connected in a loop configuration
  • Continues to function in the event of cabling damage at a single location
  • The network can be copper, multi mode fibre, single mode fibre or any combination of these
  • Six (slow speed option) or fourteen (fast speed option) concurrent audio channels with two RS485 channels
  • Network status indicators
  • Fully monitored
  • Optional system reset feature
  • Up to 126 systems can be digitally networked – multiple copper / fibre loops required for systems greater than 36 nodes
  • The controller (BVRDNET/BVRDNET2M4) is factory fitted and configured from the router’s menu
  • Slow speed option providing six concurrent audio channels with two RS485 channels
  • Fast speed option providing fourteen concurrent audio channels with two RS485 channels
  • Audio bandwidth is 30Hz-20kHz
  • Typical maximum distance:
    • Copper – 300m at slow speed and 200m at fast speed. (Greater distances are possible with some cable types.)
    • Multi-mode fibre – for slow and fast speed connections of 3km (OM1), 2Km (OM2) and 2km (OM3)
    • Single-mode fibre – for OS1 is 2km and for OS2 is 4km

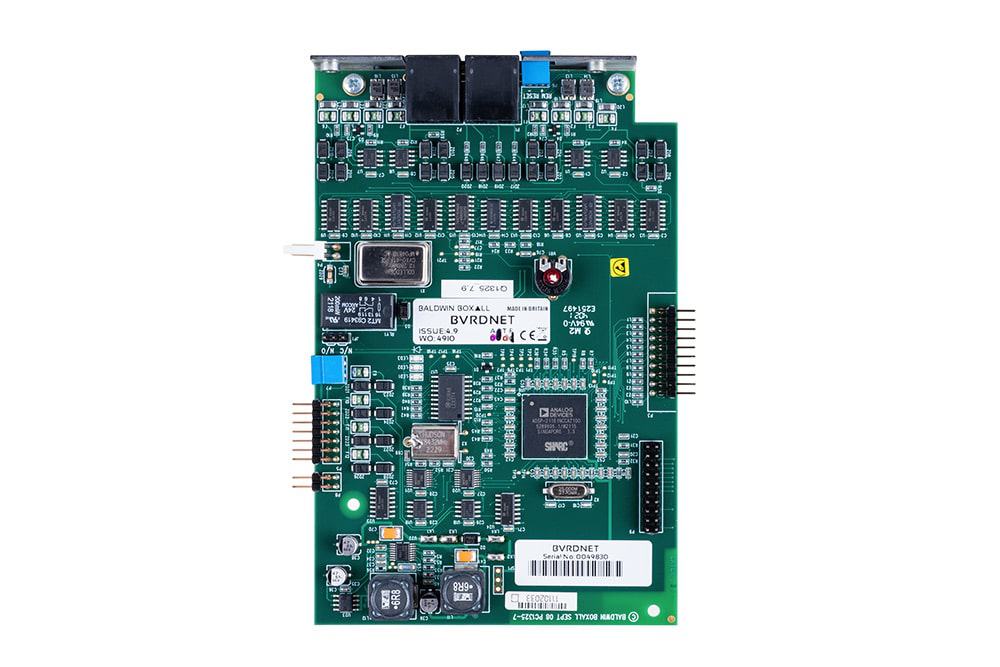

Network module for BVRD2M / BVRD2M4
Factory fitted

Copper interface
DIN rail mounted
(Two BVRDCIF required per BVRDNET/2M4)

Multi-mode fibre interface
DIN rail mounted
(Two BVRDFIF required per BVRDNET/2M4)
Supports multi-mode fibre types OM1 (62.5/125), OM2 (50/125) and OM3 (50/125)

Single-mode fibre interface
DIN rail mounted
(Two BVRDFIFS required per BVRDNET/2M4)
Supports single-mode fibre types OS1 (9/125) and OS2 (9/125)

Safe & Compliant

EN54 Certified

BS EN 54: Fire Detection & Fire Alarm Systems, is a mandatory standard that specifies requirements and laboratory testing for every component of fire detection and fire alarm system.

UKCA UK Conformity Assessed

UKCA (UK Conformity Assessed) marking on products replaces CE marking in the UK and requires that certification of construction products, such as VACIE / Voice Alarm Control & Indicating Equipment is performed by a UK-based approved body.

British Standards BS5839-8 Code of Practice
BS 5839-8 is a BSI Standards Publication code of practice providing recommendations for the design, installation, commissioning, and maintenance of voice alarm systems that automatically broadcast speech or warning tones, in response to signals from their associated fire detection and fire alarm systems.

Key Benefits


VIGIL2 is installed in many prestigious places throughout the world. In addition to EN54, our VIGIL2 Voice Alarm system is also AS4428.16 certified.
