Audio Output Control Module
VIGIL3 Audio Output Control is now via audio input and audio output modules and an Ethernet backbone
Rather than a centralised Voice Alarm Router, VIGIL3 Voice Alarm system audio inputs such as microphones, and audio outputs for zones and areas are delivered via modules. There is no longer the need to take up valuable rack space with traditional routers.
The VIGIL3 system is built on a fault-tolerant Ethernet backbone, without the need for any Ethernet switches, and due to its modular design is truly scalable.
VIGIL3 is our most flexible and scalable Voice Alarm system to date.
Each audio output module supports up to 8 zones and with a connection of up to 100 modules possible, a single VIGIL3 Voice Alarm system can support as many as 800 zones.
- Fits alongside the BVMBC battery charger module
- 8 individual audio outputs
- 2 hard wired bypass inputs
- Up to 24 band parametric EQ
- Up to 1 second audio delay
- All EN54 mandatory fault indicators
- 5 fire panel inputs
- Up to 100 modules per system

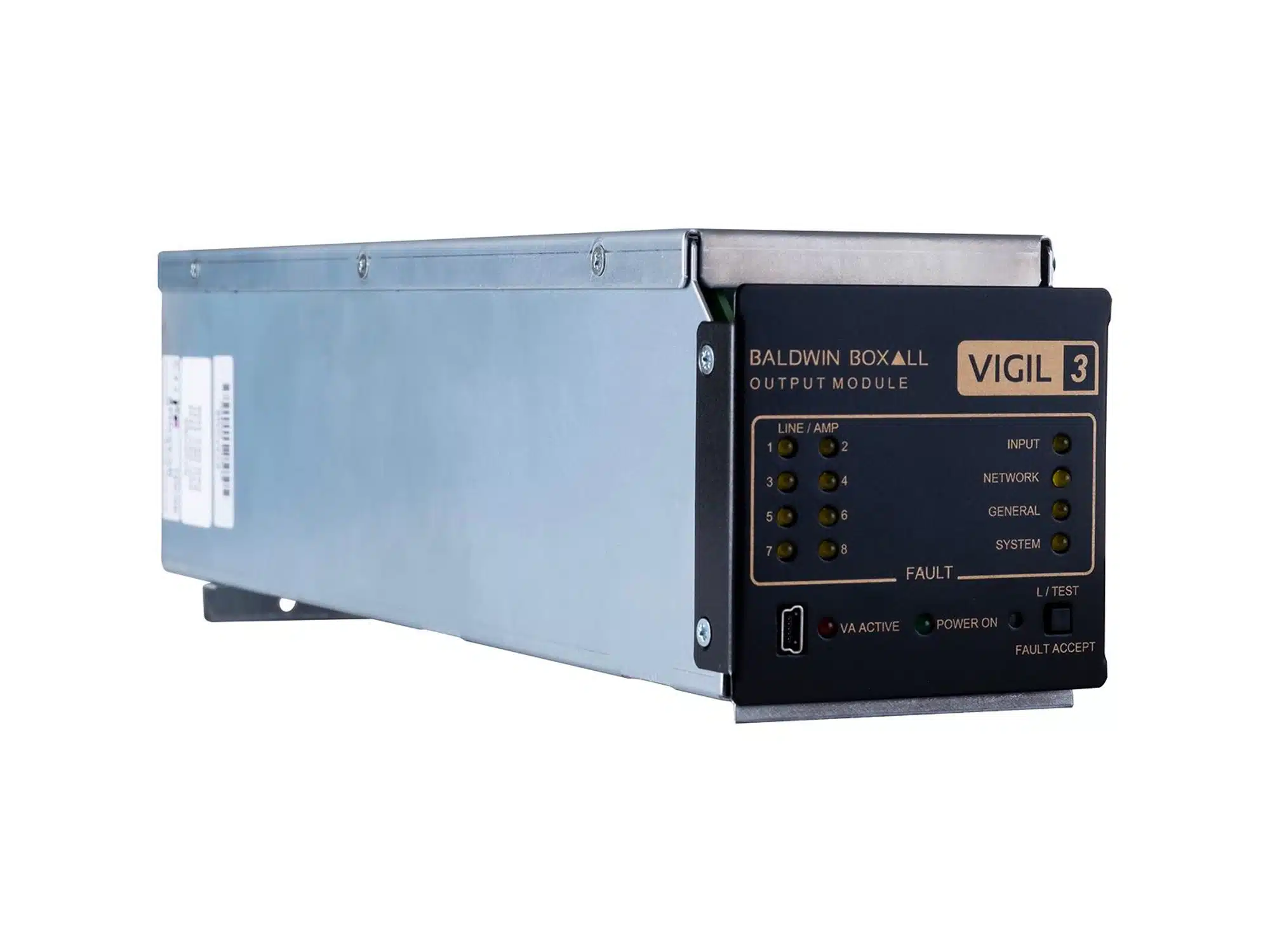

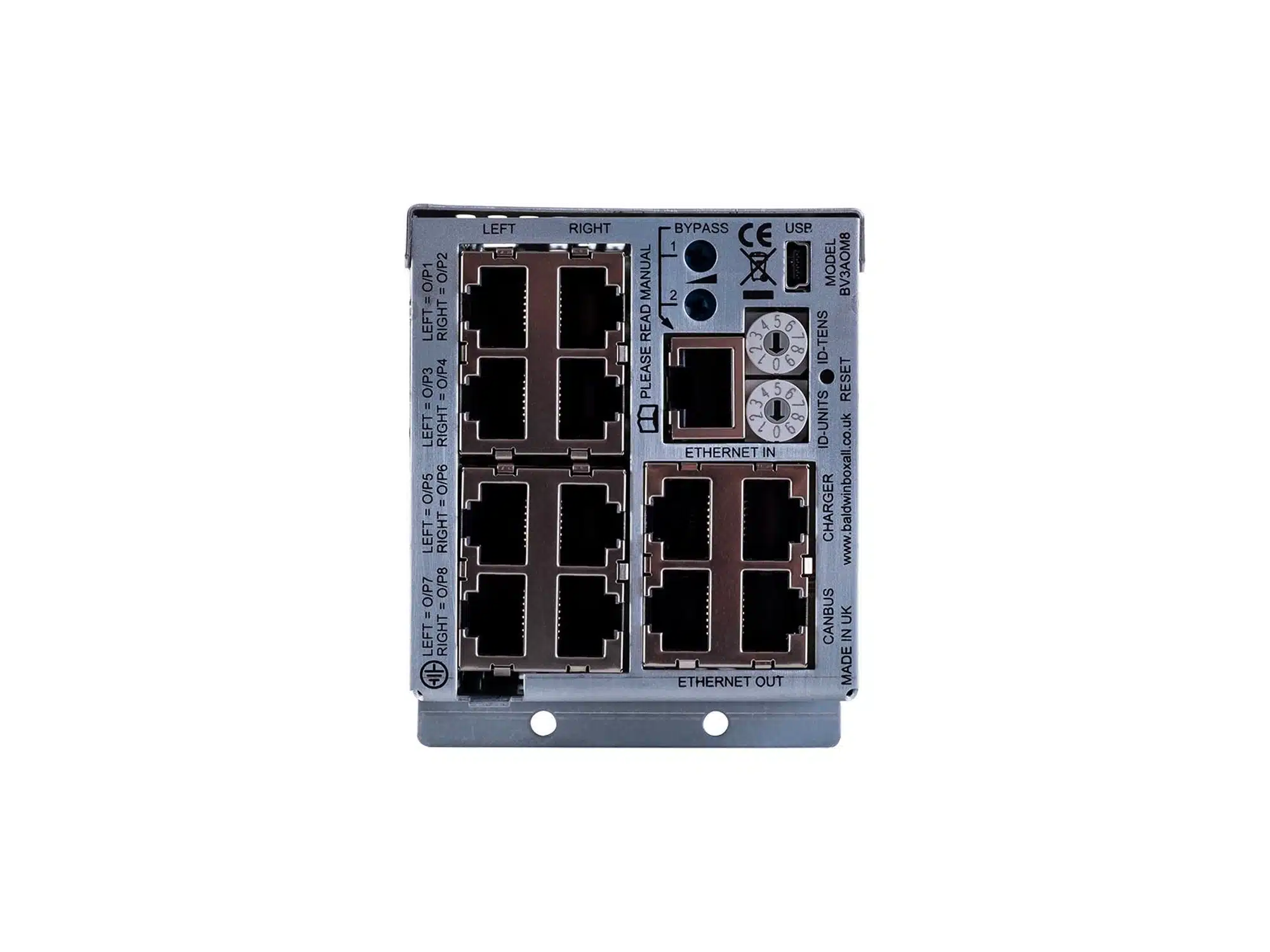

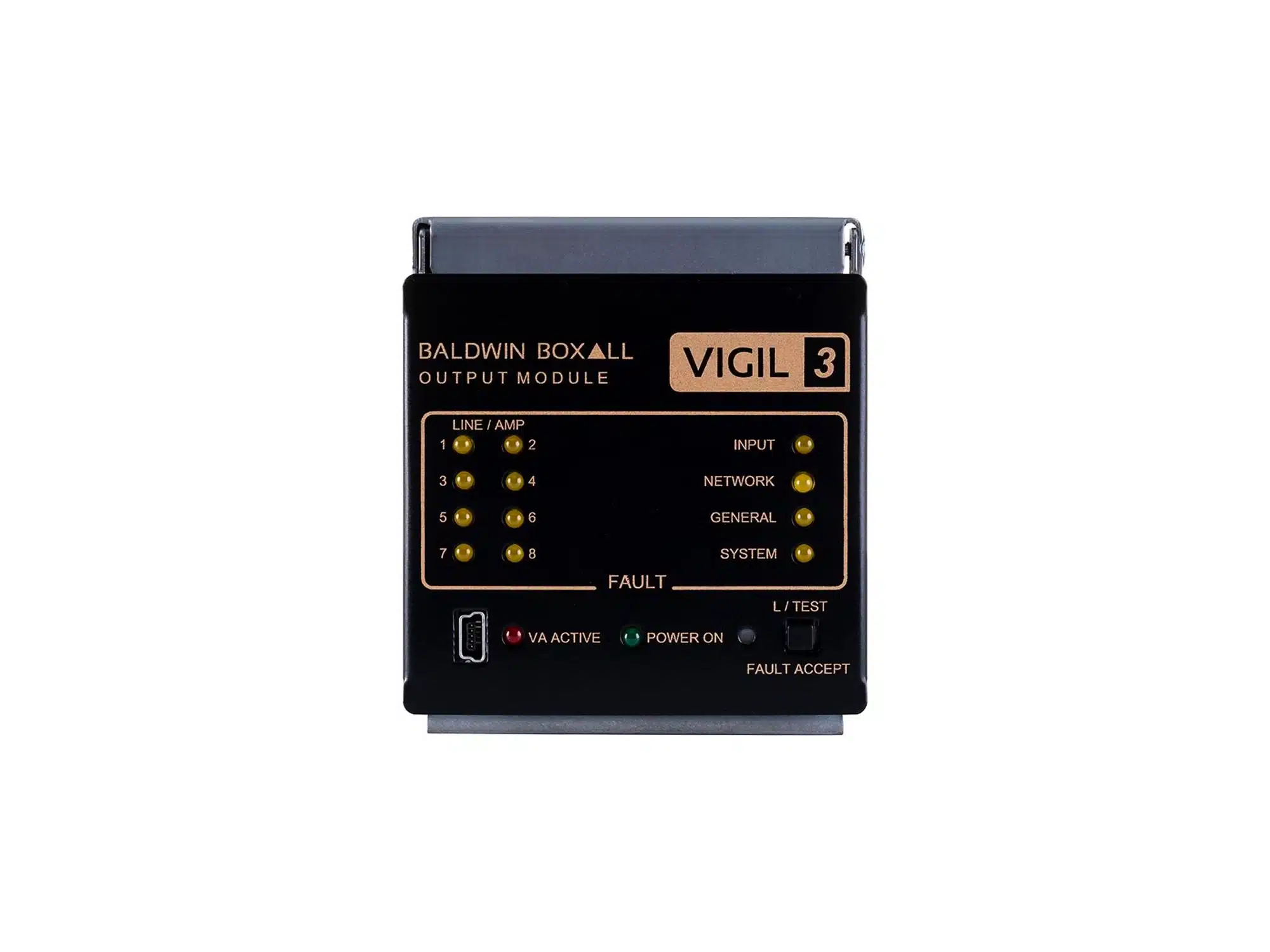

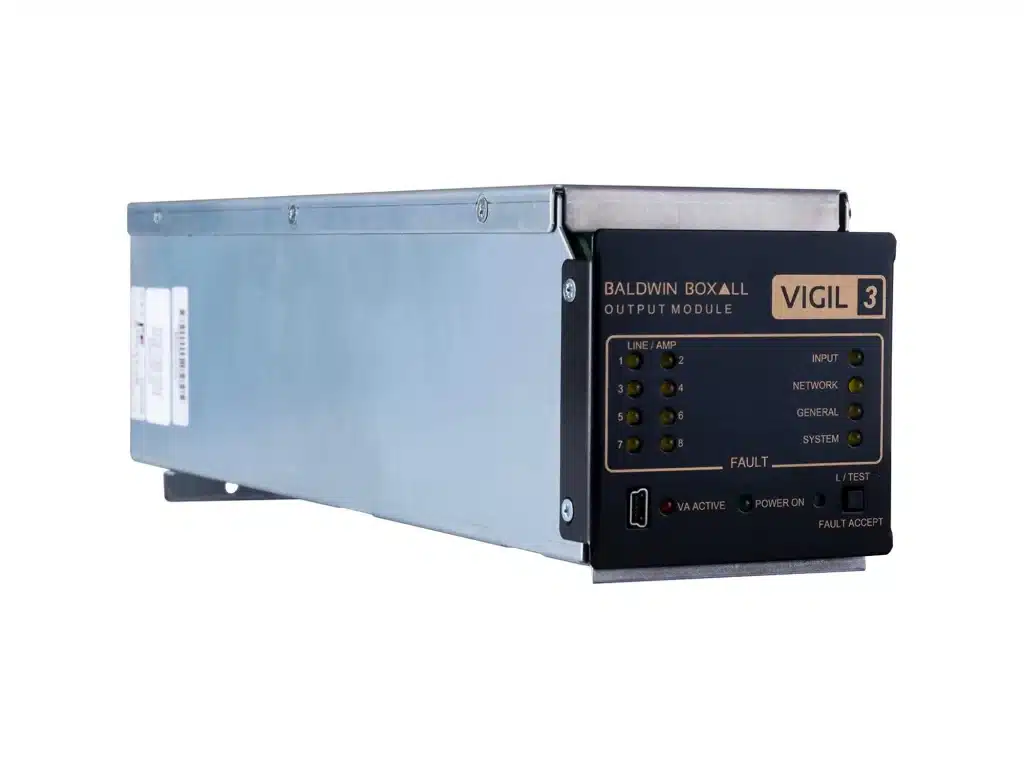

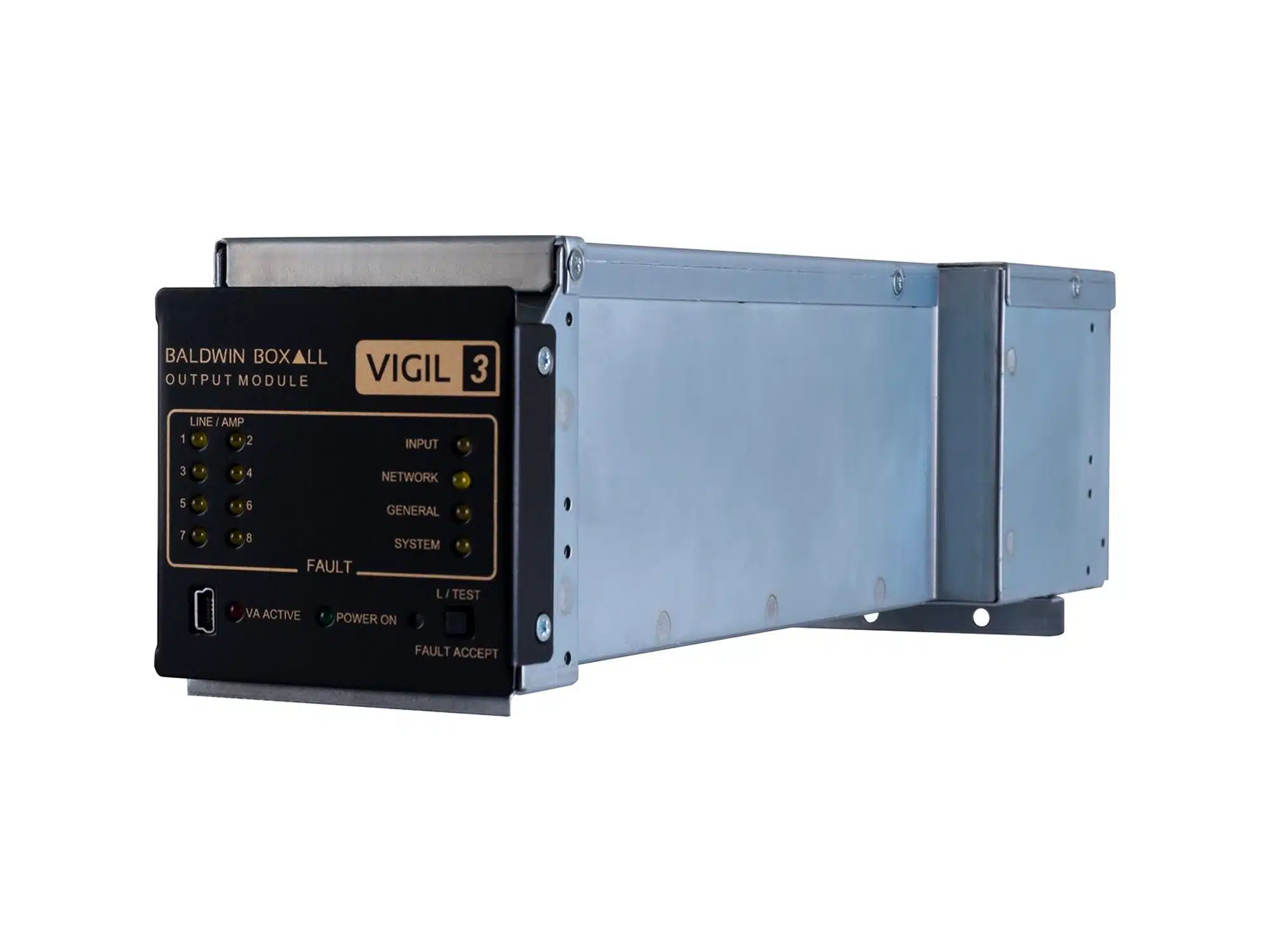

BV3AOM8
Audio output module
75mm x 71mm x 311mm
1.1 kg
Safe & Compliant
BS EN 54: Fire Detection & Fire Alarm Systems, is a mandatory standard that specifies requirements and laboratory testing for every component of fire detection and fire alarm system.
UKCA (UK Conformity Assessed) marking on products replaces CE marking in the UK and requires that certification of construction products, such as VACIE / Voice Alarm Control & Indicating Equipment is performed by a UK-based approved body.
Key Benefits
- Fully BS EN54 Tested & Certified
- Provides 8 individual audio outputs
- 2 hard wired bypass inputs
- 24 band parametric EQ independently on each output
- Up to 1 second audio delay
- 5 Fire Panel inputs
- 100 modules on one system - 800 outputs on 1 system
VIGIL3 Voice Alarm System
Fast. Powerful. Flexible. VIGIL3 is built with a fault-tolerant ethernet backbone, no ethernet switches are required and there are no licence fees. From a single rack to large distributed systems with hundreds of outputs, use wall mount or rack mount for outputs in any combination.
Documentation & Downloads
| Downloads | Link |
|---|---|
| BV3AOM8 Audio Output Module – Datasheet | |
| BV3MF VIGIL3 Amplifier Mainframe – Datasheet | |
| VIGIL3 System Overview – Datasheet |
| Downloads | Link |
|---|---|
| VIGIL3 BIM Objects |
| Downloads | Link |
|---|
| Downloads | Link |
|---|
| Downloads | Link |
|---|---|
| VIGIL3 Commissionator |
Looking for something in particular?
Search our full database of downloads and documentation
VIGIL3 Product Range
VIGIL3 Amplifiers
Transformerless amplifiers, modular, energy-efficient and powerful. Range includes dual & quad amplifier options.
VIGIL3 Battery Charger
Compact module continually monitors system backup batteries & charges them whenever necessary.
VIGIL3 Audio Output Module
With VIGIL3 there is no need for the conventional ‘router-style’ control. Supports up to 8 audio outputs – network up to 100 units.
Powerful stand-alone, wall-mounted PAVA system. Ideal for fitting into building risers or places where space is limited.
VIGIL3 Audio Input Module
6-band parametric EQ and programmable priority for each input. Configure every input from a single point on the VIGIL3 network.
VIGIL3 Line Monitoring
All critical signal paths of a voice alarm system must be fully monitored & faults automatically indicated on key parts of the system.
Loudspeakers
Powerful high-clarity loudspeakers for public address and voice alarm systems for both indoor and outdoor installations.
Microphones for Voice Alarm (VA) & Public Address (PA)

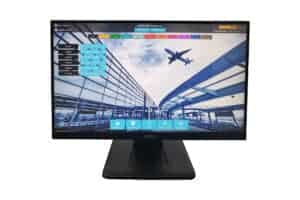

User-configurable, large format touchscreen Graphical User Interface (GUI) enables graphical control of our VIGIL3 and Eclipse5 systems. Upload logos, background images, edit buttons and much more.

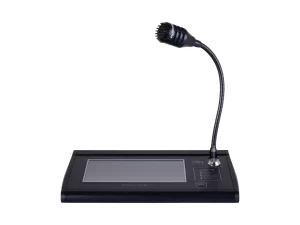

Easy-to-use microphone with a touch sensitive screen for full control of a VIGIL3, VIGIL2, Eclipse4 or Eclipse5 system. Multi-function: NFC log in, select & route background music, emergency control mode and more.Â

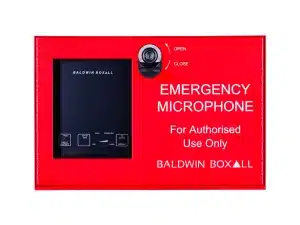

Baldwin Boxall Emergency Fire Microphones are housed in a robust, lockable steel enclosure and include a rugged, fist-held microphone console. Wall mountable and rack mounting units available.

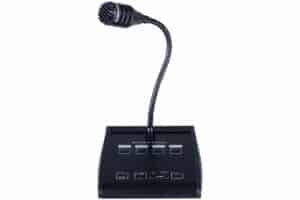

BDM400 range of intelligent PA microphones with a variety of features to suit all installations. Suitable for connection to any of our voice alarm or public address systems – including VIGIL3 & Eclipse5.

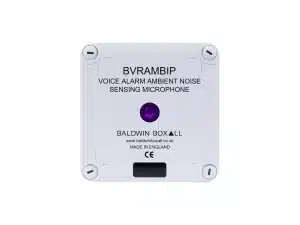

Ambient Noise Sensors (ANS) continually monitor the noise level (in a zone/area) and automatically adjust the volume of system broadcasts to that area – thus ensuring audibility at all times. Connect as part of any of our voice alarm systems.

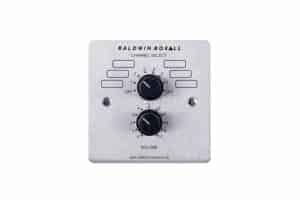

Control Panels enable local control of audio facilities such as volume adjustment, music source selection and microphone input.
