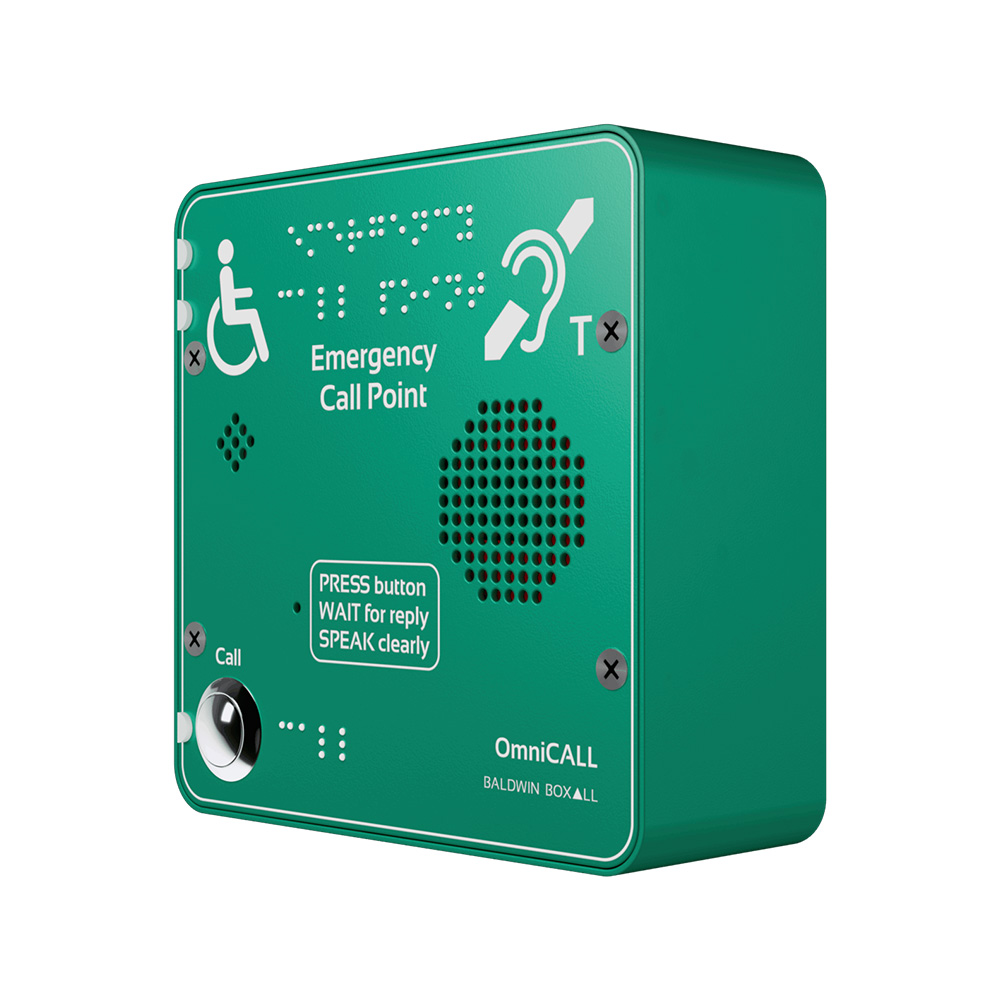

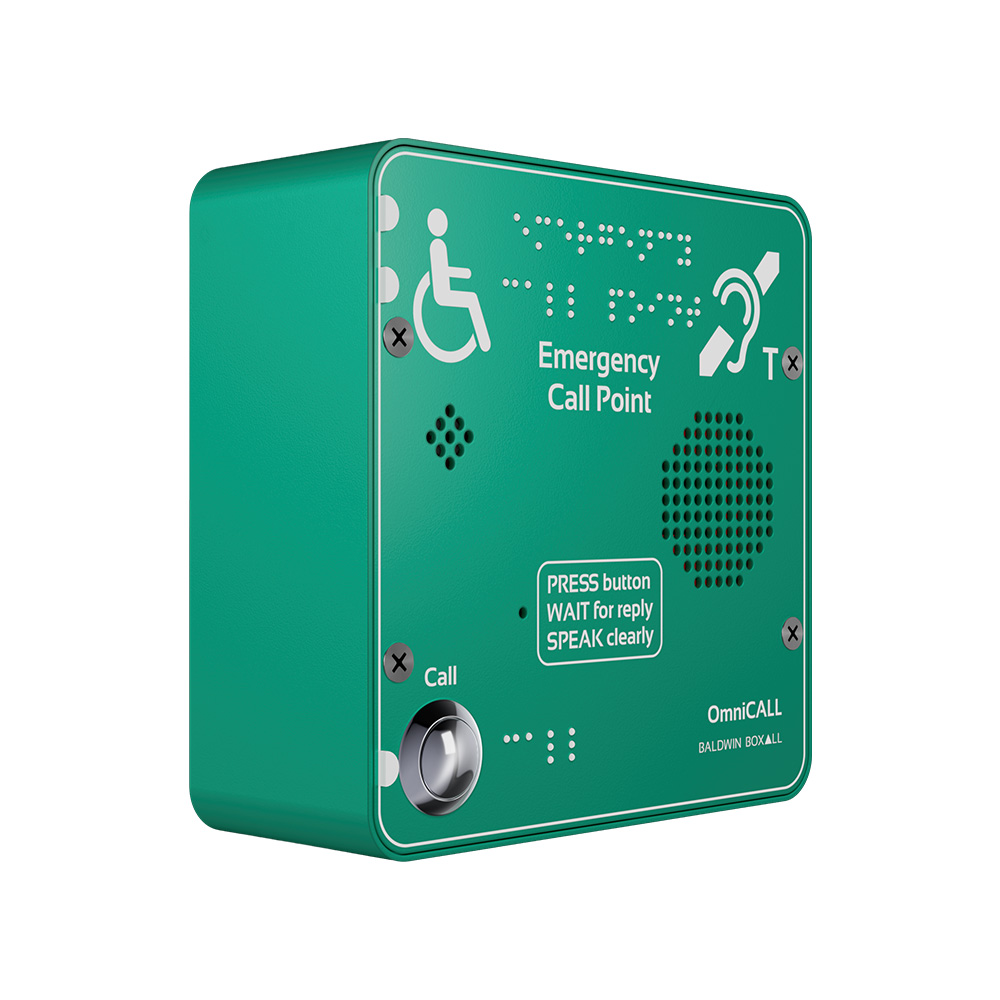

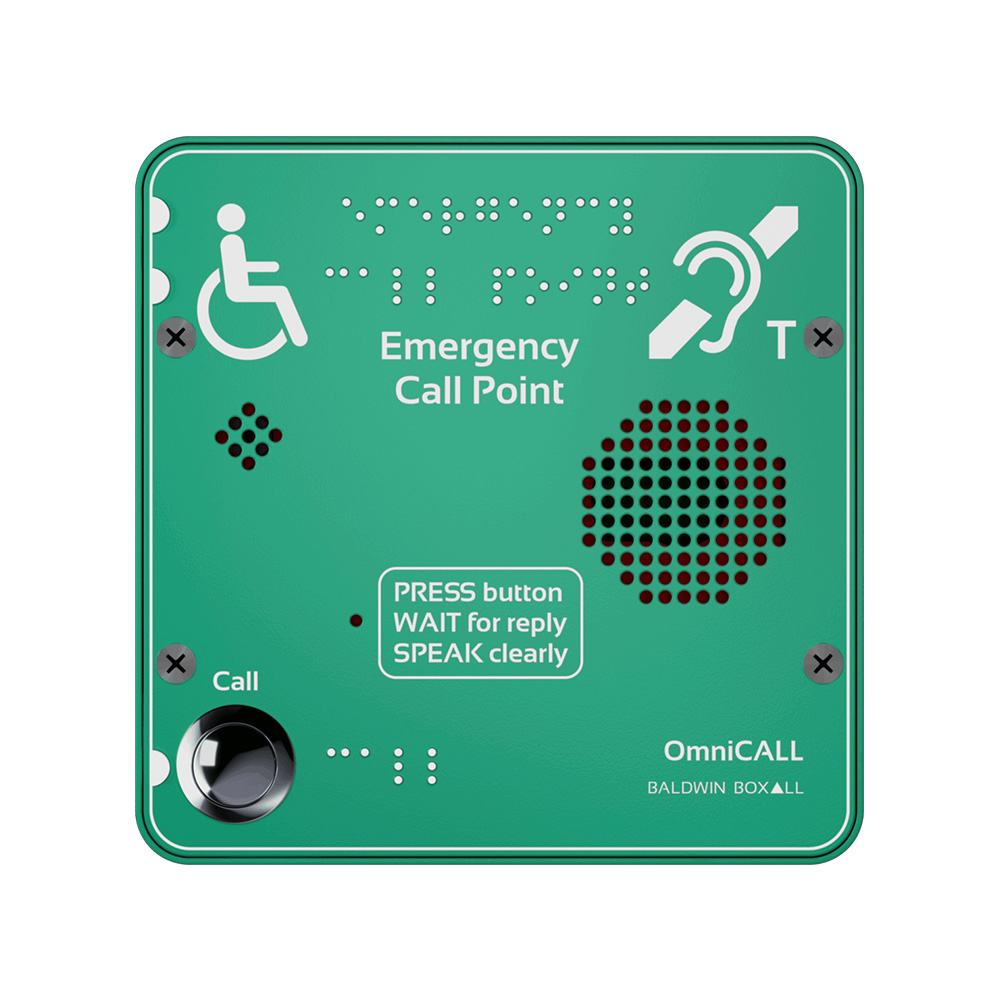

A green OmniCALL advanced disabled refuge outstation providing hands-free voice communication, induction loop support and an optional link to the fire detection system to prevent hoax calls via the Master Station.
The OmniCALL OCBARG is an advanced Type B disabled refuge outstation providing hands-free, speech steered, half-duplex voice communication between a refuge area and the building’s control point.
It builds on the standard refuge remote with additional capabilities that support both occupants and building management. An induction loop aids occupants using hearing aids, and an optional link between the outstation and the fire detection system prevents hoax disabled refuge calls. Assistance alarms connect directly at outstation level and are individually identified at the master station, meaning staff can see exactly where assistance is needed without additional monitoring equipment.
Occupants reset the outstation via a button push, without requiring any action at the control panel. No local power is required for any outstation, including connected emergency assistance alarms.
Power Supply: 15-36V
Power Consumption: 70mA @ 24V
Humidity Range: 0-90% non-condensing
Temperature Range: -5°C to +40°C
Indicators: Status
Finish: RAL 6024
Dimensions: 134 x 134 x 64 mm (W x H x D)
Bezel dimensions: 154 x 154 mm (W x H)
Bezel cutout: 136 x 136 mm (W x H)
Knockouts/cable entry: 20 mm and 25 mm
Mounting height (to centre): 900-1200 mm
Audio:
Wiring:
Compliance:
