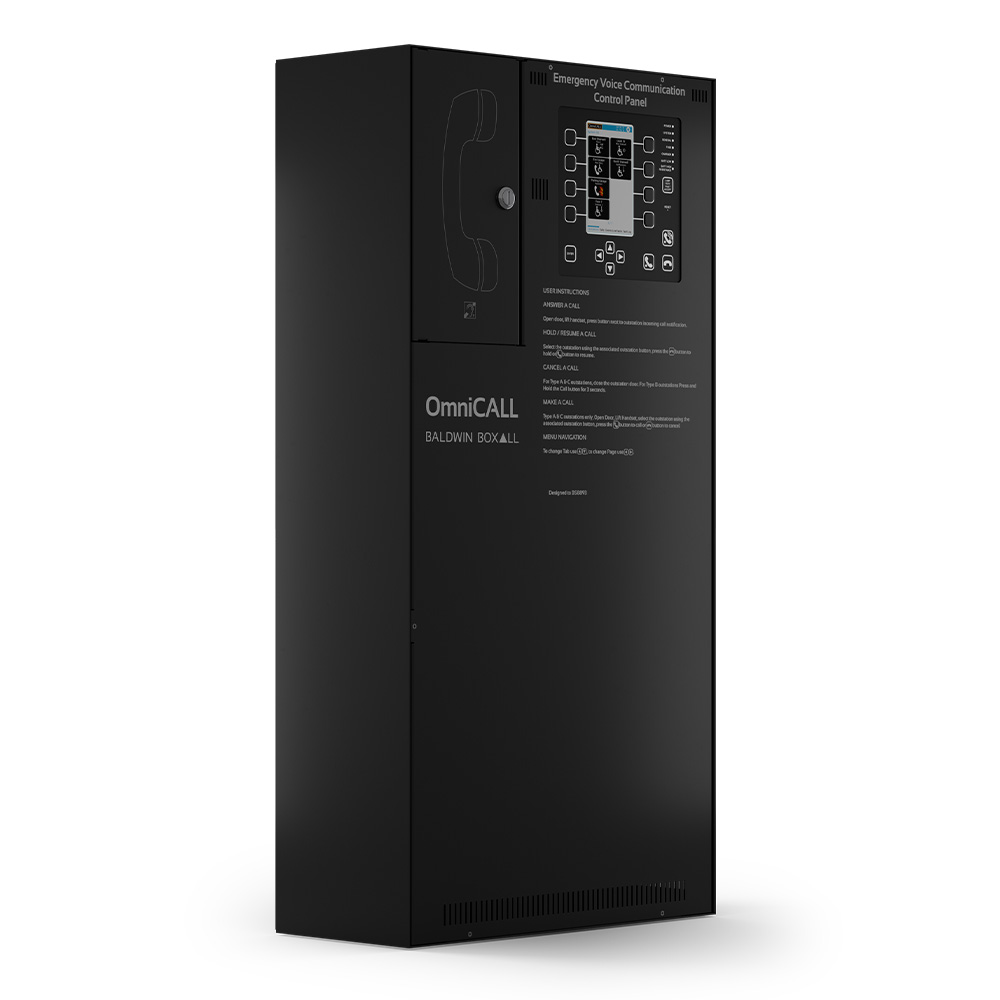

OmniCALL – Master Station (128 way)

The OmniCALL Master Station for higher capacity systems, giving staff a clear, central point to manage emergency voice calls across larger sites.

SKU: OCCPL Category: Tag: Manufacturer:

Key benefits

Key benefits

  • Central call handling for larger emergency voice communication systems
  • Clear operator view to help prioritise and respond
  • Supports consistent operation across multi-area sites
  • Ability to conference call with up to four Type A or Type C outstations via the Master Station

Details

Description

The higher capacity OmniCALL Master Station helps operators manage multiple calls across larger buildings while keeping the interface clear and easy to use.

  • Supports up to 128 outstations and 128 assistance alarms when fully populated
  • One line card fitted as standard
  • Capacity for up to three additional line cards
  • Each line card configurable as:
    • One loop supporting up to 32 outstations or
    • Four radial circuits with one outstation per radial
  • With four cards installed:
    • Up to four loops of 32 outstations or
    • Up to 16 radial circuits
    • Or a mix of loop and radial circuits in any configuration
  • Copper networking built in as standard

It supports confident decision making with clear call information and a layout designed for busy environments.

Technical Data

Technical Data

Power Supply: 85-264VAC
Power Consumption: 320W
Humidity Range: 95% non-condensing
Temperature Range: -5°C to +40°C
Indicators: 5″” TFT plus fault LEDs

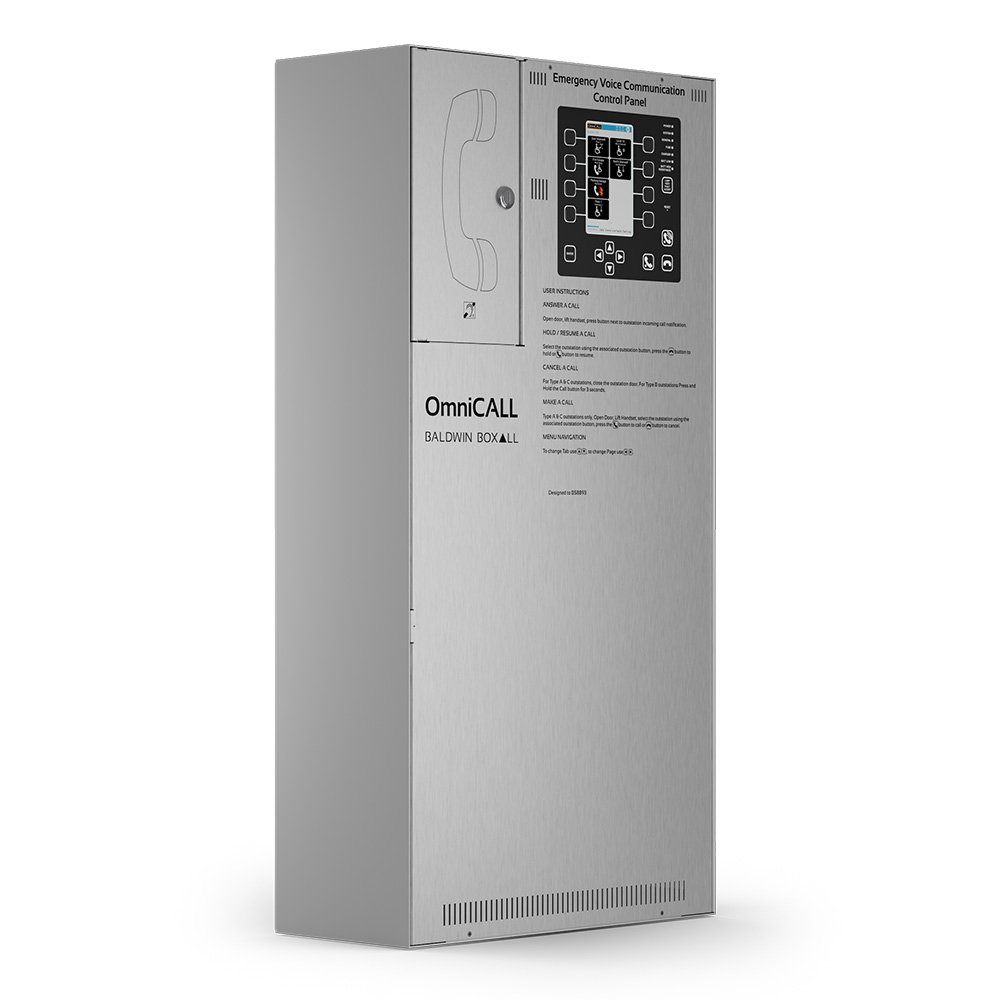

Finish: RAL 9005 / Stainless Steel
Dimensions: 430 x 847 x 190 mm (W x H x D)
Bezel dimensions: 470 x 887 mm (W x H)
Mounting height (to centre): 1400-1500 mm
Knockouts/cable entry points: 20 x 30 mm (Top)

Compliance:

  • BS 5839-9: Code of practice for design, installation and maintenance of emergency voice communication systems
  • BS 8893: Emergency voice communication (EVC) systems. Components. Specification.
  • BS 8300-1: Code of practice for the design of an accessible and inclusive built environment
  • BS 9991: Fire safety in the design, management and use of residential buildings
  • BS 9999: Fire safety in the design, management and use of buildings
