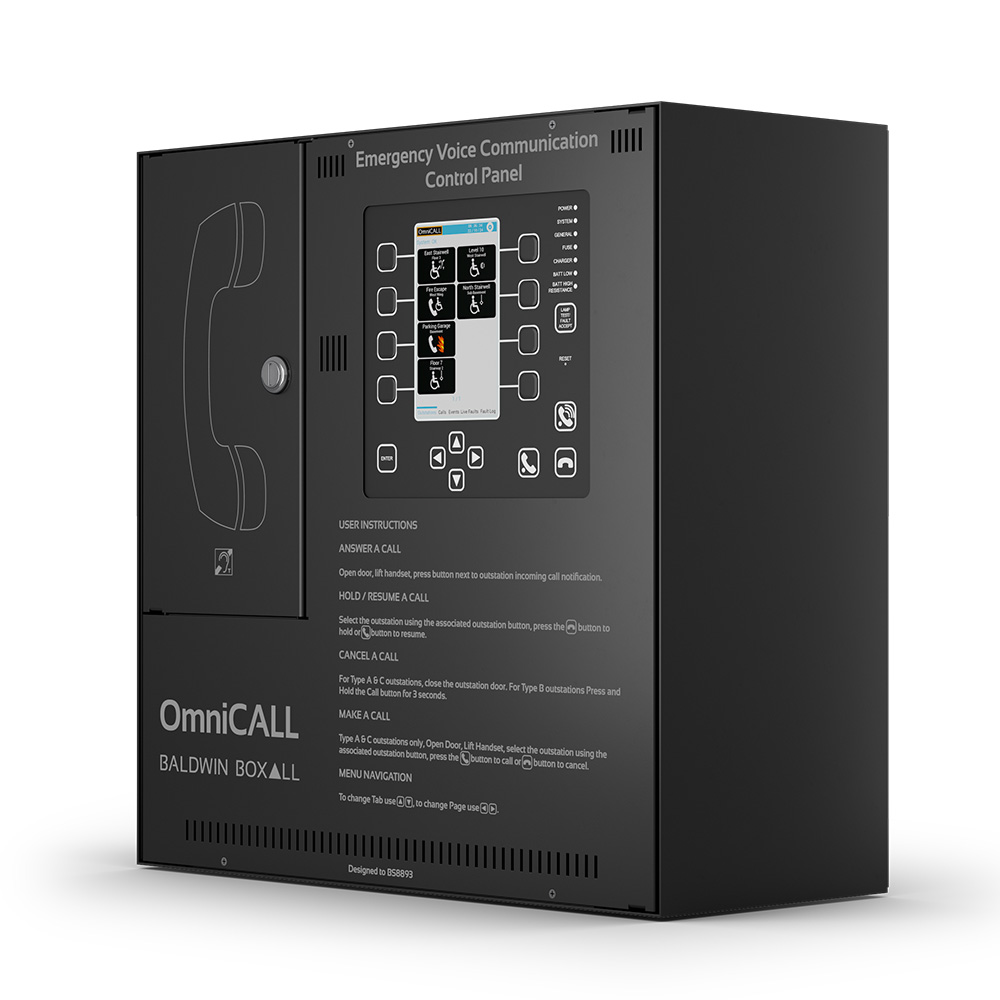

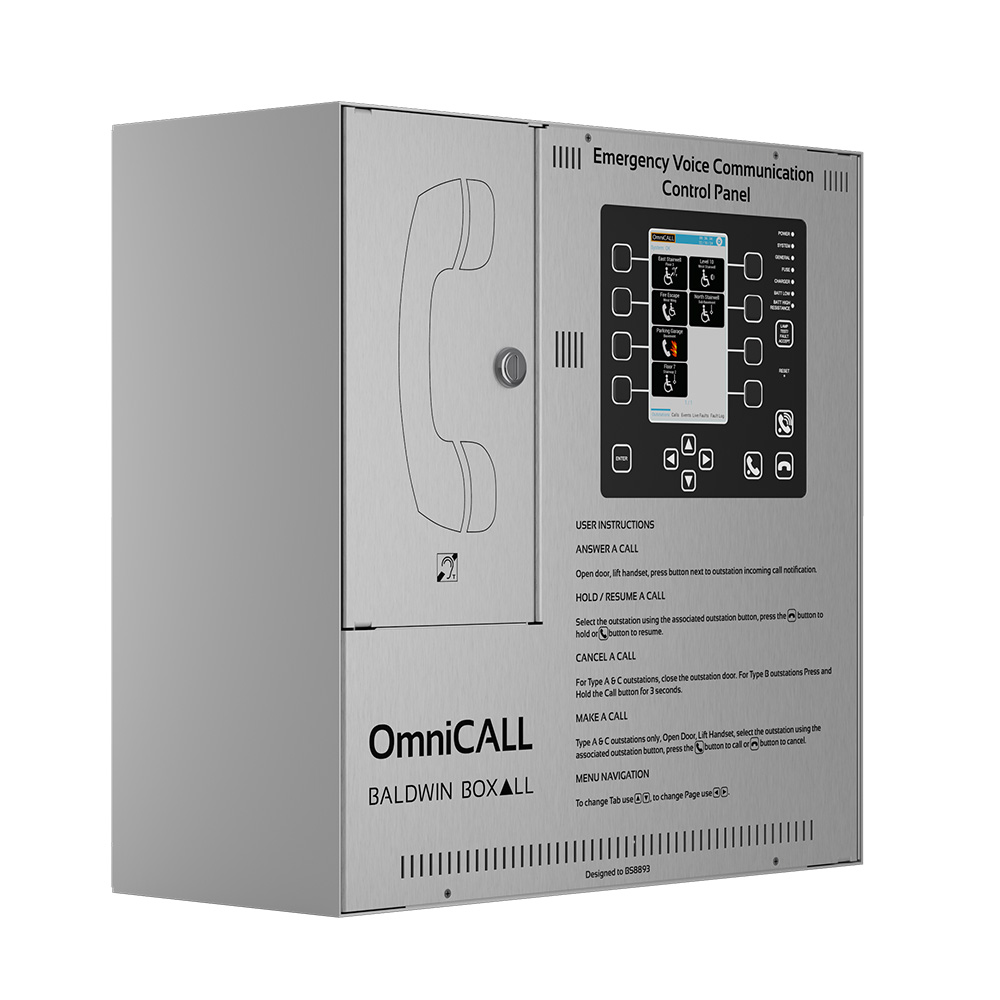

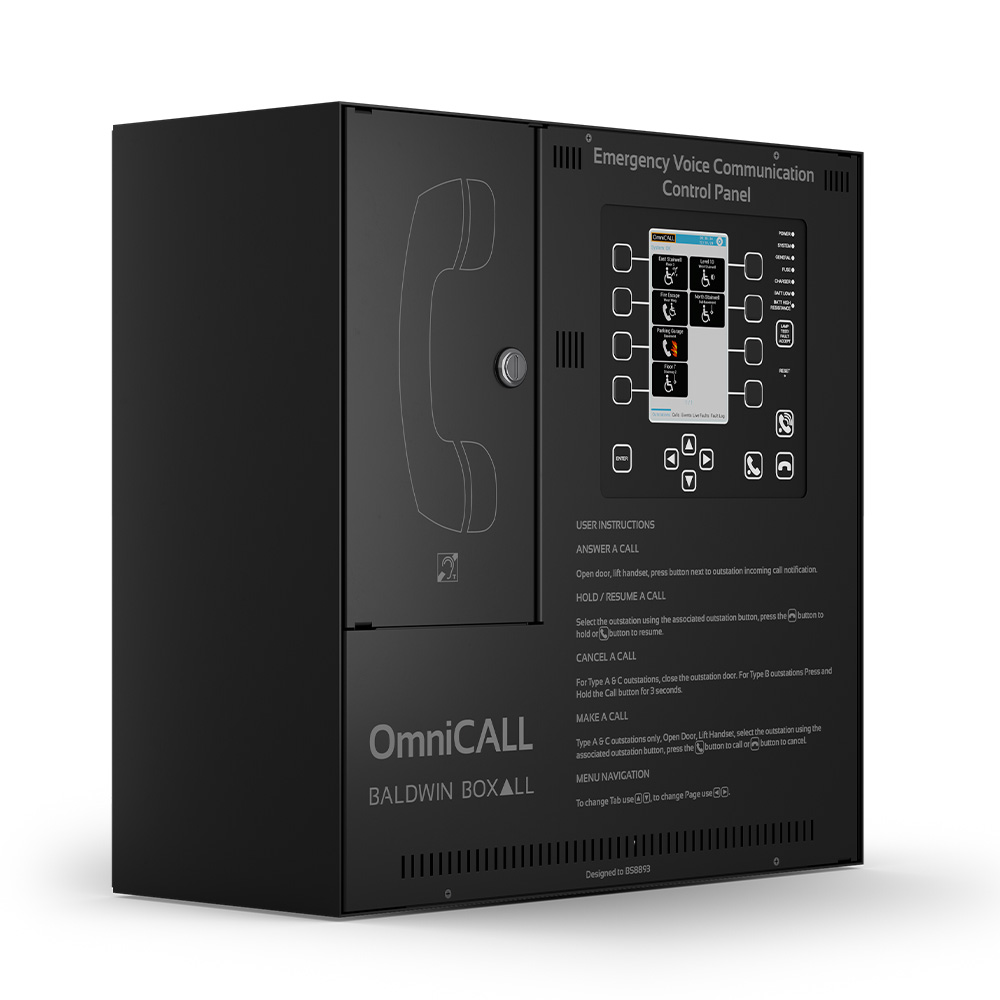

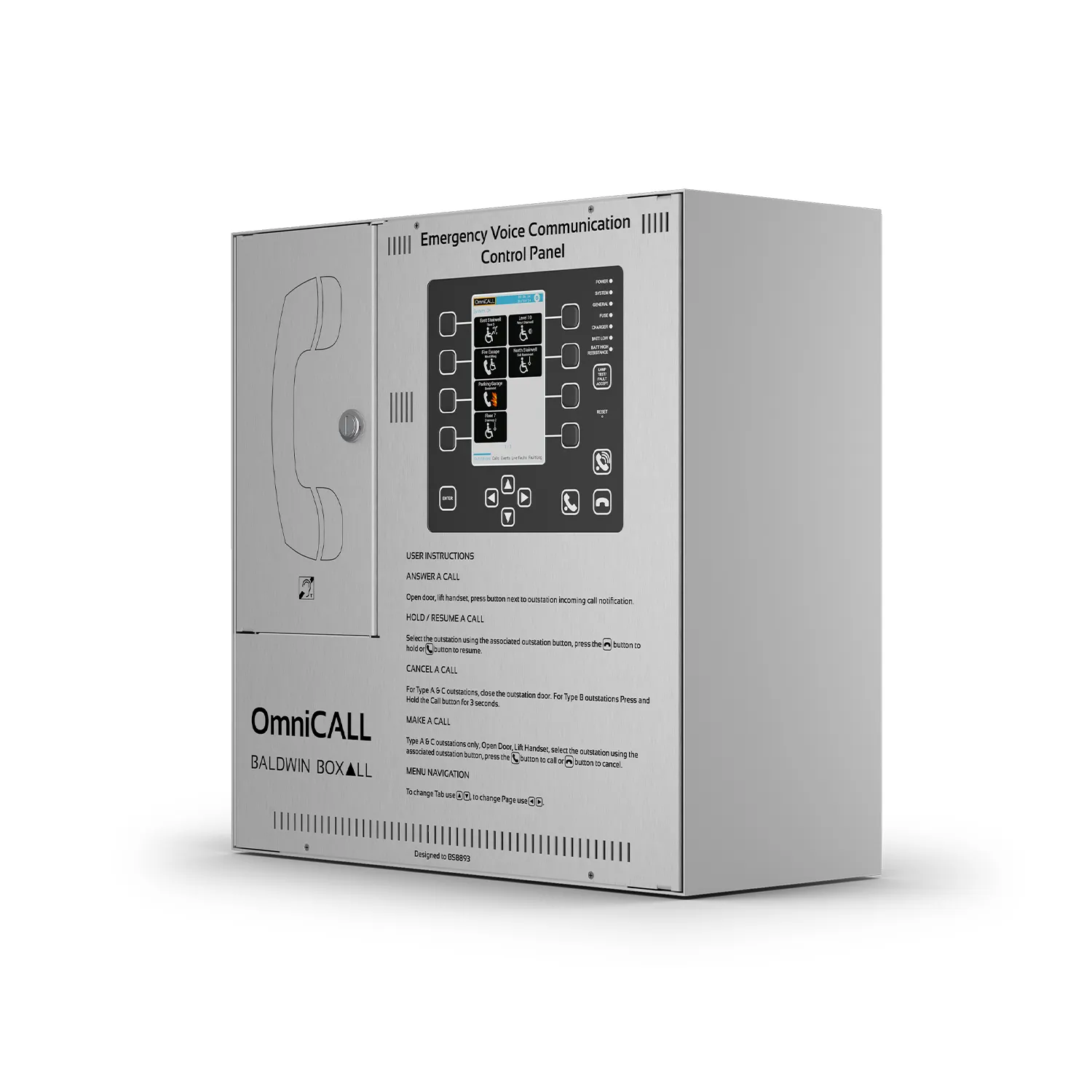

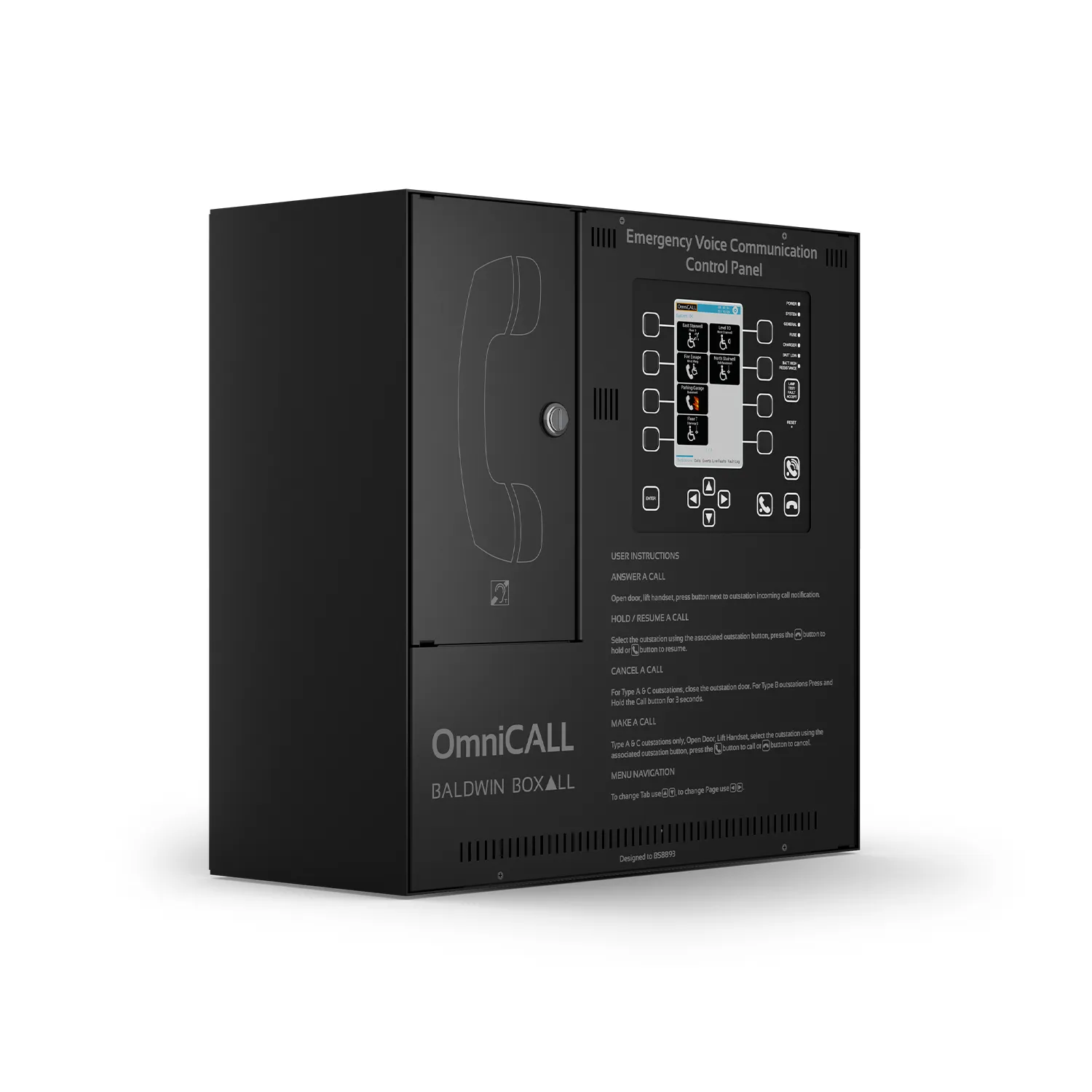

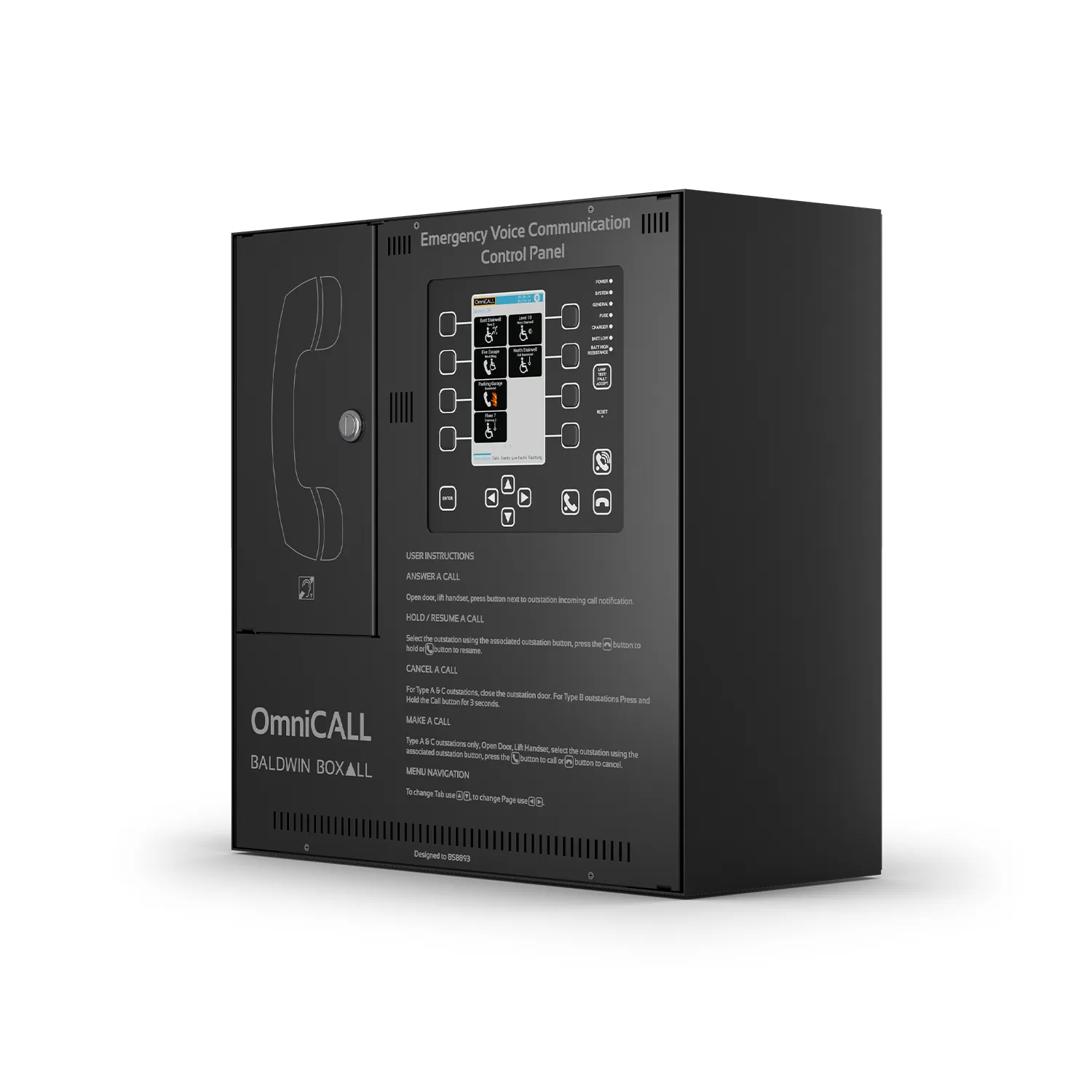

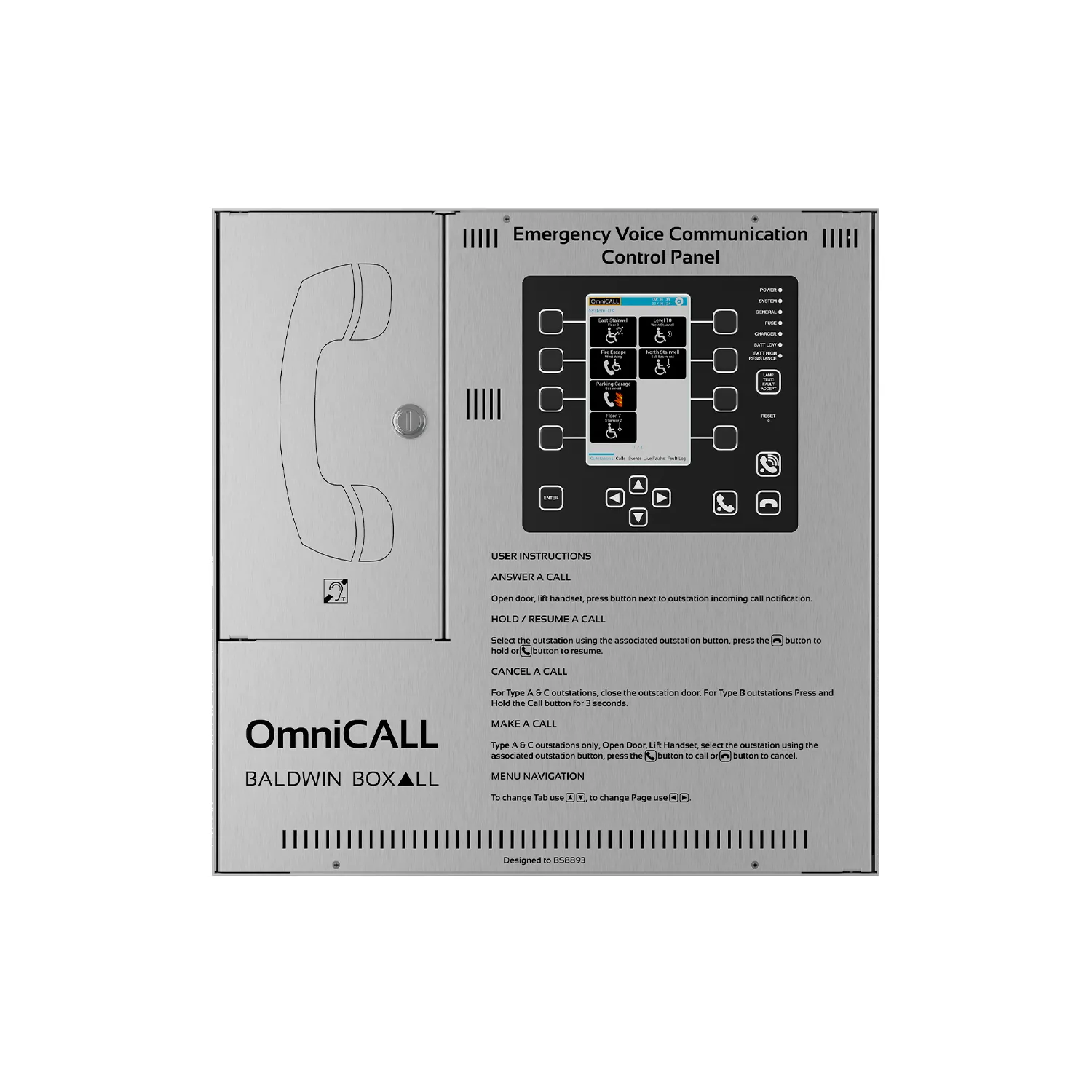

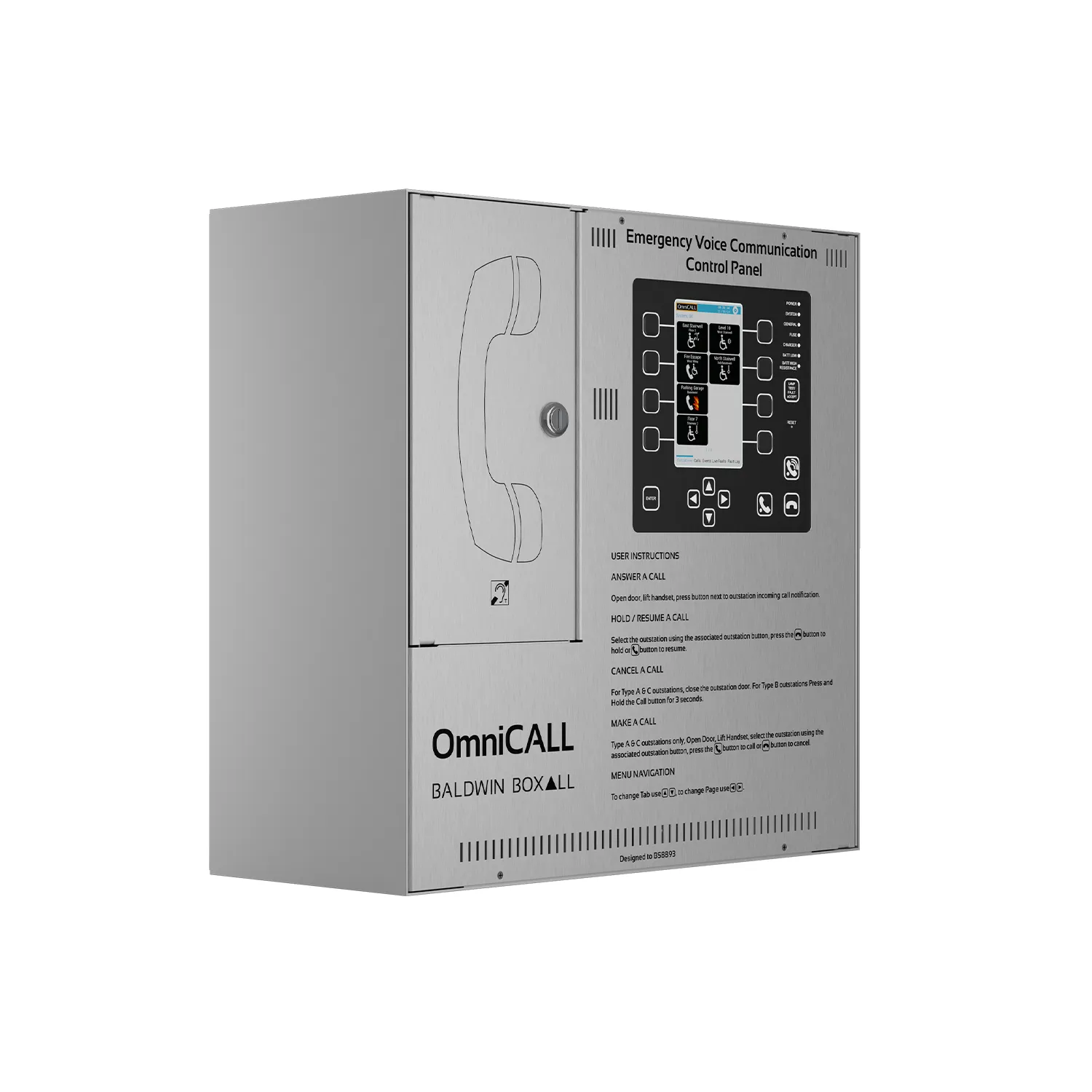

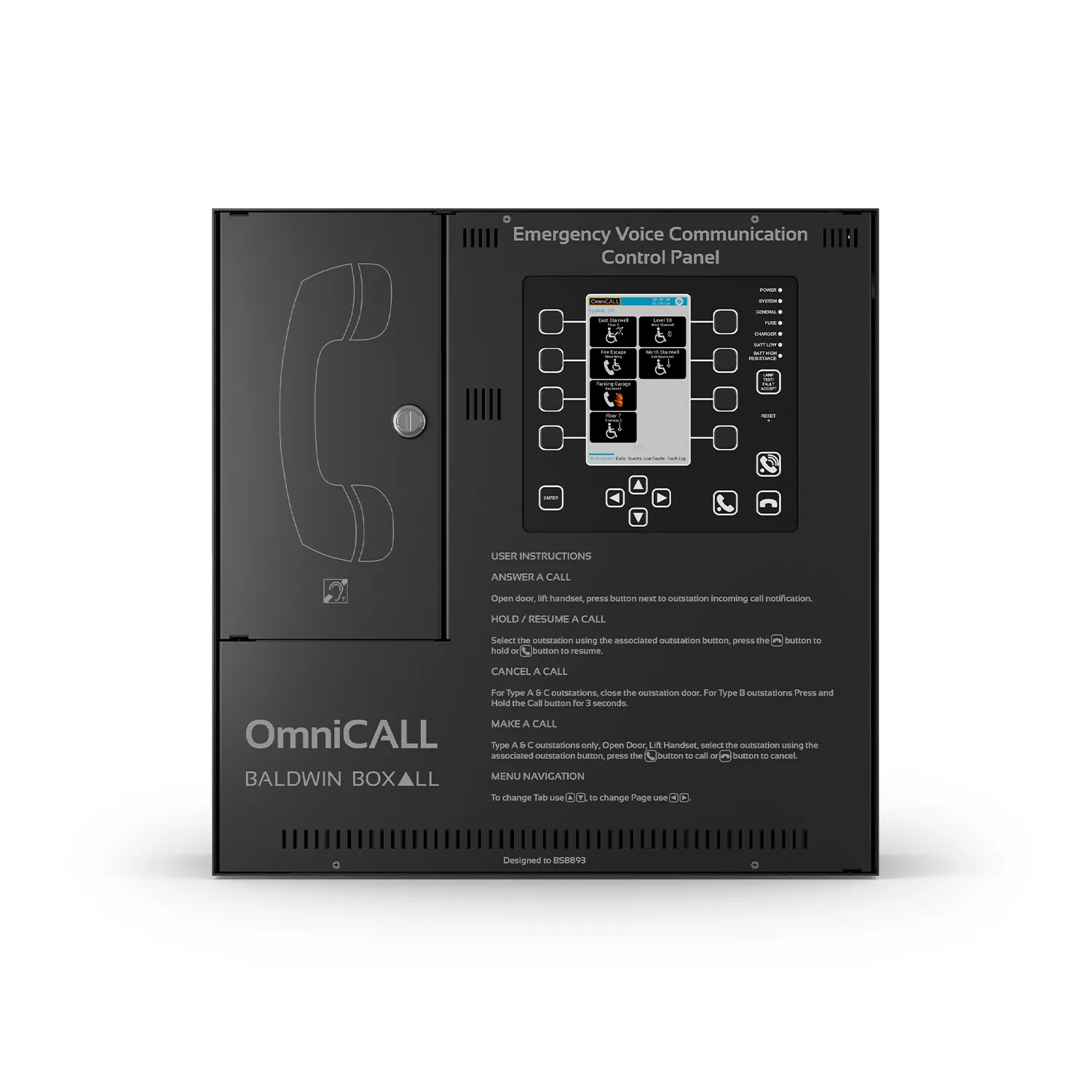

OmniCALL – Master Station (32 way)

The OmniCALL Master Station control point is designed to help staff manage emergency calls clearly, with an easy-to-read screen and straightforward call handling.

Make an Enquiry
SKU: OCCPS Category: Tag: Manufacturer:

Key benefits

Key benefits

  • Clear call handling for fire telephone and disabled refuge communication
  • Easy-to-read display with helpful on-screen prompts
  • Active call list and live fault view on a 5-inch colour display, so operators can see everything at a glance
  • Ability to conference call with up to four Type A or Type C outstations via the Master Station

Details

Description

The OmniCALL Master Station is the hub for managing fire telephone and disabled refuge calls, helping operators see what’s happening quickly and respond confidently.

  • Supports up to 32 outstations and 32 assistance alarms as standard
  • One line card fitted as standard
  • Up to three additional line cards can be fitted
  • With four cards installed:
    • Up to four loops with a maximum of 32 outstations spread across the loops in any combination or
    • Up to 16 radial circuits
    • Or a mix of loop and radial circuits in any configuration up to a maximum of 32 outstations

It’s built around clear information and simple controls, so operators can take the right action without hesitation.

Technical Data

Technical Data

Power Supply: 85-264VAC
Power Consumption: 75W
Humidity Range: 95% non-condensing
Temperature Range: -5°C to +40°C
Indicators: 5” TFT plus fault LEDs
Finish: RAL 9005 / Stainless Steel
Dimensions: 430 x 430 x 190 mm (W x H x D)
Bezel dimensions: 470 x 470 mm (W x H)
Mounting height (to centre): 1400-1500 mm
Knockouts/cable entry points: 20 x 30 mm (Top)

Compliance:

  • BS 5839-9: Code of practice for design, installation and maintenance of emergency voice communication systems
  • BS 8893: Emergency voice communication (EVC) systems. Components. Specification.
  • BS 8300-1: Code of practice for the design of an accessible and inclusive built environment
  • BS 9991: Fire safety in the design, management and use of residential buildings
  • BS 9999: Fire safety in the design, management and use of buildings
