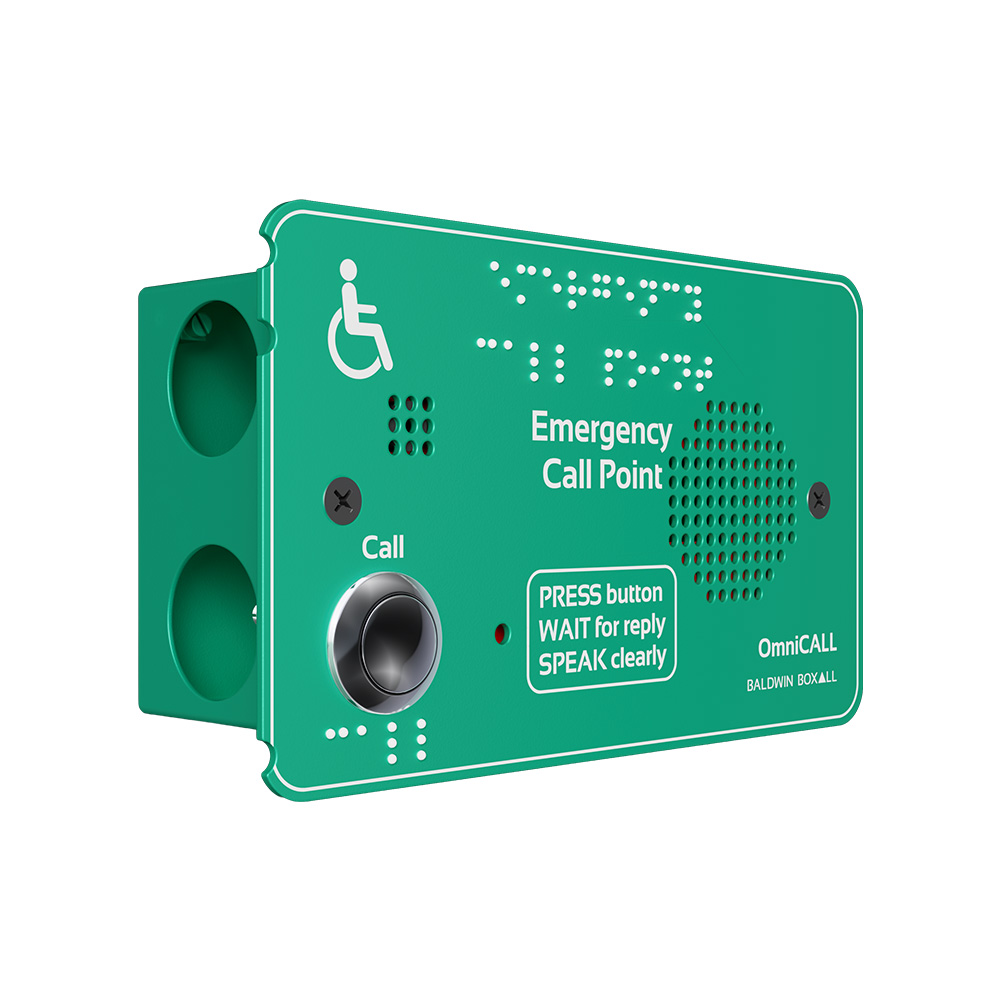

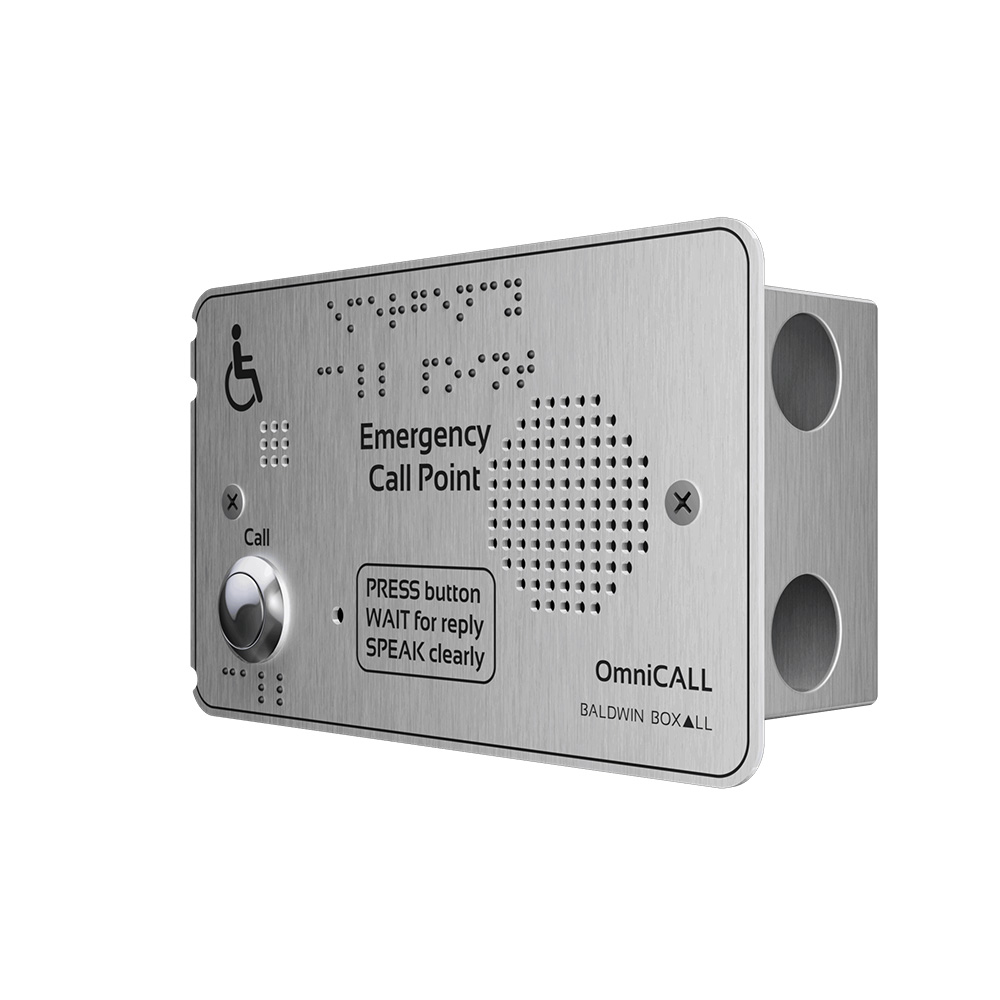

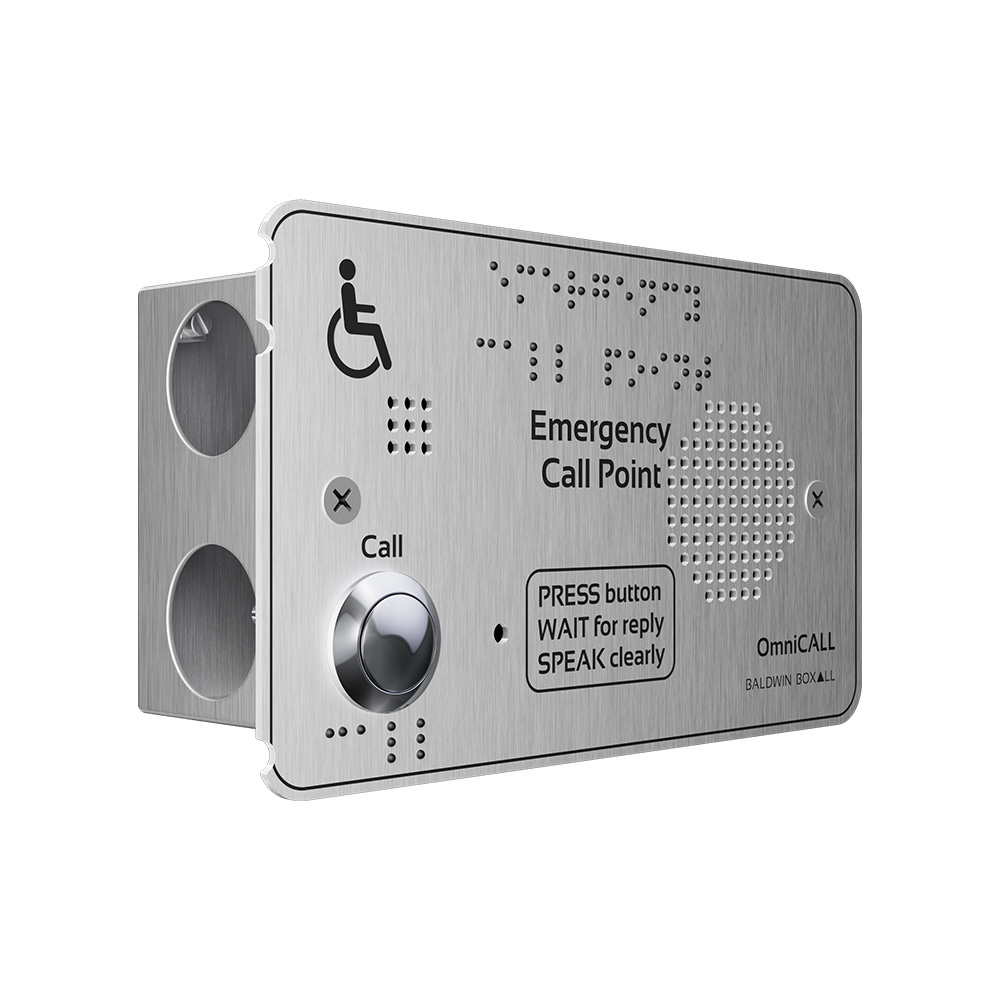

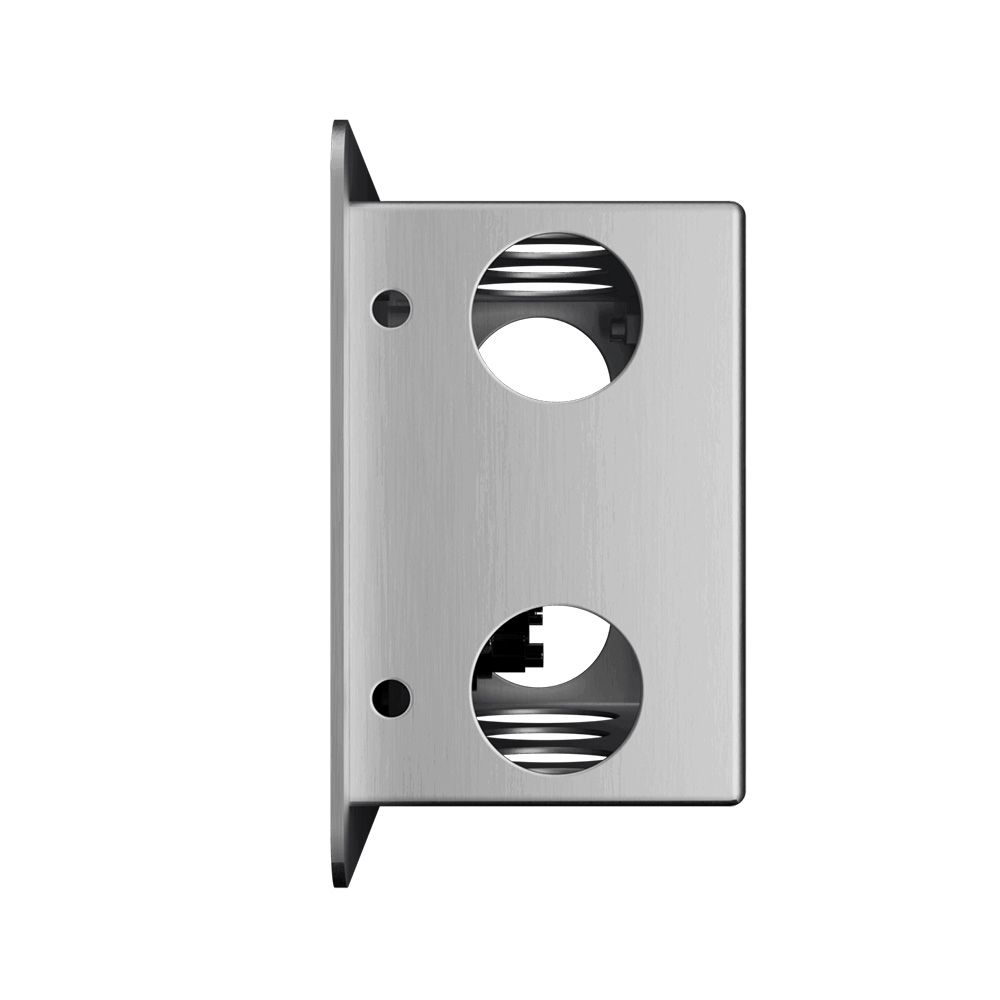

OmniCALL – Refuge Remote (Type B outstation)

The OmniCALL disabled refuge outstation that provides hands-free voice communication, helping occupants request assistance and receive reassurance during an emergency.

SKU: OCBR Category: Tag: Manufacturer:

Key benefits

Key benefits

  • Hands-free communication that is easy for occupants to use
  • Clear green finish for quick identification
  • Optional anti-hoax link to the fire detection system via the Master Station
  • Braille and luminescent style labelling to support accessibility
  • Supports connection of assistance alarms for additional peace of mind
  • Helps staff manage refuge calls quickly and confidently

Details

Description

The OmniCALL OCBRG is a Type B disabled refuge outstation designed for clear, hands-free communication between a refuge area and the control point.

It supports inclusive evacuation planning with accessible labelling and a straightforward user experience.

Technical Data

Technical Data

Power Supply: 15-36V
Power Consumption: 30mA @ 24V
Humidity Range: 0-90% non-condensing
Temperature Range: -5°C to +40°C
Indicators: Status
Finish: RAL 6024 / Stainless Steel
Dimensions: 150 x 90 mm (W x H)
Mounting height (to centre): 900-1200 mm

Audio:

  • Speech-steered communication

Wiring:

  • Can be wired for either loop or radial connections

Compliance:

  • BS 5839-9: Code of practice for design, installation and maintenance of emergency voice communication systems
  • BS 8893: Emergency voice communication (EVC) systems. Components. Specification.
  • BS 8300-1: Code of practice for the design of an accessible and inclusive built environment
  • BS 9991: Fire safety in the design, management and use of residential buildings
  • BS 9999: Fire safety in the design, management and use of buildings
