Roaming Telephones
Roaming handsets and jack sockets form a Type A Outstation, compatible with our CARE2 EVC system
The Baldwin Boxall Roaming Telephone handset is a portable telephone that can be plugged into CARE2 Jack Sockets in a building as part of the CARE2 Emergency Voice Communication system.
The Roaming Telephone and Jack Socket form a type A outstation, compatible with all other parts of our CARE2 Emergency Voice Communication system. Jack sockets should be mounted at appropriate areas throughout a building to provide additional flexibility during an emergency evacuation.
Roaming Telephones are stored in a Handset Enclosure keeping them secure, protected and monitored, ensuring the handsets readily available for use when needed.
CARE2 EVC system is an alternative to our popular (loop-wired) OmniCare EVC system.

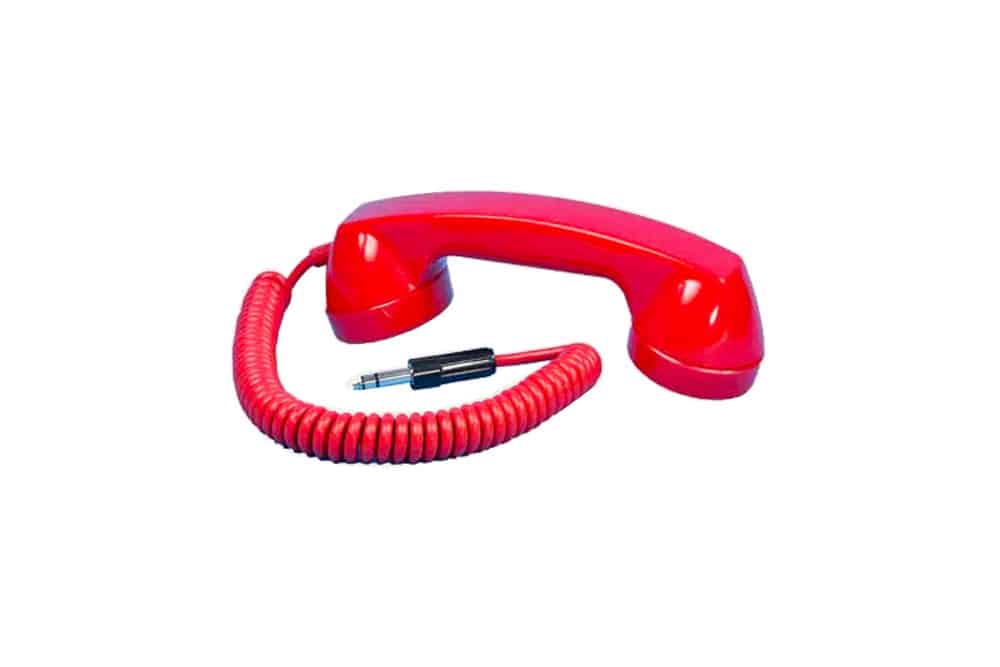

The handset
- Robust unit with hearing aid compatible earpiece (T-coil)

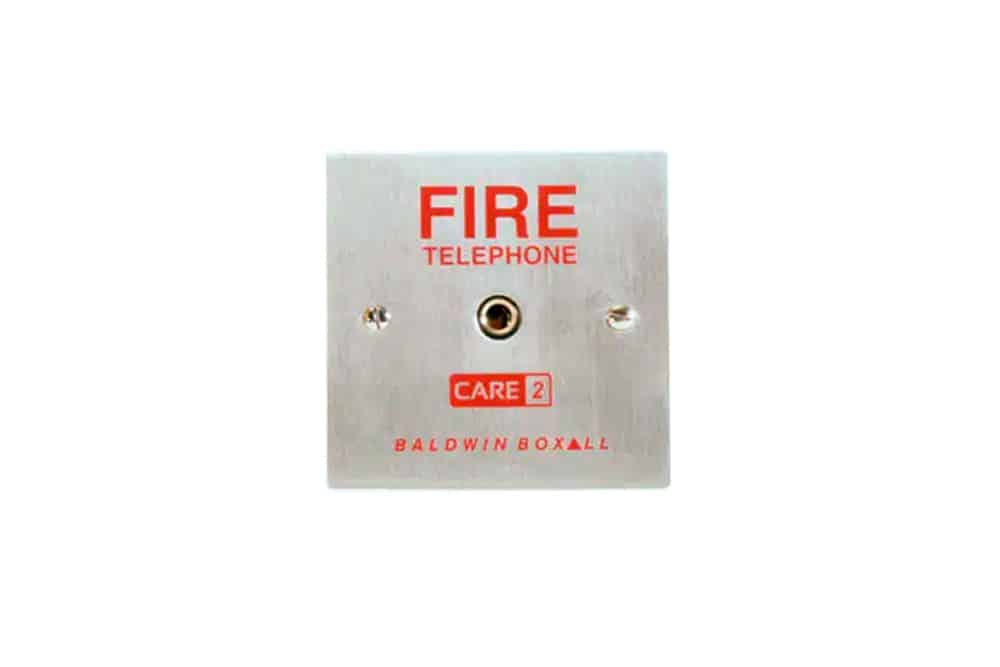

Jack sockets
- Stainless steel finish
- Any number can be daisy chained (one operational per line at any one time)
- Conference call facility via control console
- CARE2 jack socket for roaming telephone
- UK and American options available

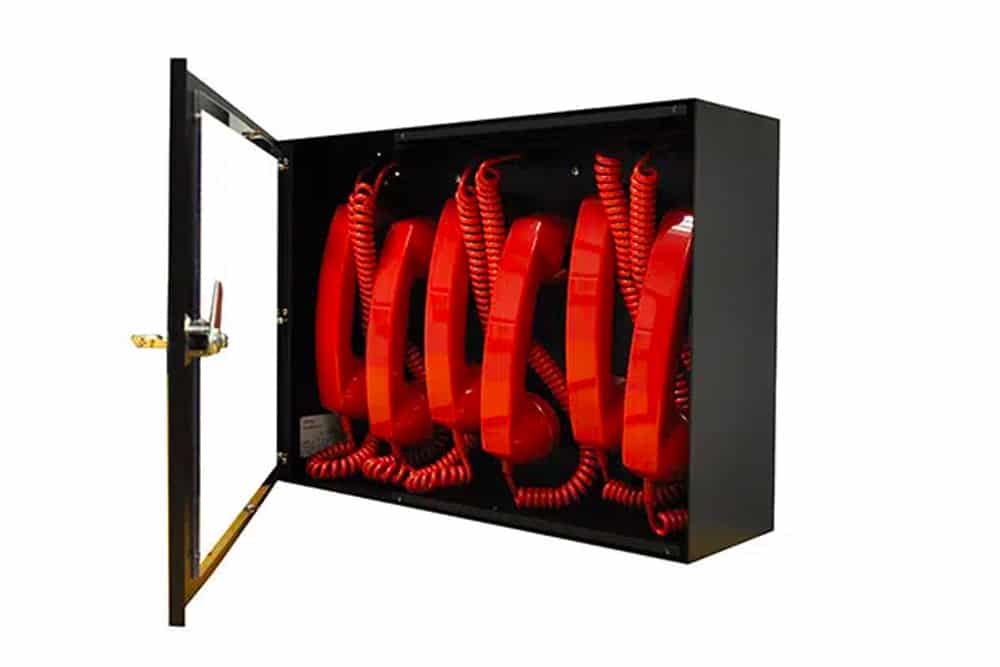

Handset enclosure
- Black or stainless steel enclosure
- Lockable glass door
- Holds up to six handsets
- Monitors each handset independently and indicates if a fault is detected
- Green reassurance LEDs
- Self powered from the line
- Surface mountable (optional flush mount bezel available)
C2RTEB / C2RTES
Roaming Telephone Handset Enclosure
Holds up to 6 handsets (sold separately)
Black / stainless steel
Wall mount or flush mountable with bezel
430mm x 310mm x 130mm
0.5 kg
C2CBZ / C2CSZ
Bezel for flush mounting C2C#4 / C2C#NEP / C2RTE#
Black / stainless steelÂ
470mm x 350mm with 10mm radius (c/o 440W x 320H)
C2RTH
CARE2 Roaming Telephone Handset
Red
C2RTJUK
CARE2 roaming telephone jack socket – United Kingdom
(Back box not supplied)
C2RTJA
CARE2 roaming telephone jack socket – United States
(Back box not supplied)
Key Benefits
- Self-powered from ring circuit
- Battery backup powered by Control Panel
- Robust handset with ‘T-Coil’ Hearing Aid-compatible earpiece & loudspeaker
- High volume ringer
- Handsets monitored when stored in Enclosure
- Handset LED 'fault' / 'ok' status lights (in Enclosure)
- Up to 500m Daisy Chain Jack Sockets
- Lockable glass door on Enclosure
Safe & Compliant
BS5839-9 is a code of practice for those who install, maintain and commission EVC systems, giving guidance on how to install an effective system as part of a fire detection and alarm system covering all components including wireless.
BS9999 is a BSI Standards Publication providing guidance for fire safety in the design, management and use of buildings. It includes the provision of evacuation methods and placement of EVC systems.
Documentation & Downloads
| Downloads | Link |
|---|---|
| About the CARE2 EVC system – Datasheet | |
| BVOCCA EVC Call Indicator for Remotely-Mounted Panels – Datasheet | |
| C2RRBIP CARE2 Weatherproof Enclosure for C2RRG – Datasheet | |
| C2RRGPB CARE2 Plasterboard Backbox for C2RRG – Datasheet | |
| C2RRSPB CARE2 Plasterboard Backbox for C2RRS – Datasheet | |
| DTAKIT & DTASKIT Emergency Assistance/Toilet Alarm Kit for EVC – Datasheet |
| Downloads | Link |
|---|---|
| CARE2 BIM Objects | |
| DTA##M IP65 Rated Emergency Assistance/Toilet Alarm BIM Objects | |
| Emergency Assistance/Toilet Alarm BIM Objects |
| Downloads | Link |
|---|---|
| About EVC & The Standards – Guide | |
| C2CET## CARE2 Emergency Steward Telephone – User Guide | |
| C2FT## CARE2 Fire Telephone – User Guide | |
| C2RR# CARE2 Disabled Refuge Outstation – User Guide | |
| Cable Types & Requirements for our Systems & Products – Guide | |
| CARE2 EVC System Cabling & Networking – Guide | |
| Mounting Heights for EVC Panels & Outstations – Guide |
| Downloads | Link |
|---|---|
| C2CEK4 CARE2 4-way Line Extension Card – Manual | |
| C2CFPE CARE2 Fire Panel Interface – Manual | |
| C2CN CARE2 Network card – Manual | |
| CARE2 EVC System Installation – Manual | |
| CARE2 Quickstart Installation – Manual |
| Downloads | Link |
|---|---|
| CARE2 Configuration Software |
Looking for something in particular?
Search our full database of downloads and documentation
CARE2 Product Range
Expandable 4-way control console available in either black or stainless steel.
Add one or more of these expansion panels for larger networked systems.
Type B outstation. Two-way, hands-free voice communication unit for disabled refuge areas.Â
Type A outstation. Two-way voice communication Emergency Steward Telephone, typically used where crowd control is required, such as Stadia.Â
Type A outstation. Two-way emergency voice communication Fire Telephone, can be used by Fire Officers during the evacuation of a building.Â
Portable Roaming Telephone handset, jack sockets and monitored enclosure.
Emergency Assistance Alarm solution for toilets for the CARE2 system.
CARE2 EVC cabling and networking information.
EVC System Options
OmniCarePLUS makes it possible to install especially large Disabled Refuge/Fire Telephone Emergency Voice Communication (EVC) systems with up to 2,048 outstations on a single loop-wired system.
