Type C EVC Combined Outstations
Type C Combined Outstations with two Call Point types in one for the OmniCare EVC system
Combined Outstations form part of an Emergency Voice Communication (EVC) system and provide two types of call point at a single location: Disabled Refuge and Fire Telephone.
The OmniCare Combined Outstation, referenced as a ‘Type C’ Outstation in BS5839-9:2021, includes all the features of both a disabled refuge outstation and a fire telephone within a single unit. This is a great benefit for places where both types of outstation are required in a single location, removing the need for two sets of cabling.
The OmniCare Type C Combined Outstation has been specially designed to be installed in such a way as to enable correct mounting heights for each section of the unit (BS5839-9:2021). The Type C Outstation can be placed on the wiring loop in combination with any other OmniCare style outstations providing greater flexibility and options.
This unit was the first of its kind on the market and has been installed in many locations worldwide.
Features:
- Type A and Type B outstation in a single enclosure
- Two forms of communication in one location
- Available in a choice of finishes – all red, all stainless steel, or red/green combination
- ‘Push catch’ or ‘slot lock’ fire telephone door options
- Supplied surface mounting – can be flush mounted with separately available bezel
- Beacon option
- Designed to install at recommended heights for both types of unit.
- Calls initiated either by opening the door on the Telephone section (full duplex via telephone handset communication) or single press of the button on the Refuge section (hands-free, speech steered communication)
- Connected to the control panel in a loop circuit and can be included with any other OmniCare Outstation on the same panel, if these are required

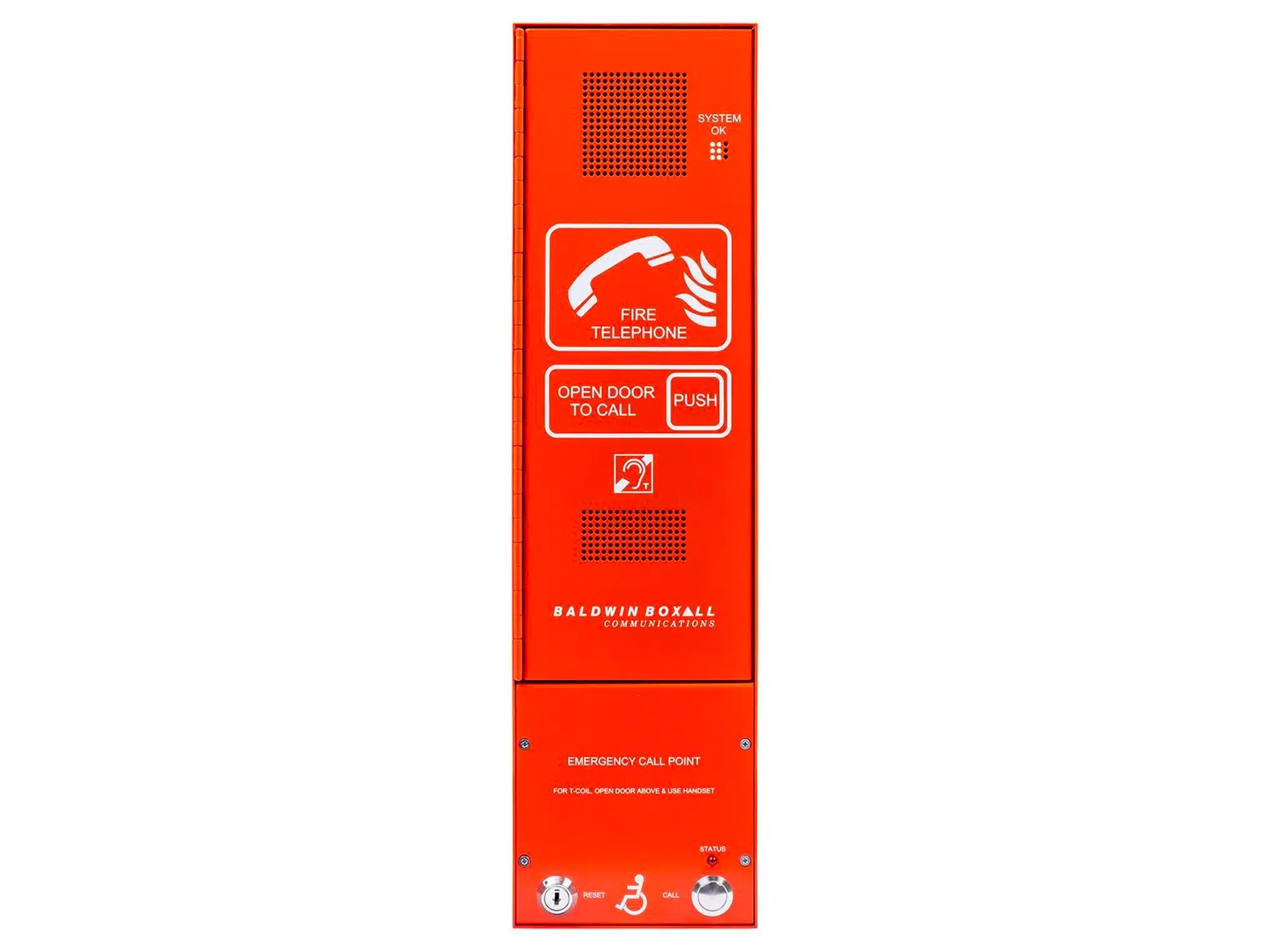

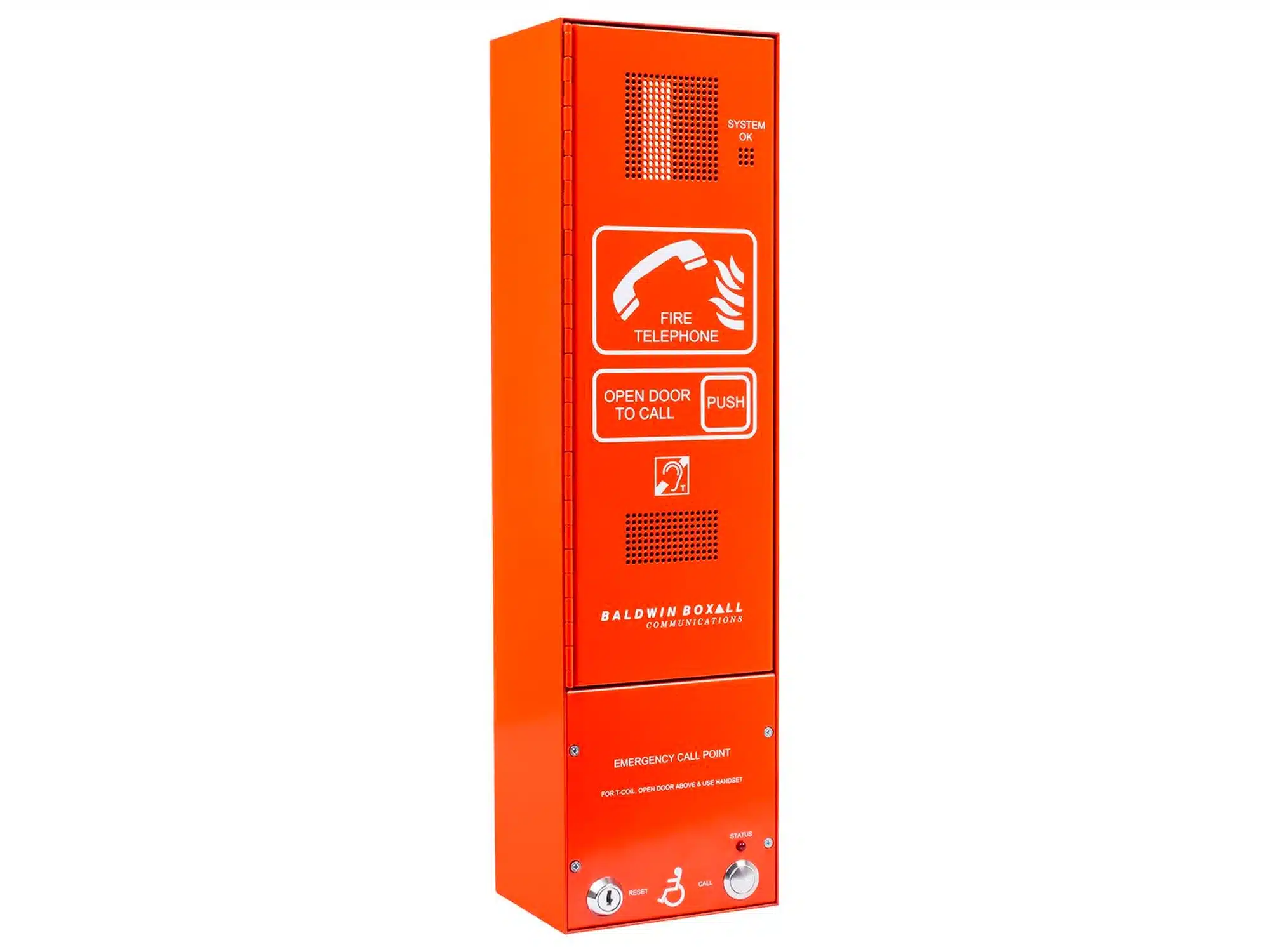

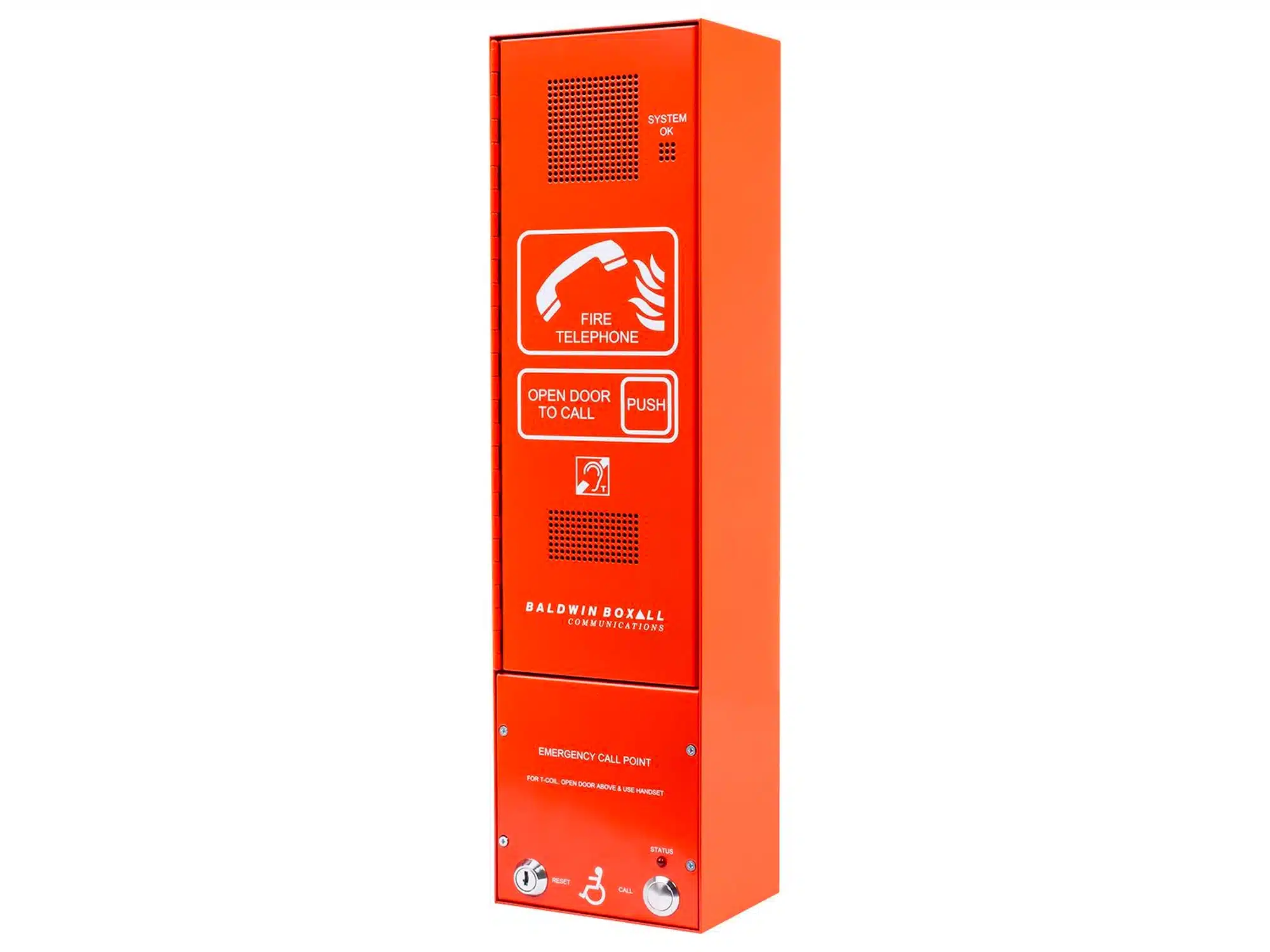

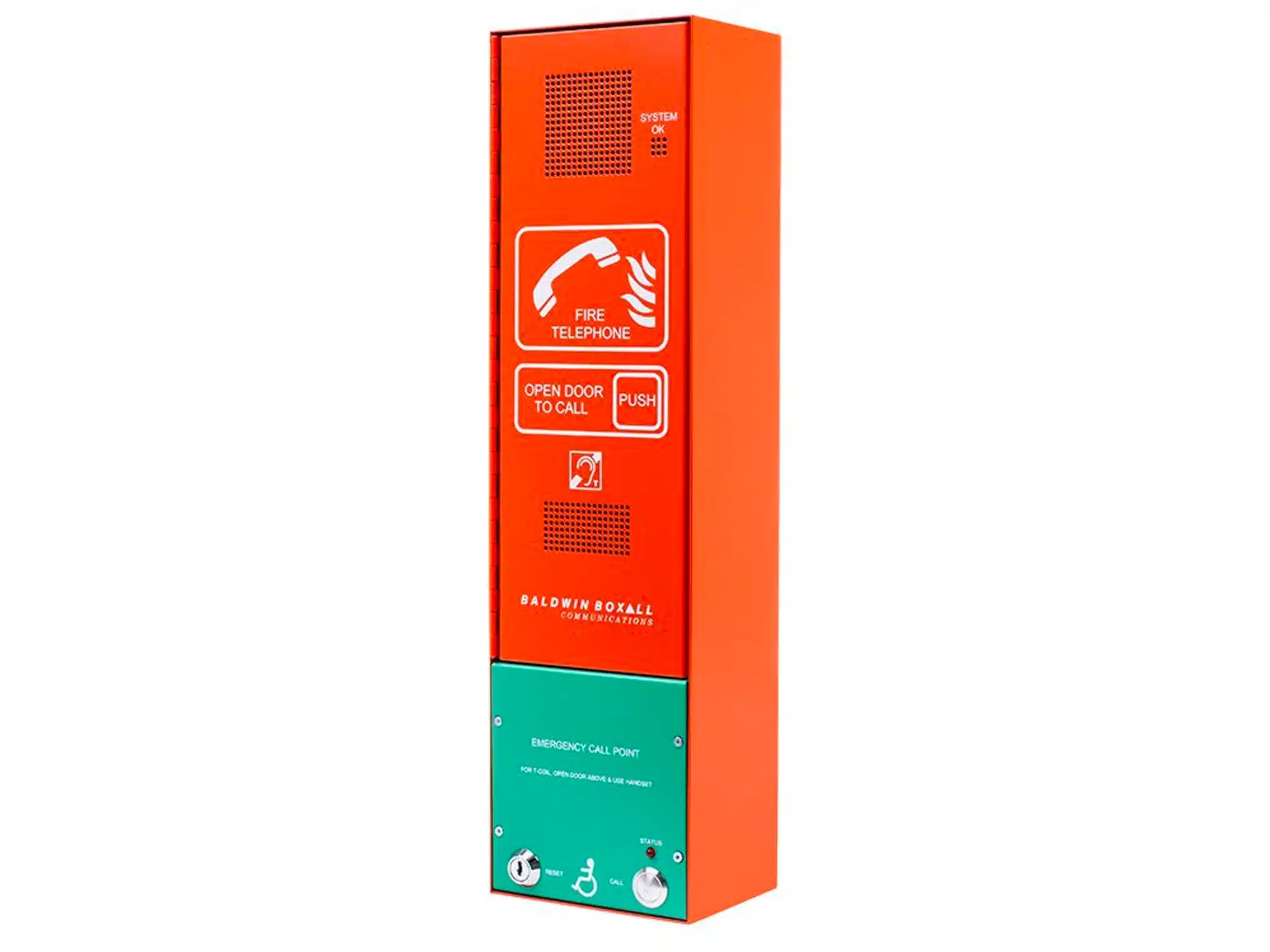

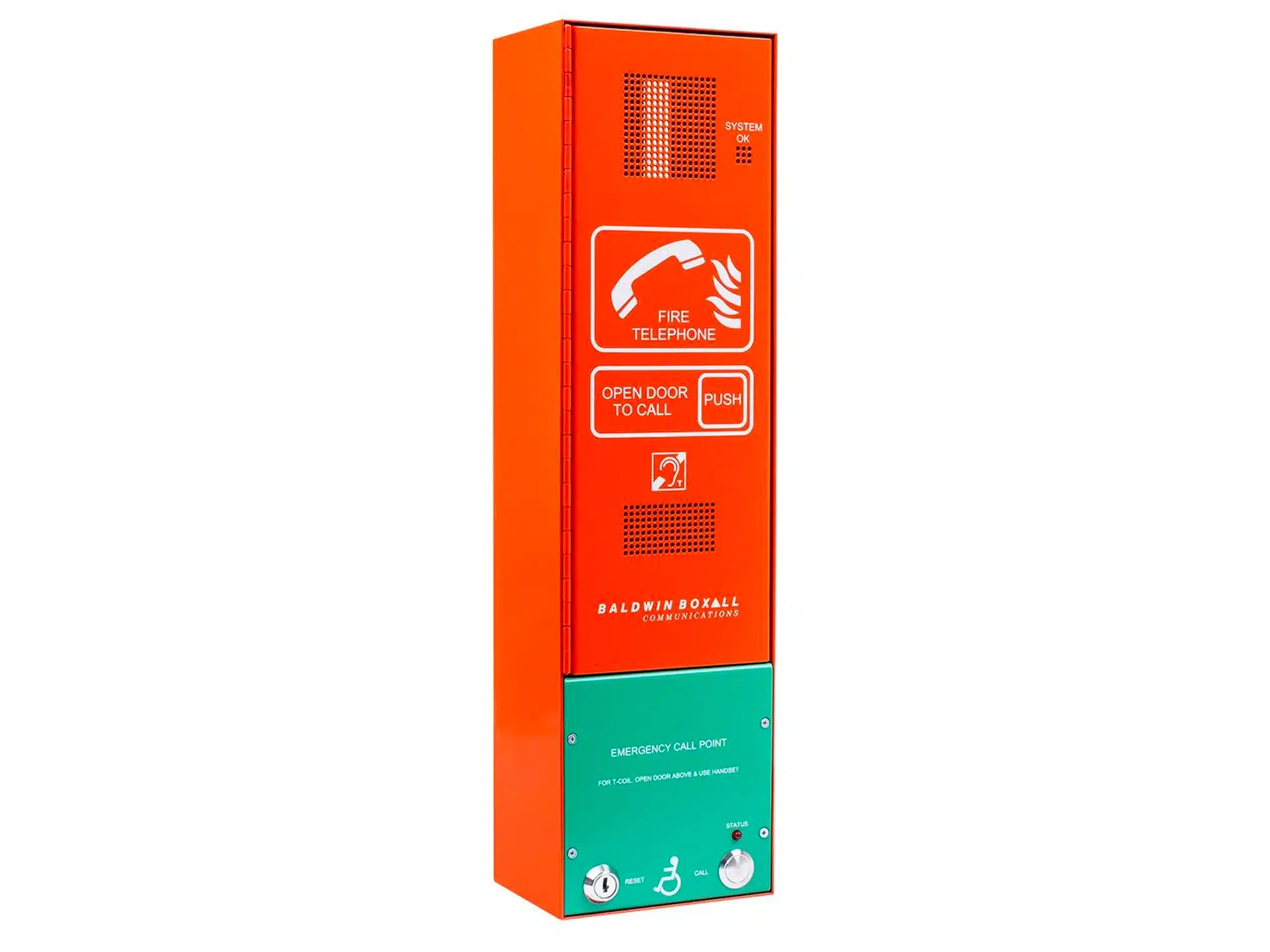

BVOCC / BVOCCSP / BVOCCGCP
Combined Outstation, single enclosure with
Fire Telephone & Disabled Refuge Unit
Push door

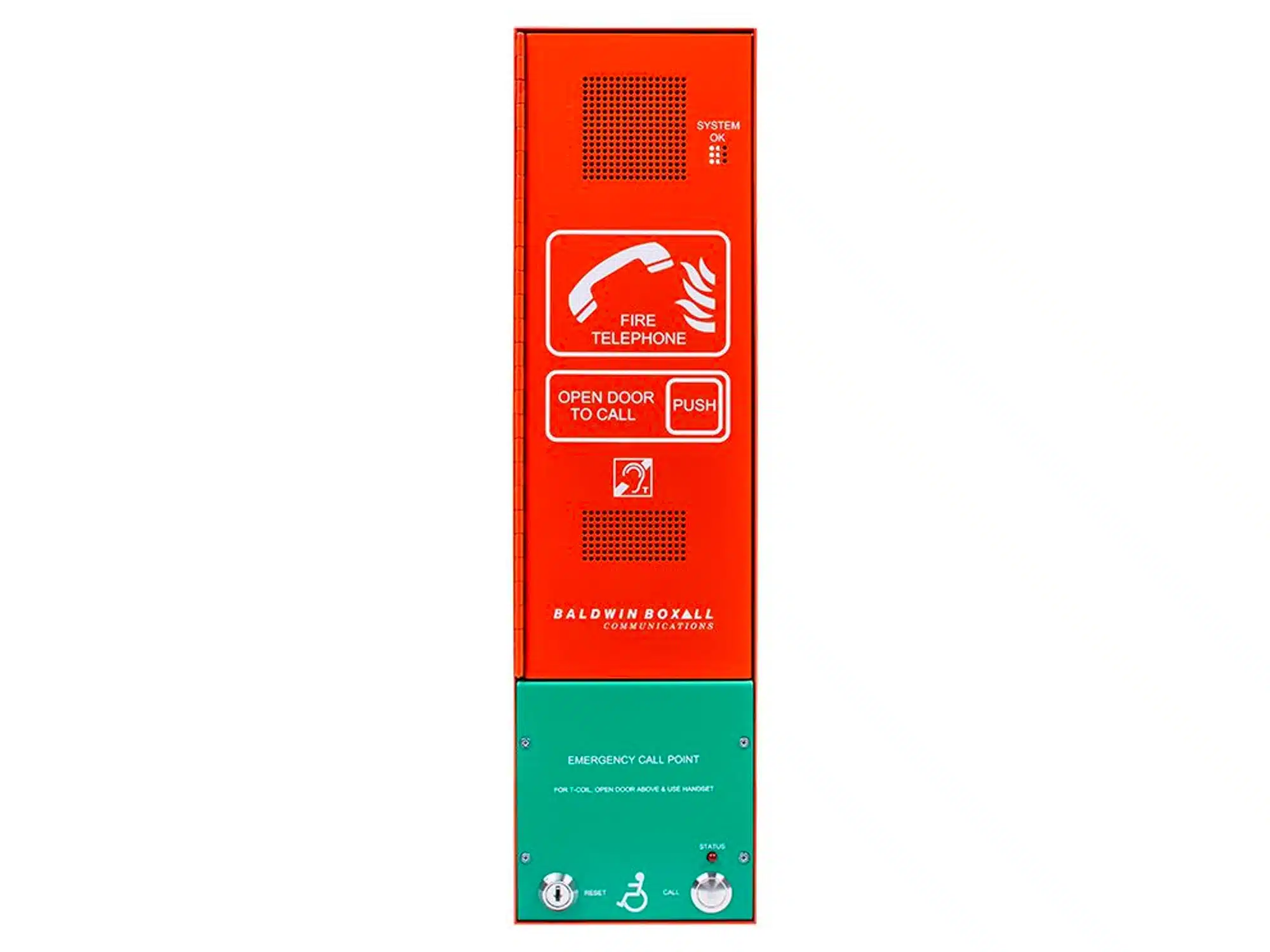

Red / stainless steel / red FT & green DR
130mm x 480mm x 100mm
4.5 kg / 4.5 kg

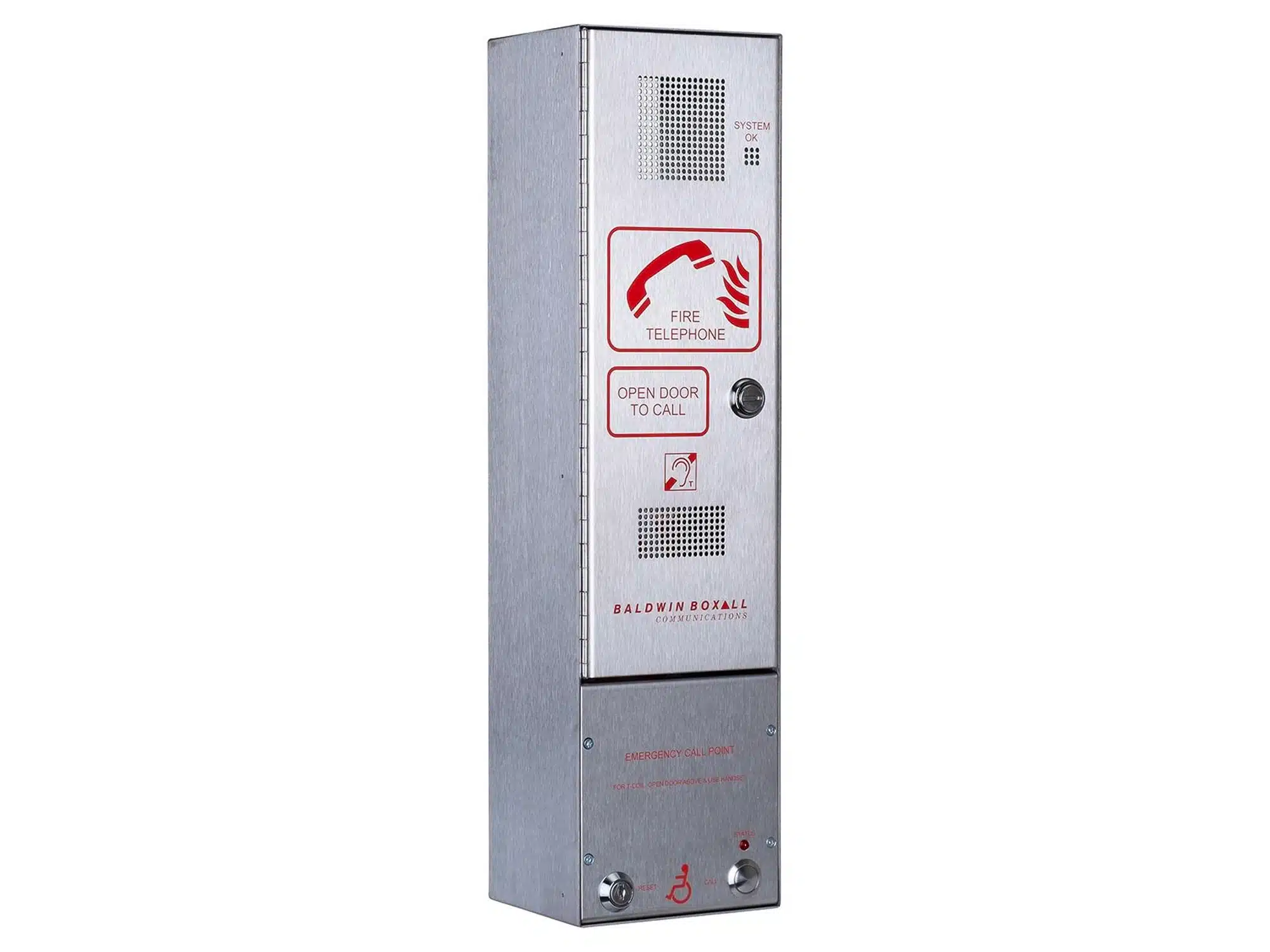

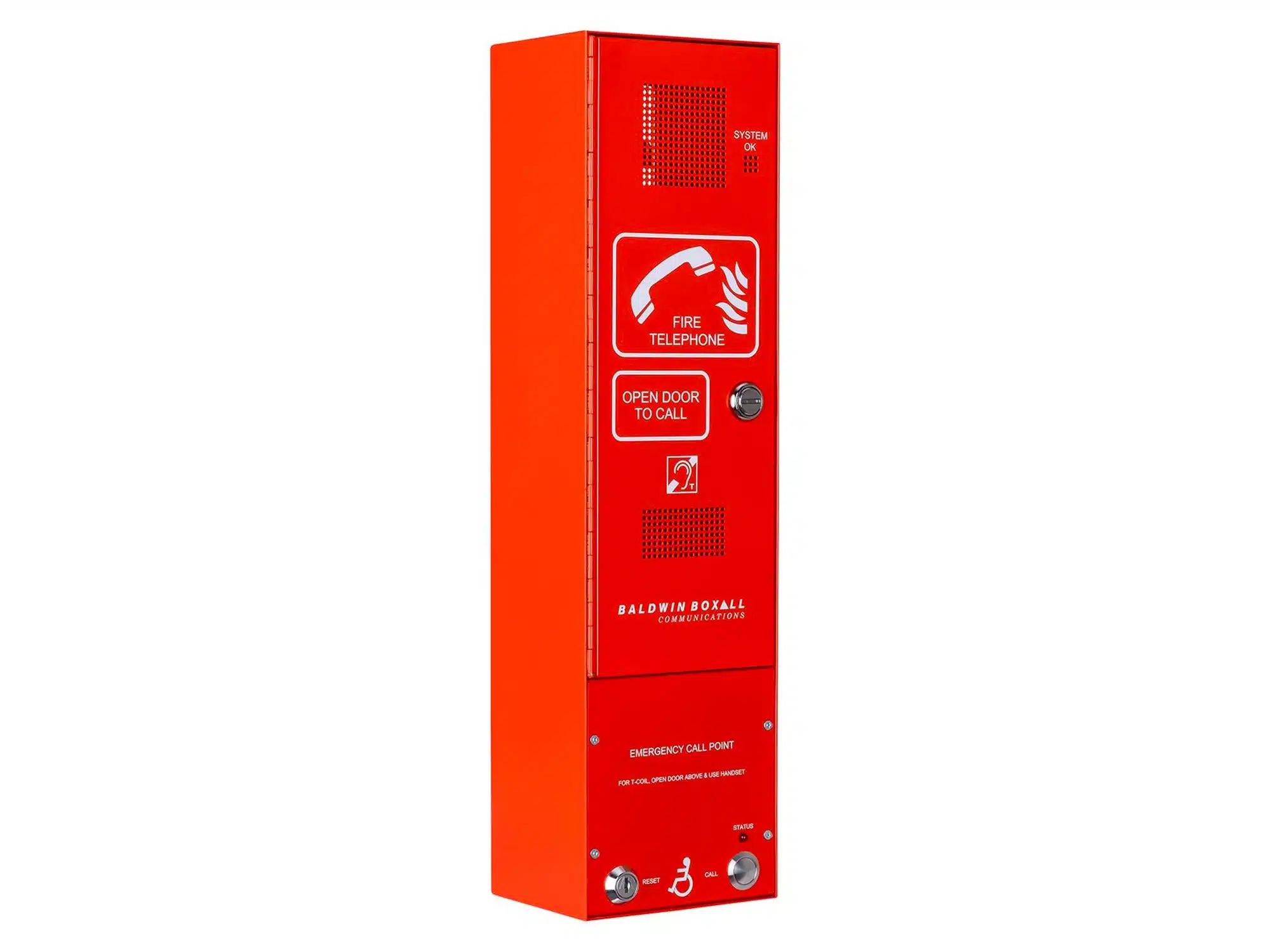

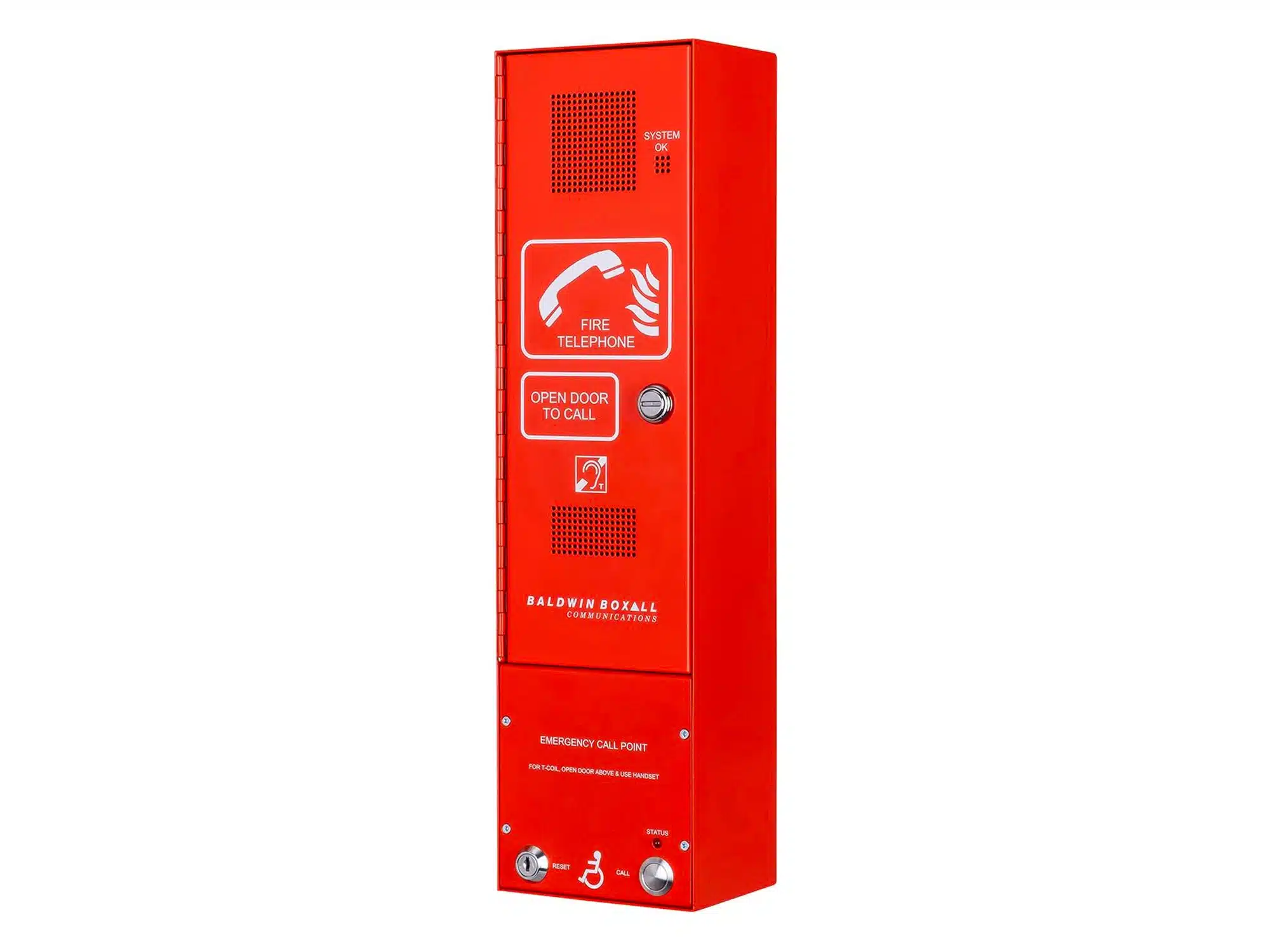

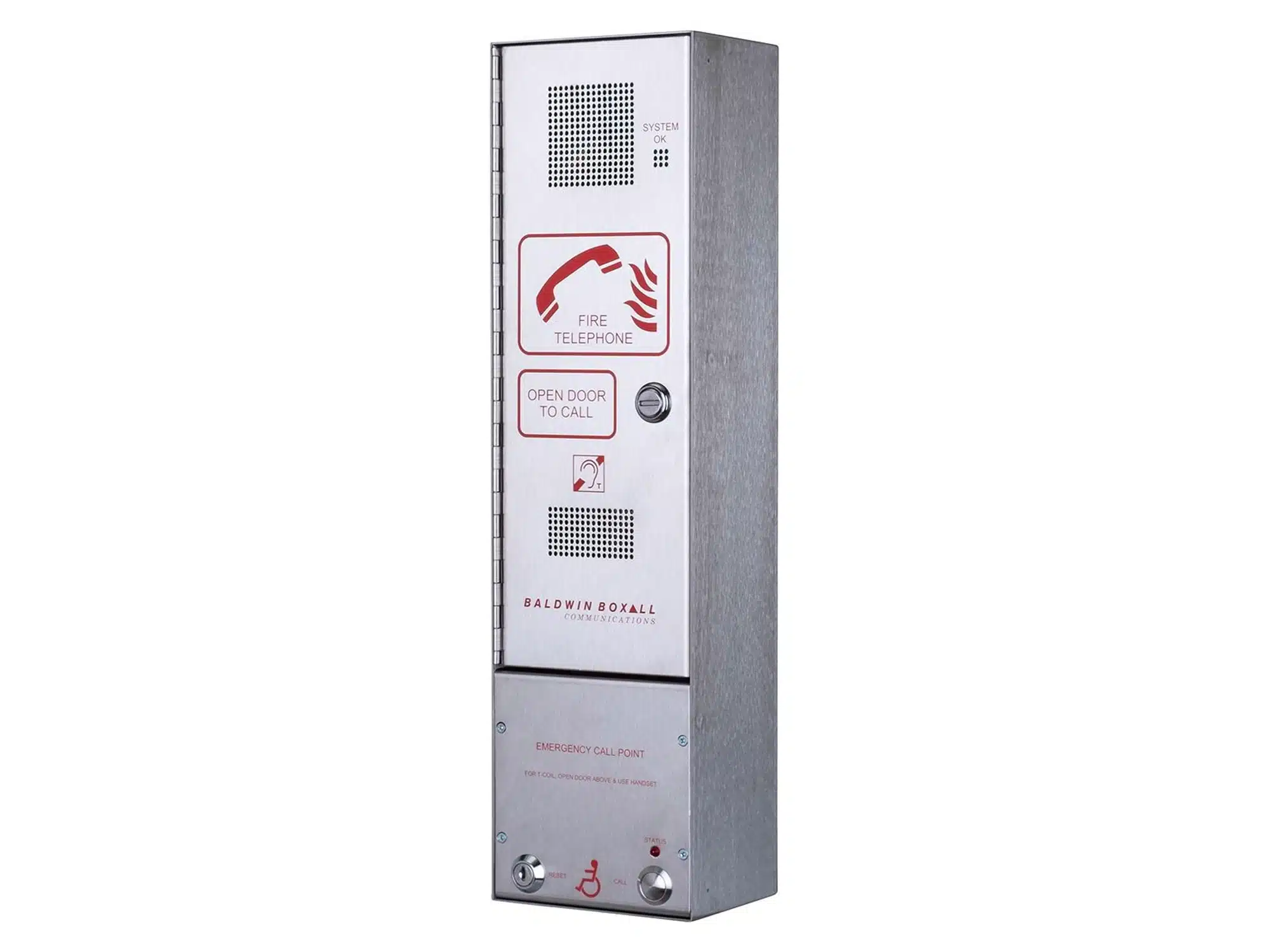

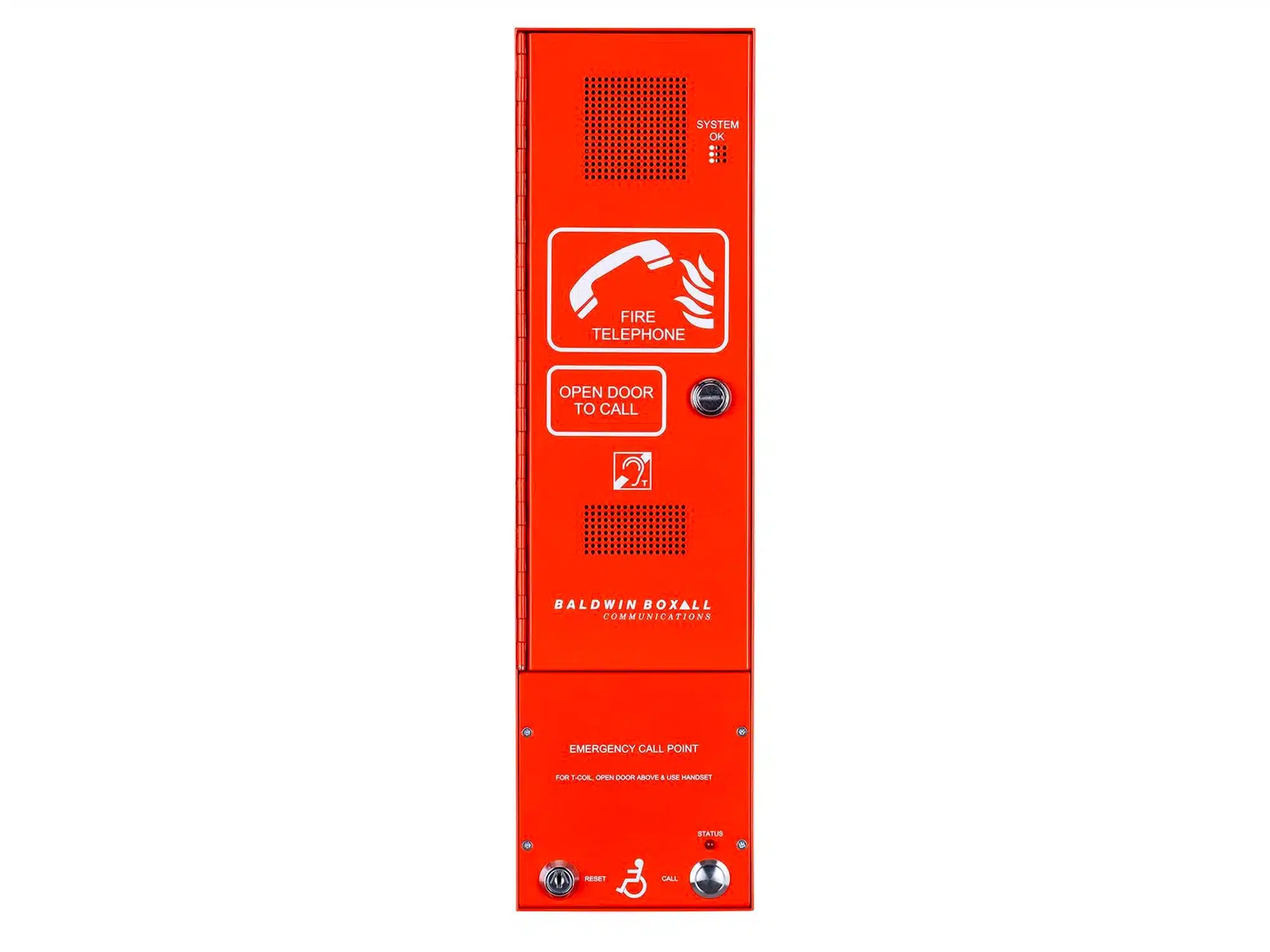

BVOCCL / BVOCCSL
Combined Outstation, single enclosure with
Fire Telephone & Disabled Refuge Unit
Lock door
Red / stainless steel
130mm x 480mm x 100mm
4.5 kg / 4.5 kg

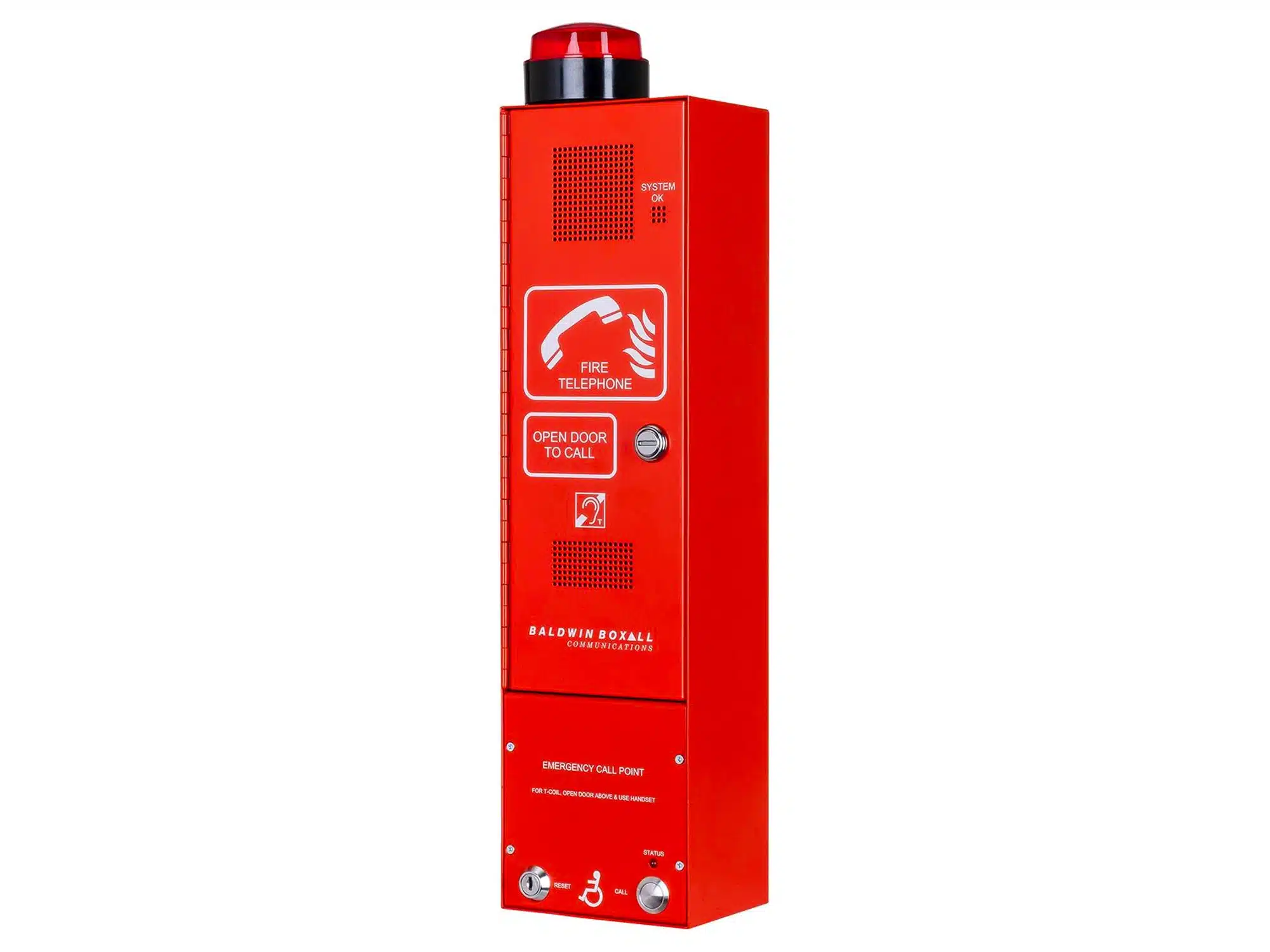

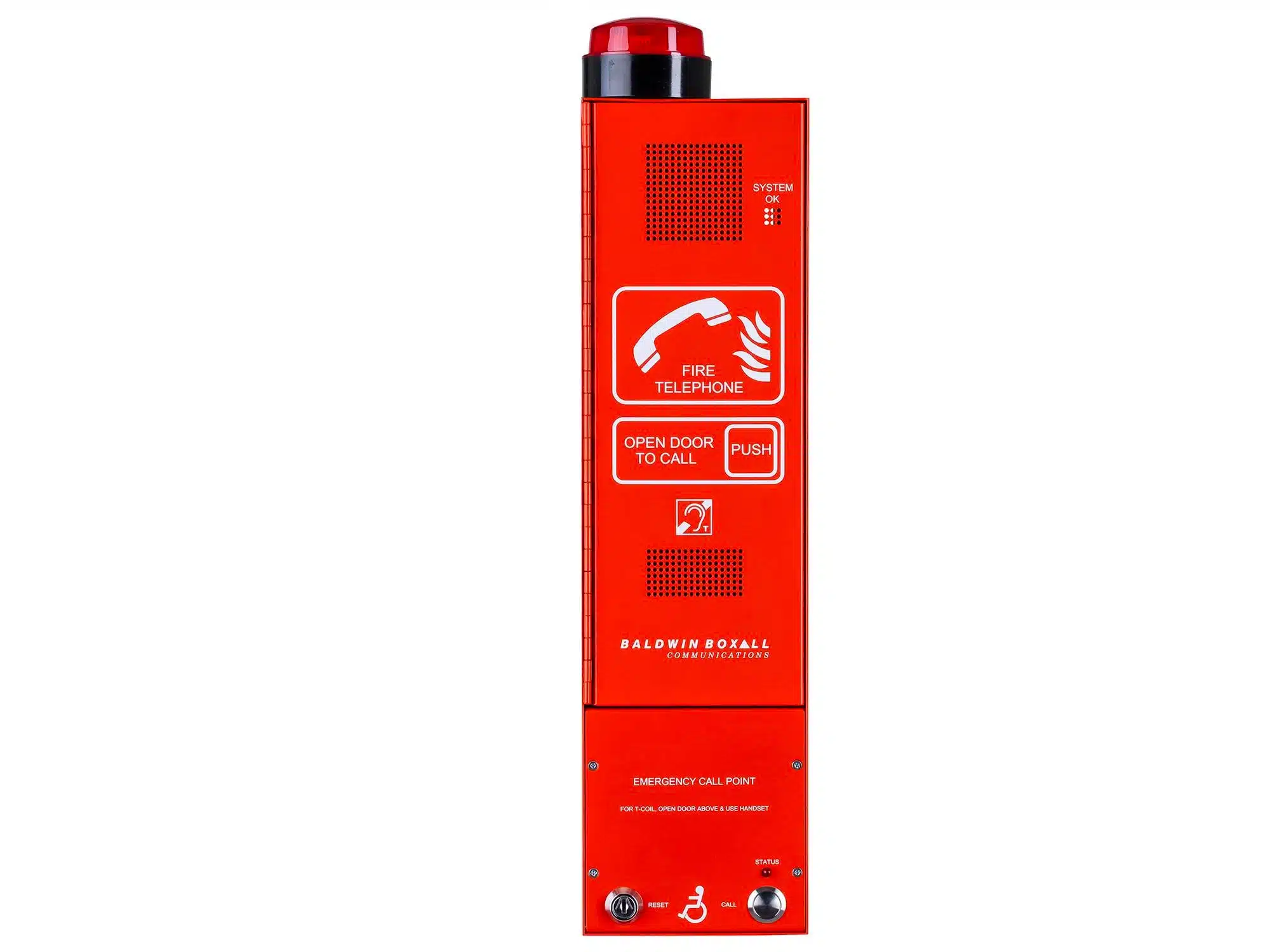

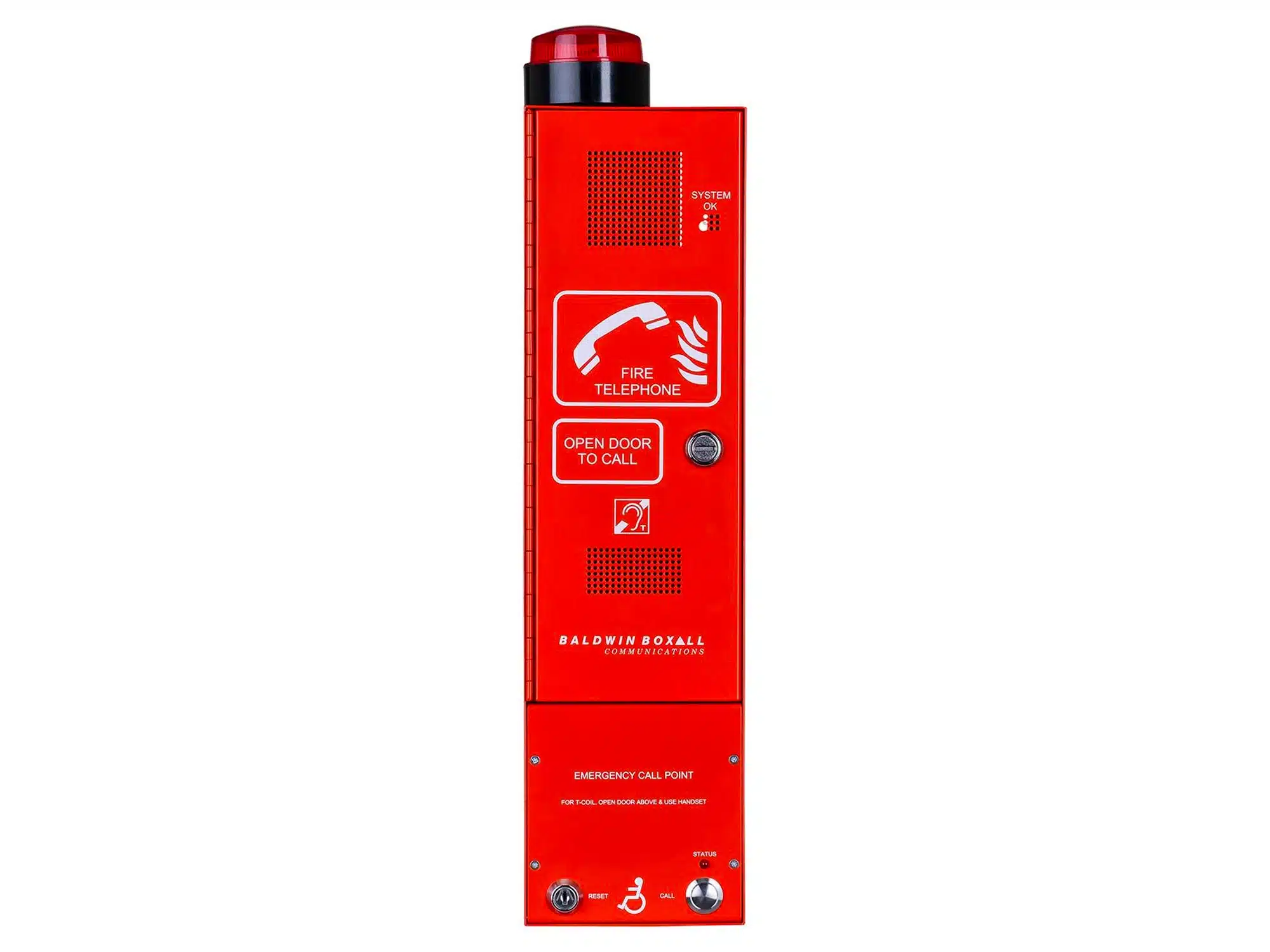

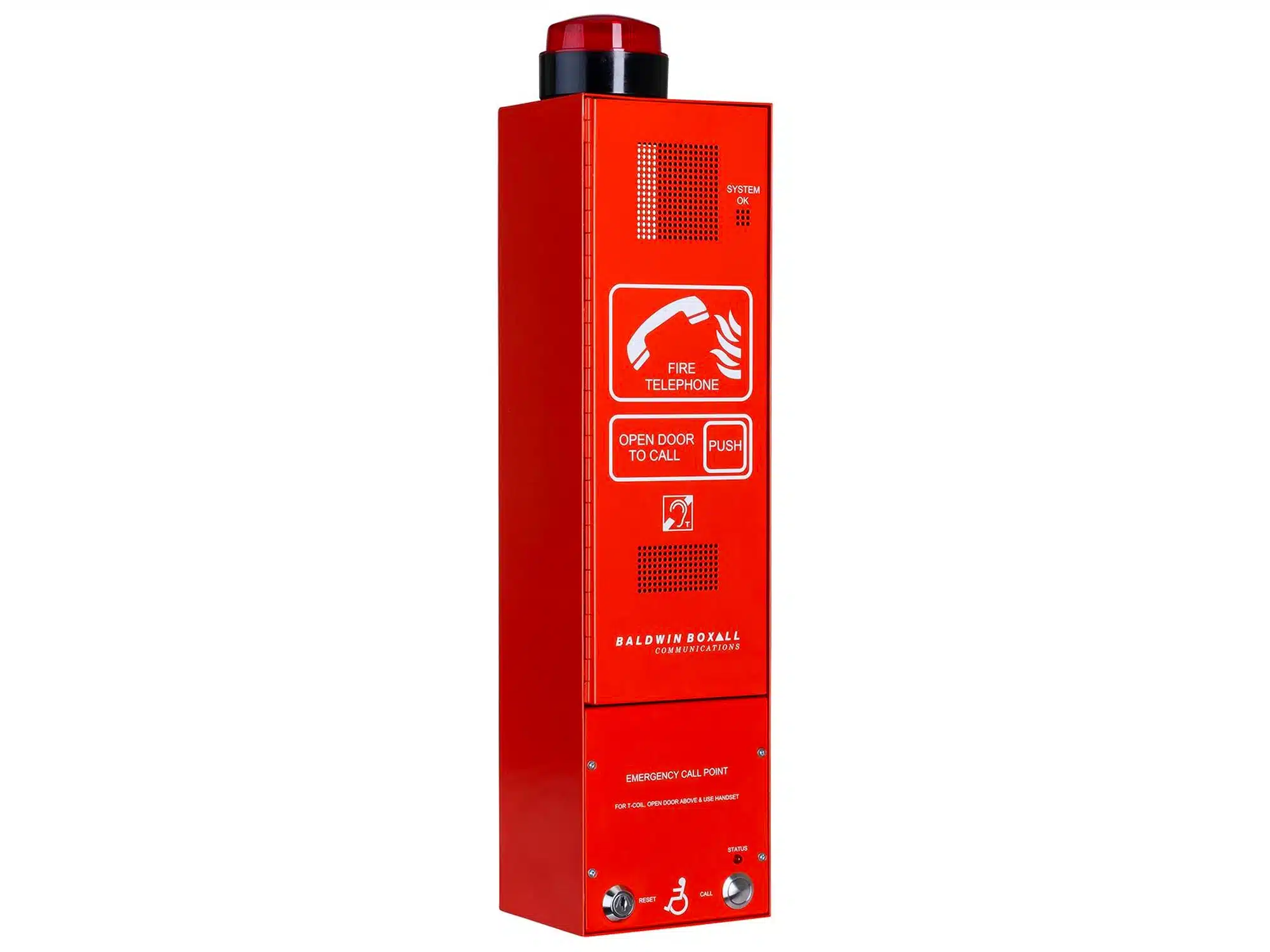

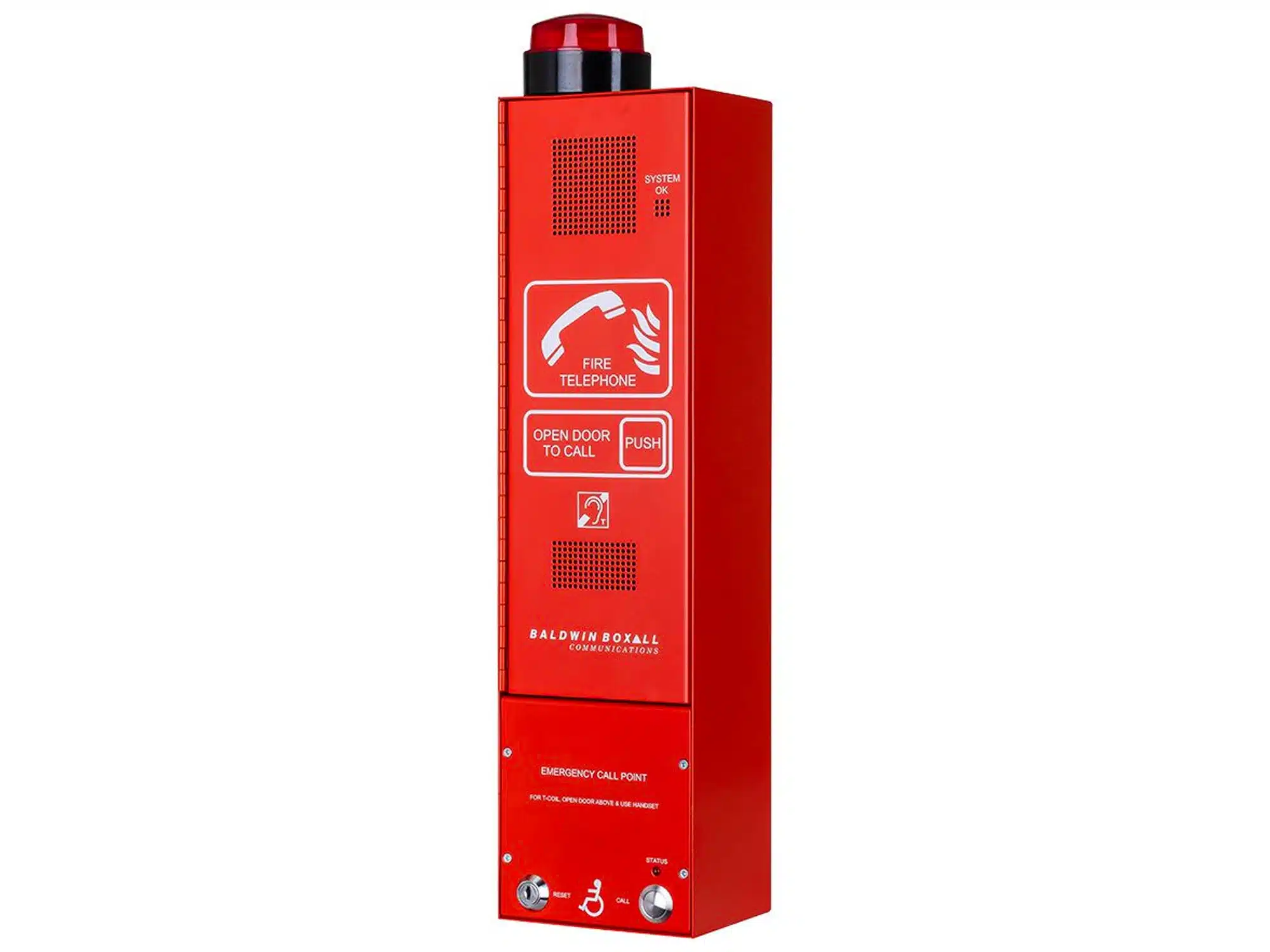

BVOCCB / BVOCCLB
Combined Outstation, single enclosure with
Fire Telephone & Disabled Refuge Unit, and
Beacon (supplied separately)
Push door / lock door
Red
130mm x 480mm x 100mm (exc. beacon)
4.5 kg / 4.5 kg
BVOCFBR / BVOCFBS
Bezel for flush mounting BVOCC##
Red / stainless steel
170mm x 520mm (c/o 138W x 488H)
Safe & Compliant
BS5839-9 is a code of practice for those who install, maintain and commission EVC systems, giving guidance on how to install an effective system as part of a fire detection and alarm system covering all components including wireless.
BS9999 is a BSI Standards Publication providing guidance for fire safety in the design, management and use of buildings. It includes the provision of evacuation methods and placement of EVC systems.
Key Benefits
- Fully B5839-9:2021 compliant
- Two Types of Outstation in a single enclosure
- Includes all features as separate Outstations
- Self-powered from ring circuit
- Hands-free (speech steered) or handset (full duplex) communication
- Battery backup powered by Control Panel
- Surface Mountable or Flush Mountable (Bezel required)
- Choice of finishes
- Any Outstation type wired on same loop
