Disabled Refuge Type B Outstations

Type B Outstations for the OmniCare EVC system are robust, easy-to-use and dependable

There are two kinds of Type B, Disabled Refuge Outstation in the OmniCare EVC system – Standard and Advance. Both types of unit are available with a green or stainless steel finish and are supplied as surface mounting, with the option to flush mount using a bezel (available separately).

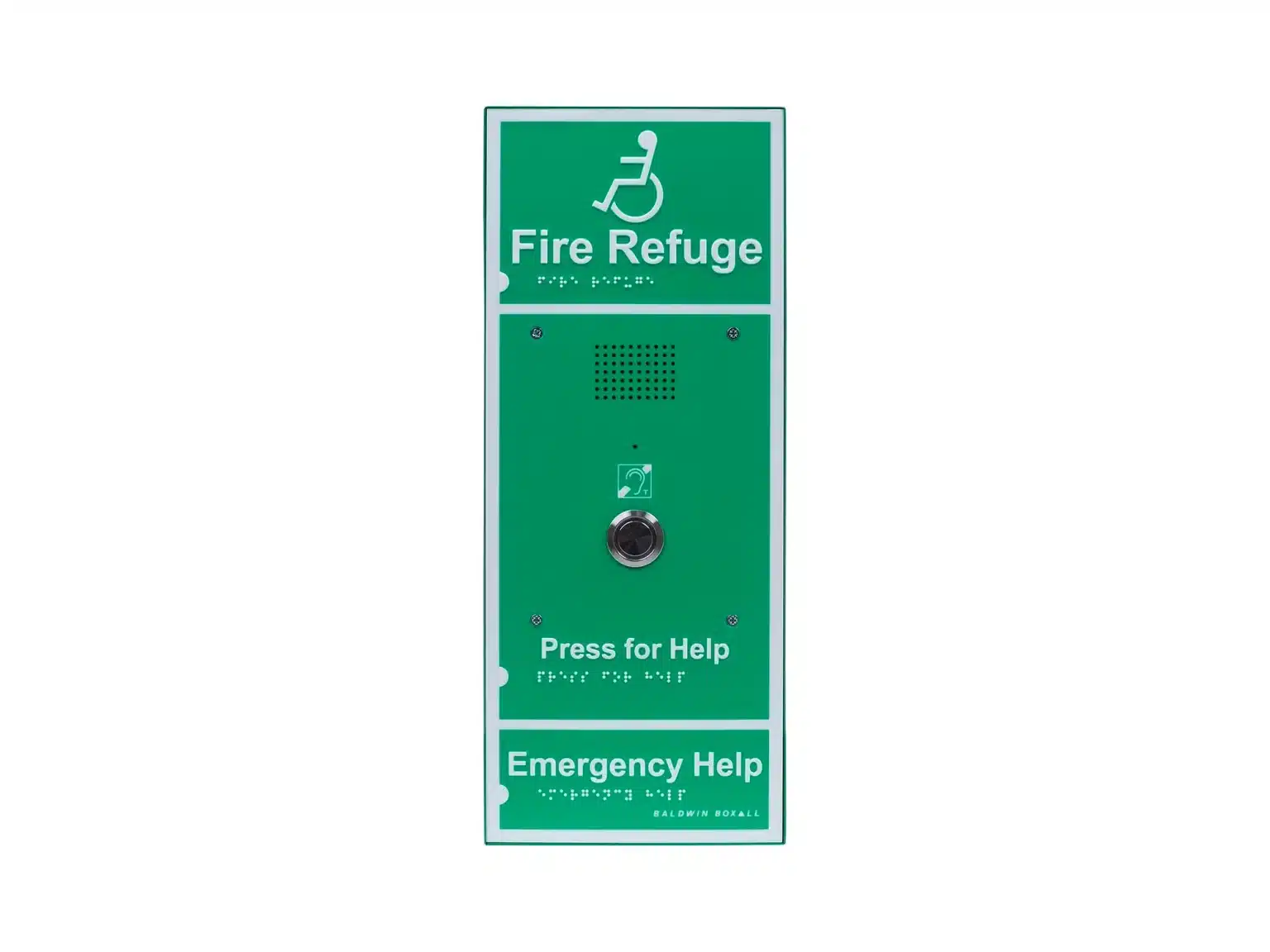

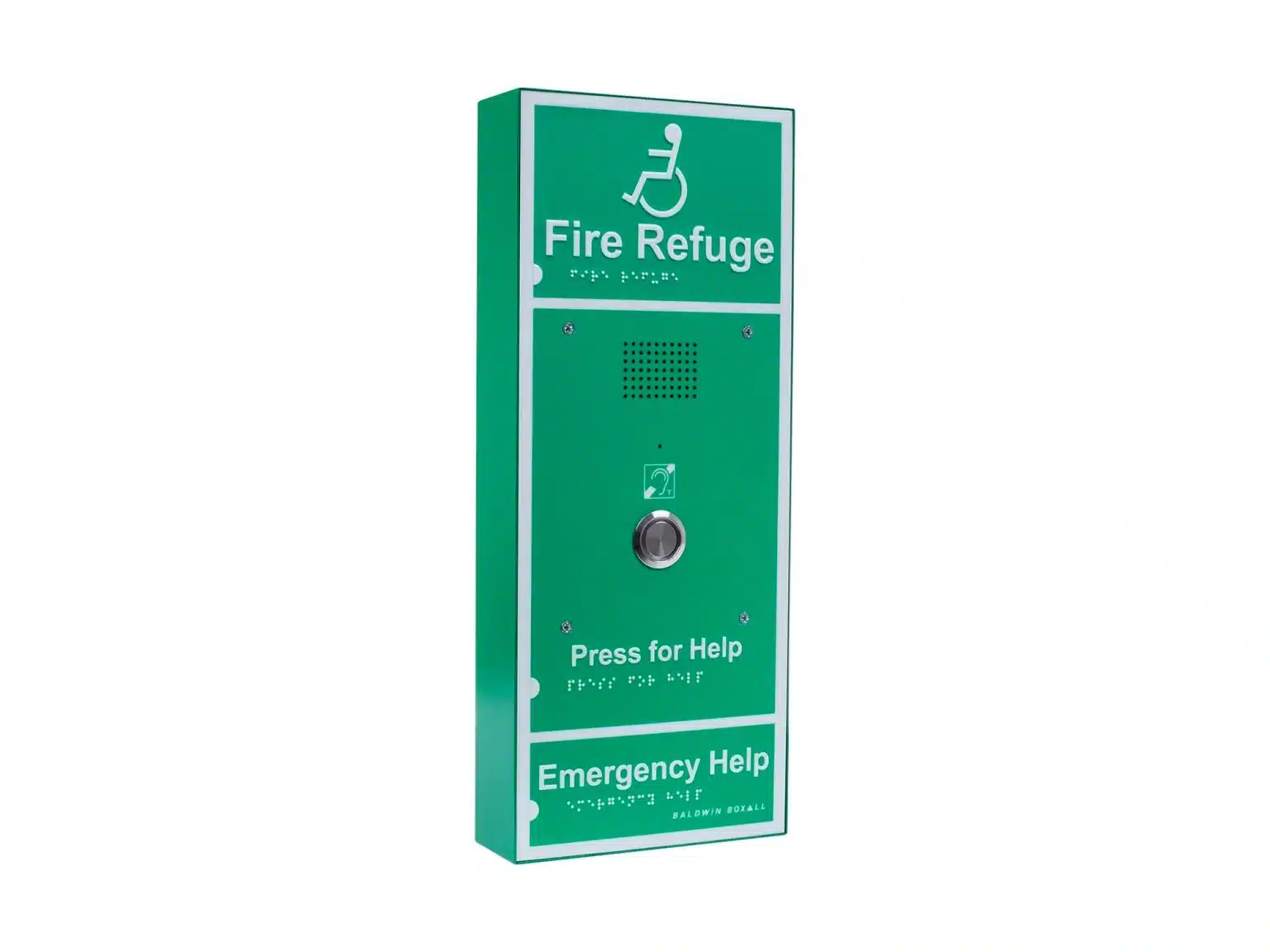

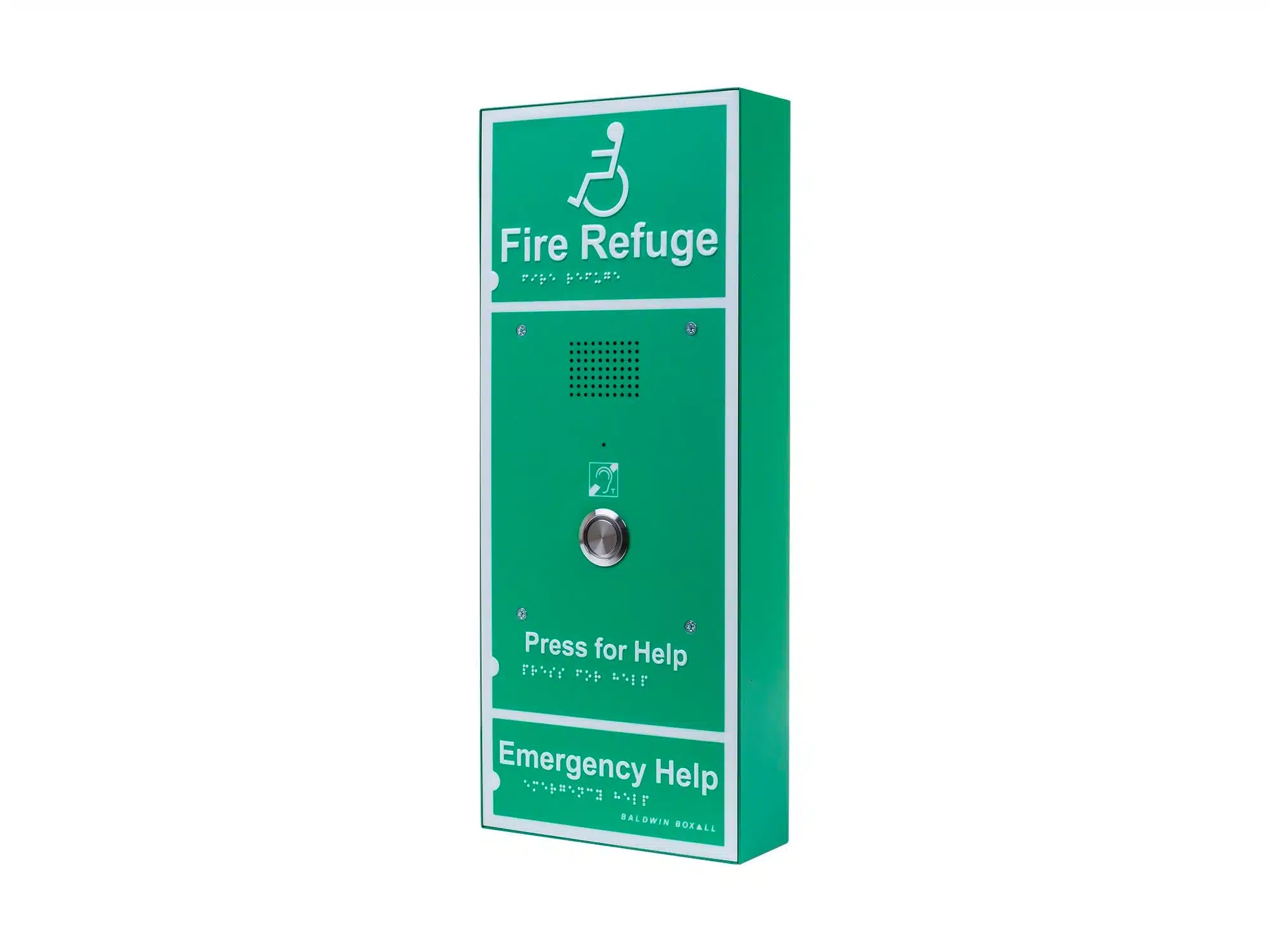

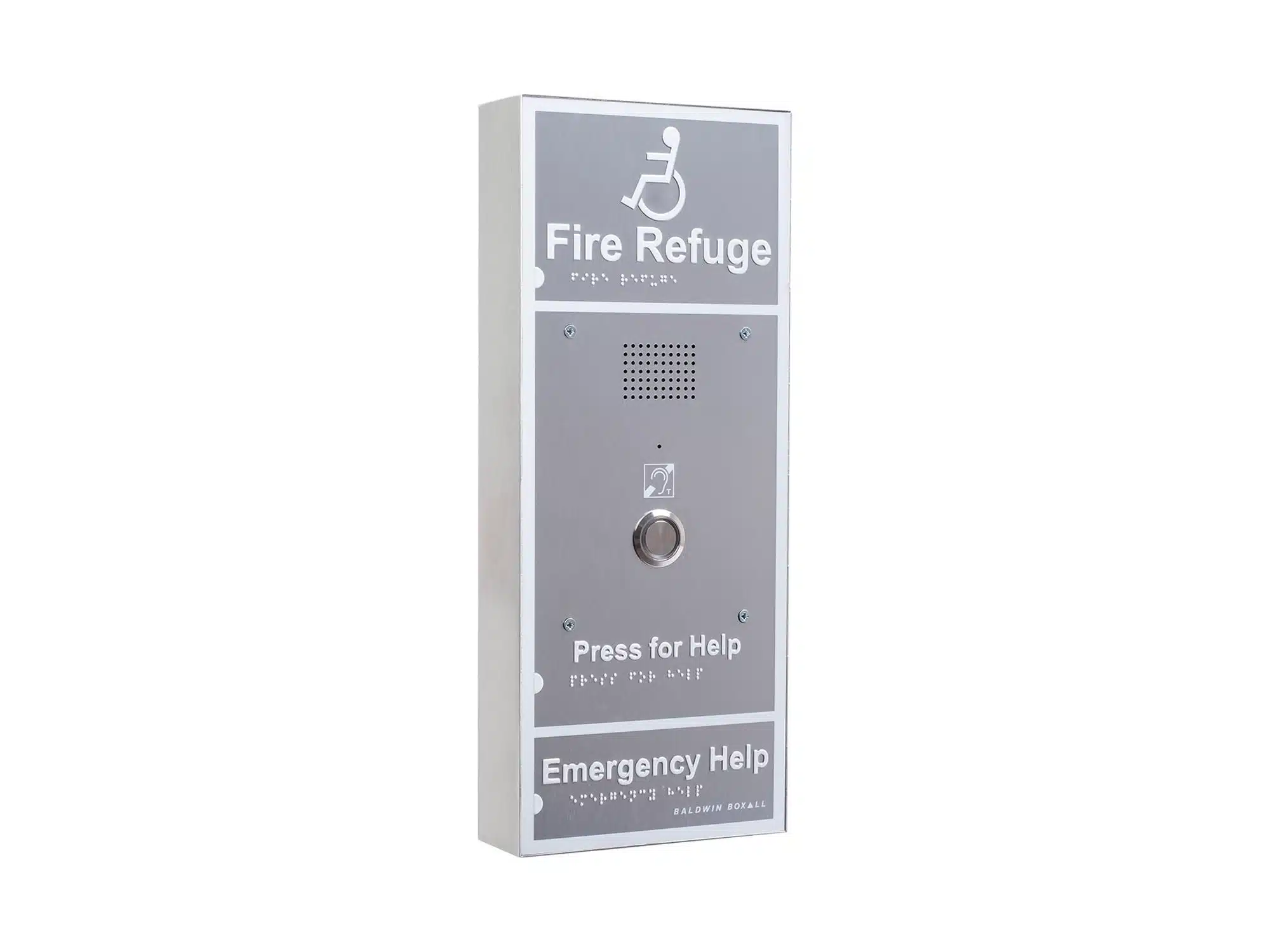

The Advance OmniCare Disabled Refuge outstation is bigger than the Standard unit and features Braille, luminescent text & surrounding border and a larger call button. An additional benefit of the Advance outstation is its integral hearing loop to assist with speech clarity for those with hearing aids.

The user simply presses the button to initiate the call (occupy area). Further communication is hands-free at the refuge point or by the user at the Control Panel. Two-way voice communication is available upon initiation of call until ‘reset’ when the area becomes ‘unoccupied’ and person(s) have been taken to a safe area or evacuated.

OmniCare Type B Disabled Refuge Outstation are complimentary units to the Type A, Type C Outstations and our Emergency Assistance Alarm Kit that can all form part of an OmniCare EVC system.


  • ‘Standard’ and ‘Advance’ refuge outstations are available for the OmniCare and OmniCarePLUS systems
  • The Advance refuge outstation features:
    • Braille – including Braille ‘indicator’
    • Luminescent text & surround
    • Large ‘call’ button
    • Integral hearing aid loop
  • Both types of refuge outstation are available with a Green or stainless steel finish as standard
  • All outstations are surface mountable, with the option to flush mount using a bezel, which is available separately
  • Hands-free, speech steered, operation for all refuge outstations
  • Each unit is powered and monitored directly from the loop
  • Refuge units can be included with other types of outstation on an OmniCare or OmniCarePLUS system
  • Additional backbox options for the Standard outstation are available:
    • Green, surface-mounting, weatherproof enclosure
    • Plasterboard backbox with either a green or stainless steel bezel
  • When the occupant of the refuge area has been safely evacuated, calls can be reset either at the control panel or locally:
    • The Standard outstation can be reset via the keyswitch on the front of the unit
    • The Advance unit can be reset by a long button press

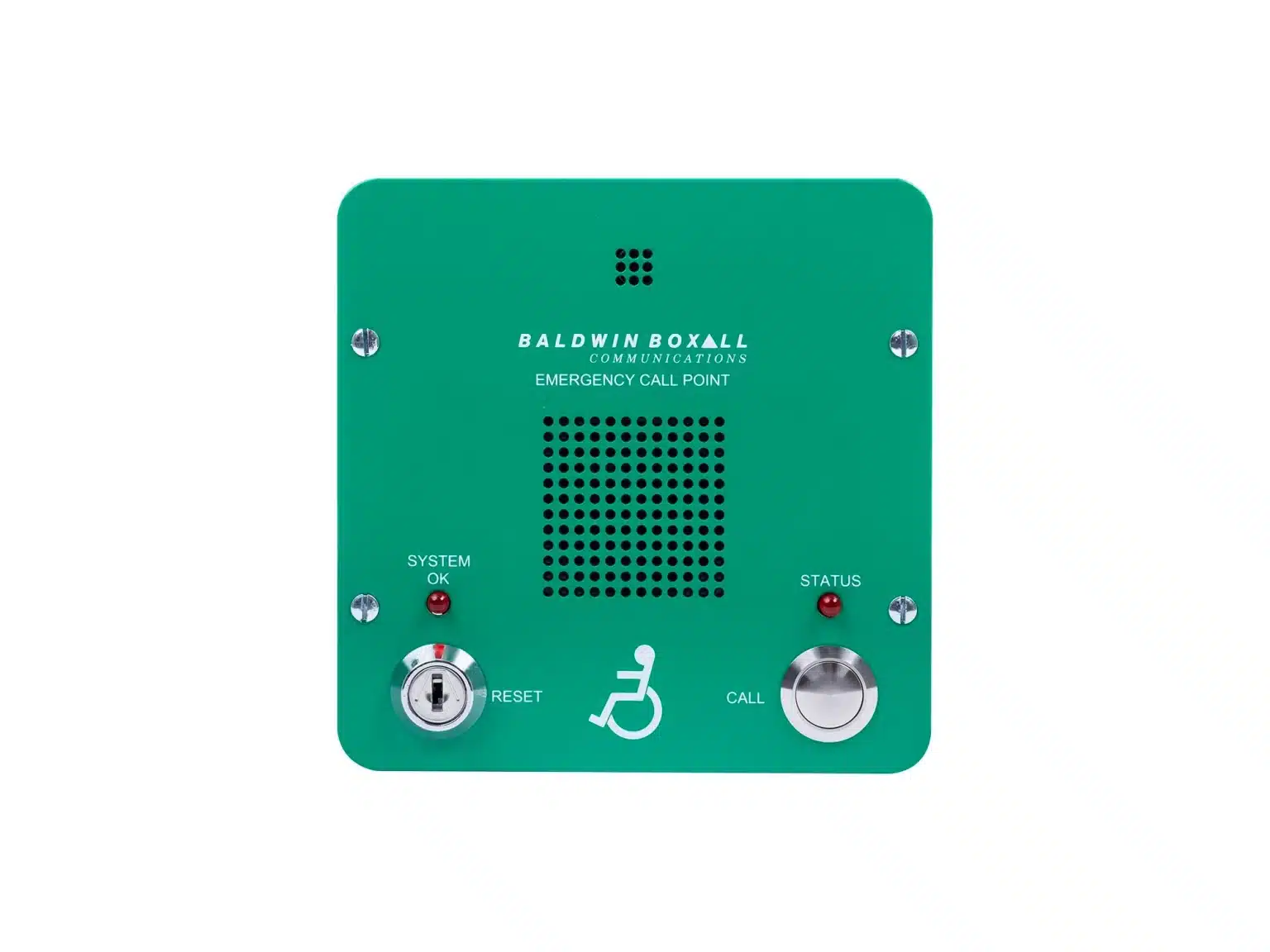

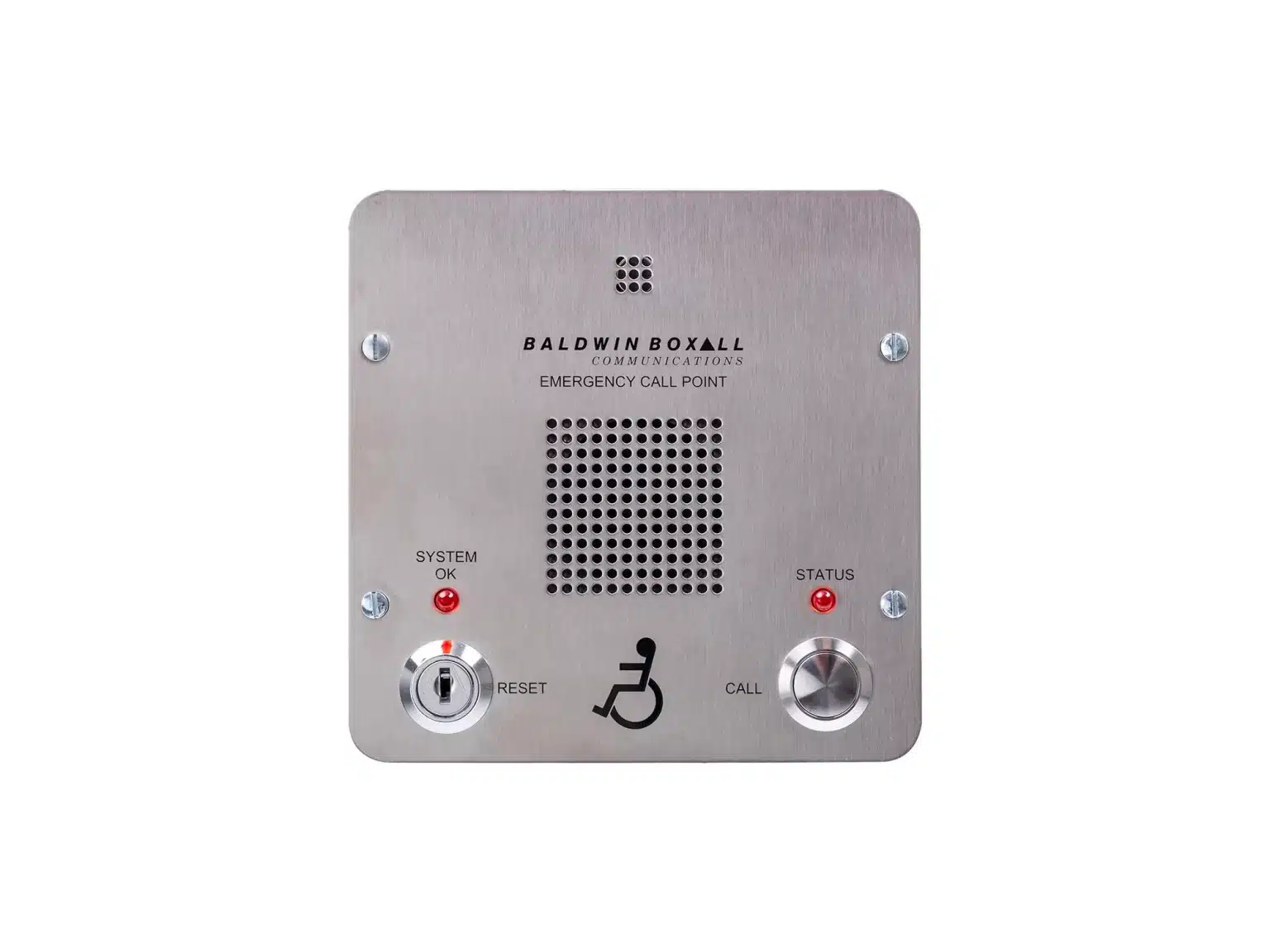

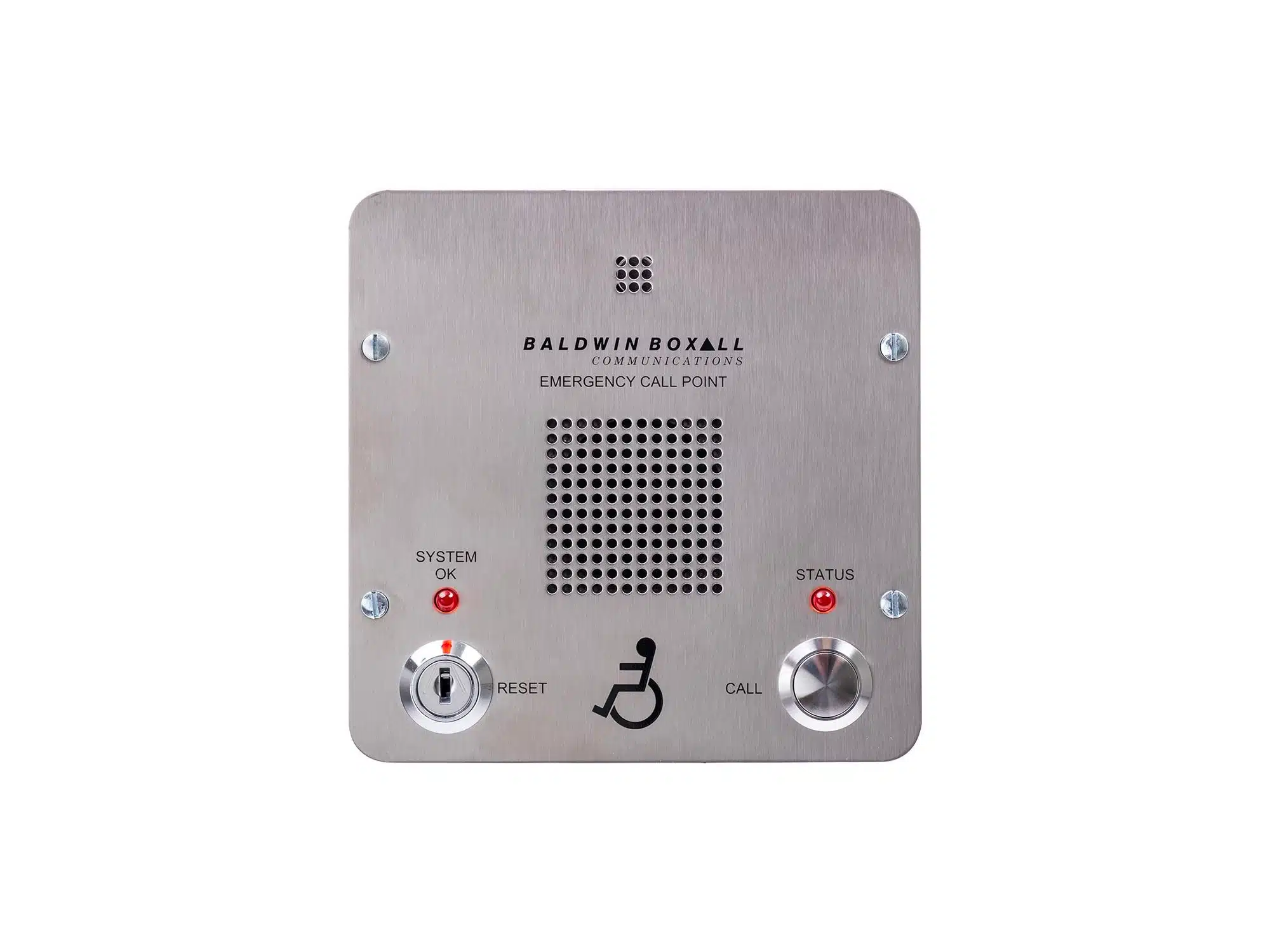

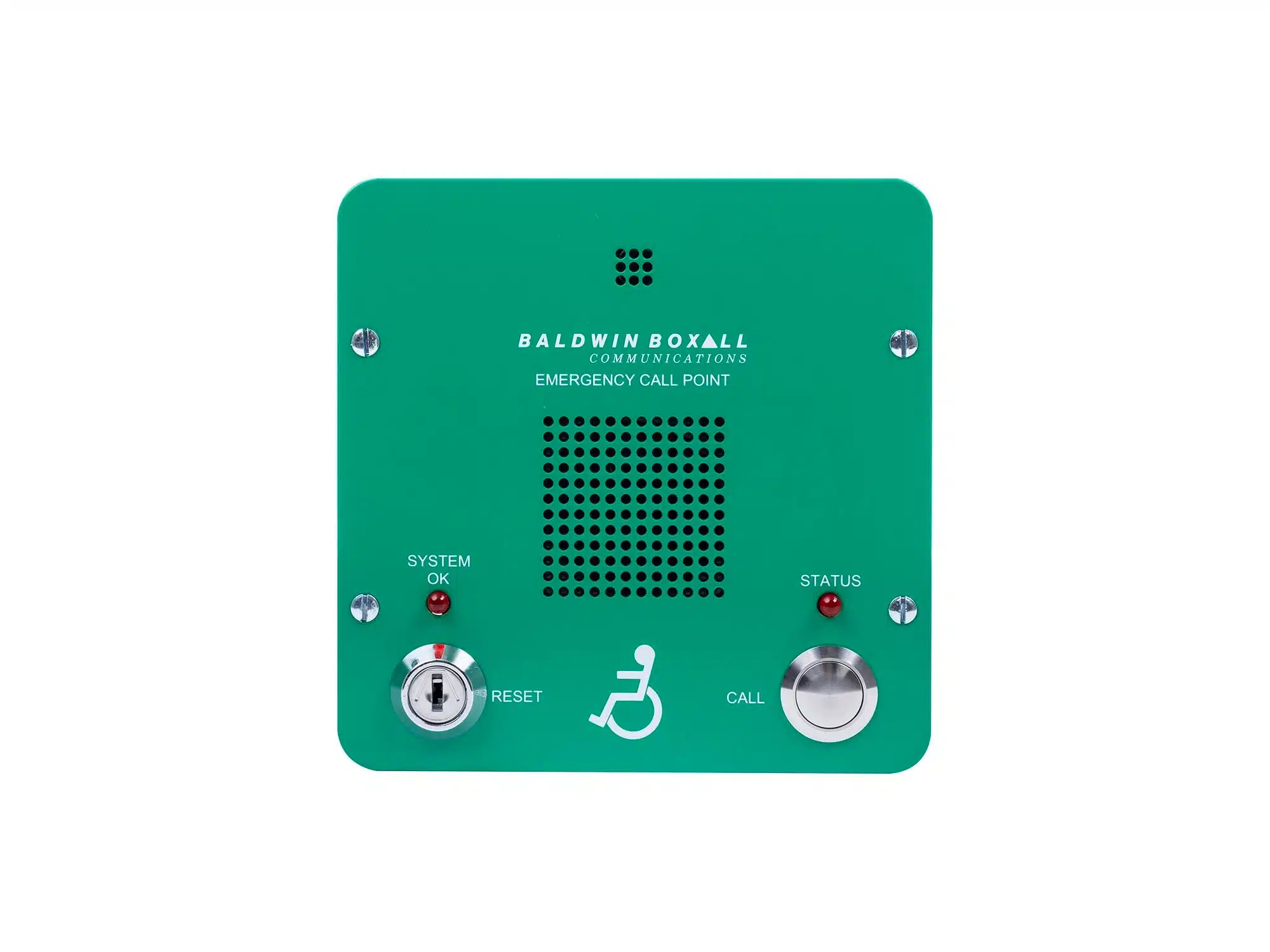

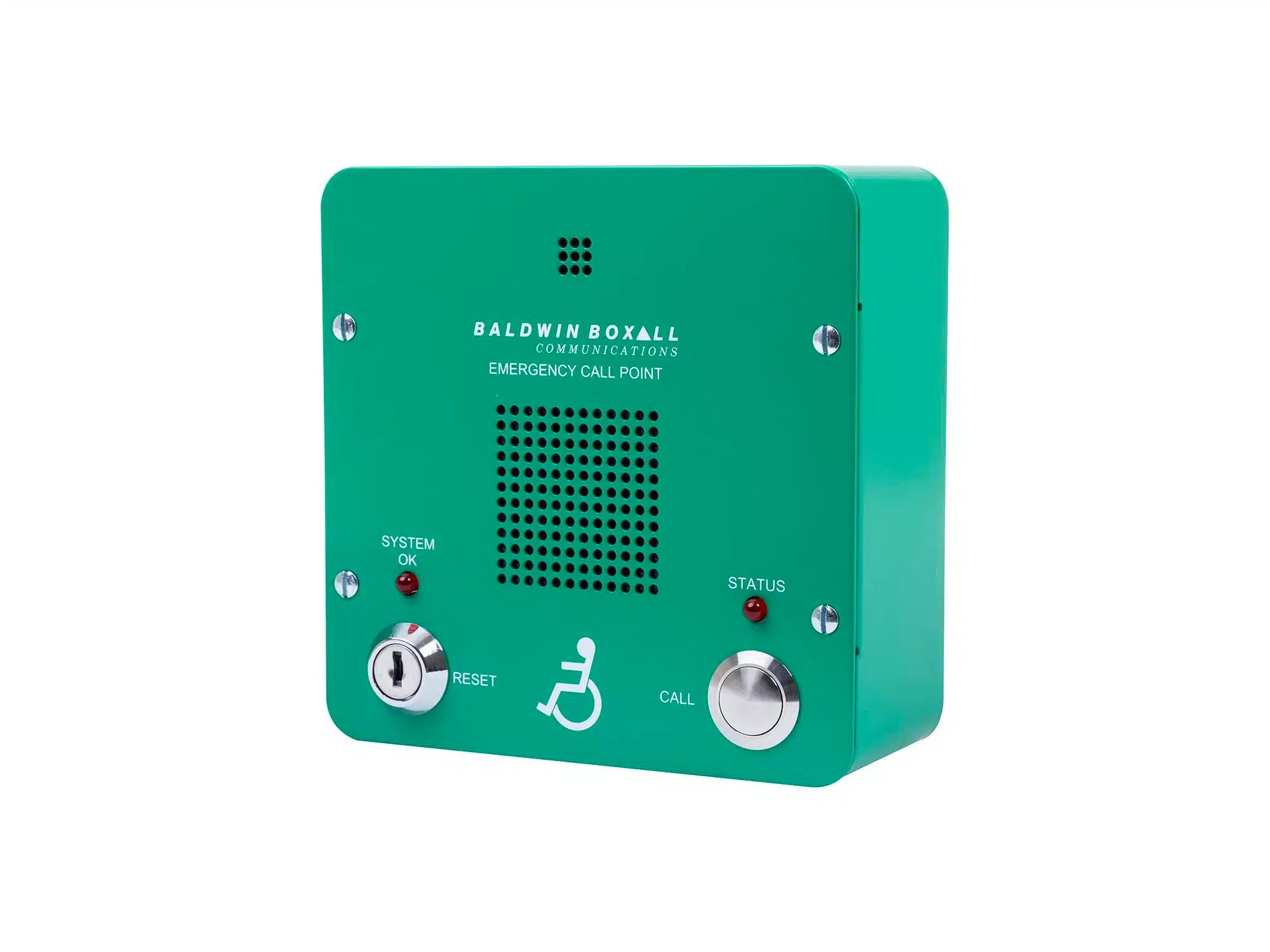

Disabled Refuge Outstation
Green / stainless steel
134mm x 134mm x 56mm
1 kg / 1 kg

Bezel for flush mounting BVOCECPG / BVOCECPS
Green / stainless steel
154mm x 154mm (c/o 136W x 136H)

Plasterboard Backbox for BVOCECPG / BVOCECPS
Green / stainless steel
131mm x 142mm x 65mm (c/o 132W x 143H)

IP65 rated enclosure for BVOCECPG
200mm x 200mm x 80mm
2.2 kg

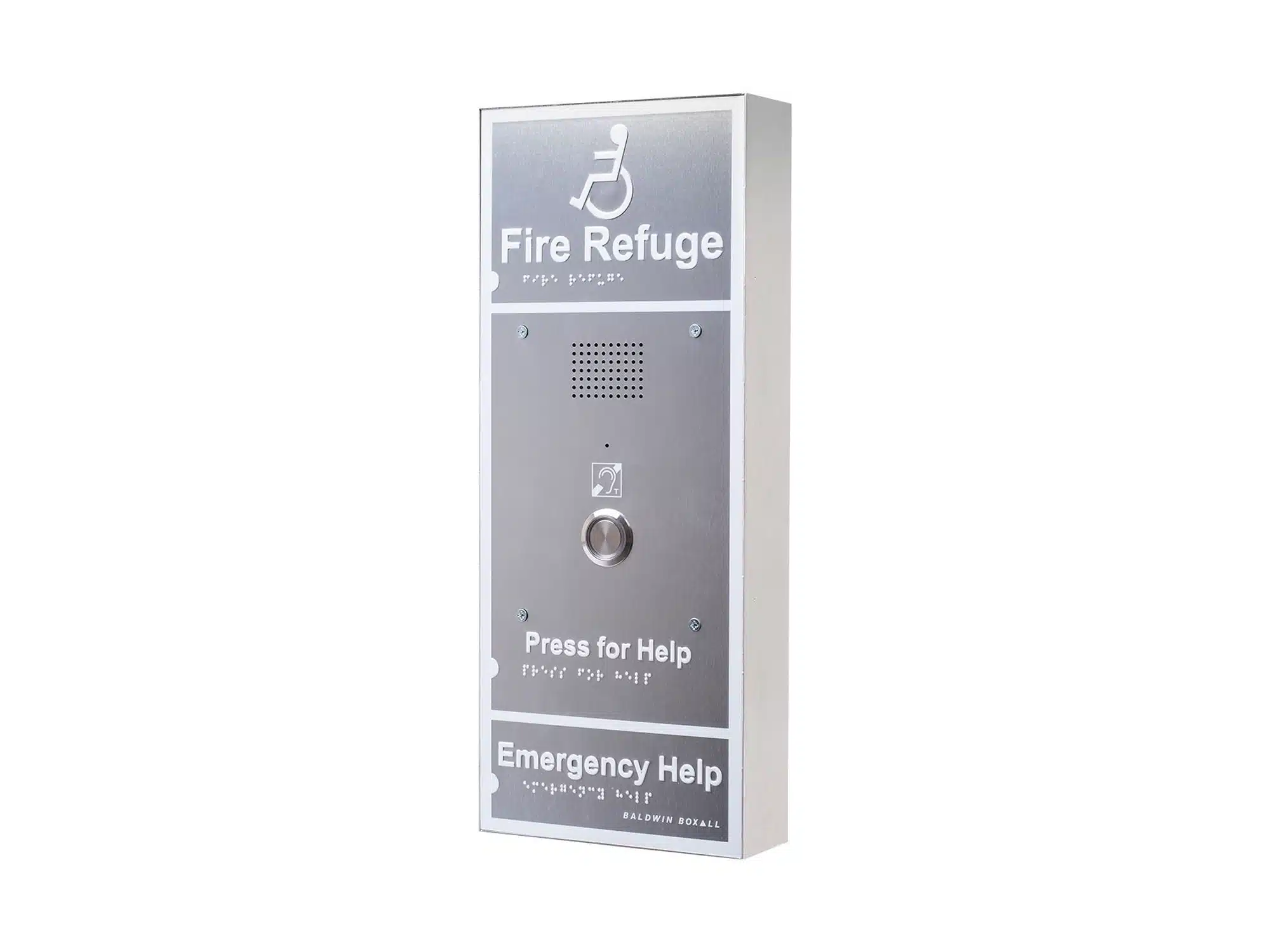

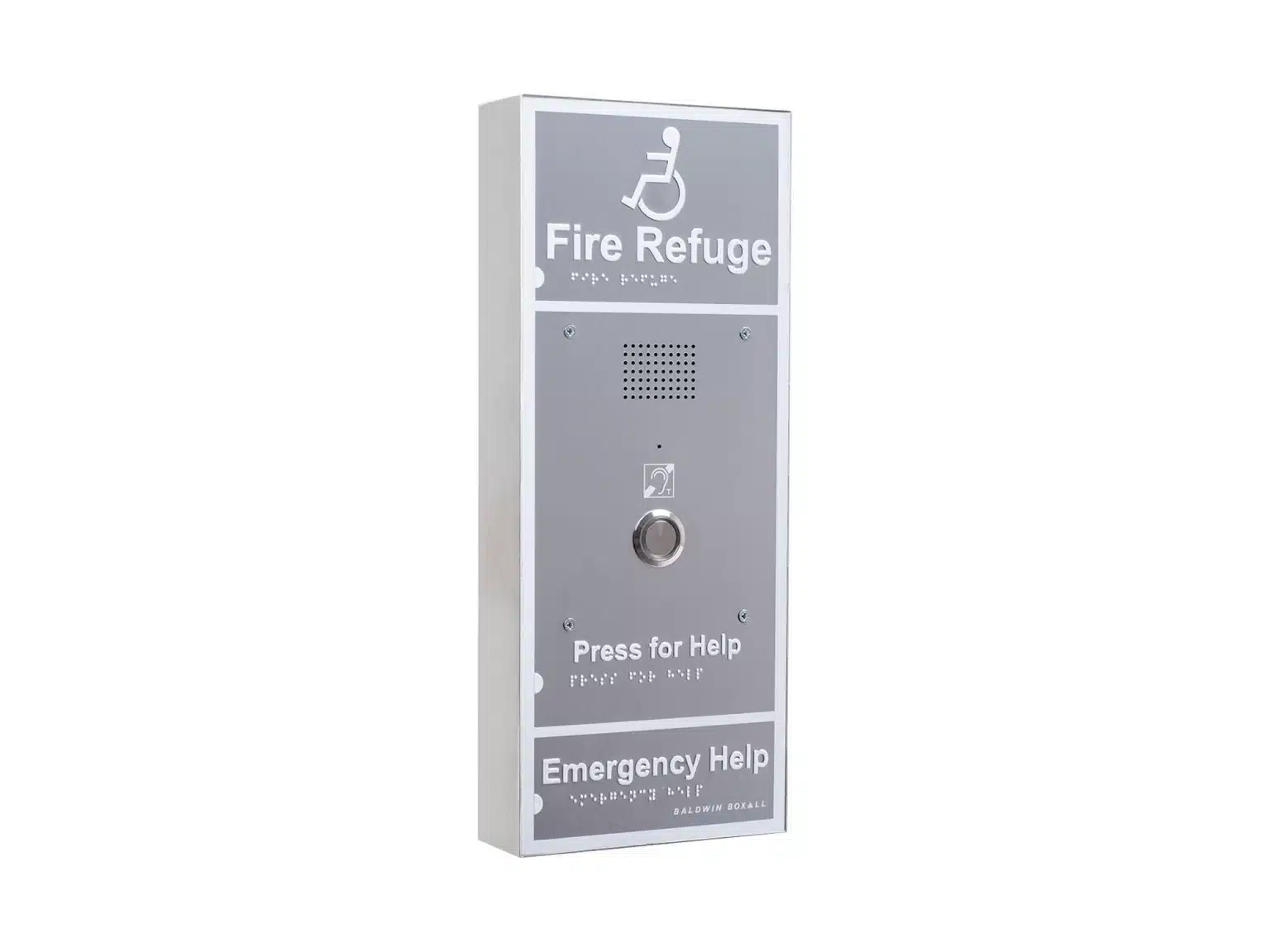

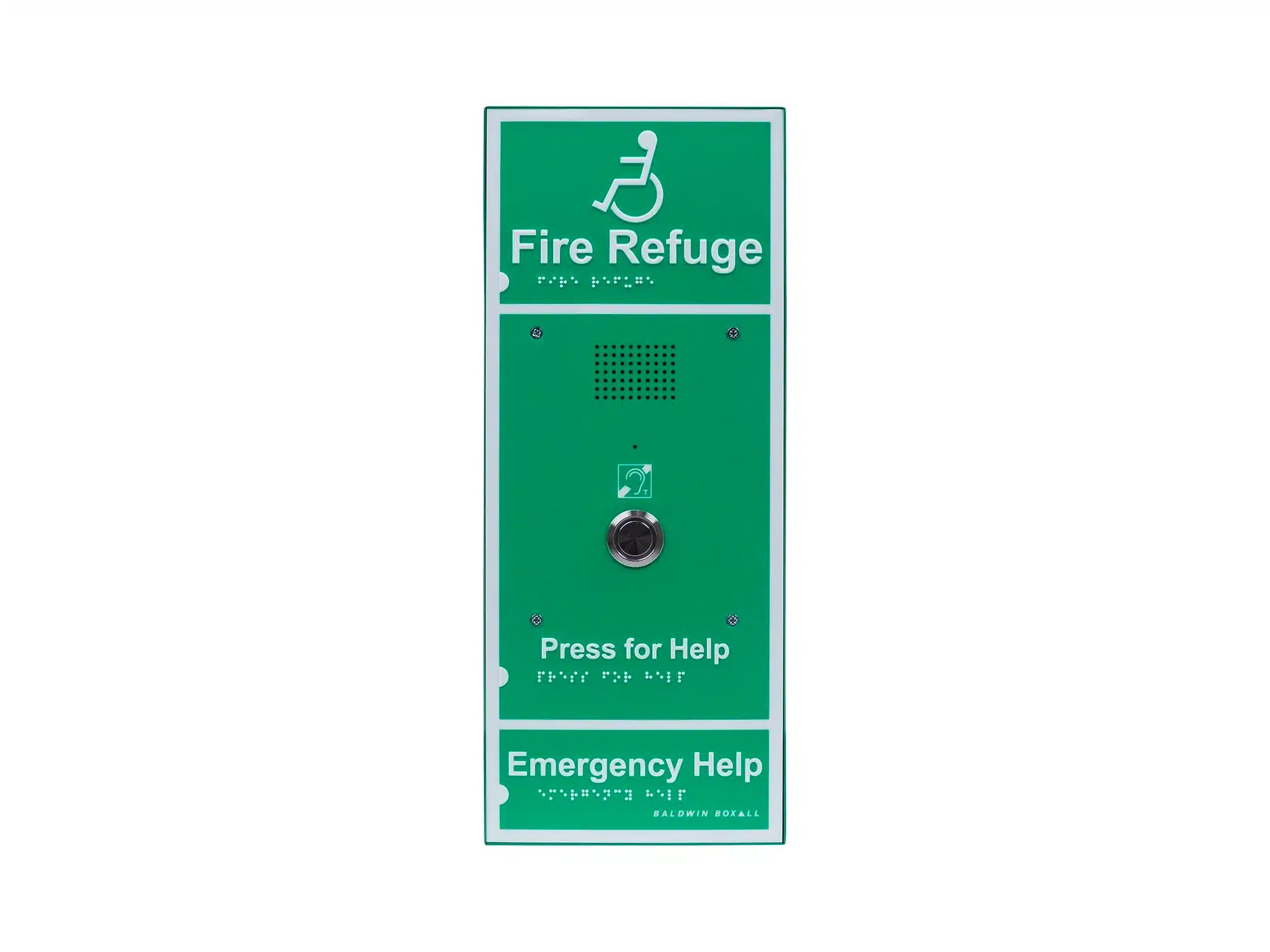

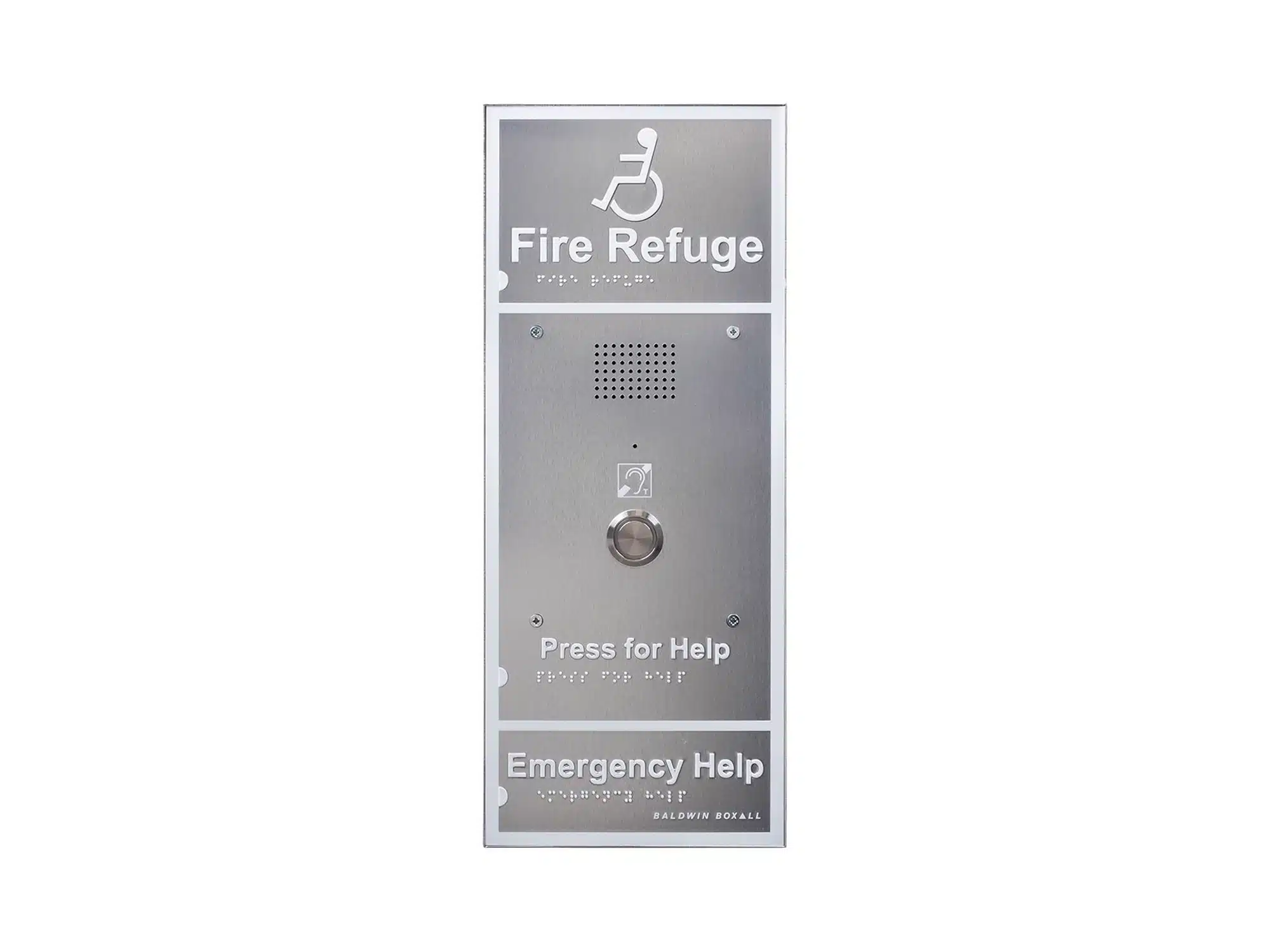

Advanced Disabled Refuge Outstation
Green / stainless steel
178mm x 440mm x 64mm
3.5 kg / 3.5 kg

Bezel for flush mounting BVOCA2G / BVOCA2S
Green / stainless steel
230mm x 490mm (c/o 190W x 450H)

Safe & Compliant

British Standards BS5839-9 Code of Practice

BS5839-9 is a code of practice for those who install, maintain and commission EVC systems, giving guidance on how to install an effective system as part of a fire detection and alarm system covering all components including wireless.

British Standards BS9999 Code of Practice

BS9999 is a BSI Standards Publication providing guidance for fire safety in the design, management and use of buildings. It includes the provision of evacuation methods and placement of EVC systems.

Key Benefits

*Standard Outstation only
**Advance Outstation only
