OmniCare EVC Cabling & Networking

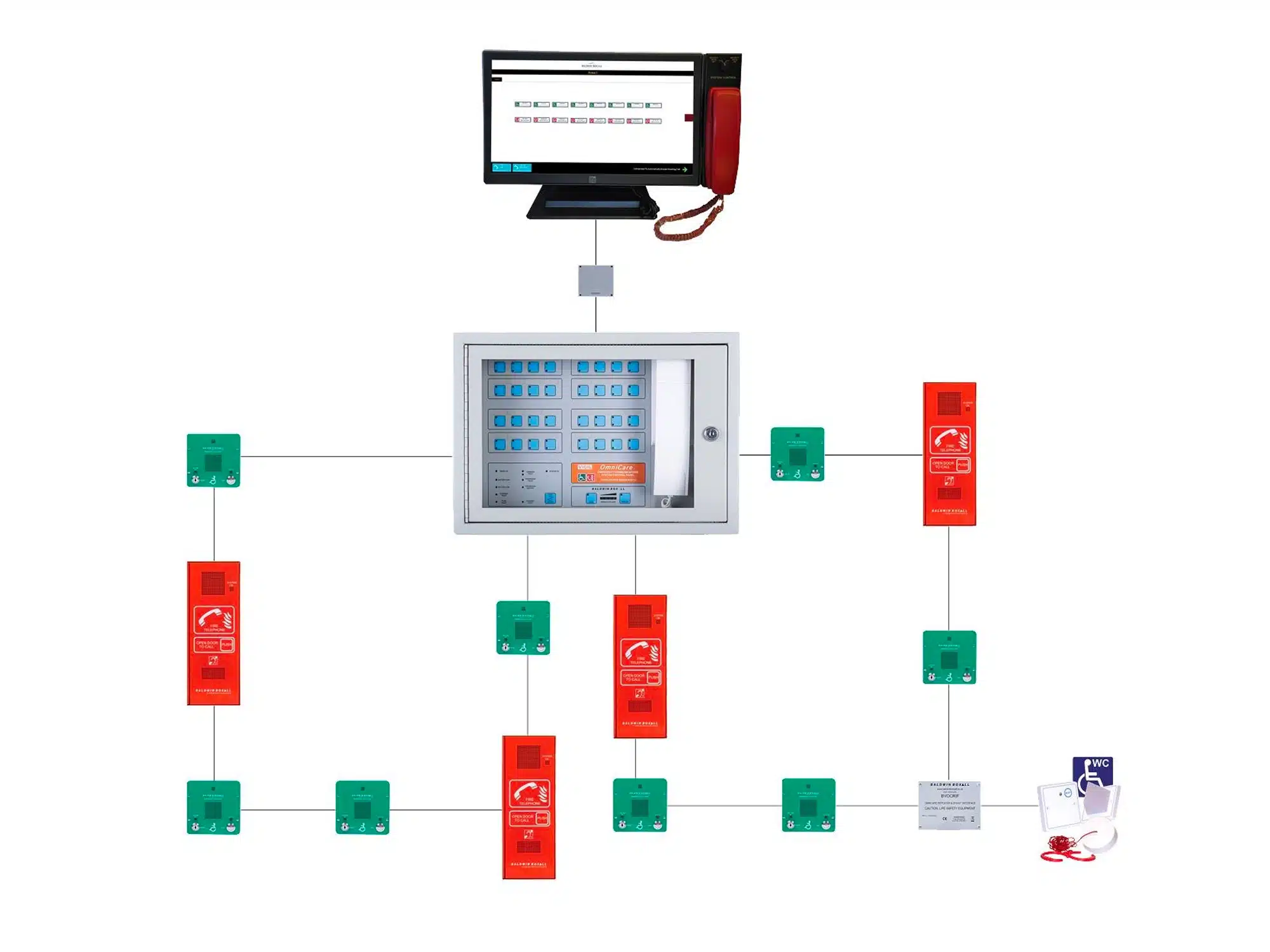

OmniCare EVC system allows you to connect any combination of outstations to one system on a single 4-core loop.

There are two main components to OmniCare EVC:

  • Control Panel
  • Remote units

Remote units include Disabled Refuge, Fire Telephones, Steward Telephones, Roaming Telephones and Emergency Assistance/Toilet Alarms.

All outstations, except Emergency Assistance Alarms, are wired in a ring circuit (4-core loop) configuration and are Self-Learning, with an auto-commissioning feature. Toilet/Emergency Assistance alarms are connected via a Repeater unit placed on the loop.

Any combination of outstations can be connected on the wiring loop and are powered from the line, including the Repeater and Emergency Assistance Alarms.

OmniCare can be easily networked with multiple control panels on a system, enabling local zone/area ‘gatehouse’ control with full system ‘management’ control on a master panel.

Up to 200m cable can run between the outstations and master Control Panel. Should a longer distance be required the inclusion of Repeater units (BVOCRIF) can be employed.

OmniCare EVC system is an alternative to our popular (radial-wired) CARE2 EVC system.



  • Fire-rated enhanced four-core cable with a screen must be used in a system used for fire fighting (refer to BS5839-9).
  • Multiple Control Panels can be linked on a single system (configured as a Master and Slave units).
  • Up to 200m cable run between each remote unit and the Control Panel.
  • A repeater unit (BVOCRIF) must be used if distance between remotes exceeds 200m.
  • Up to 200m cable run between each Repeater unit.
  • A ring circuit configuration must be used to wire the remote units. Typically 20-30 remotes per loop.
  • Any OmniCare outstation, in any combination, can be connected to a single panel or networked system.
  • Repeater units (BVOCRIF) are used to connect the toilet alarms to the system.
  • Battery backed for use in the event of mains power failure (24 hours in standby plus three hours use, as standard. These times can be increased if required). (A separate box to house batteries is supplied with panels larger than 32-way).
Disabled Refuge Break Glass Unit Option:
  • Disabled Refuge units have the option to be triggered by the fire alarm panel, so that the units become active during an emergency. (Fire telephones, emergency telephones and emergency assistance alarms are constantly active). This prevents accidental or deliberate misuse as the remote units remain dormant until activated.
  • In order to activate the system for non-emergency use (i.e. for weekly testing and routine maintenance) it is necessary to override the fire panel. This is achieved by connecting a ‘break glass’ unit (BVCRBG) to the master control panel.
