CARE2 Network Expansion Panel
CARE2 Network Expansion Panel enables large networked CARE2 EVC systems
The Baldwin Boxall CARE2 Network Expansion Panel (NEP) adds to the flexibility of the CARE2 EVC system.
Whether you require one outstation or as many as 256 outstations, CARE2 provides the flexibility to meet your needs.
Each 4-way panel can be expanded to 8, 12 or 16-way by means of an optional expansion kit (not factory fitted).
Up to 15 Network Expansion Panels can be fitted on a single system to extend the size of the coverage for larger systems.
CARE2 EVC system is an alternative to our popular (loop-wired) OmniCare EVC system.
Features

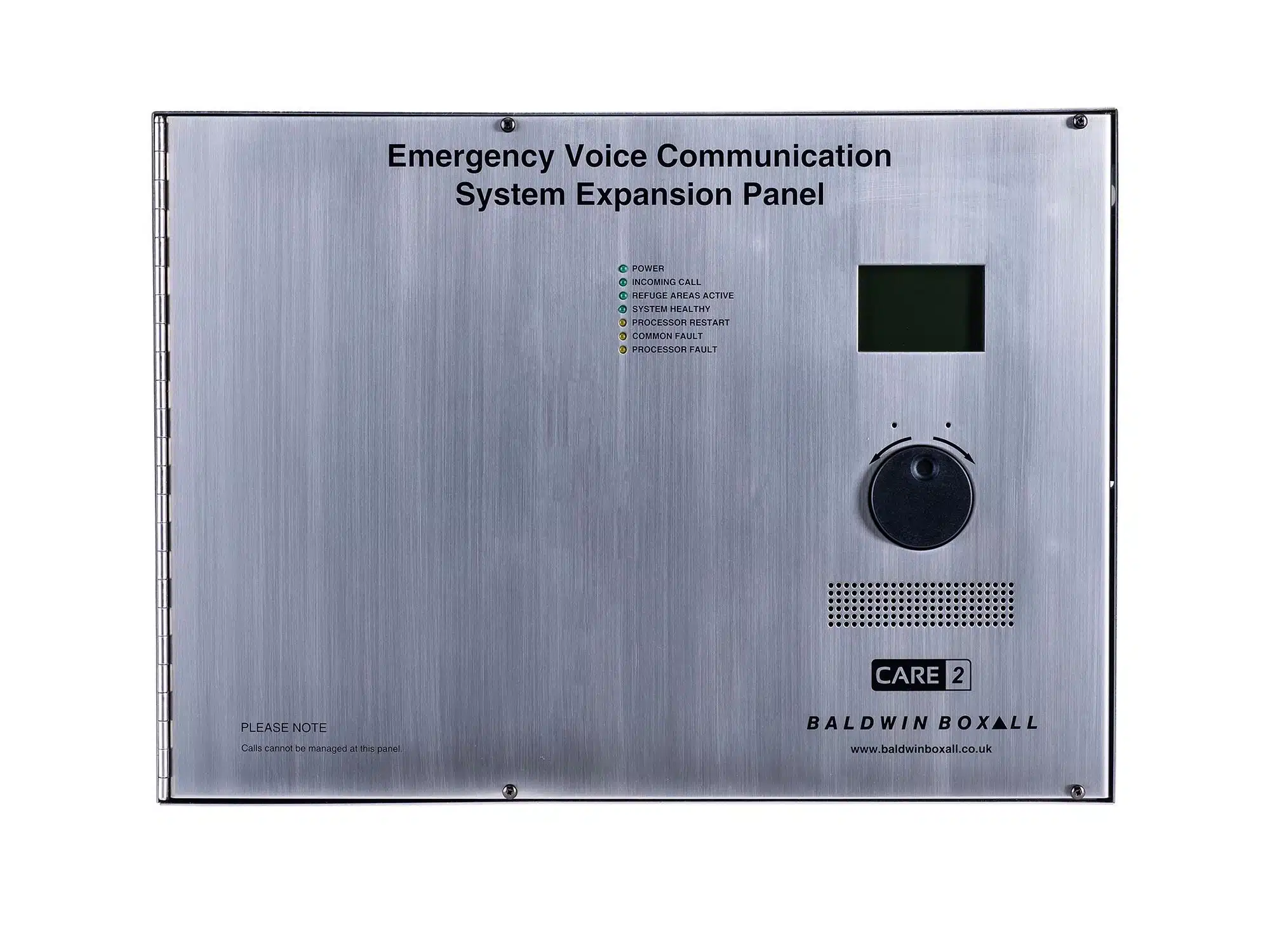

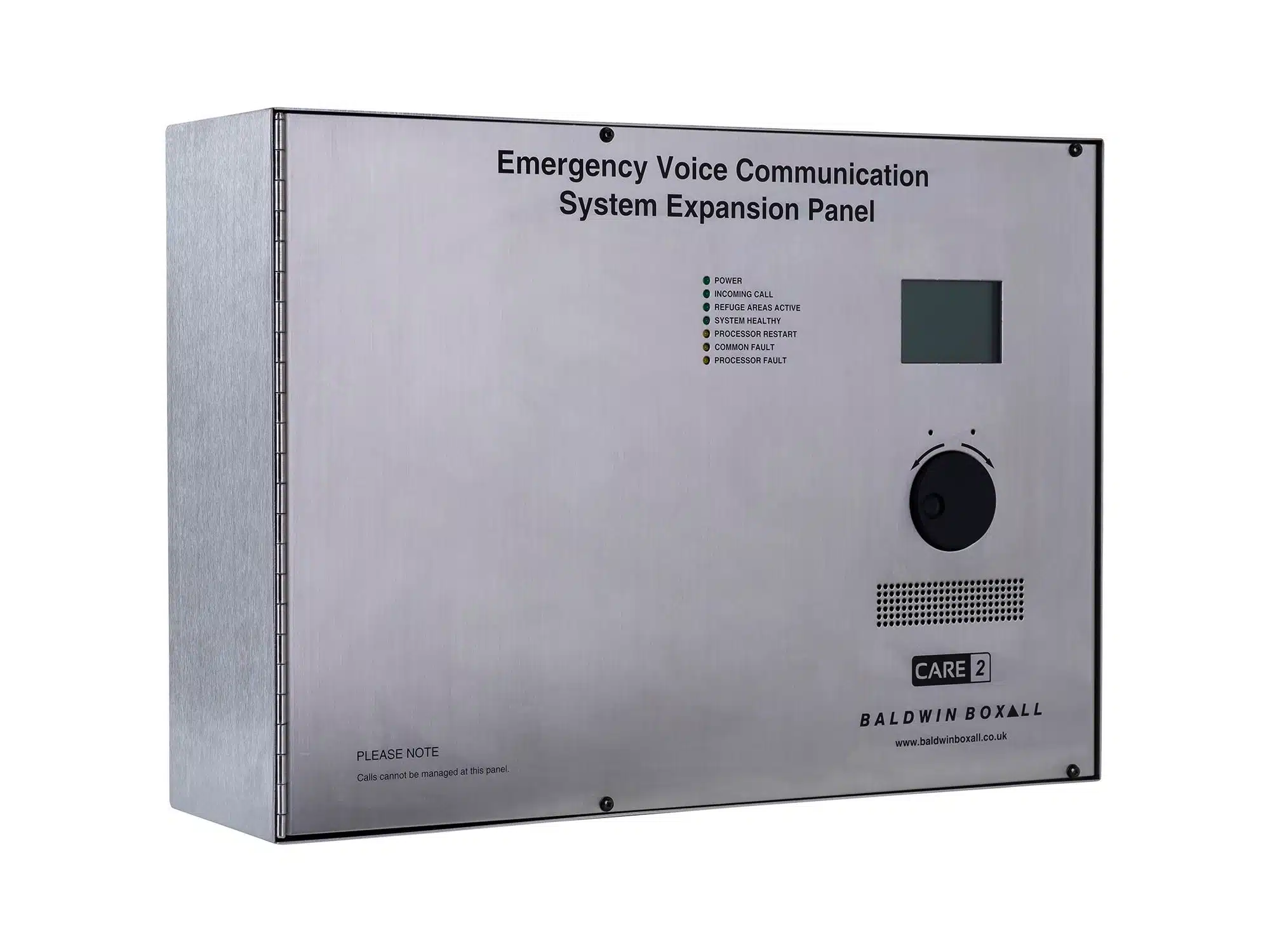

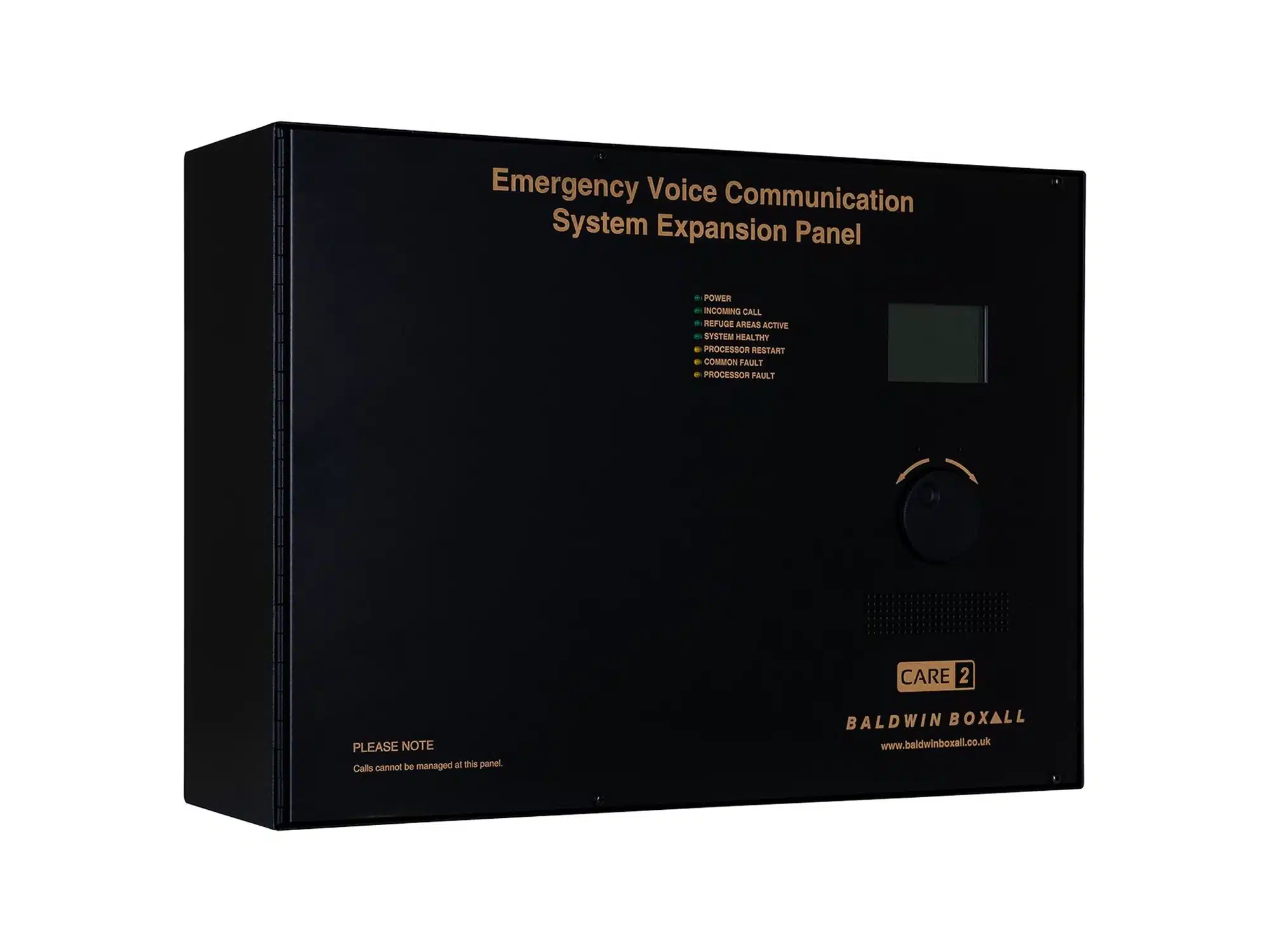

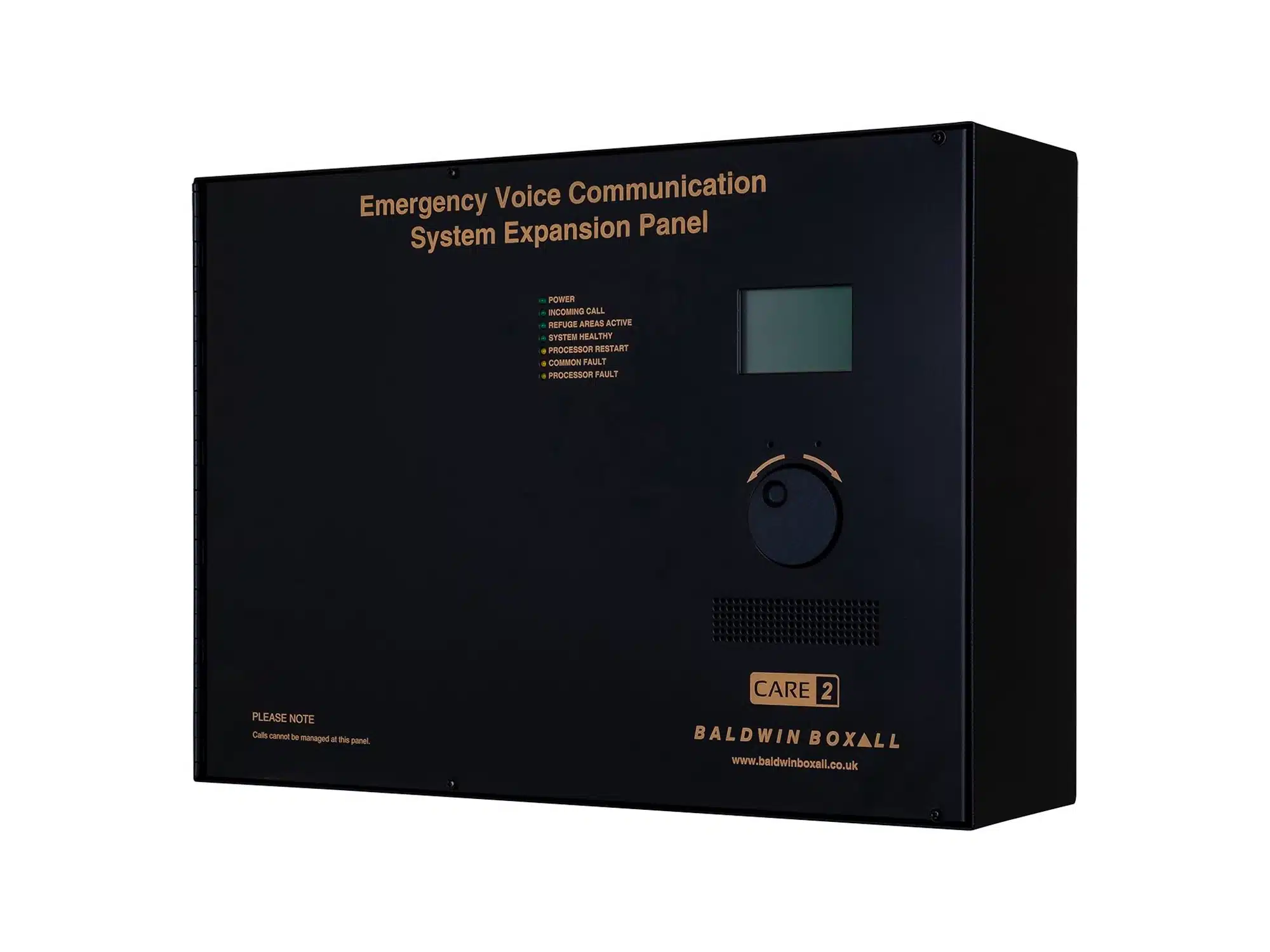

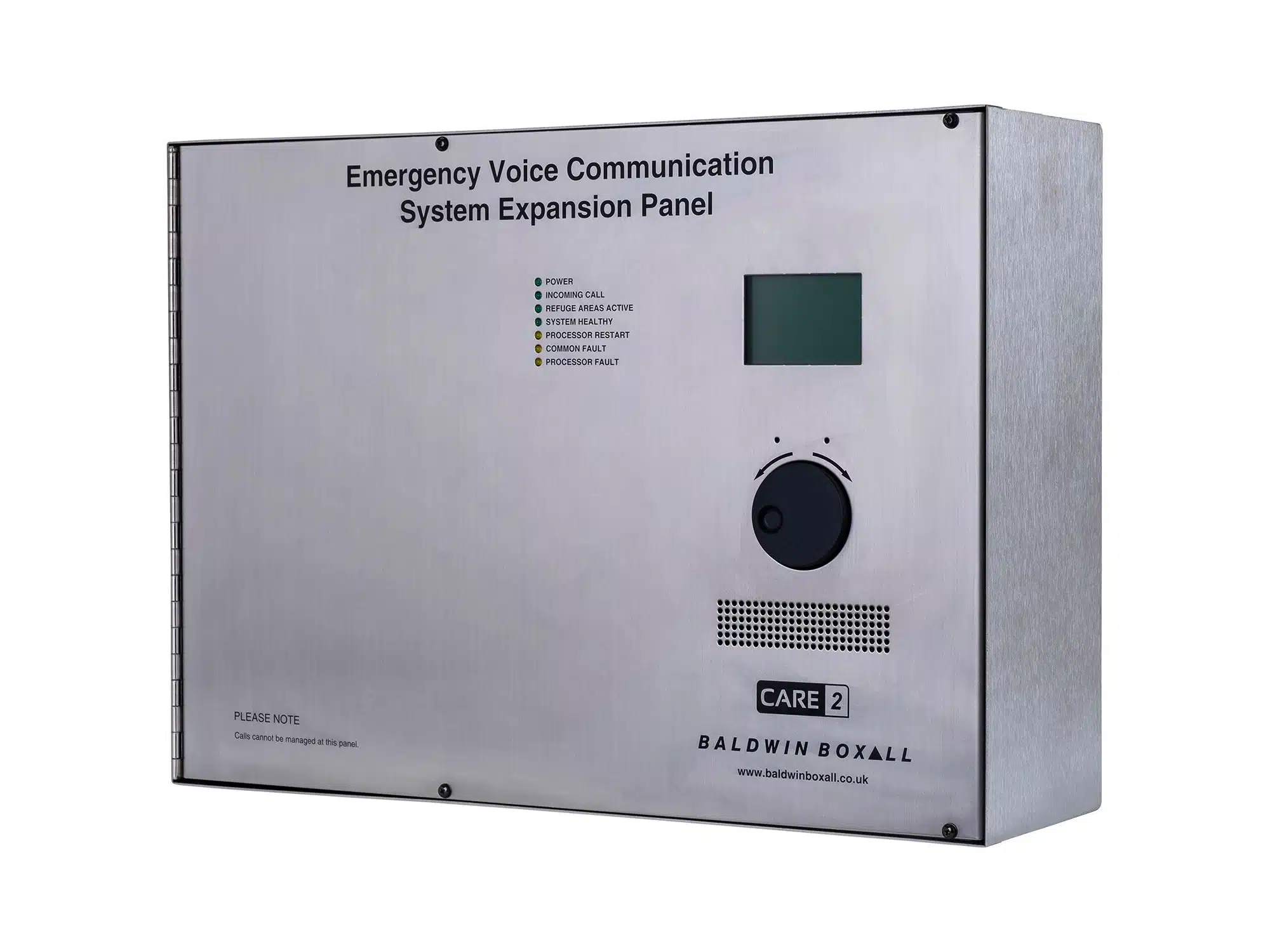

- Black or Stainless Steel finish
- Unique design, easy to operate
- Clear LCD screen with rotary encoder/control
- Up to 15 NEPs can be fitted on one system (14 if installing two Control Panels)
- Each NEP is supplied with a 4-way line card
- Add up to 3 expansion kits to enable 8, 12 or 16-way
- Expand the system with up to 256 outstations possible (please contact our sales department for guidance with large systems)
- For initial system set-up and local testing prior to connection to the network, a roaming telephone can be temporarily connected to an internal socket
- At each NEP, the status of local outstations can be viewed by using the rotary encoder and LCD screen
- Surface mount or optional flush mount bezel available
C2CBNEP / C2CSNEP
4-way Network Expansion Panel
Black / stainless steel
Wall mount or flush mountable with bezel
430mm x 310mm x 130mm
C2CBZ / C2CSZ
Bezel for flush mounting C2C#4 / C2C#NEP / C2RTE#
Black / stainless steelÂ
470mm x 350mm with 10mm radius (c/o 440W x 320H)
1 kg
C2CEK4
4-way expansion kit
Key Benefits
- Fully Compliant to BS5839-9
- Clear LCD Screen with rotary encoder/control
- Easy to operate
- Black or Stainless Steel finish
- Surface Mountable or Flush Mountable (Bezel required)
- Add up to 15 NEPs on a single system
- Supplied with a 4-way line card
- Up to 256 outstations
Safe & Compliant
BS5839-9 is a code of practice for those who install, maintain and commission EVC systems, giving guidance on how to install an effective system as part of a fire detection and alarm system covering all components including wireless.
BS9999 is a BSI Standards Publication providing guidance for fire safety in the design, management and use of buildings. It includes the provision of evacuation methods and placement of EVC systems.
