VIGIL3 Critical Line Monitoring

Critical signal paths of Voice Alarm systems must be fully monitored with faults detected, reported and quickly acted upon.

All critical signal paths of a Voice Alarm/VACIE system must be fully monitored and any detected faults reported clearly and at relevant points on the system.

Automatic monitoring is carried out, unobtrusively, from the Fire Officer’s microphone, through the amplifiers, to the end of the loudspeaker lines. Power supplies, internal battery charger and backup batteries are also included in the monitoring processes.

It is vital that any faults detected with a Voice Alarm system are reported and acted upon.



Our VIGIL3 voice alarm system – including our range of monitoring products – are fully tested and certified to BS EN 54. Voice Alarm monitoring products are included in this testing process which is carried out by a recognised, third party testing house.

BEL1
End of Line monitor
Installed on each loudspeaker circuit
140mm x 80mm x 40mm

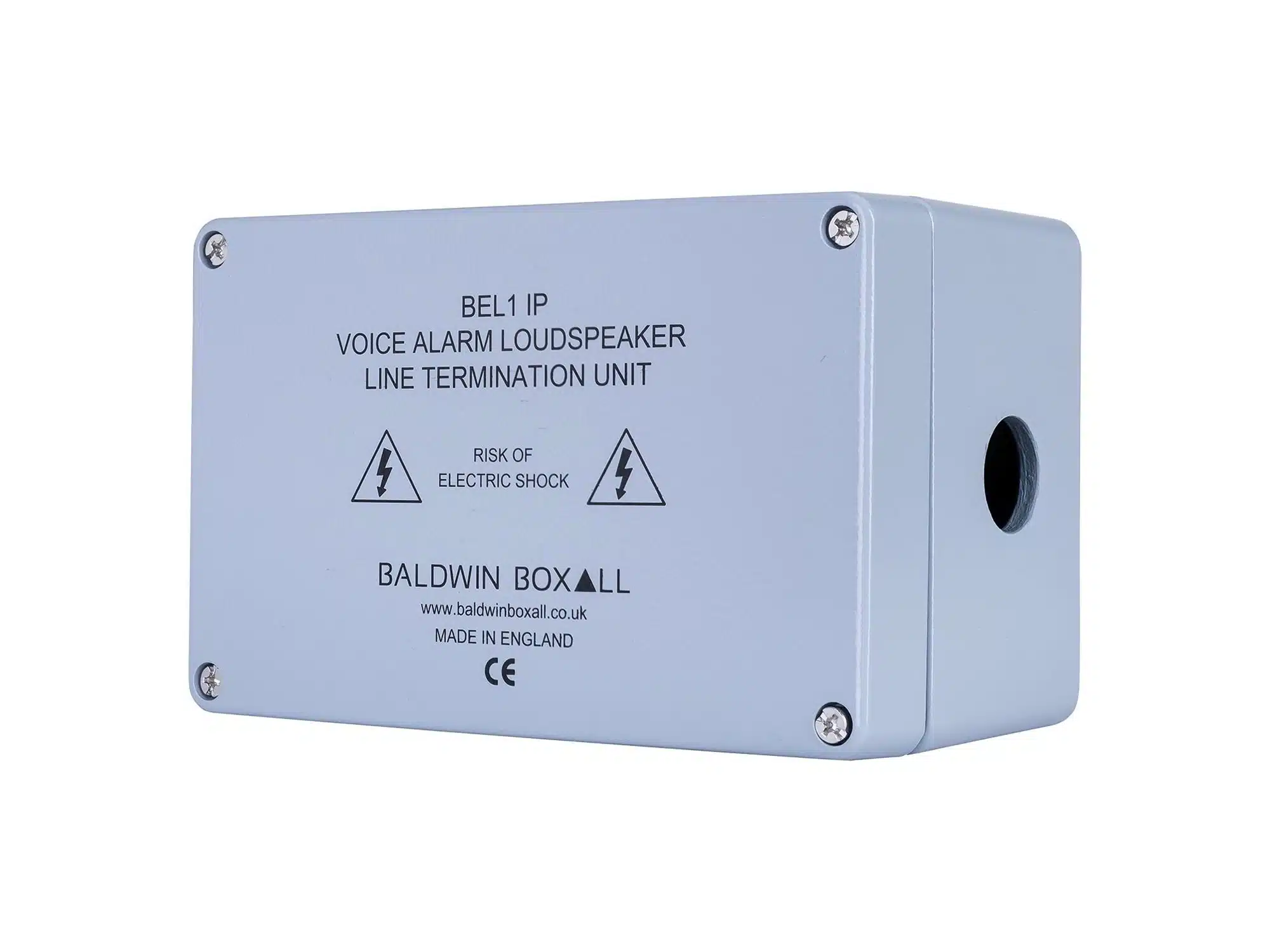

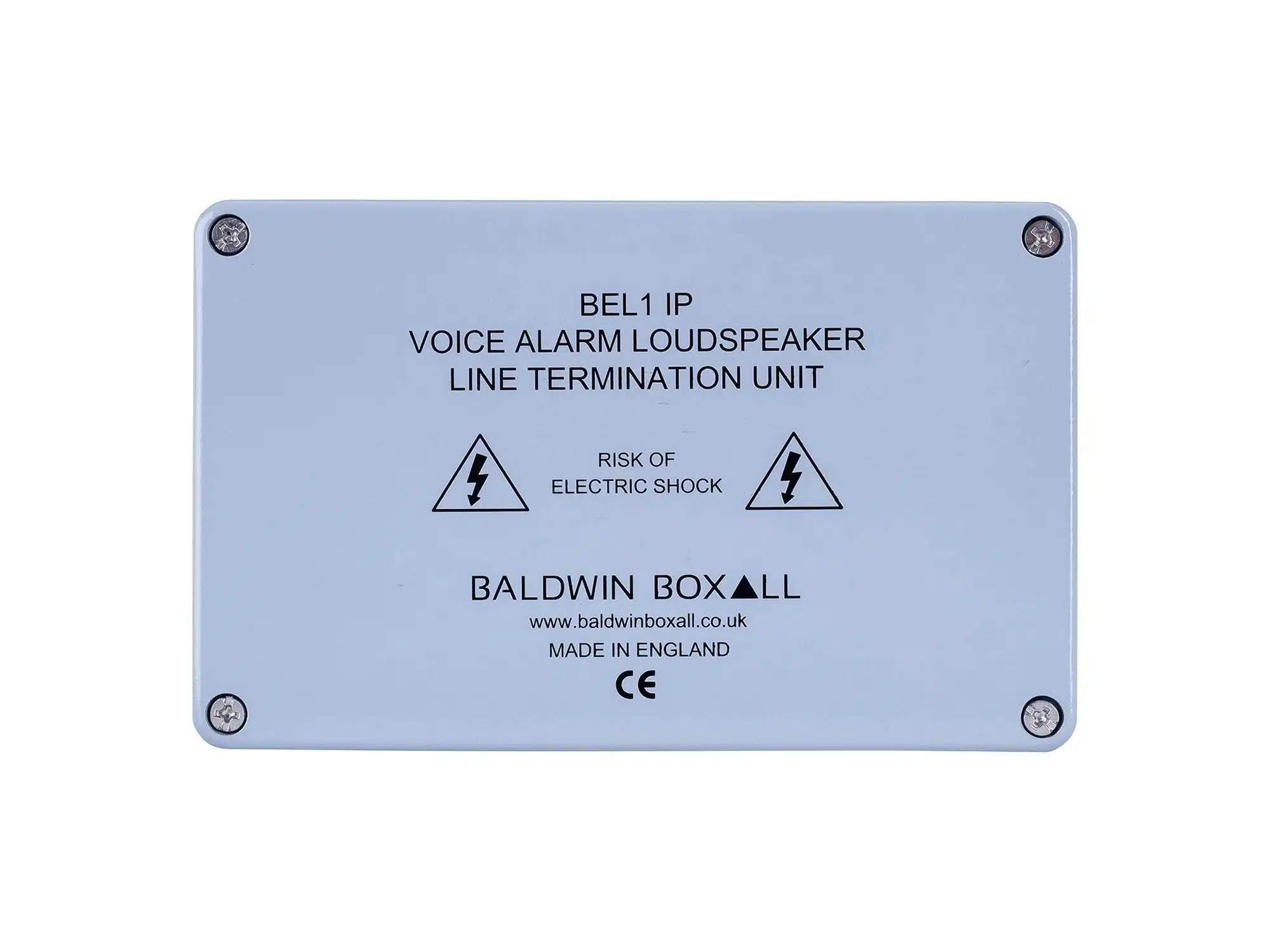

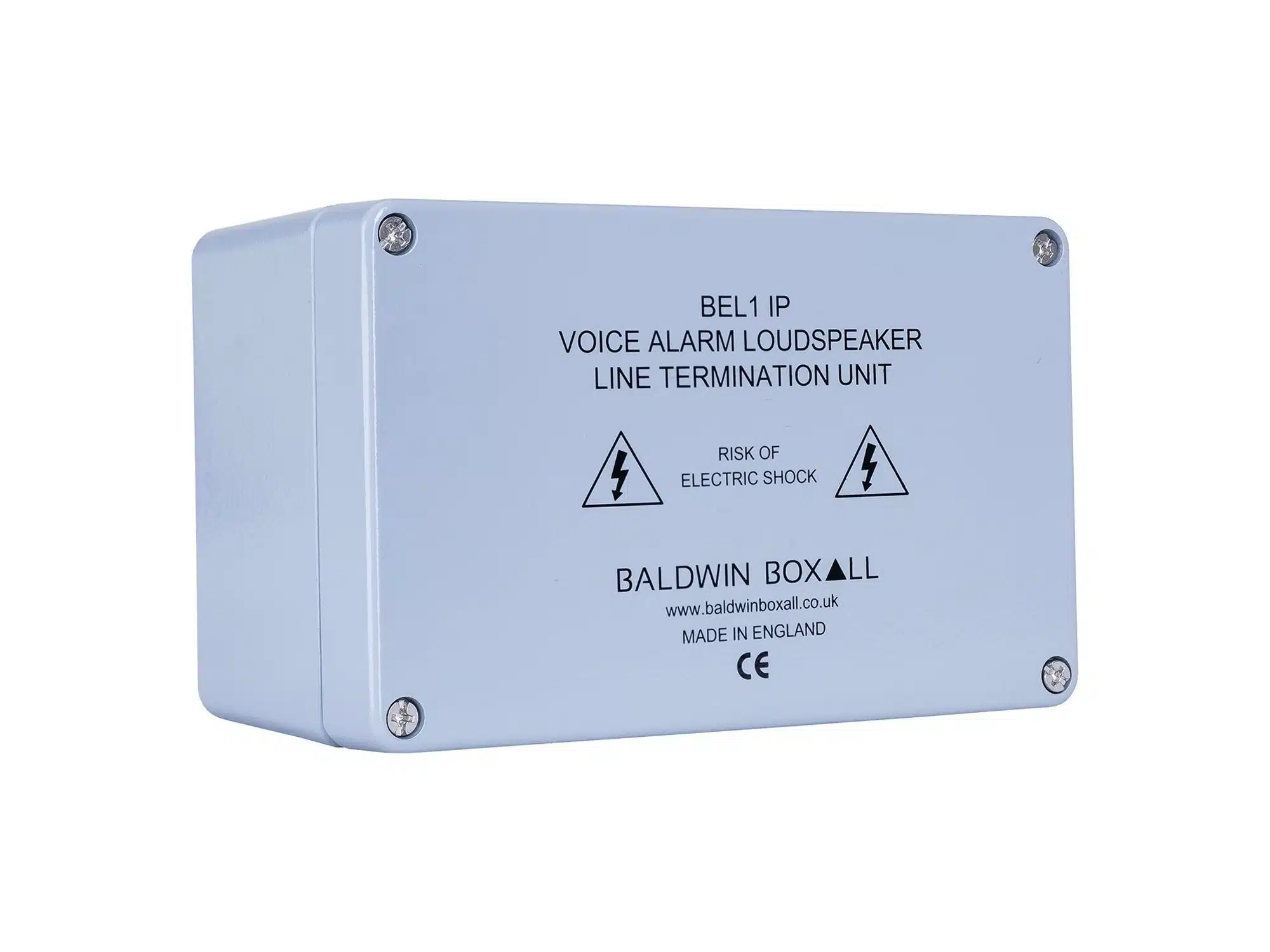

BEL1IP
End of Line monitor
Weatherproof version of the BEL1
160mm x 100mm x 82mm

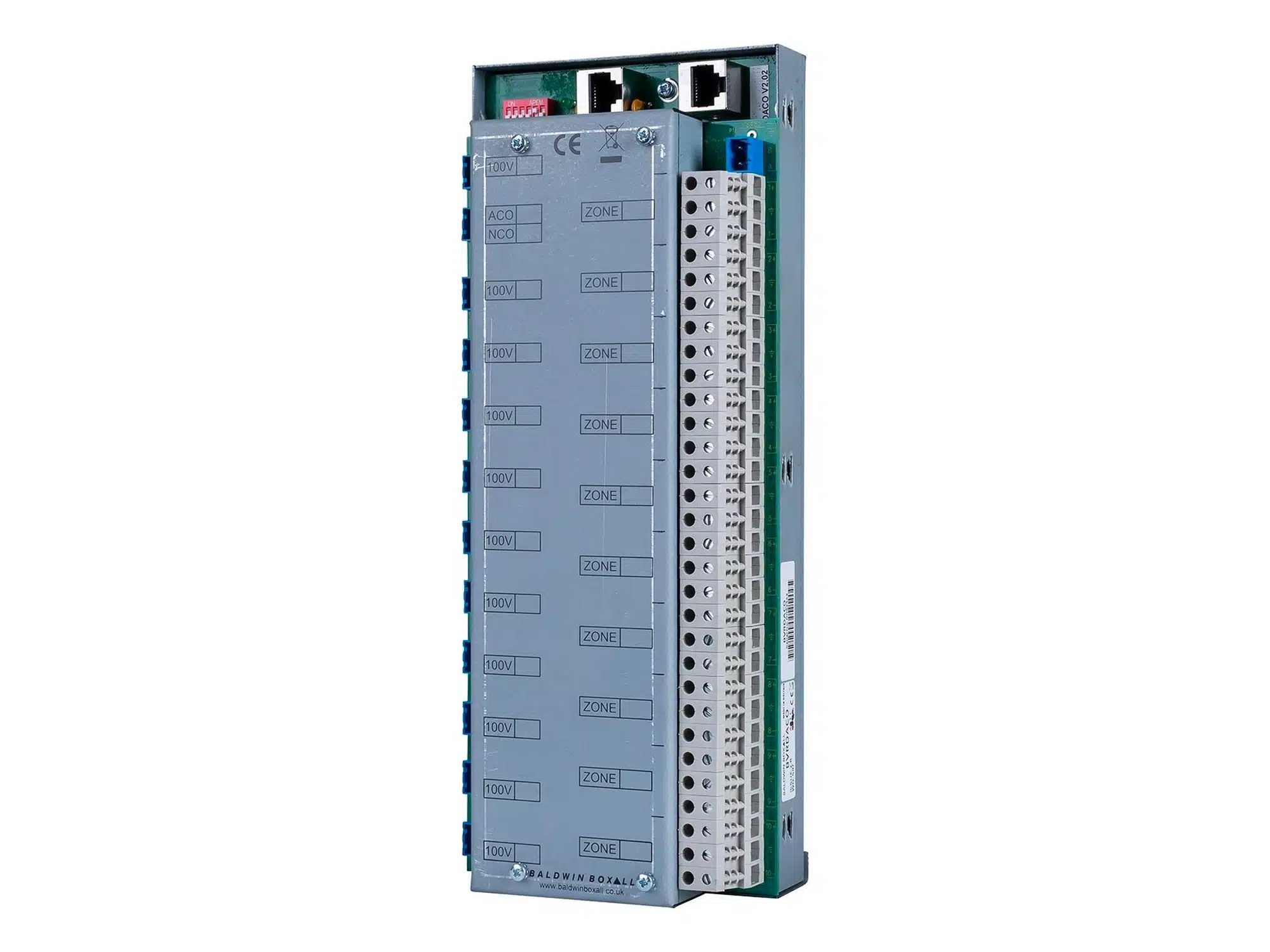

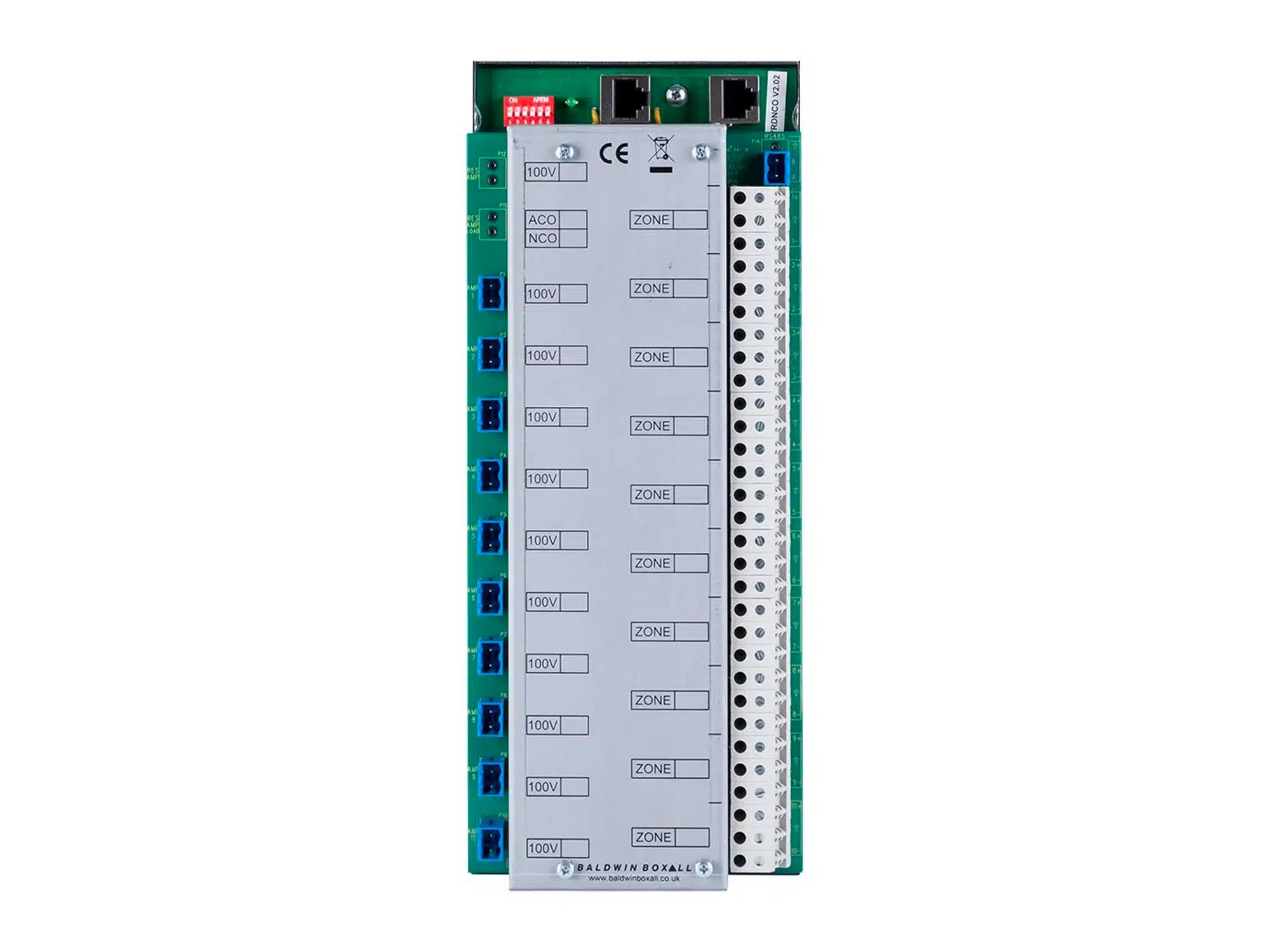

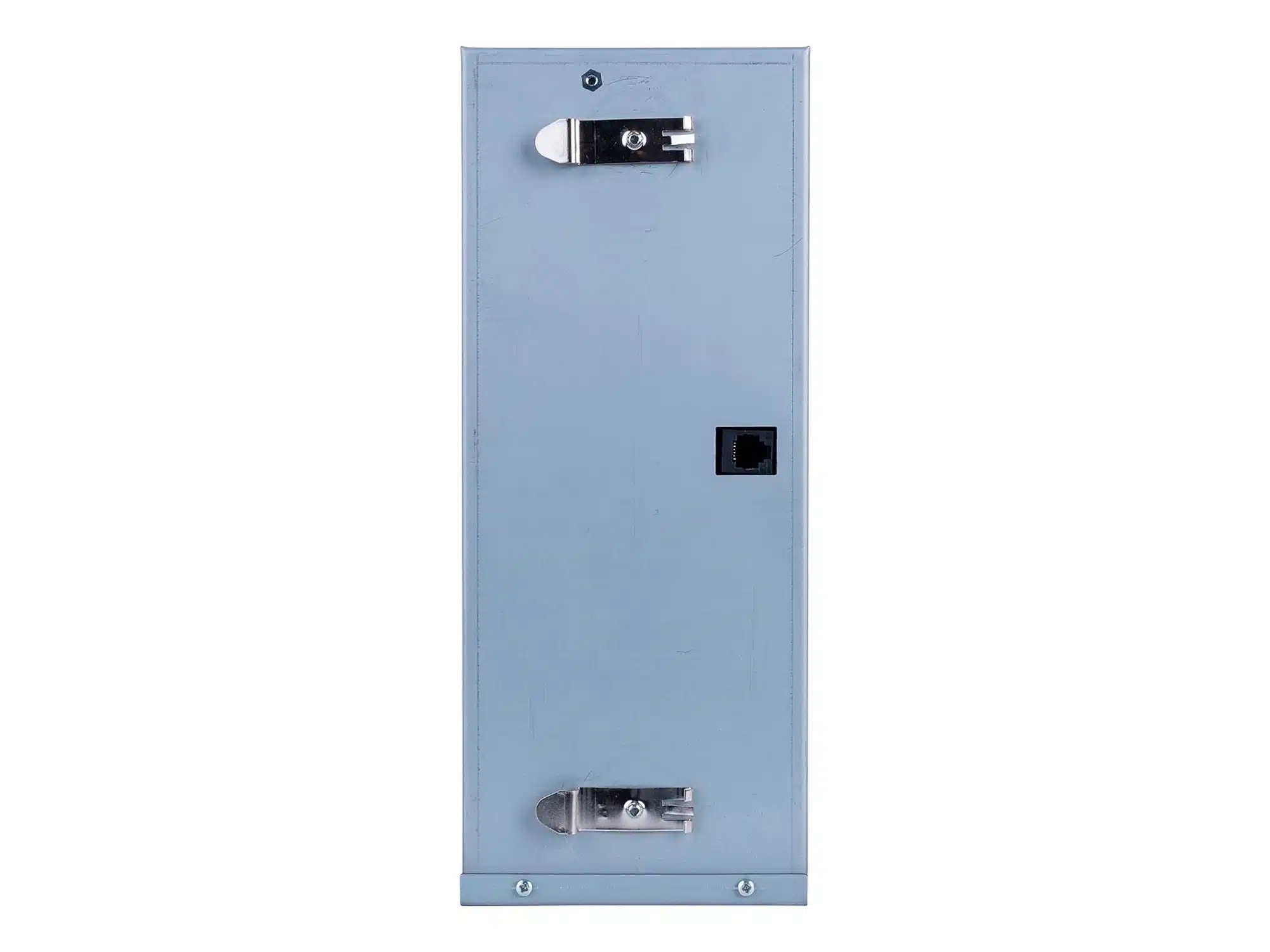

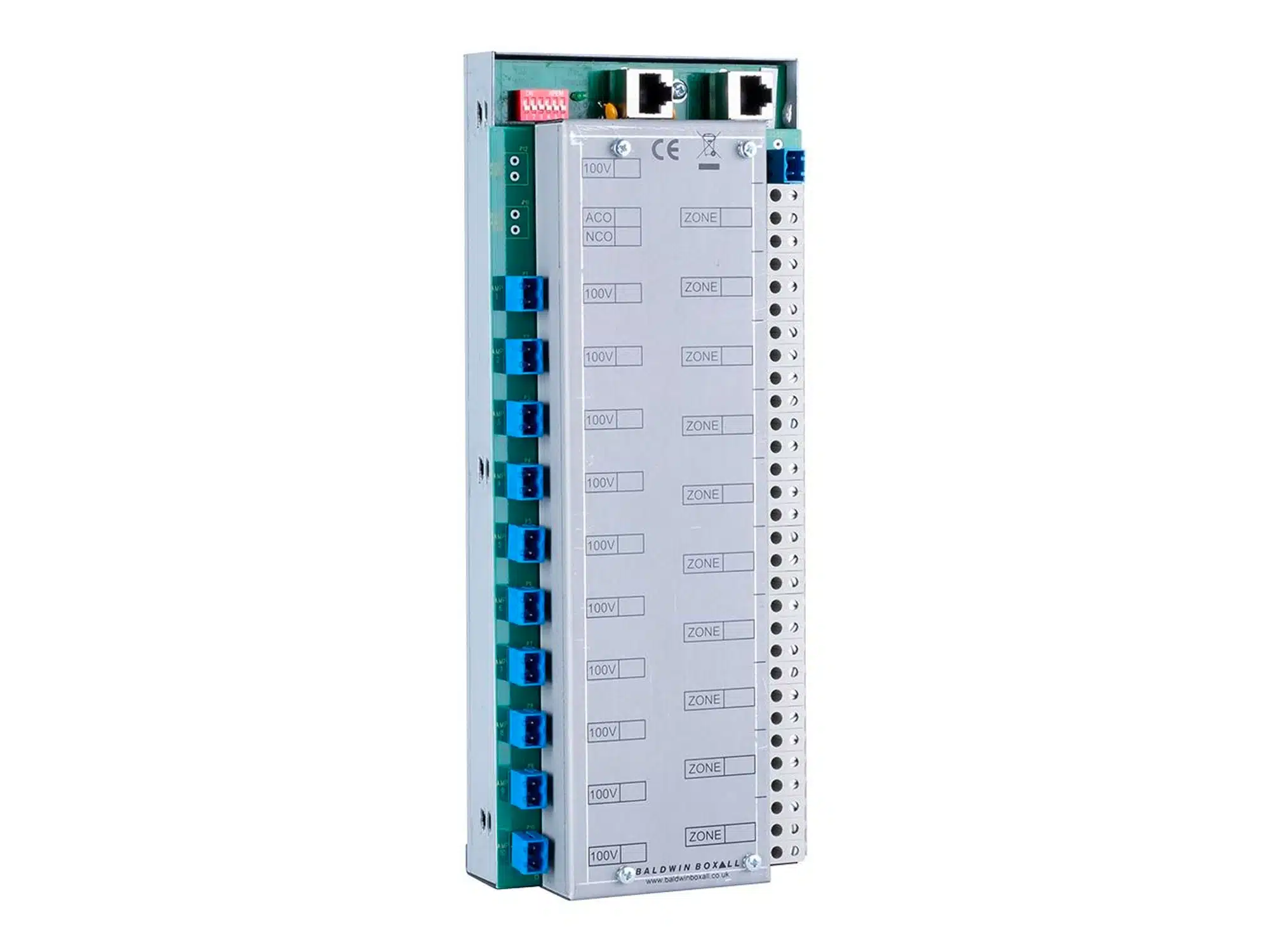

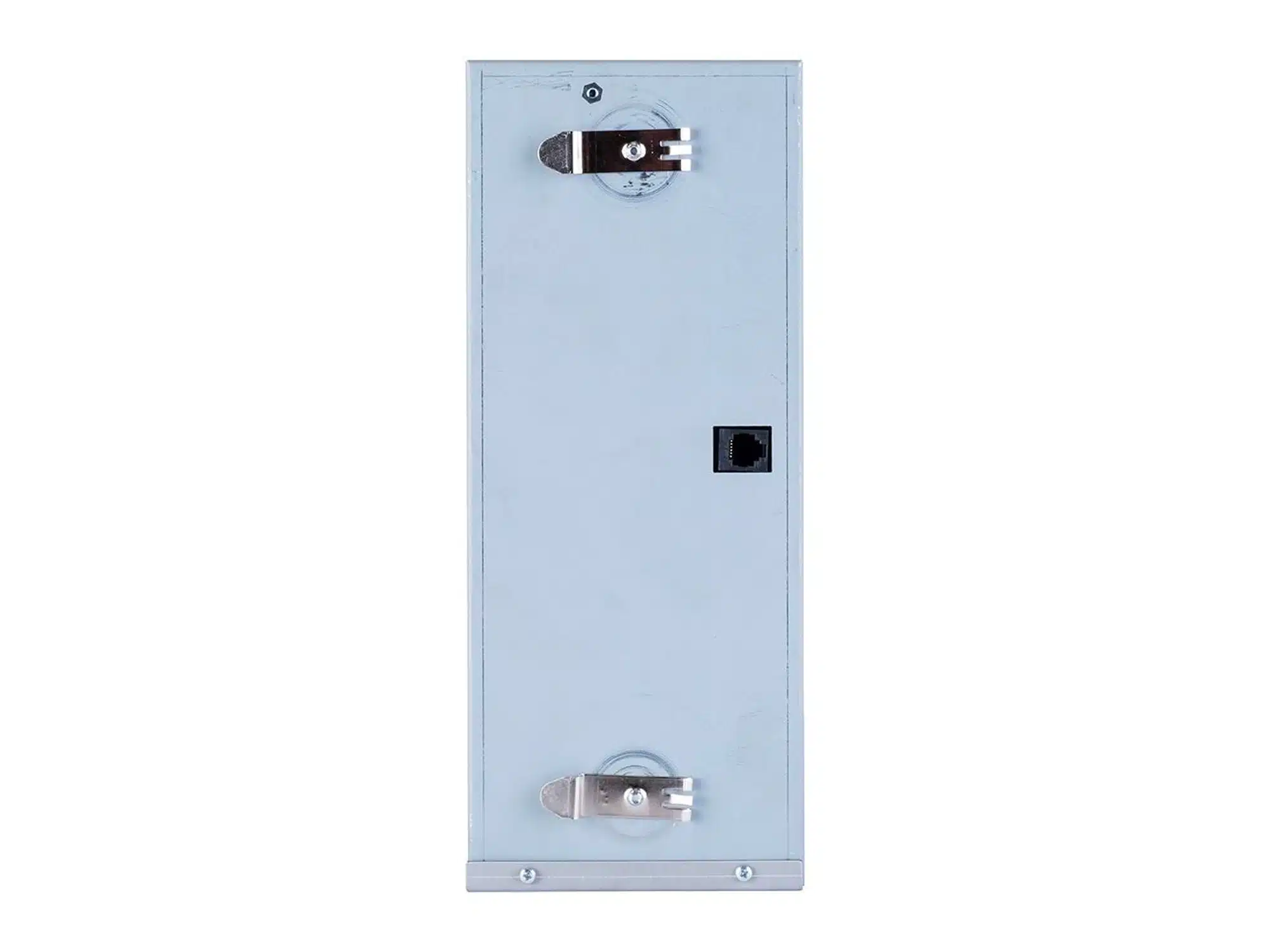

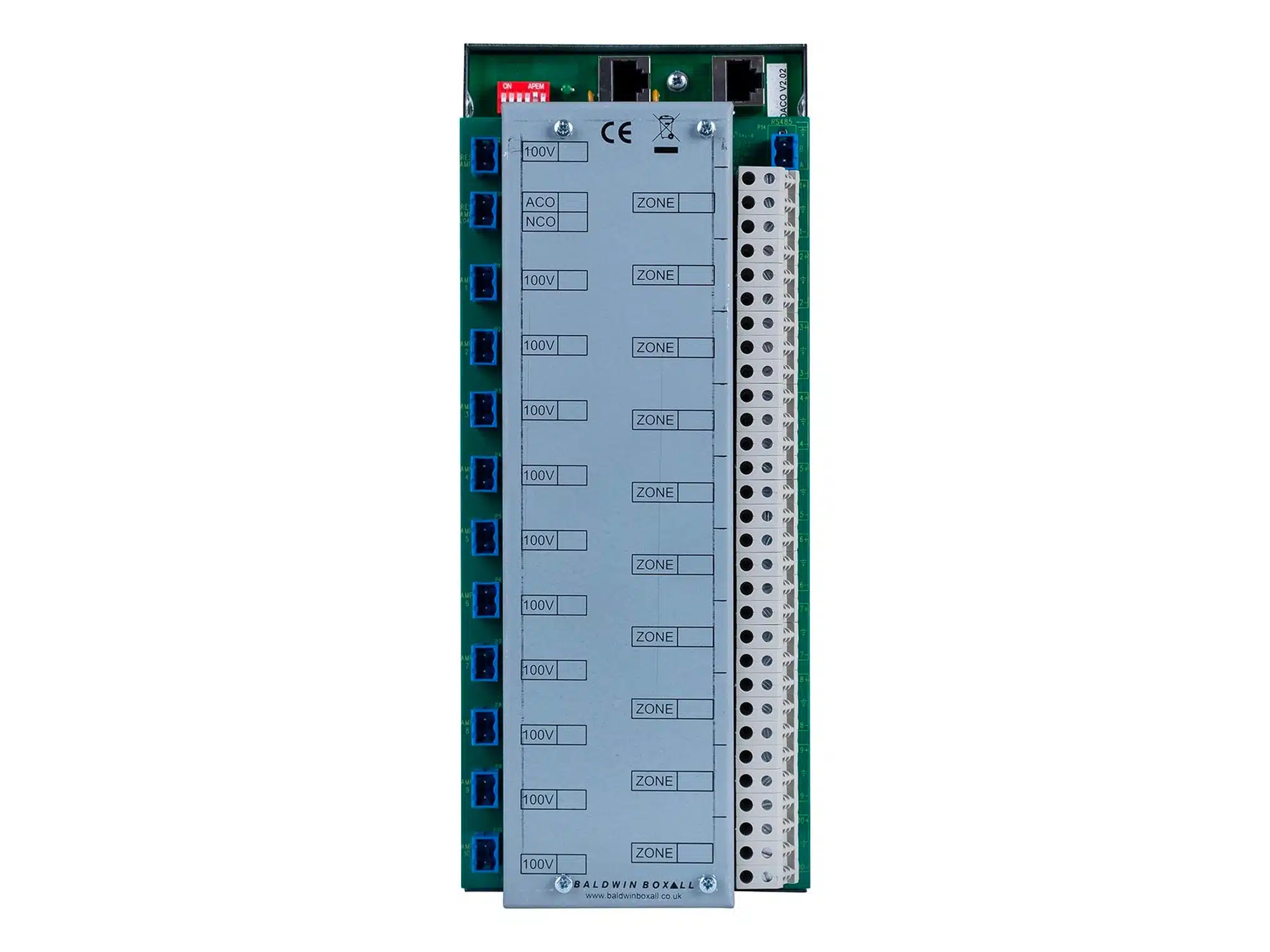

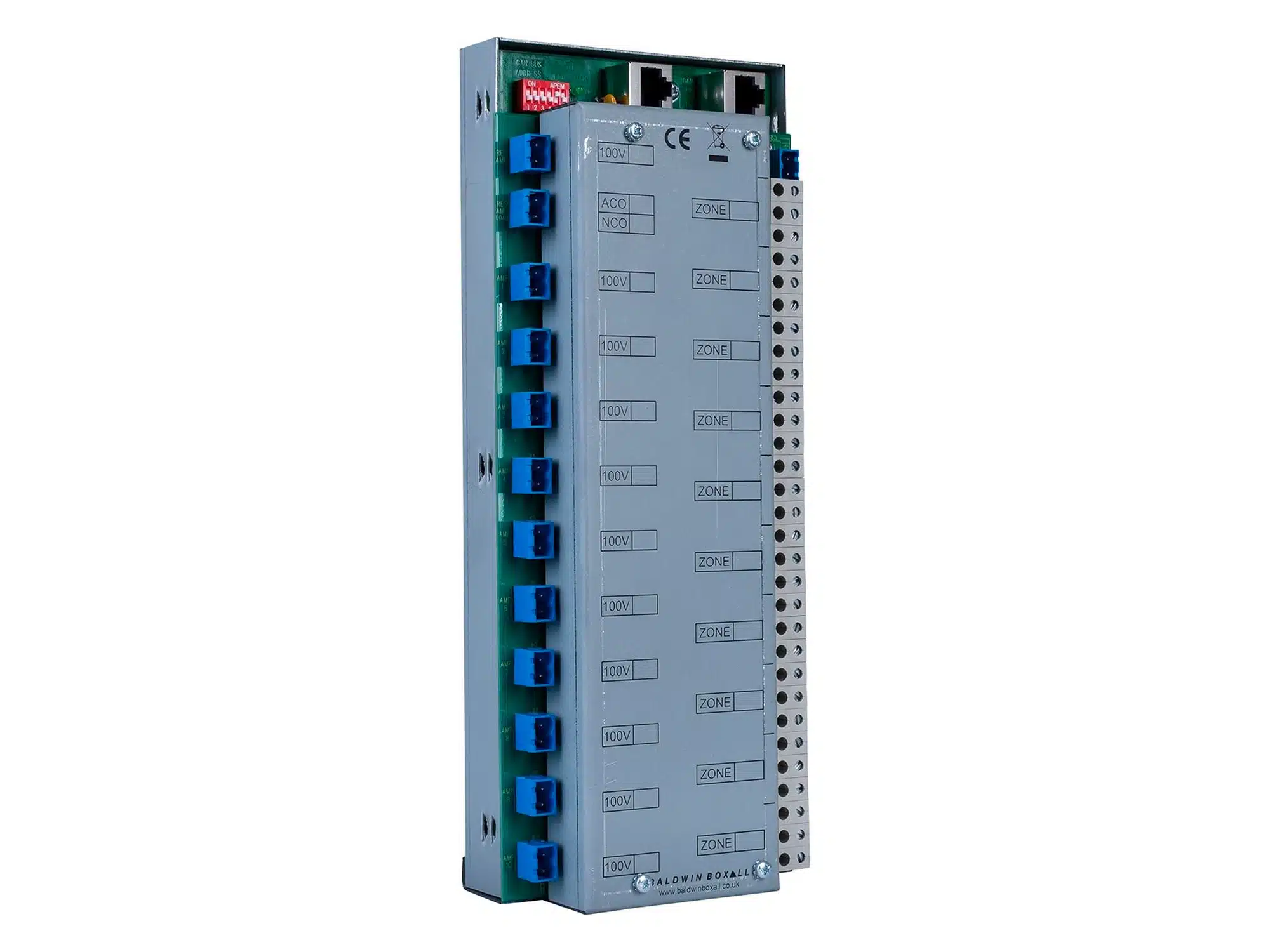

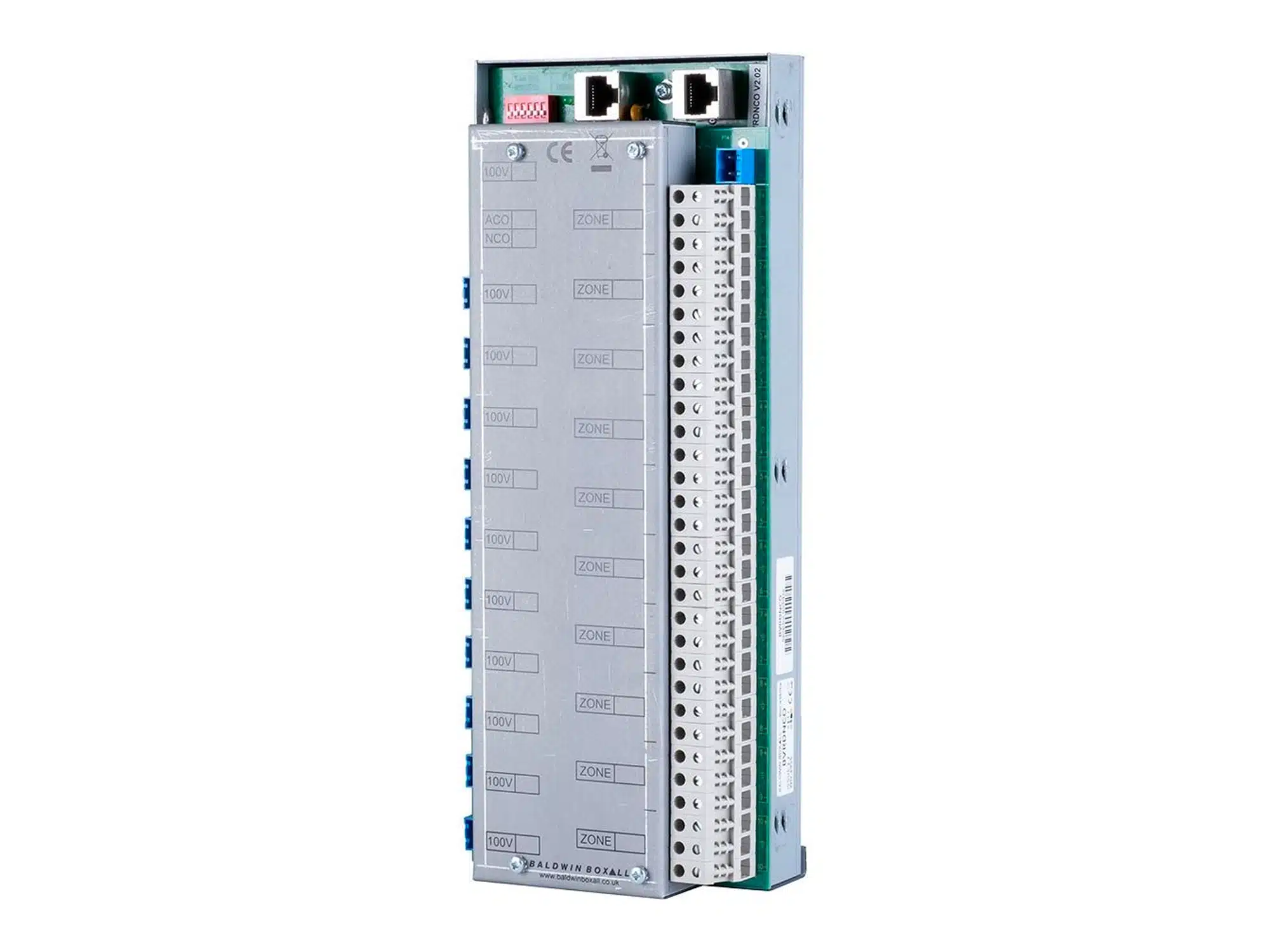

BVRDACO / BVRDNCO
Amplifier/Line monitor
DIN rail mounted
With / without Automatic amplifier changeover

BVRDADC
DC Line monitor
DIN rail mounted

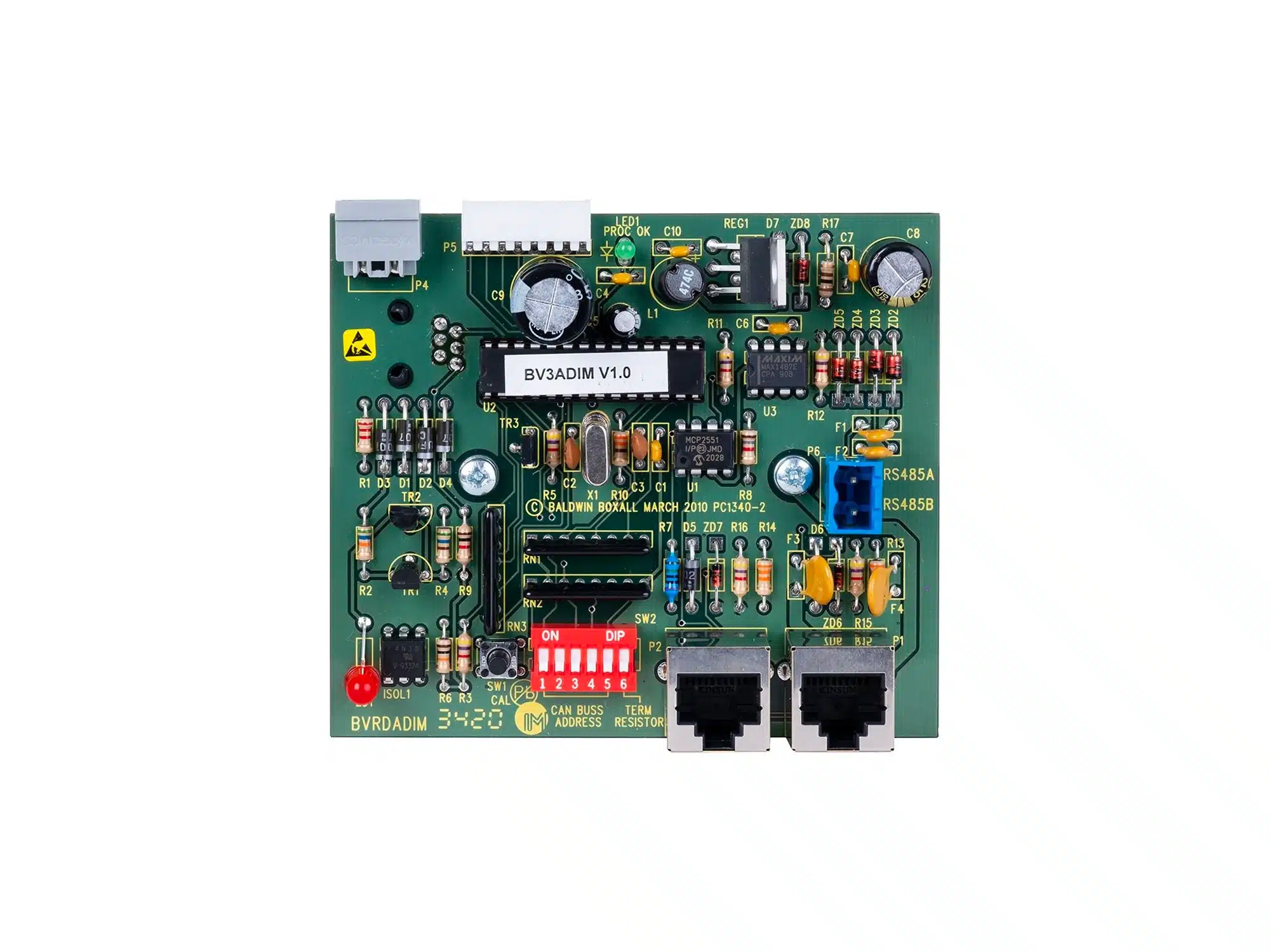

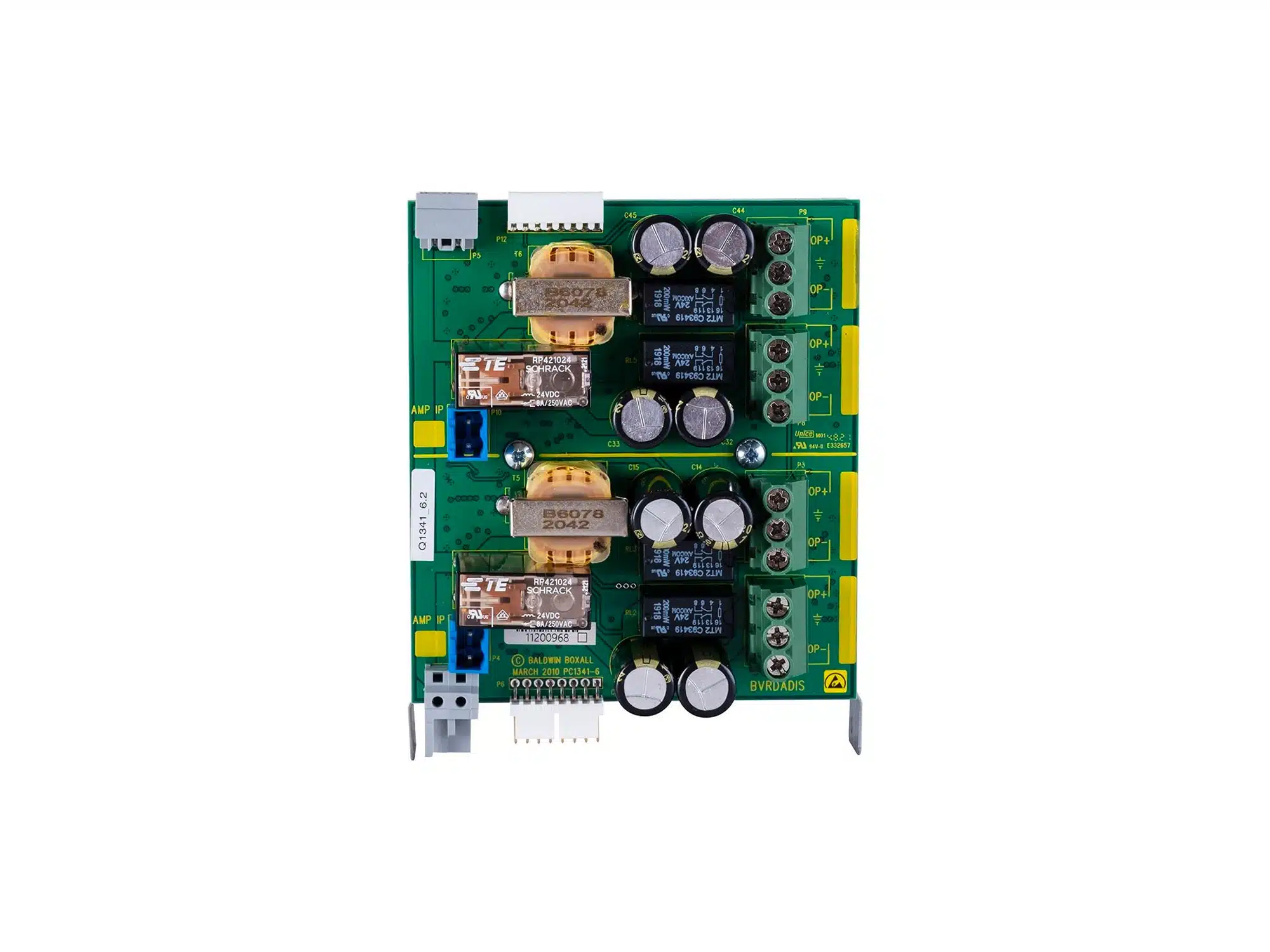

BV3ADIM / BV3ADIS
DC Line monitor/isolator
DIN rail mounted
Master / slave

BVLAM
Impedance monitor
DIN rail mounted
Not suitable for UK

Safe & Compliant

EN54 Certified

BS EN 54: Fire Detection & Fire Alarm Systems, is a mandatory standard that specifies requirements and laboratory testing for every component of fire detection and fire alarm system.

UKCA UK Conformity Assessed

UKCA (UK Conformity Assessed) marking on products replaces CE marking in the UK and requires that certification of construction products, such as VACIE / Voice Alarm Control & Indicating Equipment is performed by a UK-based approved body.

British Standards BS5839-8 Code of Practice
BS 5839-8 is a BSI Standards Publication code of practice providing recommendations for the design, installation, commissioning, and maintenance of voice alarm systems that automatically broadcast speech or warning tones, in response to signals from their associated fire detection and fire alarm systems.
